RJ45 Network Interface 10G Integrated Filtering 10P8C DGKYD511Q337AB2A2DB1057 10G 30U IC Device Connector
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD211Q575AA2A7CBS2057 (2.5G) |
|
Detail Information |
|||
| Product Name: | Rj45 Connector Jack | Number Of Ports: | Single Port |
|---|---|---|---|
| Application: | PC,router,usb Hub Network Rj45 Etc. | Clamp Direction: | TAB-UP |
| LED Option: | With LED | PCB Mount: | Right Angle SMD |
| High Light: | RJ45 Gigabit Integrated Filter,2.5G Connector Network Connector,2.5G Rj45 Connector Jack |
||
Product Description

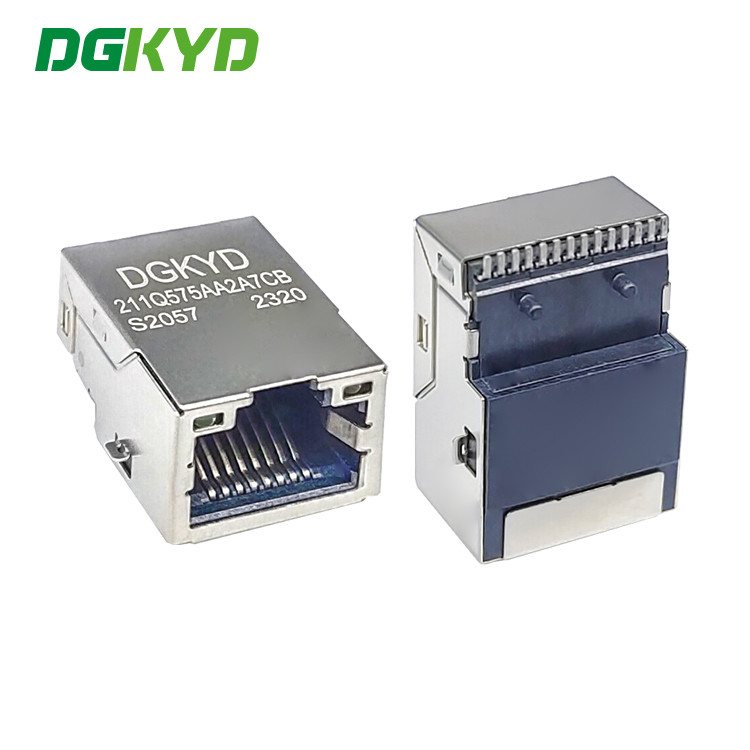

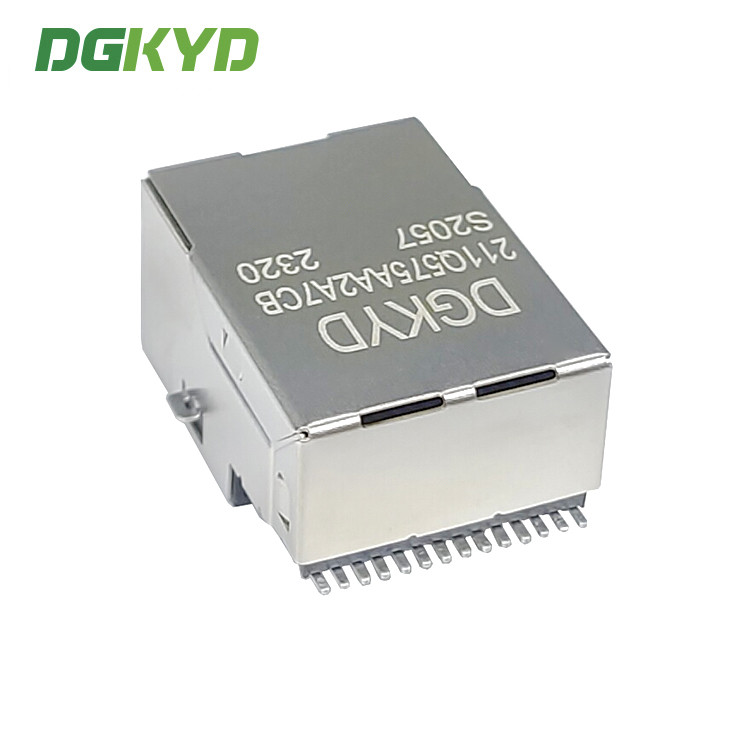

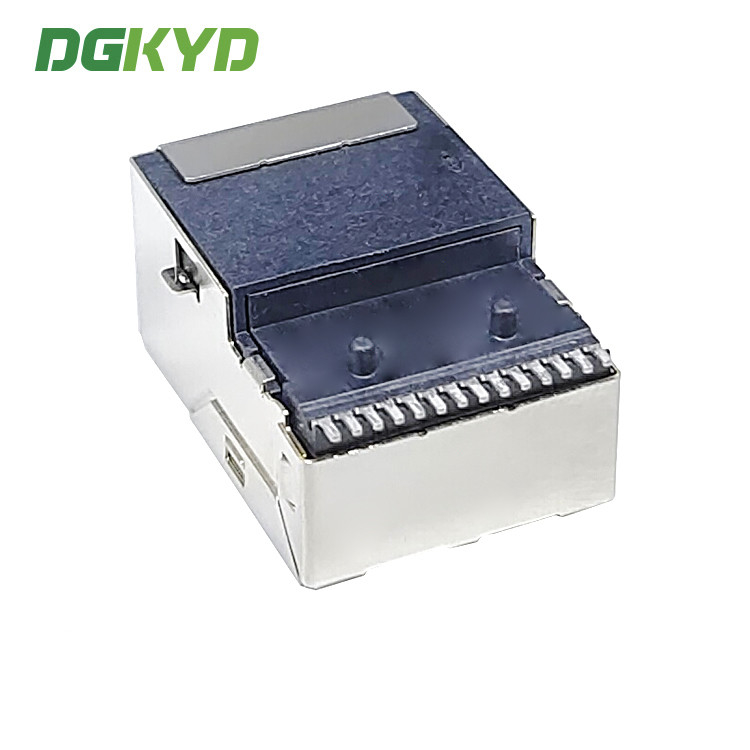

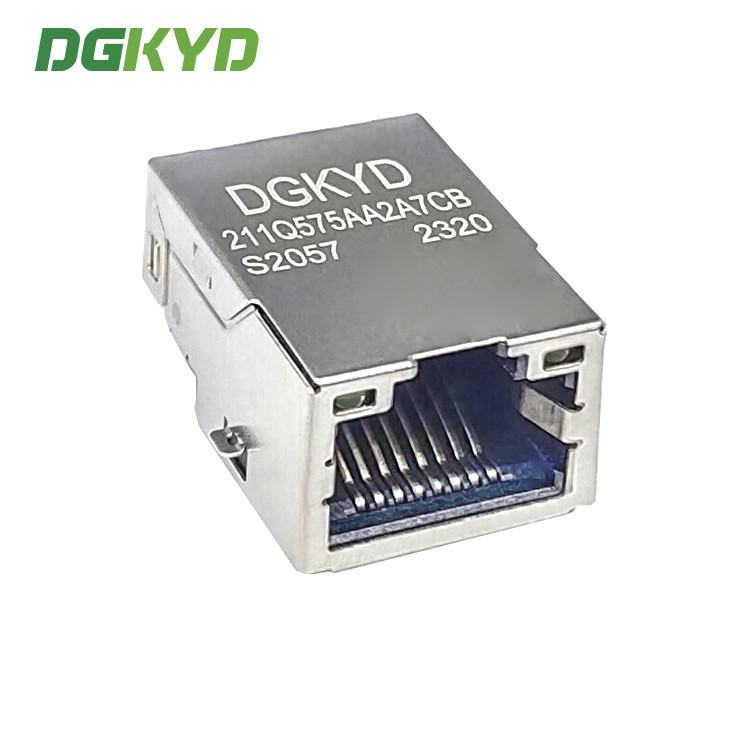

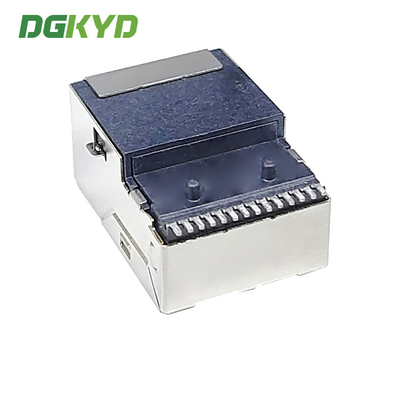

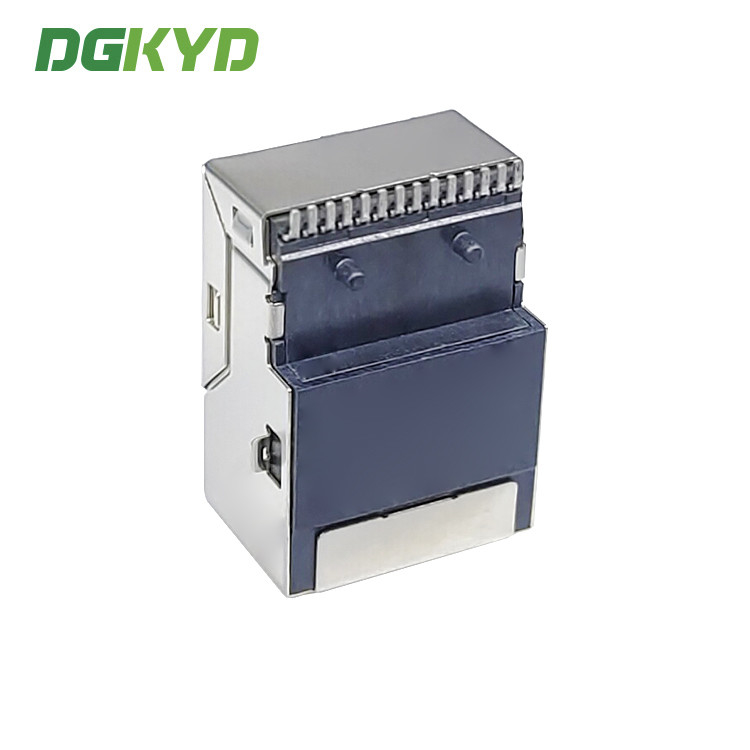

DGKYD211Q575AA2A7CBS2057 (2.5G) RJ45 Gigabit Integrated Filter Sink SMT 2.5G Connector Network Connector 6U LCP
Paramters
| Part Number | DGKYD211Q575AA2A7CBS2057 (2.5G) | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green / R-Yellow | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 2.5G | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Port | Number of Positions | 14 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawing
