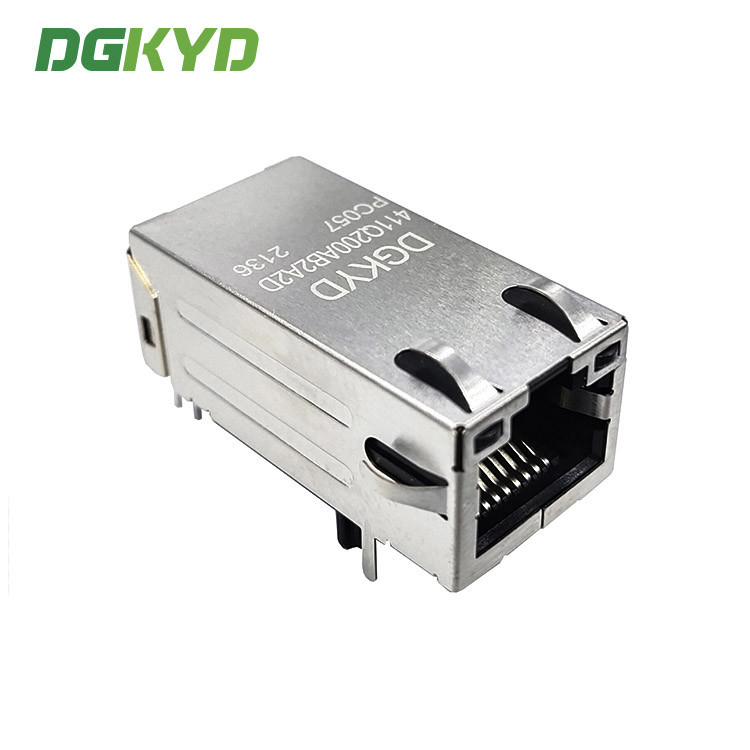

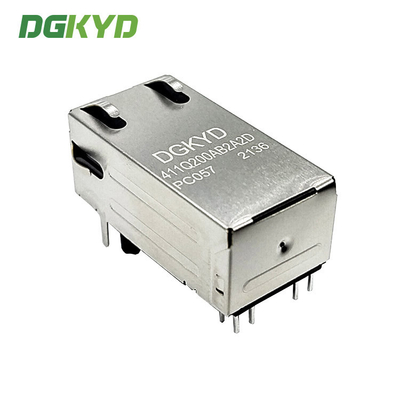

DGKYD411Q200AB2A2DPC057 50U 5G RJ45 Shielded Connector Single Port RJ45 Network Connector

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 4000 Tray in Carton Delivery Time : 15 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD411Q200AB2A2DPC057(5G)

Detail Information

Product Type: RJ45 5GConnector Encapsulation Method: Single In-line Package
PCB Mount Style: DIP Material: PA66
Shield: Brass Number Of Pins: 12
Dimension (mm): 16.31* 32.57*13.61 Gold Plating On Contact Pins: 50U
Storage Temperature: - 40 ℃ ~ 85 ℃ Speed: 10G
RJ45 Connector Tab Direction: Tap UP
High Light:

5G RJ45 Shielded Connector

,

PA66 RJ45 Shielded Connector

,

5G RJ45 Network Connector

Product Description

50U 5G RJ45 Shielded Connector Single Port RJ45 Network Connector



DGKYD411Q200AB2A2DPC057(5G) 50U RJ45 network connector single port 5G filter with light and shield PA66 12PIN



• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

• Through Continuous Improvements In Quality, Delivery And Service

• Delivery Time:2-3 Weeks After Orders

• Provide New Design For Customer Requirements



 Parameters

Part Number

DGKYD411Q200AB2A2DPC057(5G)

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Yes.Green/Yellow  Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions  12
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



Drawings

DGKYD411Q200AB2A2DPC057 50U 5G RJ45 Shielded Connector Single Port RJ45 Network Connector 0DGKYD411Q200AB2A2DPC057 50U 5G RJ45 Shielded Connector Single Port RJ45 Network Connector 1DGKYD411Q200AB2A2DPC057 50U 5G RJ45 Shielded Connector Single Port RJ45 Network Connector 2
