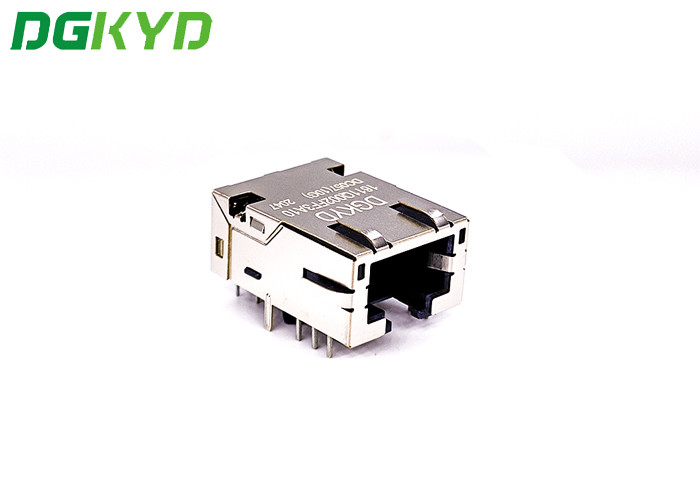

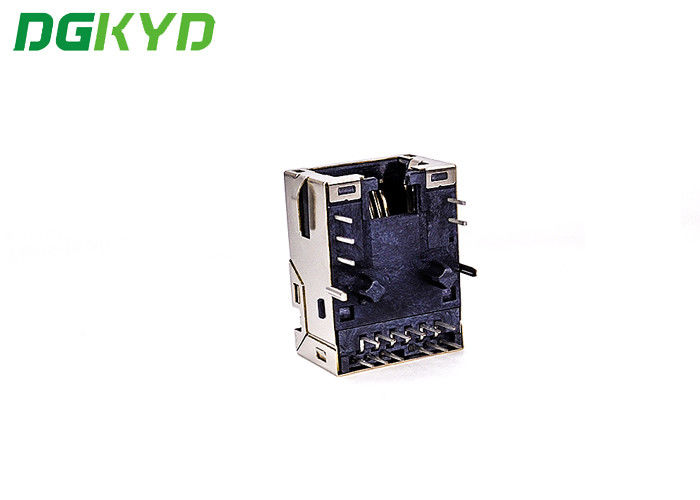

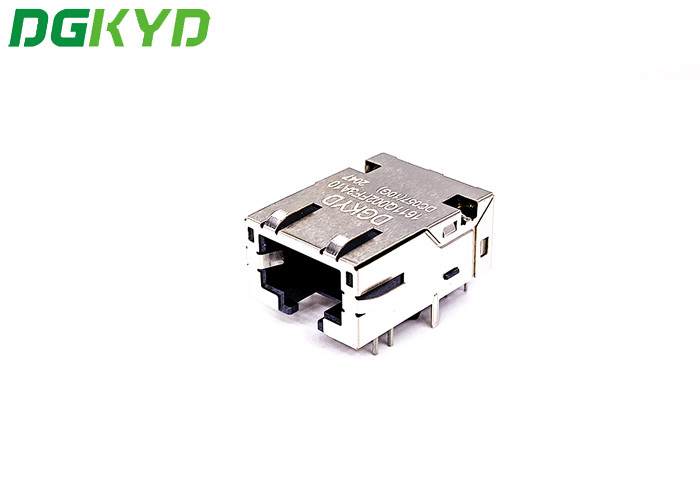

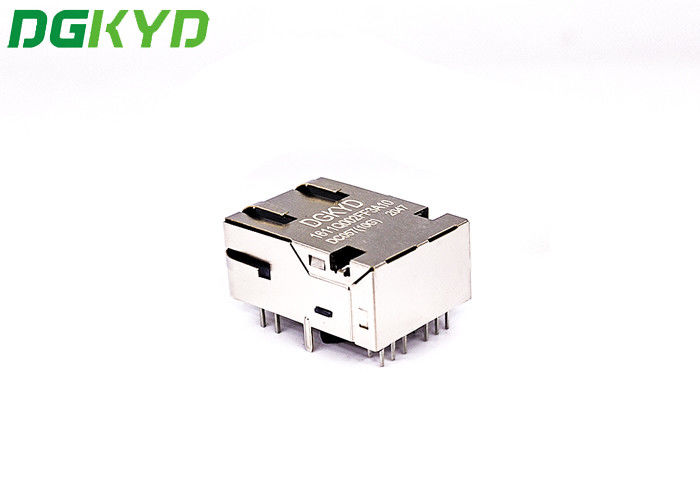

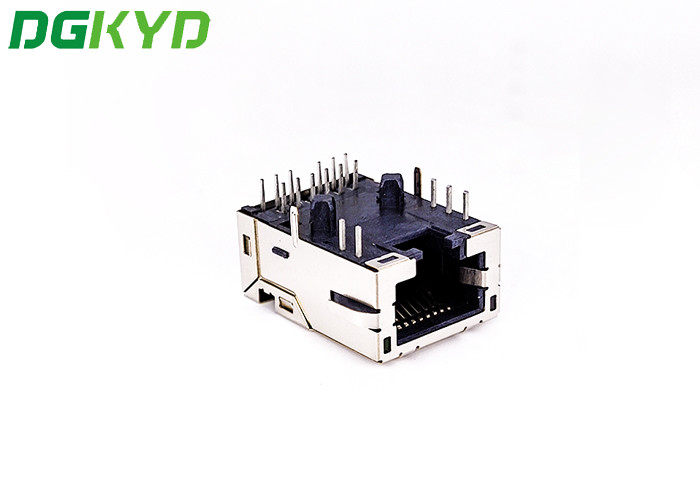

DGKYD1611Q002FF3A2DB2057(2.5G) 2.5G TAB DOWN 23.88mm RJ45 Ethernet Jack With LED

Minimum Order Quantity :	1 piece	Price :	Negotiable
Packaging Details :	1080pcs/carton	Delivery Time :	7-14days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Supply Ability :	60000pcs per day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD1611Q002FF3A2DB2057(2.5G)

Detail Information
Product Name:	RJ45 Ethernet Connector	Number Of Ports:	Single Port
Clamp Direction:	TAB-DOWN	Integrated Transformer:	2.5G
PCB Mount Style:	DIP	LED Option:	With LED
Product Standard:	Meets IEEE 802.3 Specification.	Housing Material:	LCP Black
Highlight:	23.88mm RJ45 Ethernet Jack , 10G RJ45 Ethernet Jack , TAB DOWN rj45 internet connector

Product Description

DGKYD1611Q002FF3A2DB2057(2.5G) RJ45 10G TAB-DOWN 23.88mmWith LED PCB Retaining Post

Surface treatment

Texture,Plating,Painting,Powder coating,Anodization,Ball blasting

Description of RJ45

Part Number	DGKYD1611Q002FF3A2DB2057(2.5G)	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	L-Green/Yellow/R-Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	single Ports	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
