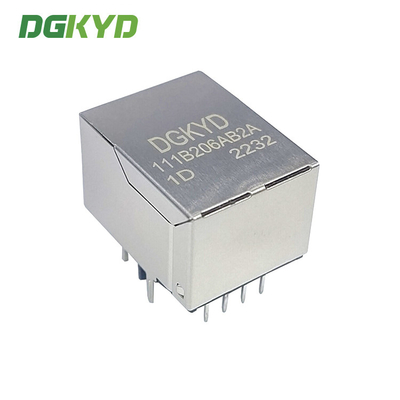

DGKYD111B206AB2A1D RJ45 Connector 100M Horizontal 90 Degrees Straight Plug With Light And Shield

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B206AB2A1D

Detail Information

Product Type: RJ45 100M Connector Encapsulation Method: Single In-line Package
PCB Mount Style: DIP Insulator Material: RJ45 Crystal Head
Contact Material: PBT Number Of Pins: 8
Number Of Cores: 8 Dimension (mm): 16* 21.1*13.45mm
Gold Plating On Contact Pins: 6U Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

DGKYD111B206AB2A1D

,

RJ45 Connector 100M

,

Straight Plug RJ45 With Transformer

Product Description

DGKYD111B206AB2A1D RJ45 connector 100M horizontal 90° straight plug with light and shield



Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



 Parameters

Part Number

DGKYD111B206AB2A1D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

DGKYD111B206AB2A1D RJ45 Connector 100M Horizontal 90 Degrees Straight Plug With Light And Shield 0DGKYD111B206AB2A1D RJ45 Connector 100M Horizontal 90 Degrees Straight Plug With Light And Shield 1DGKYD111B206AB2A1D RJ45 Connector 100M Horizontal 90 Degrees Straight Plug With Light And Shield 2DGKYD111B206AB2A1D RJ45 Connector 100M Horizontal 90 Degrees Straight Plug With Light And Shield 3

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
