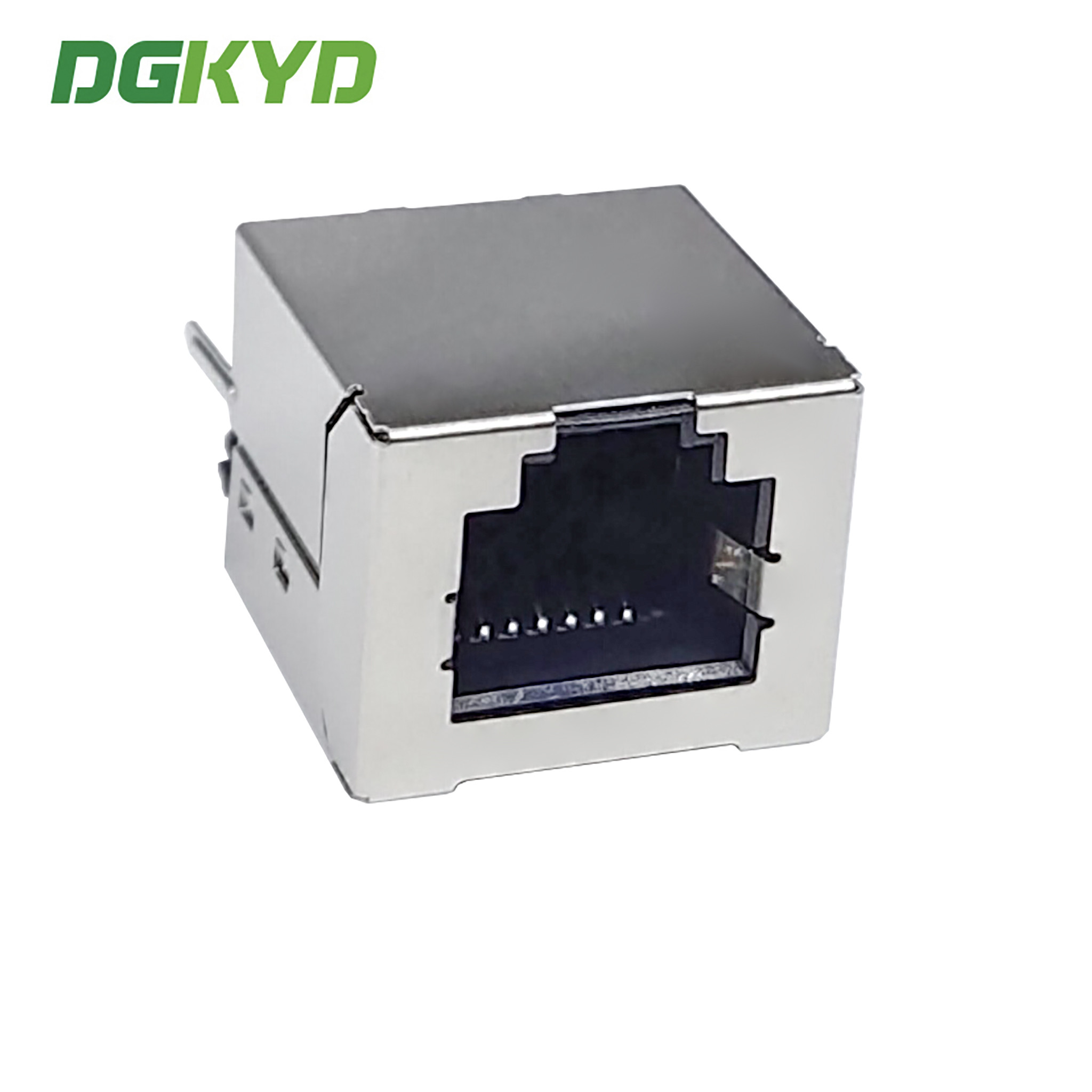

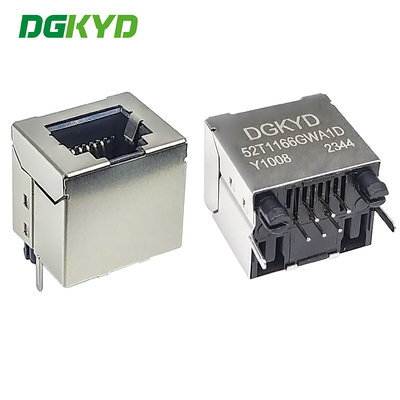

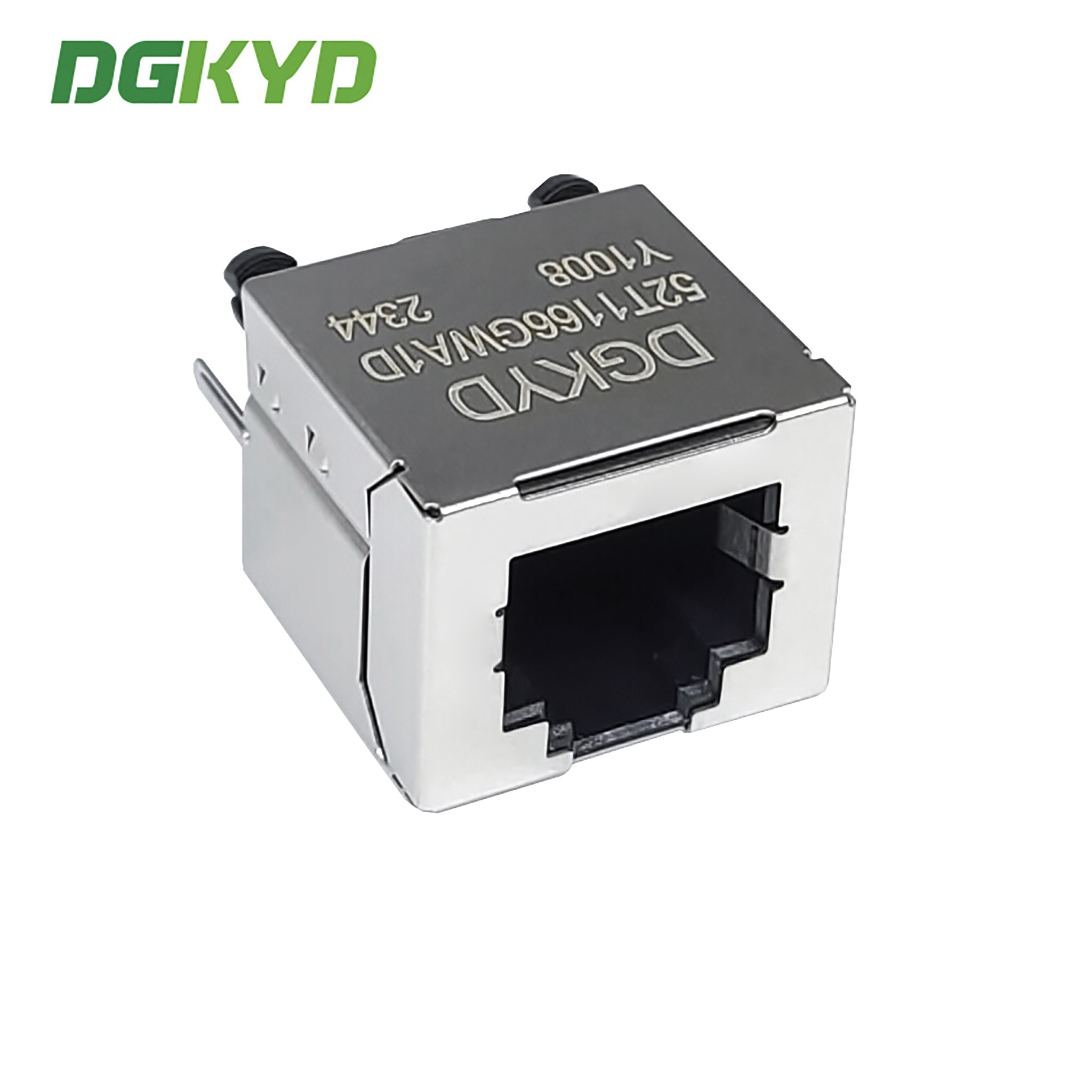

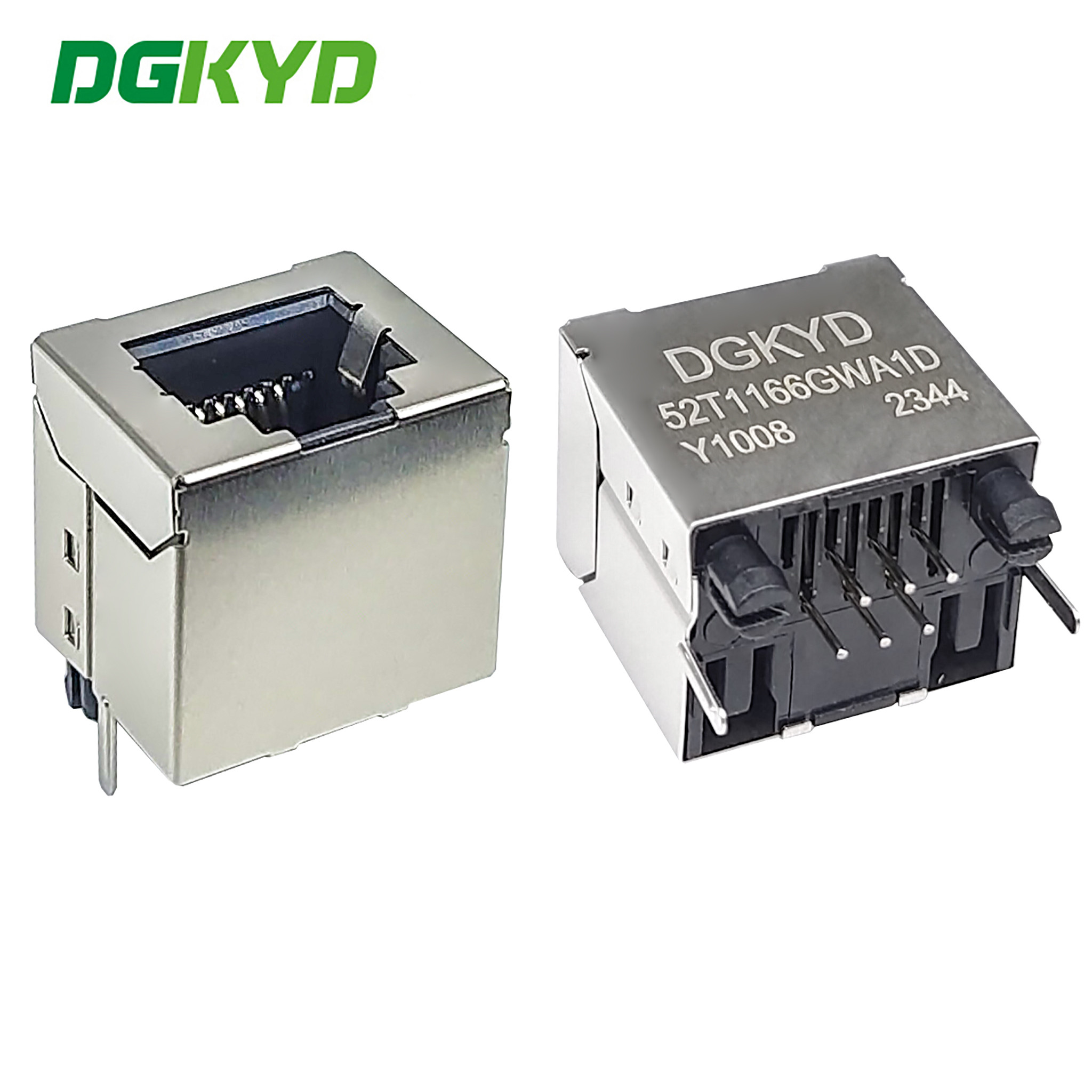

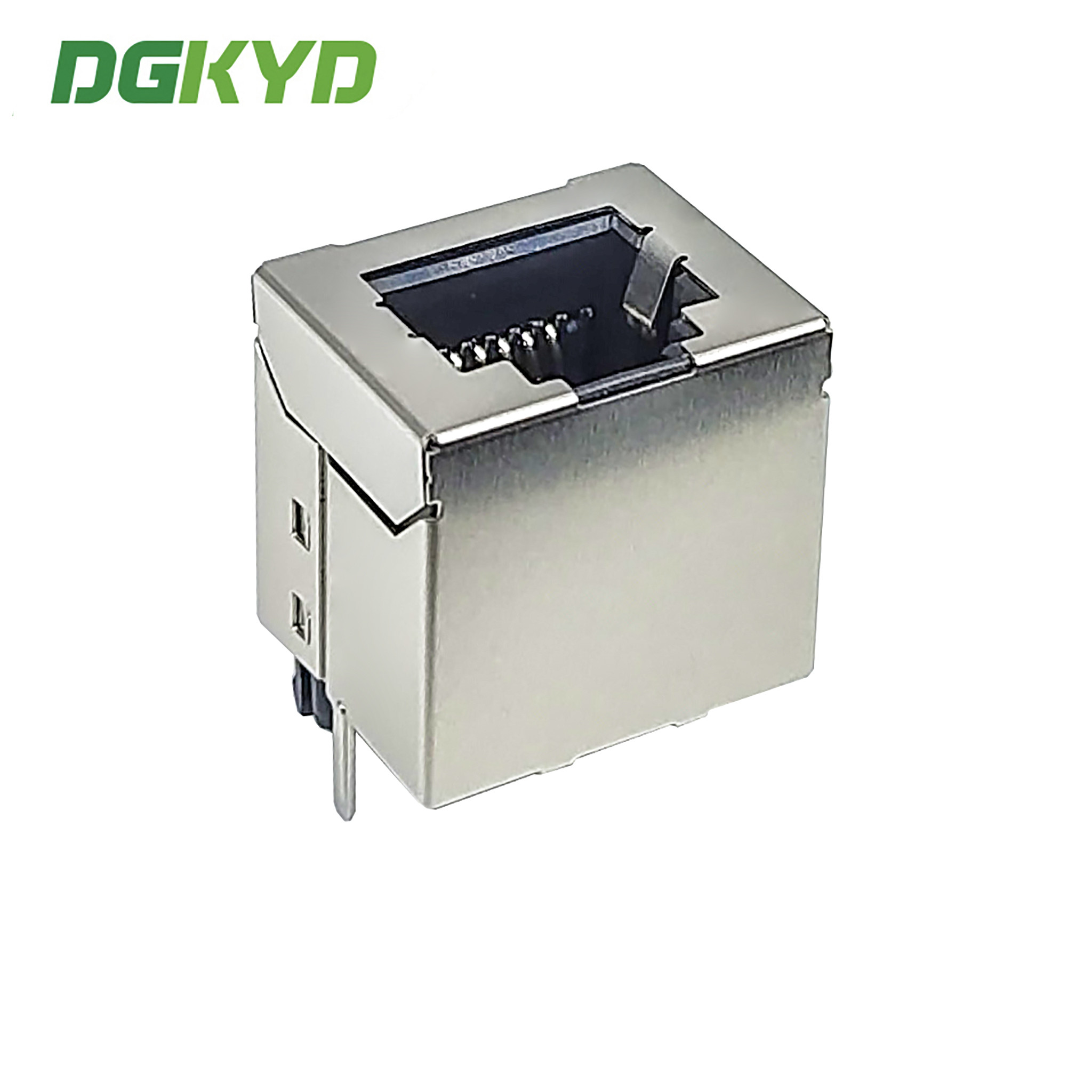

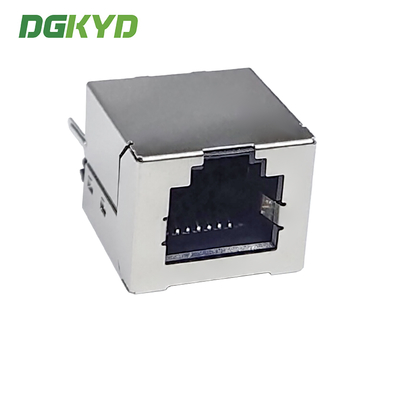

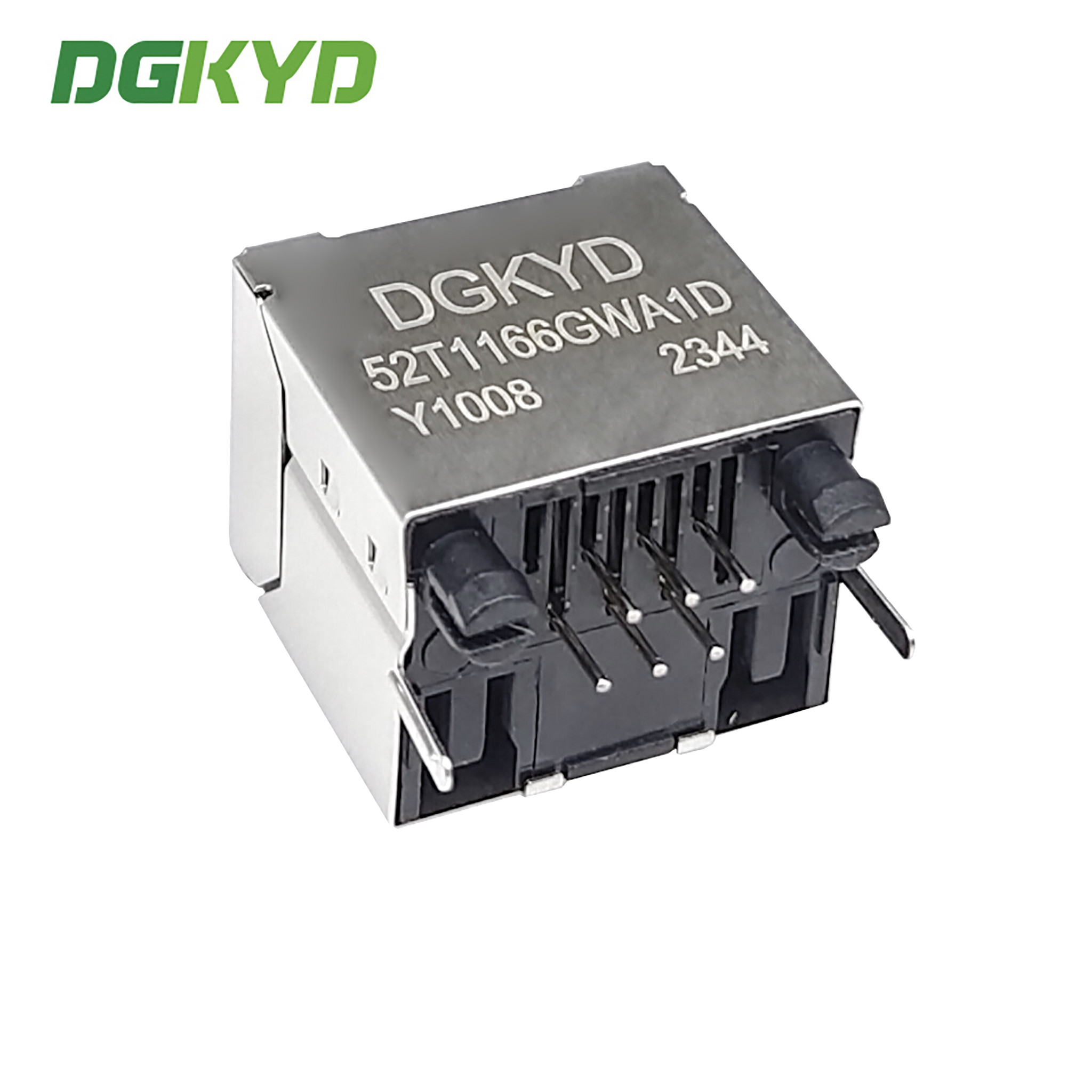

DGKYD52T1166GWA1DY1008 6P6C RJ11 Connector 180° Vertical Interface Without Light Strip Shielding Connector Empty Package

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 4800Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD52T1166GWA1DY1008

Detail Information

Product Type: RJ11 Voltage Rating: Jack
PCB Mount Style: DIP Shape: Rectangle
Number Of Positions/Contacts: 6p6c (RJ11, Ethernet) Filter: Without Filter
Latch: TAB-Down Dimension (mm): 16.6*13.3*15.8(mm)
Gold Plating On Contact Pins: G/FU Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

rectangle rj11 6p6c connector

,

vertical interface rj11 6p6c connector

,

TAB Down RJ11 Jack

Product Description



DGKYD52T1166GWA1DY1008 6P6C RJ11 connector 180° vertical interface without light strip shielding connector empty package





DGKYD52T1166GWA1DY1008 6P6C RJ11 Connector 180° Vertical Interface Without Light Strip Shielding Connector Empty Package 0

DGKYD52T1166GWA1DY1008 6P6C RJ11 Connector 180° Vertical Interface Without Light Strip Shielding Connector Empty Package 1


 Parameters

Part Number

DGKYD52T1166GWA1DY1008

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ11 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter Without Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions  6
Jack Configuration 1X1 Terminals per Port 6
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

DGKYD52T1166GWA1DY1008 6P6C RJ11 Connector 180° Vertical Interface Without Light Strip Shielding Connector Empty Package 3
