DGKYD811Q008FN9A2DB057 Gigabit Integrated Transformer Ethernet Filter With Light Strip Shielding DIP 12PIN Modular Jack

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	1080Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD811Q008FN9A2DB057

Detail Information
Product Type:	RJ45 1000M Connector	Encapsulation Method:	Single In-line Package
PCB Mount Style:	DIP	Insulator Material:	RJ45 Crystal Head
Contact Material:	PA66	Number Of Pins:	12
Number Of Cores:	8	Dimension (mm):	17.78* 24.13*11.3mm
Gold Plating On Contact Pins:	30U	Operating Temperature:	- 40 ℃ ~ 85 ℃
Storage Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	RJ45 Modular Jack Integrated Transformer , DIP 12 Pin RJ45 Modular Jack , Ethernet Filter RJ45 With Transformer

Product Description

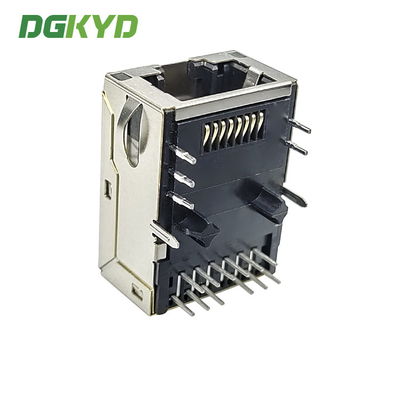

DGKYD811Q008FN9A2DB057 Gigabit integrated transformer Ethernet filter with light strip shielding DIP 12PIN modular jack

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number	DGKYD811Q008FN9A2DB057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	L-Orange/Green/R-Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

DGKYD811Q008FN9A2DB057 Gigabit Integrated Transformer Ethernet Filter With Light Strip Shielding DIP 12PIN Modular Jack 0
