1000BASE RJ45 Connector Network Interface Ethernet Filtering DGKYD111Q070BB1A1D
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
Minimum Order Quantity : | 1 piece | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 1080pcs/carton | Delivery Time : | 7-14days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
---|---|---|---|
Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD312B002DB1A4DN |
Detail Information |
|||
Product Name: | RJ45 Ethernet Jack | Housing Material: | PBT Black |
---|---|---|---|
Number Of Ports: | Multiport | Clamp Direction: | TAB-UP |
Gilded: | 6U | PCB Mount Style: | DIP |
LED Option: | Yellow/Green | Shield: | With Metal Shield |
Product Standard: | Meets IEEE 802.3 Specification | ||
Highlight: | 1x2 Dual Port Rj45 Connector,6U Dual Port Rj45 Connector,PBT Rj45 Connector With Transformer |
Product Description

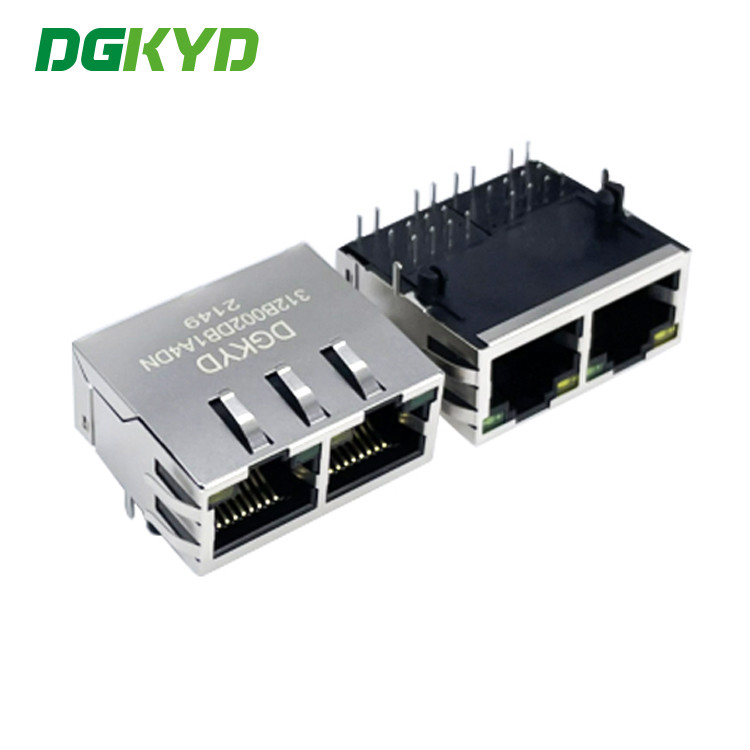

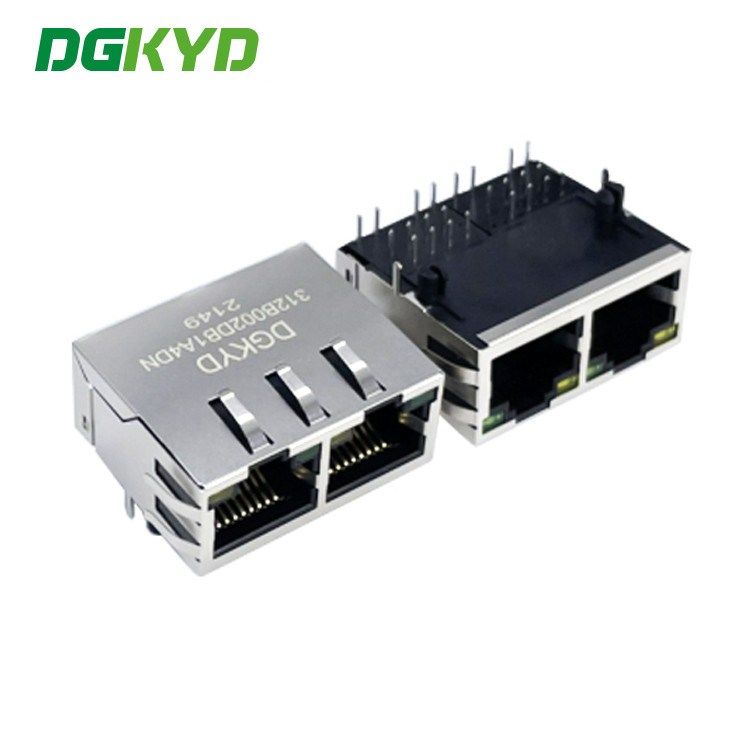

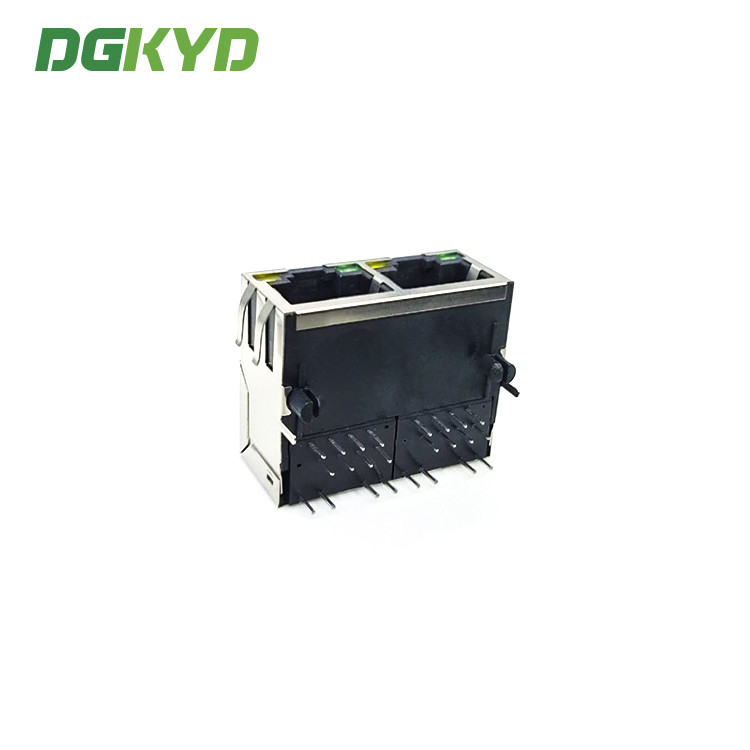

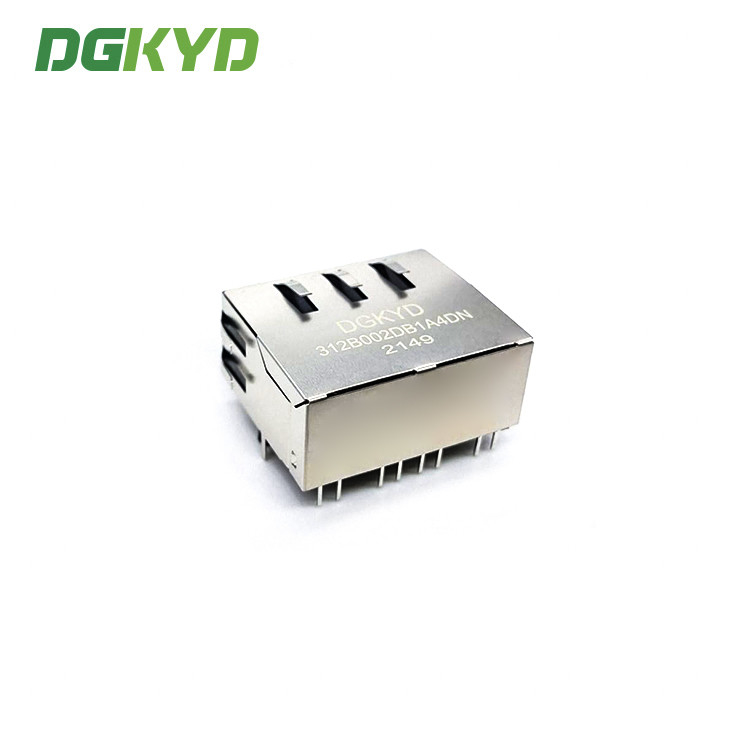

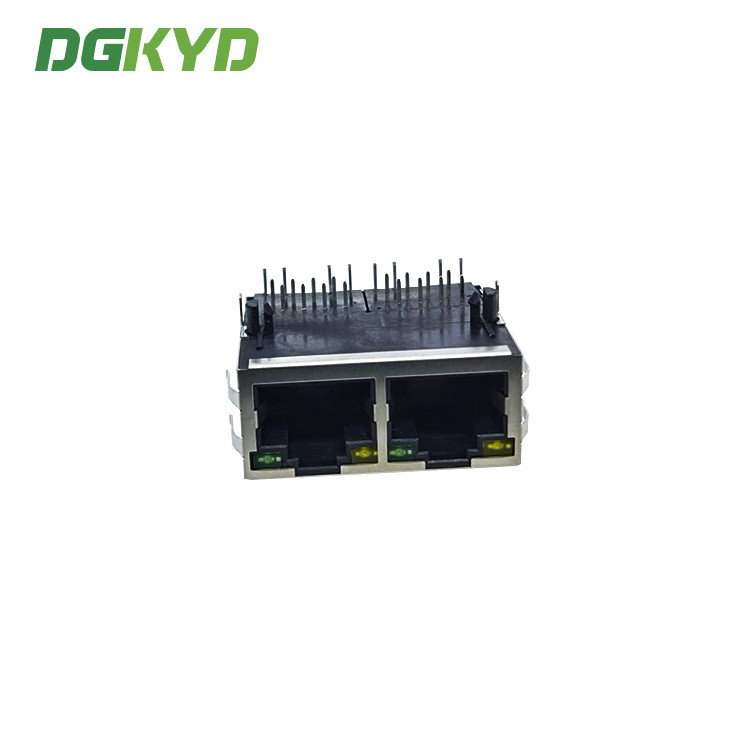

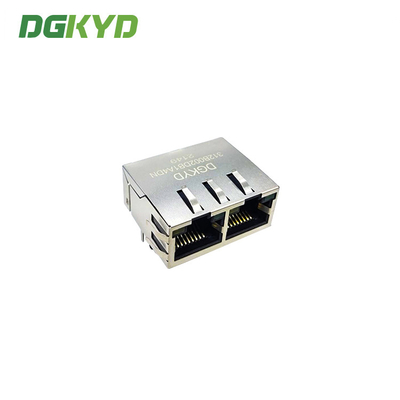

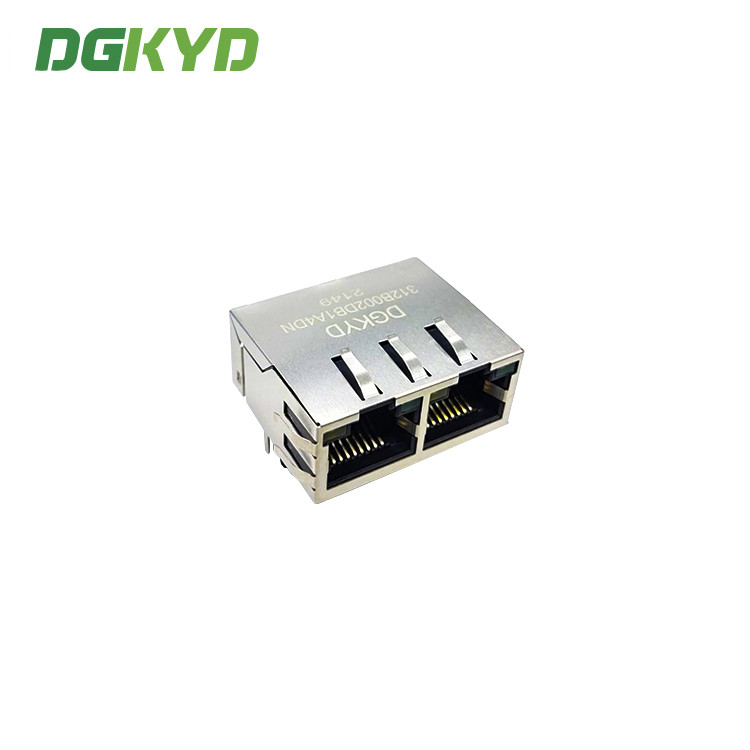

1x2 Dual Port Rj45 Connector With Transformer DGKYD312B002DB1A4DN
RJ45 Cat6 connector dual port 1x2 100M rj45 transformer modular jack network led DGKYD312B002DB1A4DN
DGKYD312B002DB1A4DN.pdf
Electrical:
1. Turn ratio:1~2:J1~J2=1CT:1CT(+2%).
3~6:J3~J6= 1CT:1CT(+2%).
2. OCL:350uH Min. at 100KHz 100mV 8mA DC.
3. Insertion Loss: -1.0 dB Max 1~ 100MHz.
4. Return loss: -20dB Min 1~10MHz;
-16dB Min 10~ 30MHz.
-12dB Min 30~60MHz.
-10dB Min 60~80MHz.
5. Cross talk: -40dB Min 1~30MHz;
- 35dB Min 30~60MHz;
-30dB Min 60~ 100MHz;
6. CMR: -30dB Min 1~100MHz;
7. Hi-Pot:1500V AC & 2250V DC
6S 1mA PRI TO SEC
Specification
Part Number |
DGKYD312B002DB1A4DN |
Brand |
DGKYD/OEM/ODM |
Place of Origin |
Guangdong of China |
Certification |
RoHS/CE/FCC/CE/ISO9001/ISO14001 |
Product Type |
Connector-Modular |
Connector Style |
Jack |
Jack Type |
RJ45 |
Connector Type |
Modular Jack |
Latch Style |
Standard |
Latch |
TAB-UP |
Filter |
With Filter |
LED Option |
With LED |
LED Color |
Yes, L-Yellow/ R-Green |
Panel Stops |
With Panel Stops |
Shielded |
With metal shield |
Applies To |
Printed Circuit Board |
Performance Speed |
10/100/1000 BASE-T/TX |
Suitable for welding type |
Reflowsolding(Alternative). |
Port Configuration |
multi Port |
Number of Positions |
8 |
Jack Configuration |
1 x 2 |
Terminals per Port |
8 |
Shield Material |
Copper Alloy preplated with Nickel |
PCB Mounting Orientation |
Side Entry (Right Angle) |
Contact Mating Area Plating Material |
Gold 6u/15u/30u/50u |
Contact Base Material |
Phosphor Bronze |
Solder Tail Contact Plating Material |
Tin-Lead over Nickel |
PCB Mounting Style |
Through Hole |
Termination Method to PC Board |
Through Hole-Press-Fit |
Board Lock |
With/Without Board Lock |
Housing Material |
PBT Polyester |
Housing Color |
Black |
Housing Material Temperature |
Standard |
UL Flammability Rating |
UL 94V-0 |
