RJ45+USB2.0 network connector with light and shielding interface socket DGKYD611U2Q008DF5WD

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD611U2Q008DF5WD
Document:	DGKYD611U2Q008DF5WD.pdf

Detail Information
Product Name:	RJ45 With Transformer	Type:	RJ45 USB Combo
Housing:	Phenolic, PBT Black (UL94V-0)	No.Port:	RJ45 Single Port
PCB Mount Angle:	SIDE ENTRY	Mount Stlye:	Though Hole
Jack Type:	RJ45 + USB2.0	Gold Plating On Contact Pins:	6U
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	RJ45 USB network connector with light , shielded RJ45 USB interface socket , RJ45 dual USB connector with shielding

Product Description

RJ45+USB2.0 Network Connector with LED and Shielding Interface

Part Number: DGKYD611U2Q008DF5WD

Product Overview

This RJ45+USB2.0 network connector features integrated LED indicators and shielding interface socket. Designed for 10/100/1000BASE-T Ethernet applications with built-in magnetics for optimal performance.

Technical Documentation

Technical Specifications

Part Number	DGKYD611U2Q008DF5WD
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Orange-Yellow)
Panel Stops	With Panel Stops
Shielded	With metal shield
PCB Mounting	Side Entry (Right Angle)
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black)
UL Rating	UL 94V-0
Positions	12
Port Configuration	Single Ports

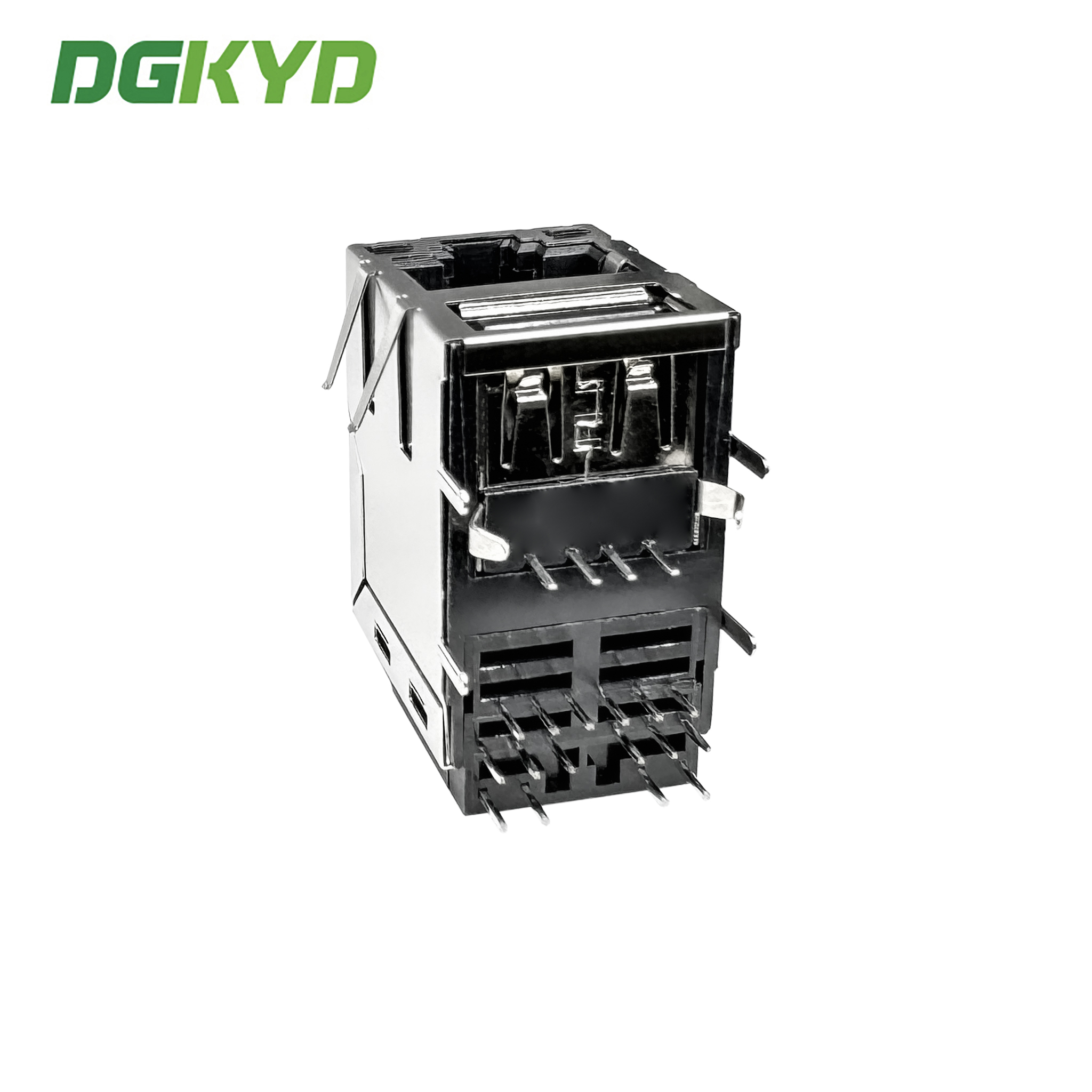

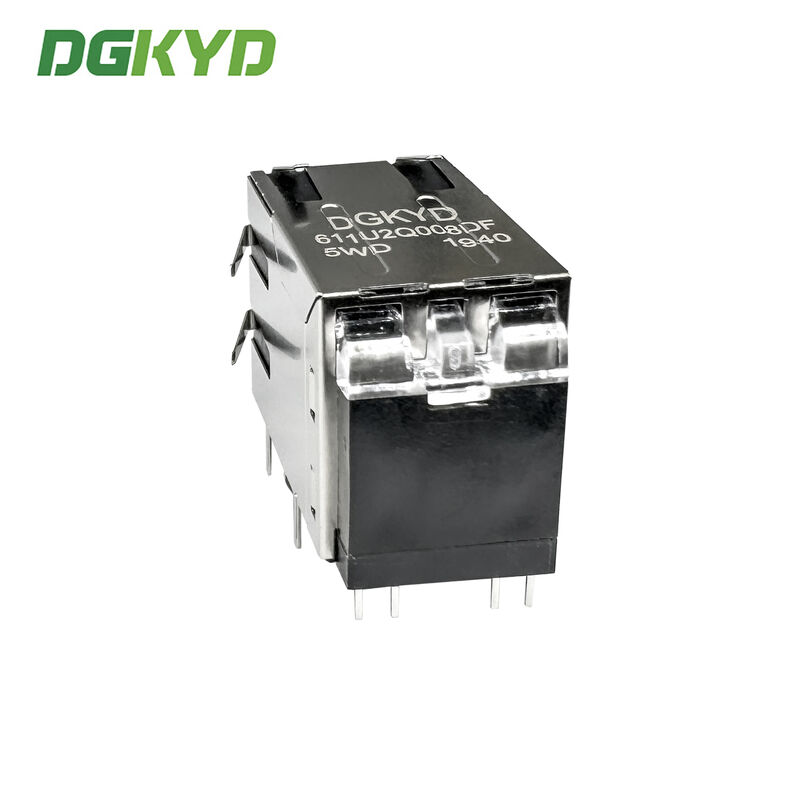

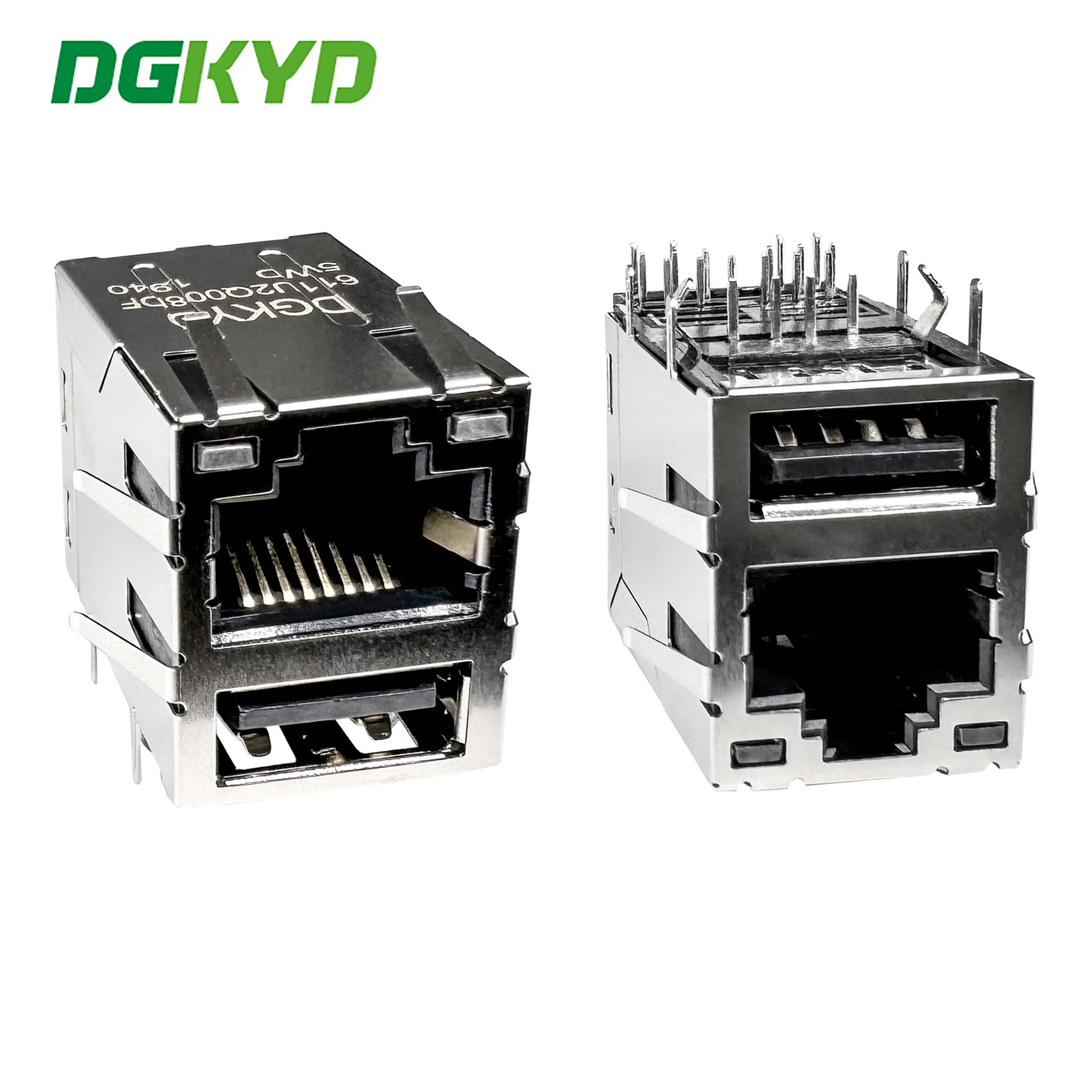

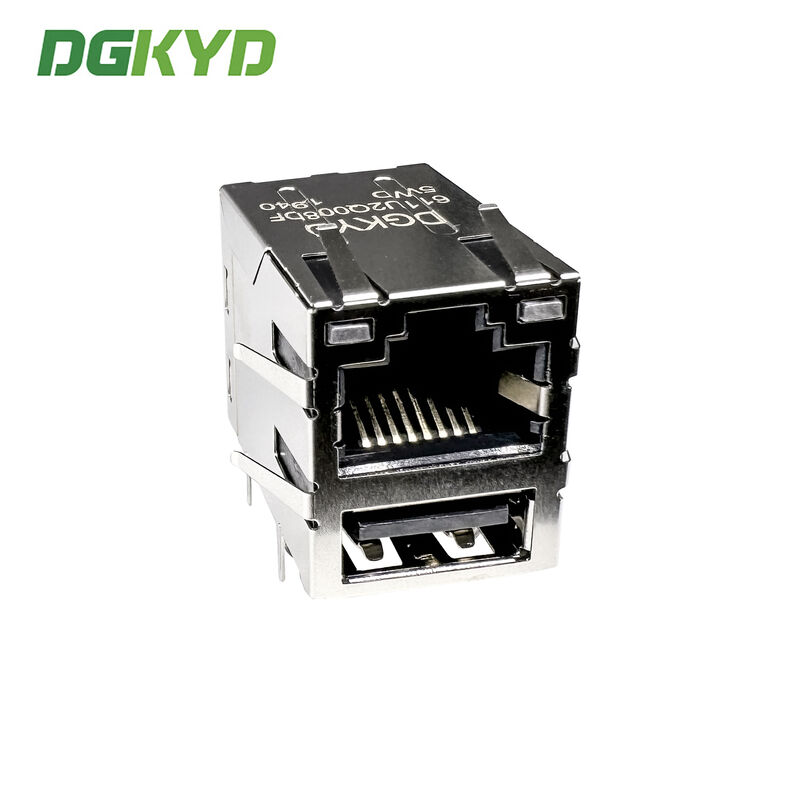

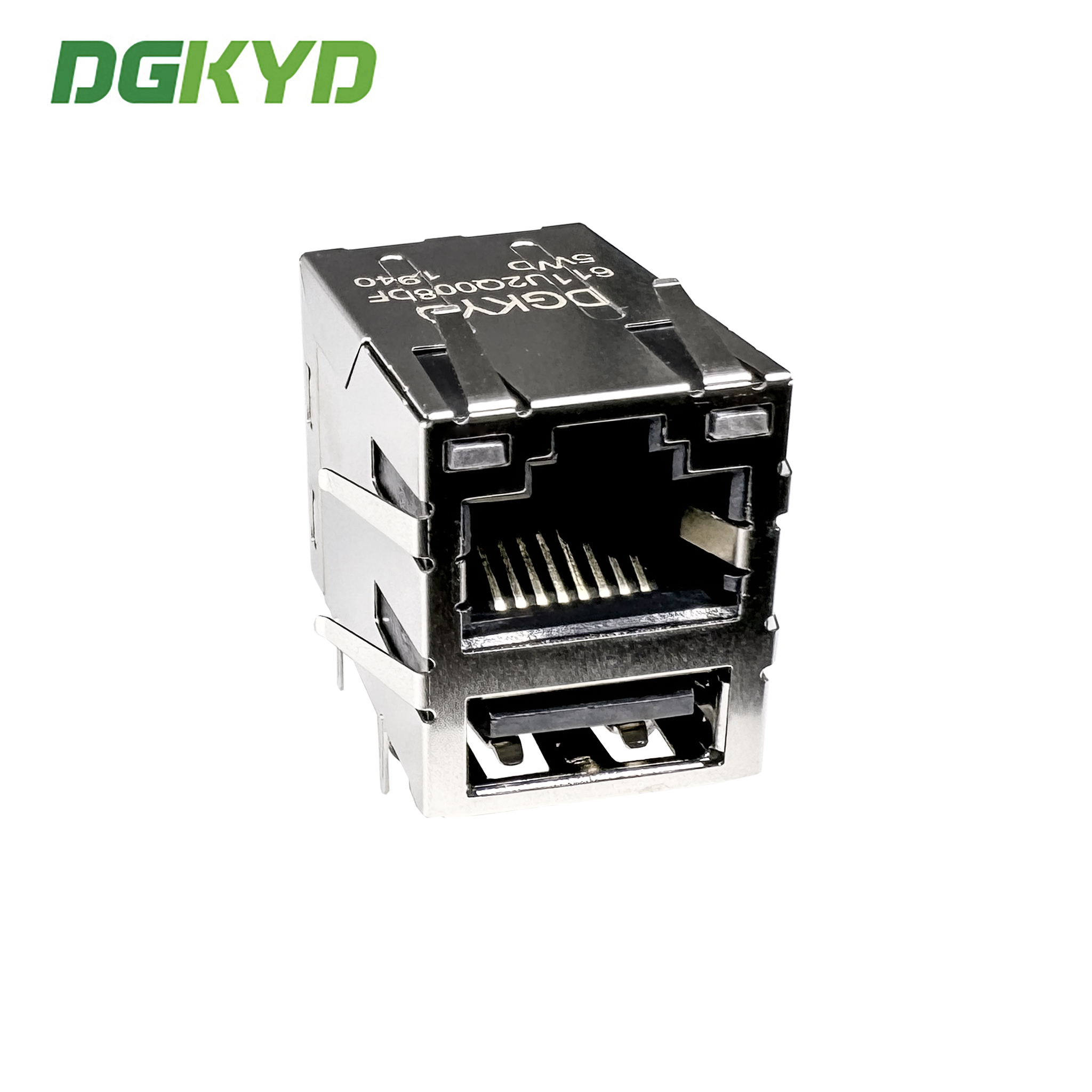

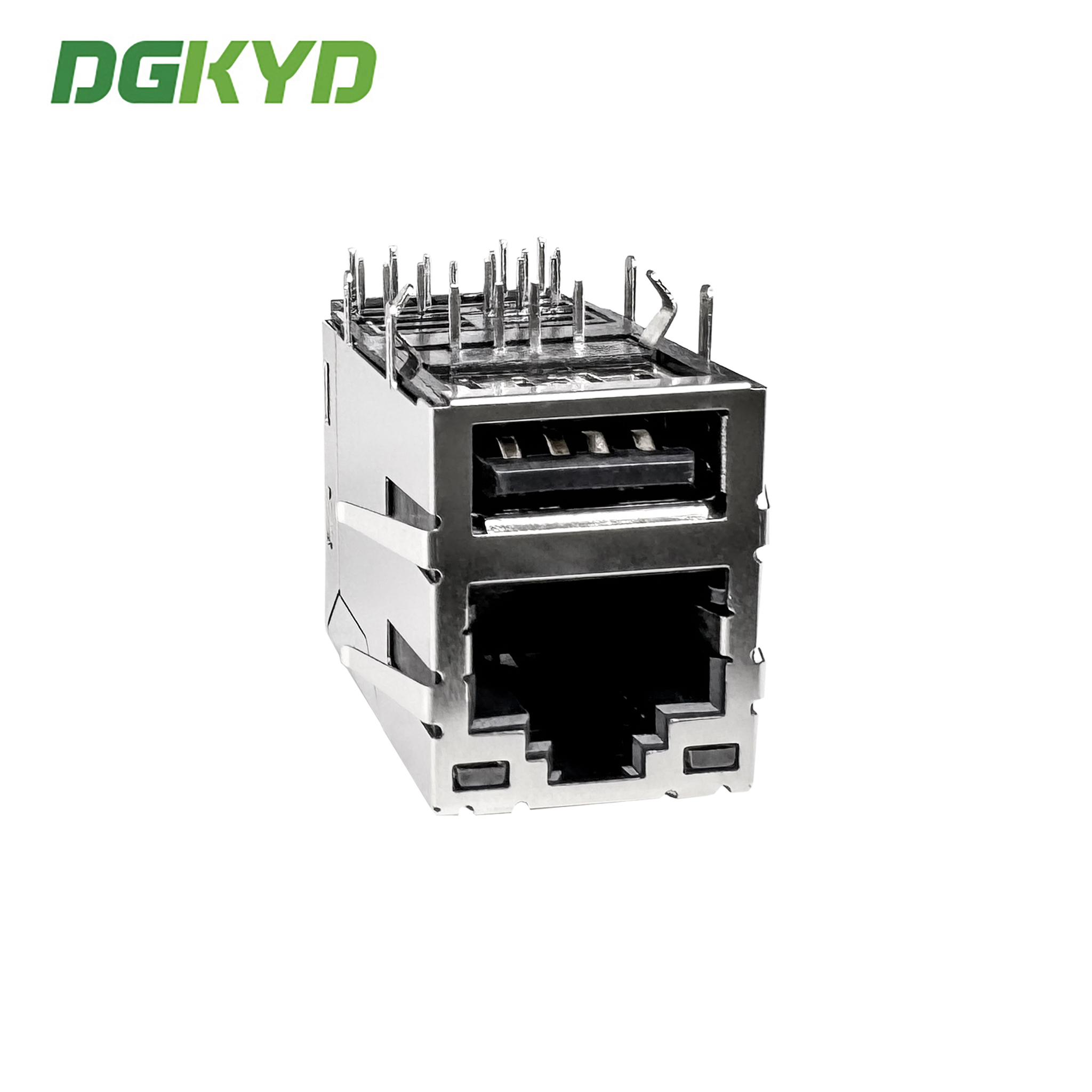

Product Images

Manufacturer Information

Product Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet applications
Built-in magnetics for filtering and anti-interference
Operating temperature: -40°C to 85°C
Storage temperature: -40°C to 85°C
Lead-free soldering compatible up to 265°C
Customizable LED indicator options (green, yellow, red, orange, blue, bi-color)
EMI shielding fingers optional
Multiple magnetic core coil ratios available
Various contact gold plating thicknesses (3μ, 6μ, 15μ, 30μ, 50μ)
Multiple housing materials (PBT, PA46, PA9T, LCP)

All electrical properties meet industry standards, with mechanical dimensions conforming to manufacturing specifications and environmental protection standards.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the manufacturer. Welcome to visit our factory.

What is your lead time?

For stock products, delivery within 5-7 working days after payment. For customized or out-of-stock items, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on the product?

Yes, as a manufacturer with 11 years of OEM experience, we can fully customize products including branding.
