Four port RJ45 connector, network socket, Ethernet interface, POE connector, Ethernet transformer DGKYD114Q787AB2A1DP
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 1080 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD21Q110DG1A1DZ068 |
|
Detail Information |
|||
| Part Number: | DIP Ethernet RJ45 Connector | Brand Name: | DGKYD |
|---|---|---|---|
| Type: | RJ45, Headers And PCB Receptacles | LED Color: | Yes.Green/Yellow-Green/Yellow |
| Package: | Carton Pallet | Number Of Pins: | 10pin |
| Contact Plating: | 6u Glod Plating | Model Number: | Jack Connectors |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Applications Speed: | 10/100/1000 Base-T, AutoMDIX |
| Latch: | TAB-Down/up | ||
| Highlight: | 10pin Multi Port Connector,6U Multi Port Connector,6U Rj45 10 Pin Connector |
||
Product Description

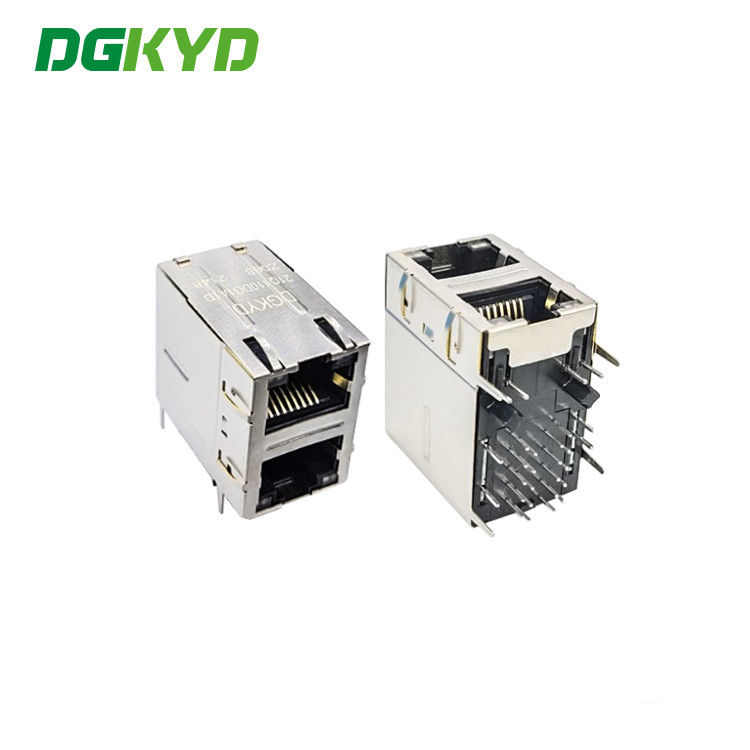

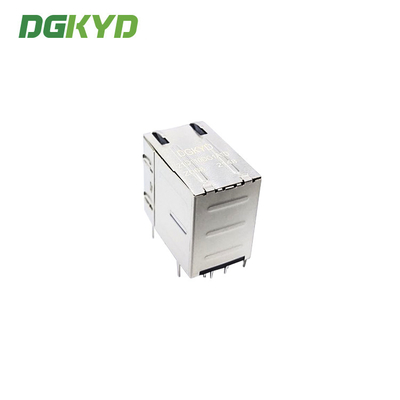

10pin Multi Port Connector Gigabit Ethernet Filter With Light Shrapnel
2*1 stacked network connector Gigabit Ethernet filter Multi-port shielded connector with light shrapnel
Parameters
| Part Number |
DGKYD21Q110DG1A1DZ068 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Down/up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes.L-Green/Yellow.R-Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | multi Ports | Number of Positions |
10 |
| Jack Configuration | 2X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
