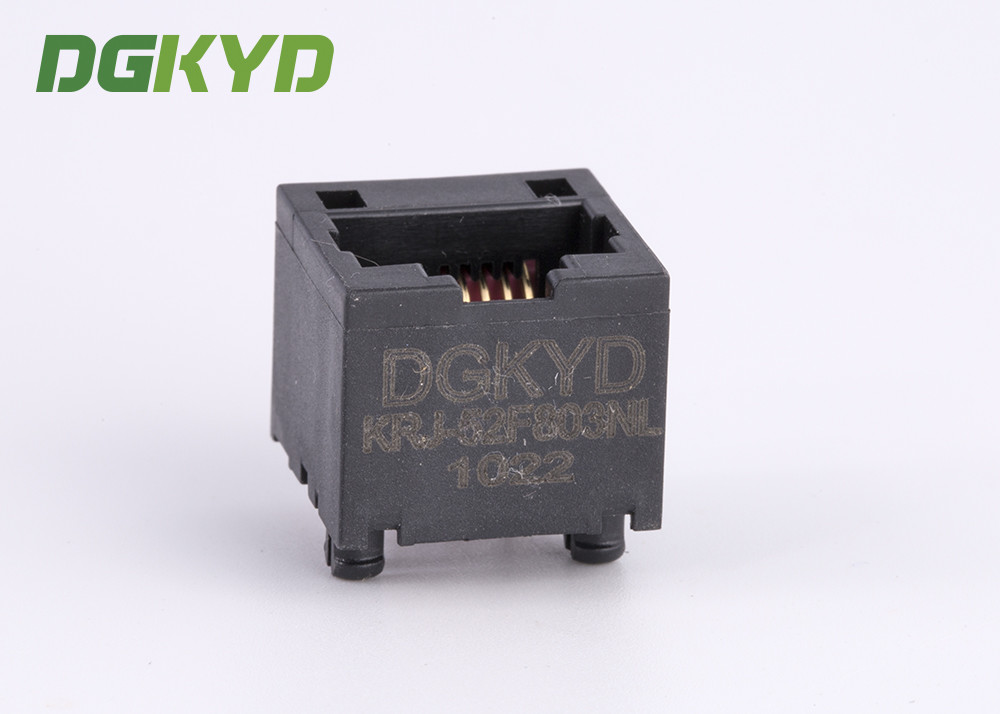

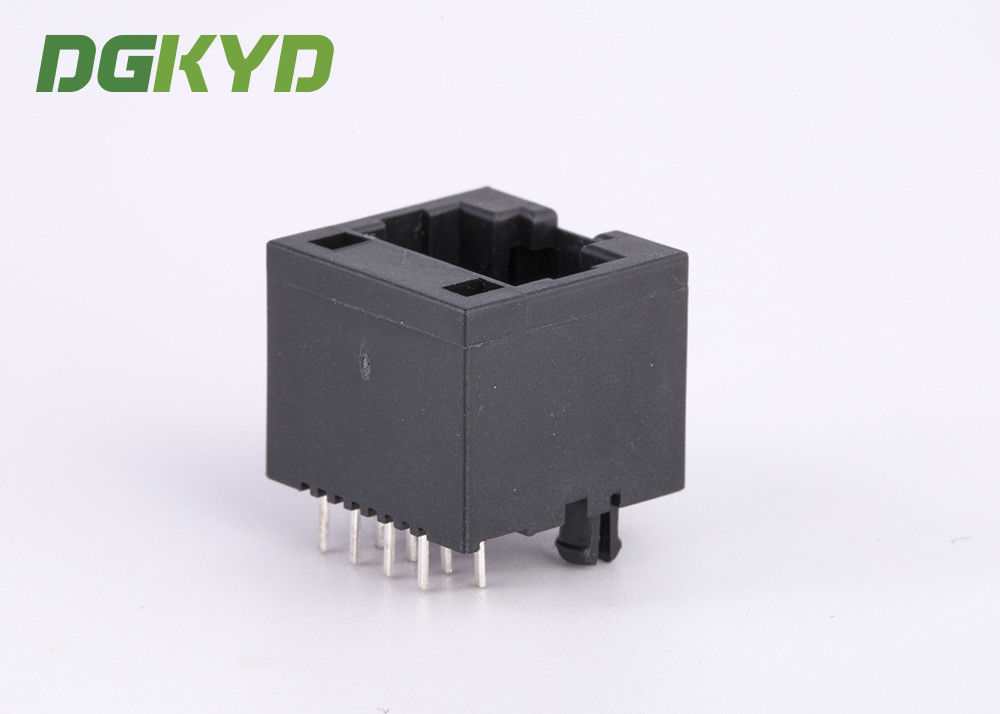

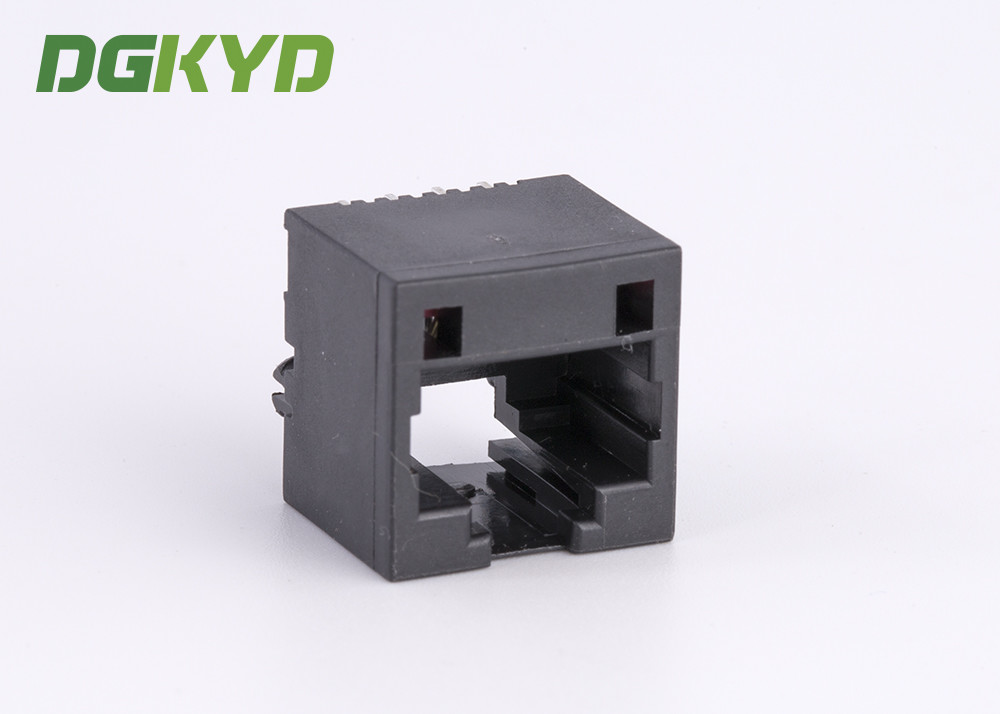

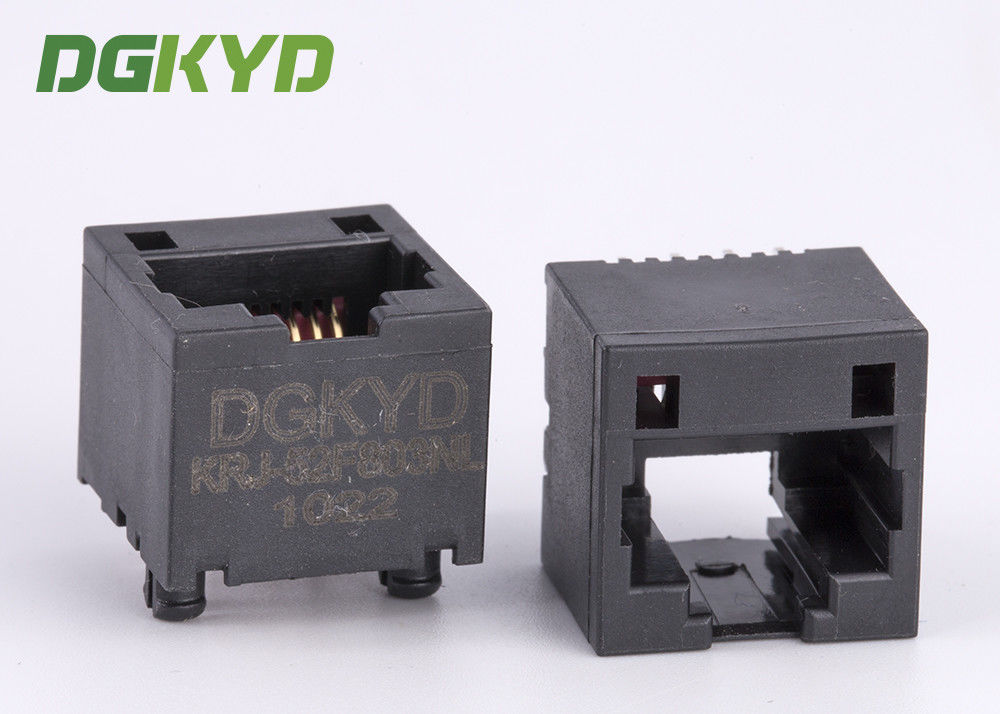

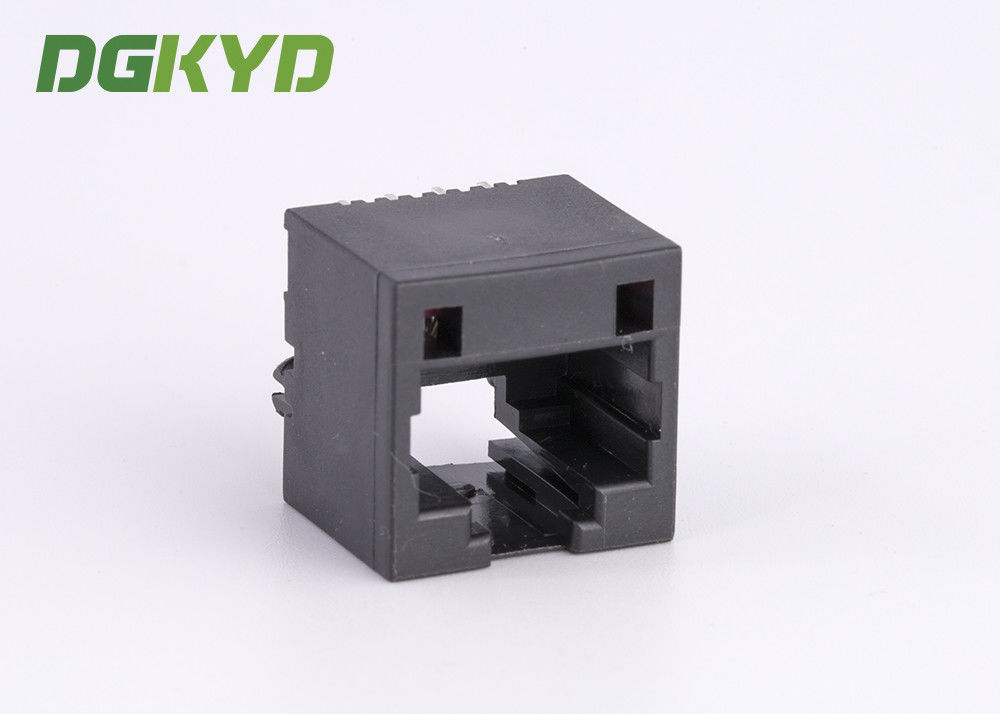

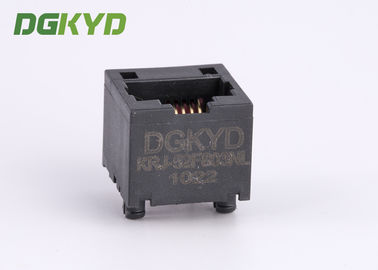

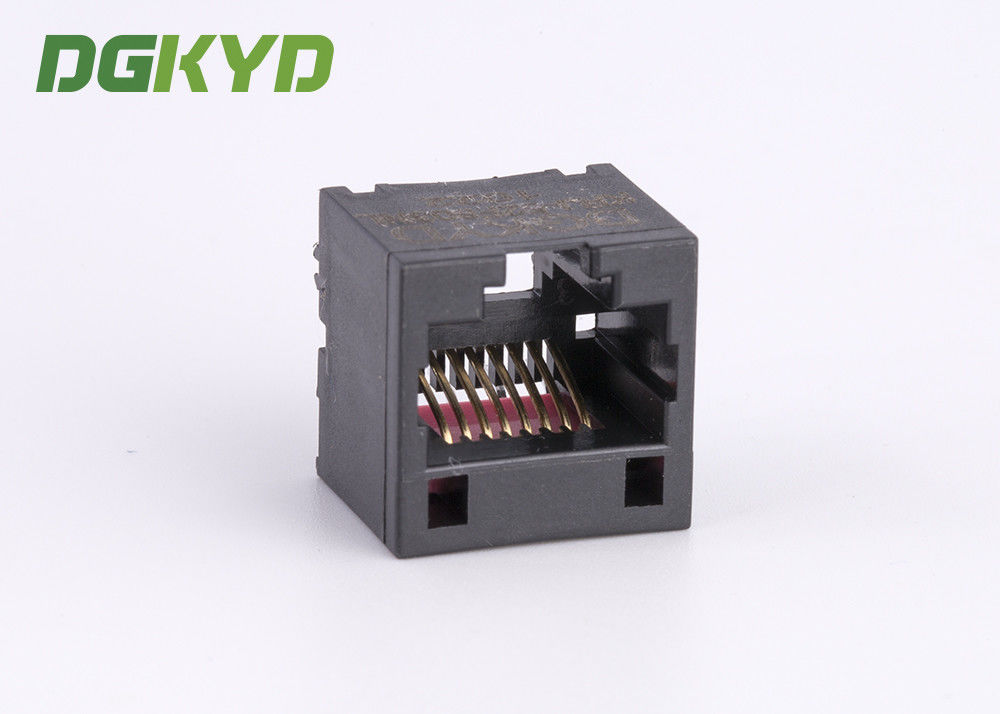

12.7mm Height Very Low 180 Degree RJ45 Keystone Jack Top Entry Lan Socket

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-52F803NL

Detail Information

Speed: CAT 3/5/6 Latch: Top Entry
Shield: No Height: 12.7mm
High Light:

rj45 lan connector

,

rj45 lan port

Product Description

Black plastic housing 12.7mm very low 180 degree RJ45 keystone jack top entry lan socket

12.7mm Height Very Low 180 Degree RJ45 Keystone Jack Top Entry Lan Socket 0

Material:

   1. Housing :PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0) optional

   2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel
   3.Shield:0.20~0.25mm thickness brass with tin plated
   4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch



Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.
