Vertical 180° Straight Insertion RJ45 Connector Gigabit Integrated Filter Single Port RJ45 Jack

Contact Now

Vertical 180° Straight Insertion RJ45 Connector Gigabit Integrated Filter Single Port RJ45 Jack

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD511Q180AC1A8D
Document:	DGKYD511Q180AC1A8D.pdf

Detail Information
Ports Of Number:	Single Port	LED Color:	Customized
Gender:	Female	Applications:	Switch,transceiver,laptop,computer RJ45 Etc
Feature:	Metal Pcb MOUNTABLE Rj45 Jack	Product Name:	RJ45 Shielded Connector
Housing Material:	PBT Polyester	Filter:	With Filter
Operation Temperature:	-40°C~+85°C	Storage Temperature:	-40°C~+85°C
Highlight:	Vertical 180° Straight Insertion RJ45 Connector , Gigabit Integrated Filter RJ45 Jack , Single Port RJ45 Connector

Product Description

Product Overview

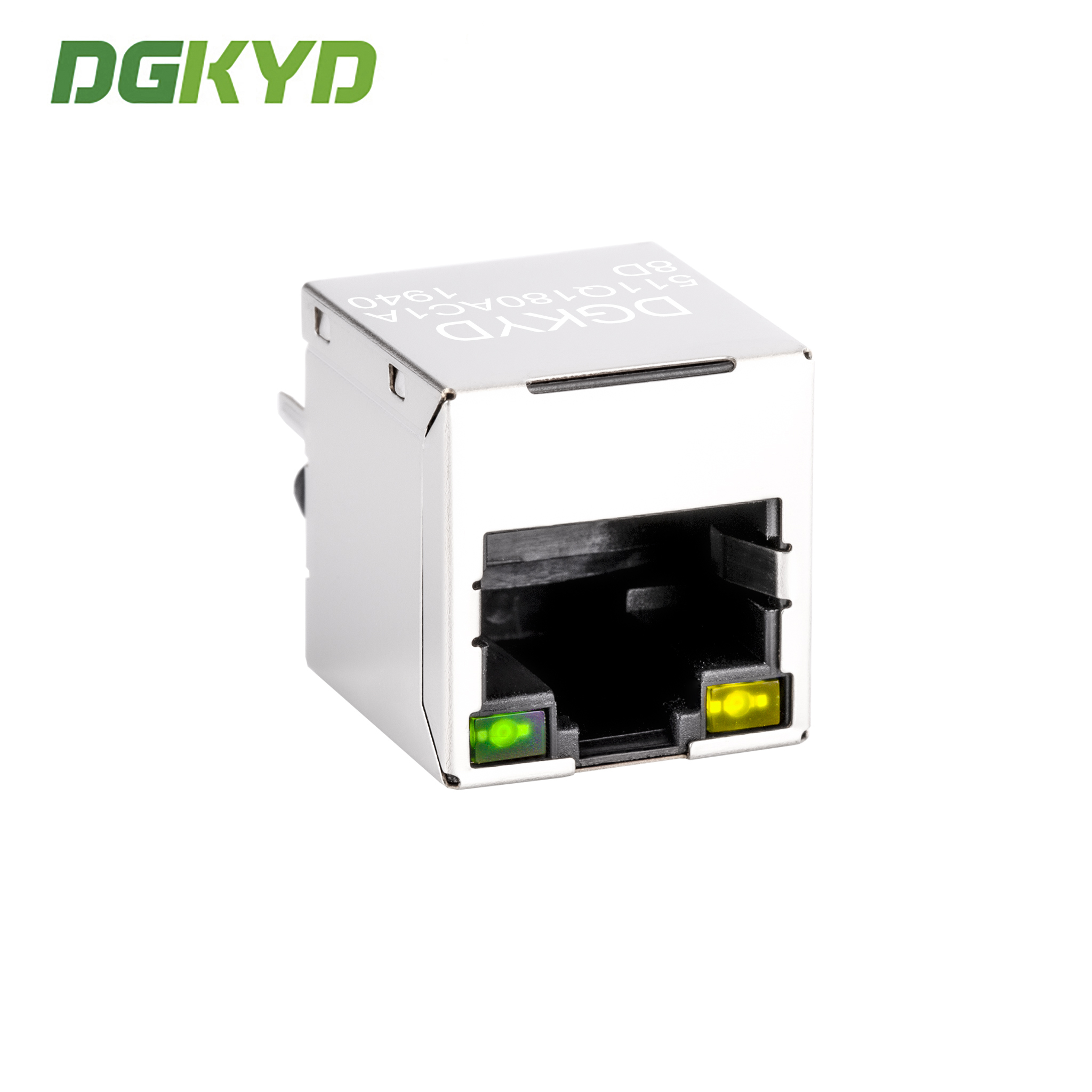

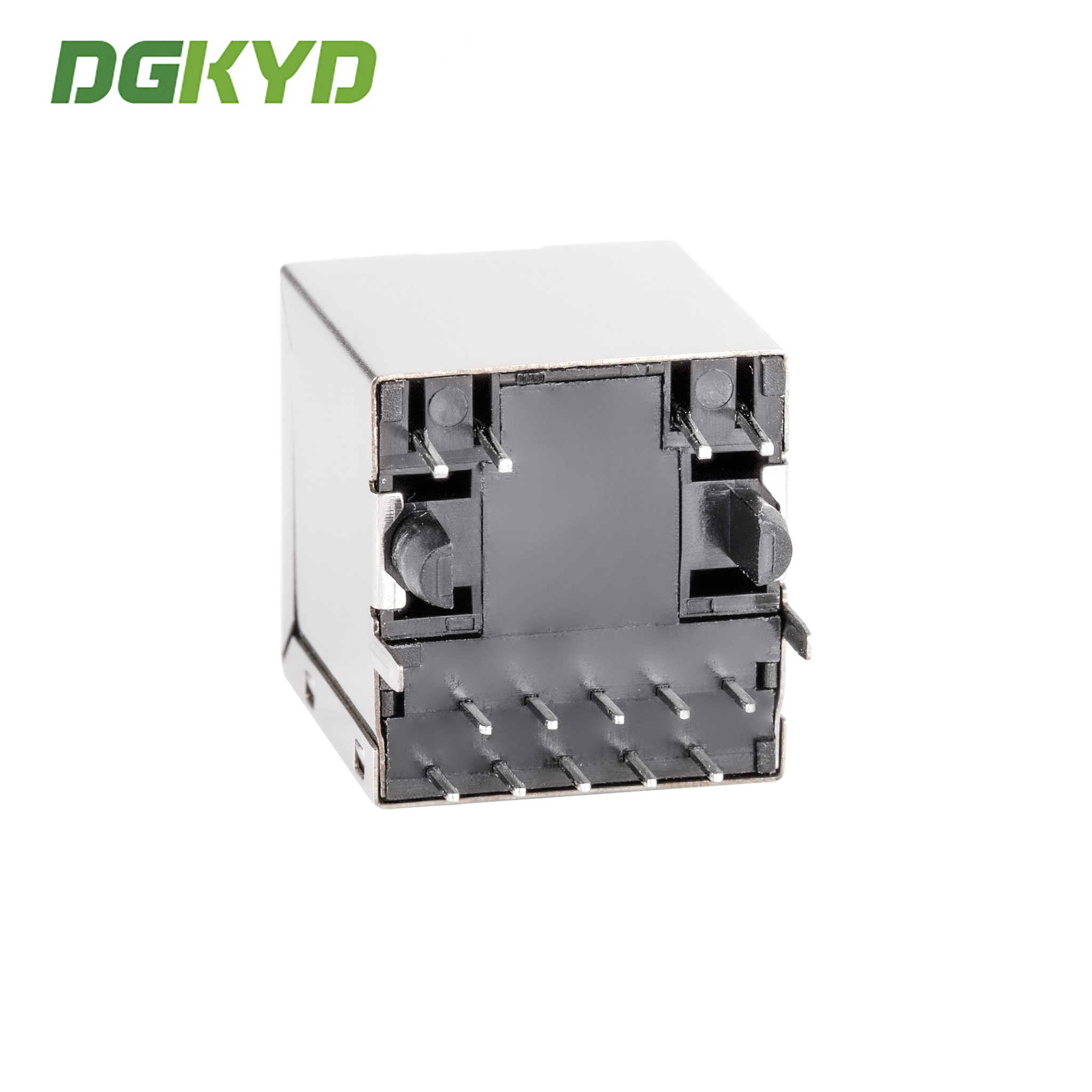

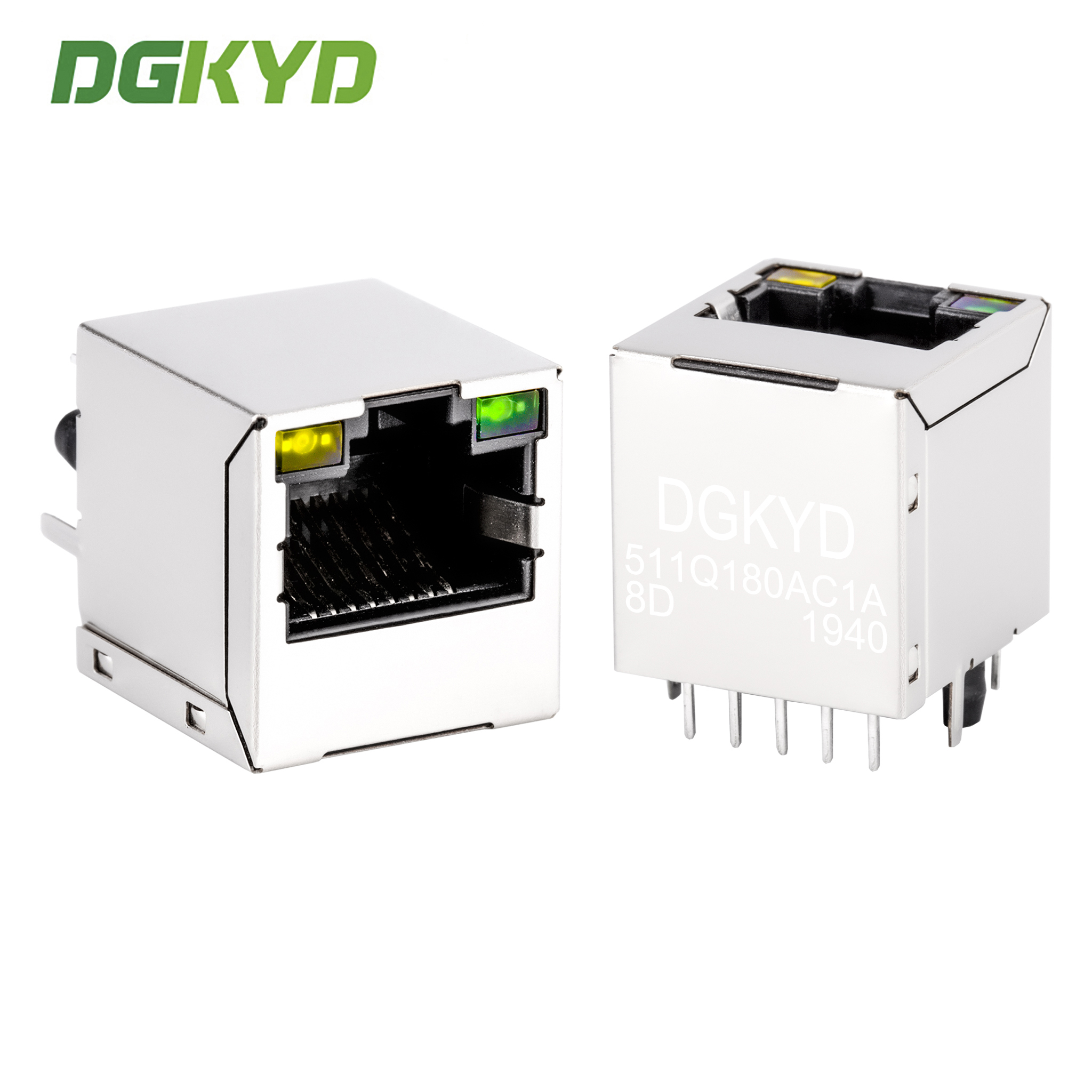

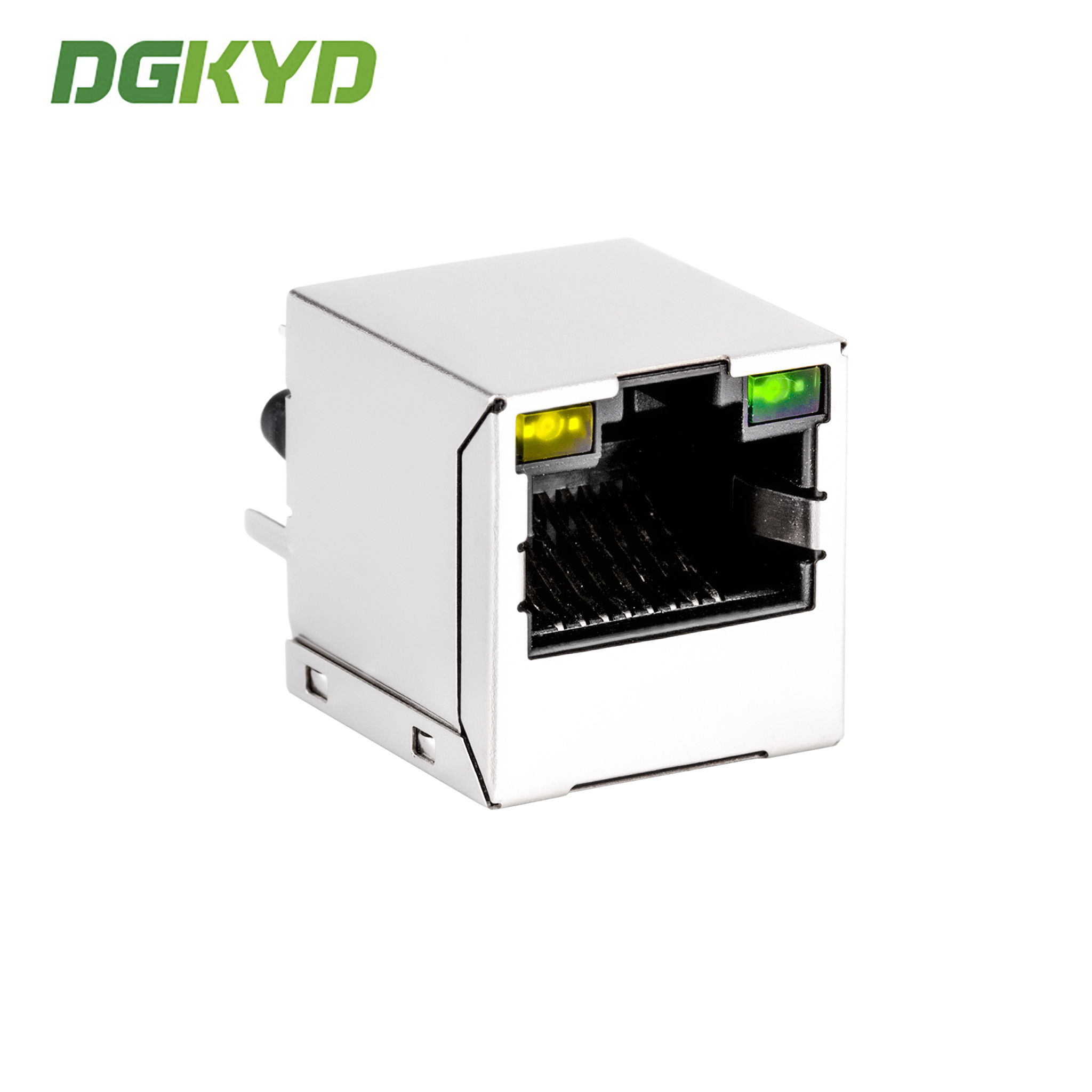

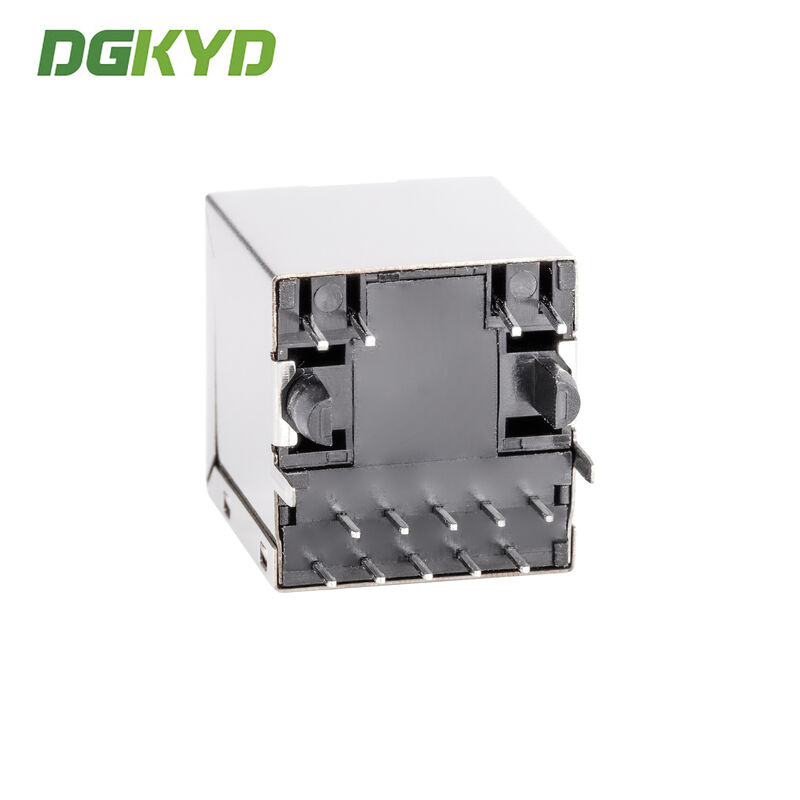

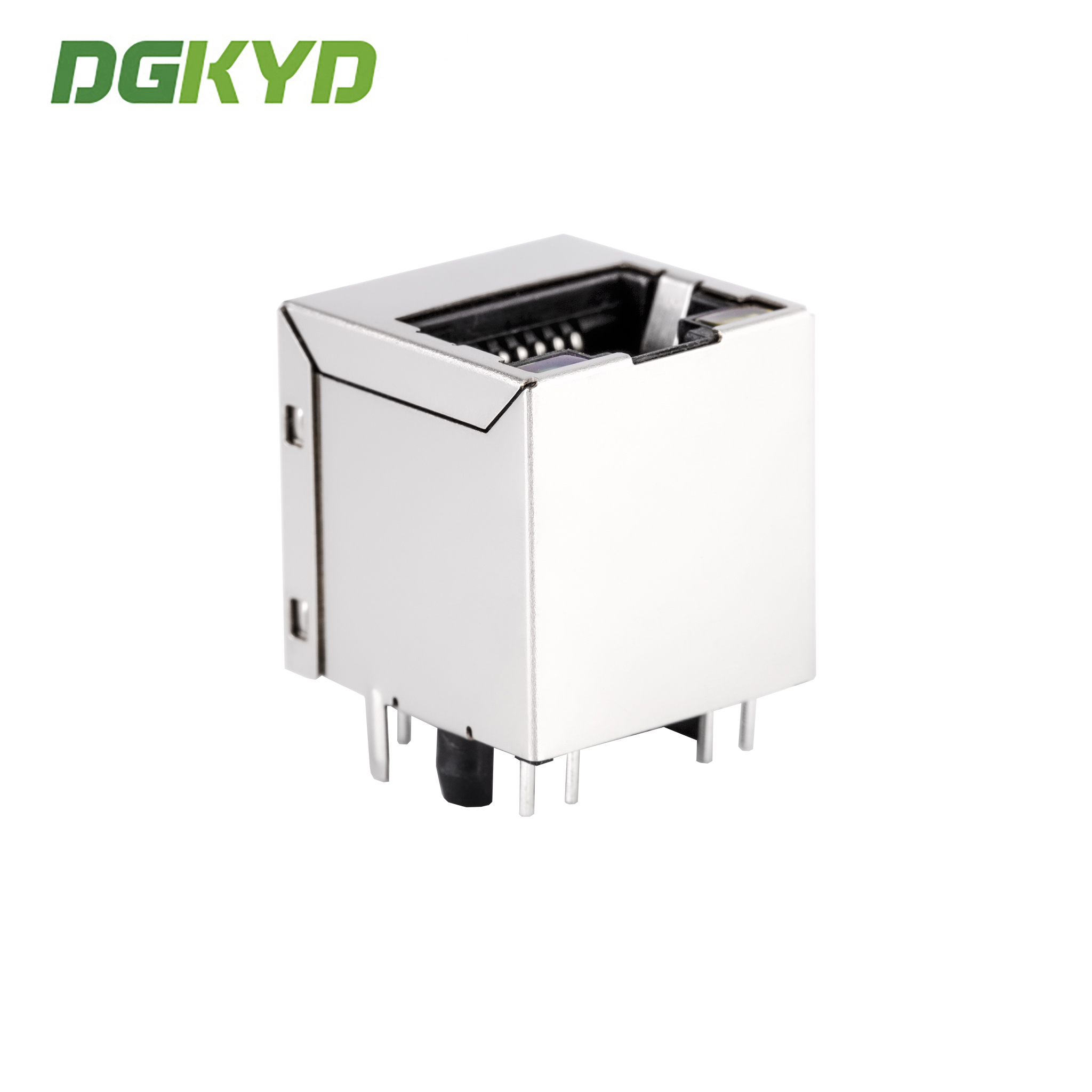

The DGKYD511Q180AC1A8D is an RJ45 vertical connector featuring 180° straight insertion and a gigabit integrated filter. Designed for reliable high-speed Ethernet connectivity, it combines a modular jack with built-in magnetics for filtering and anti-interference performance.

Part Number: DGKYD511Q180AC1A8D

Technical Parameters

Part Number	DGKYD511Q180AC1A8D	Brand	DGKYD / OEM / ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow-Green	Panel Stops	With Panel Stops
Shielded	With Metal Shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy Preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With / Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

Full series of RJ45 integrated circuit accessories, available through direct manufacturer supply.

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15U, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective.

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5–7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2–3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
