Cat6 Industrial Ethernet RJ45 Connector with Gold Plating 6U and SMD Mounting

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD211Q138DB1A7CBS057
Document:	DGKYD211Q138DB1A7CBS057.pdf

Detail Information
Product Name:	Extra Low Profile RJ45 Connector SMD	Performance Category:	Cat6
Port:	SIngle Ports	Feature:	RJ45 Network Port
LED:	Yellow/Green	Mount Style:	SMT
Shield:	Phosphor Copper Nickel Plating	OEM/ODM:	Yes
Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)	Gold Plating On Contact Pins:	6U
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	Cat6 RJ45 Connector , Gold Plating 6U RJ45 SMD , Industrial Ethernet RJ45 Network Port

Product Description

RJ45 Connector Industrial Ethernet Port with Light Strip and Spring Clip Patch DGKYD211Q138DB1A7CBS057

Product Overview

Industrial-grade RJ45 connector featuring integrated light strip and spring clip patch design. Part number: DGKYD211Q138DB1A7CBS057

Technical Specifications

Part Number	DGKYD211Q138DB1A7CBS057	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

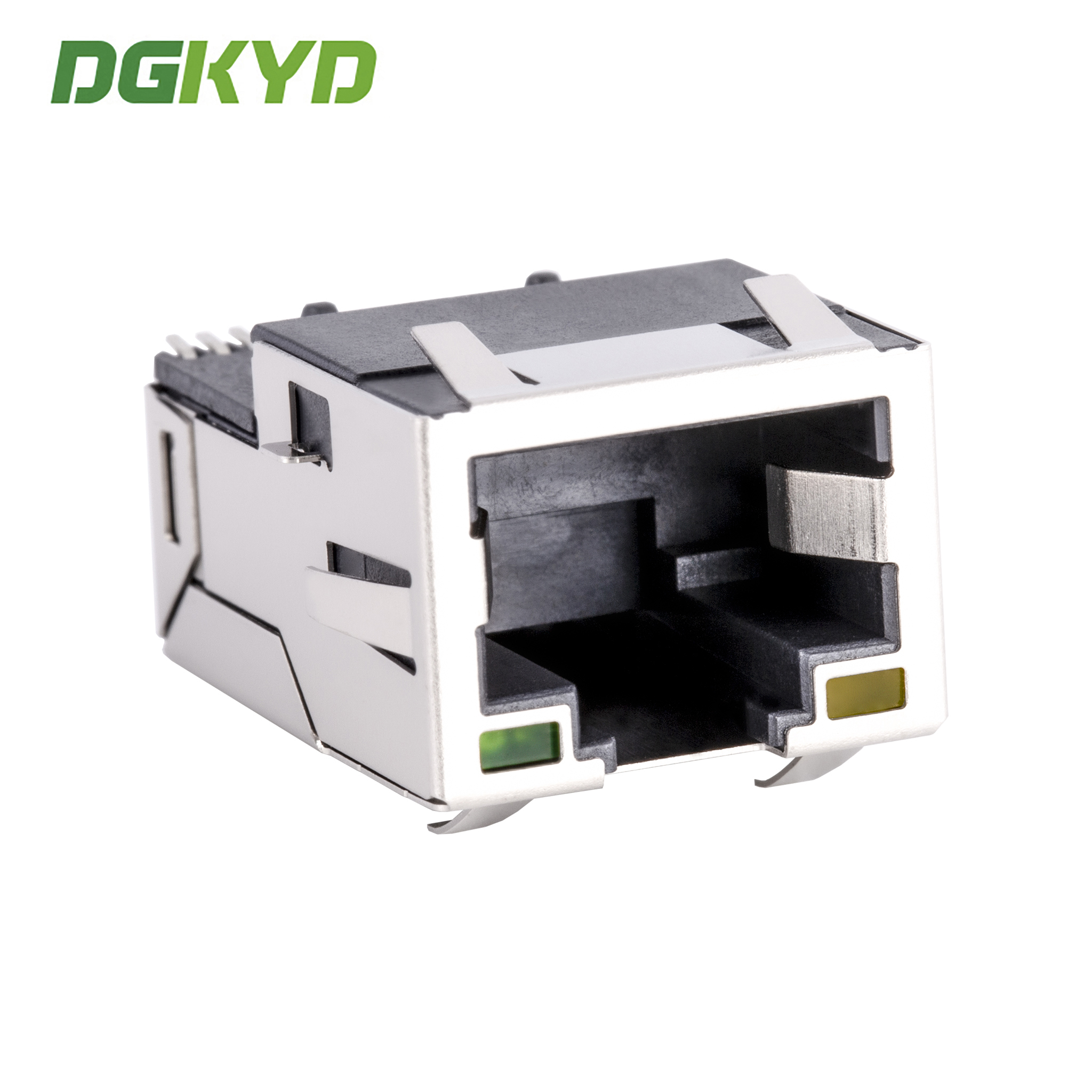

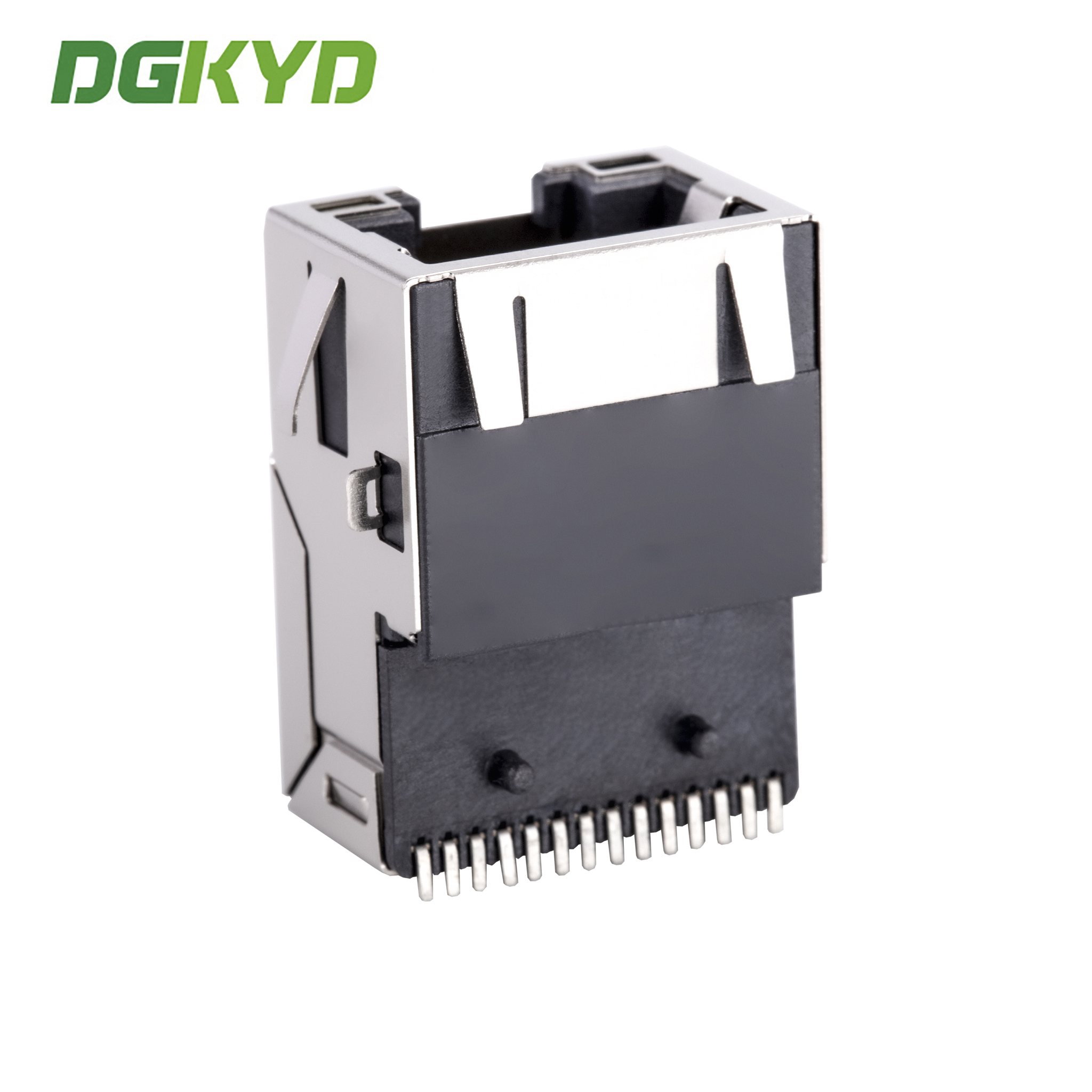

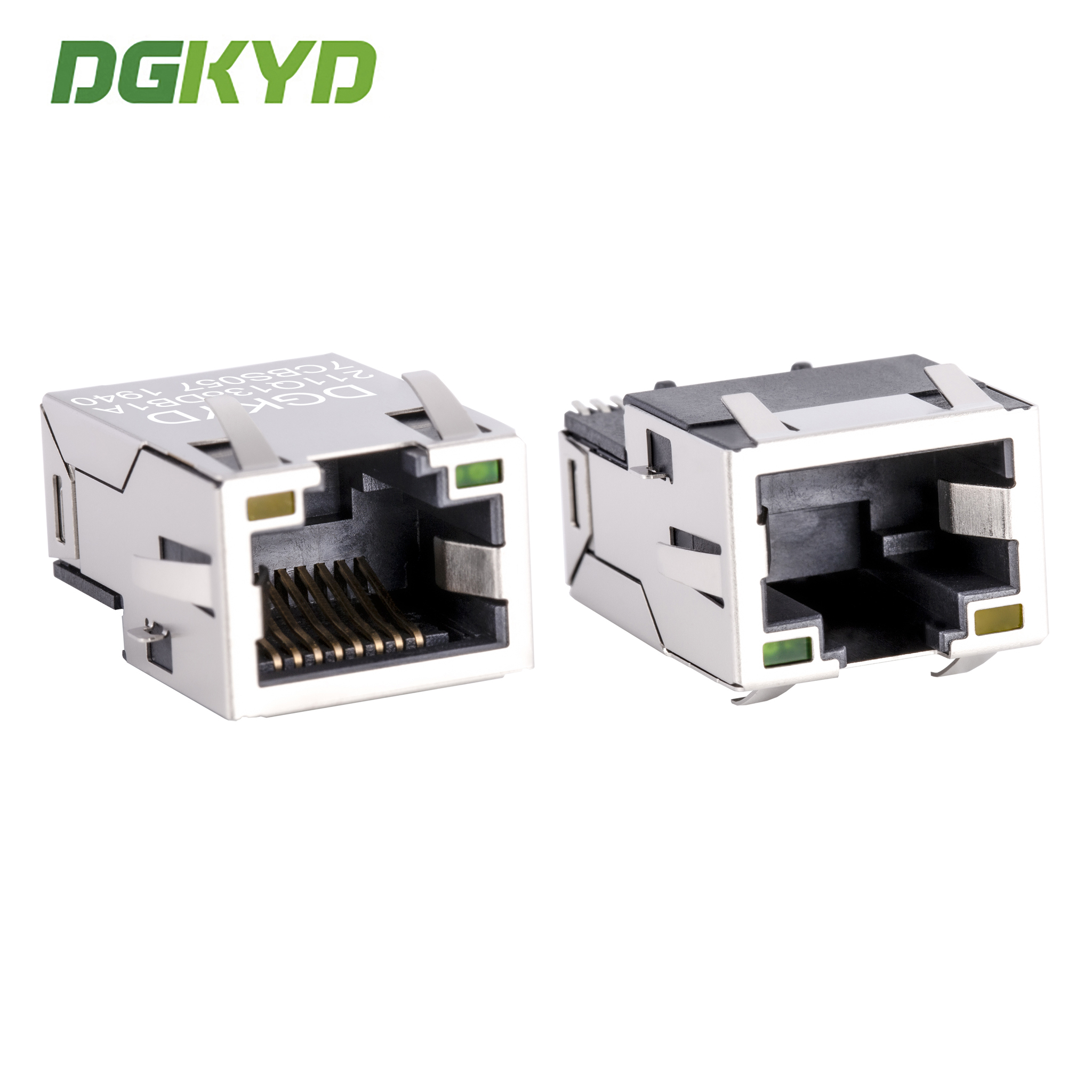

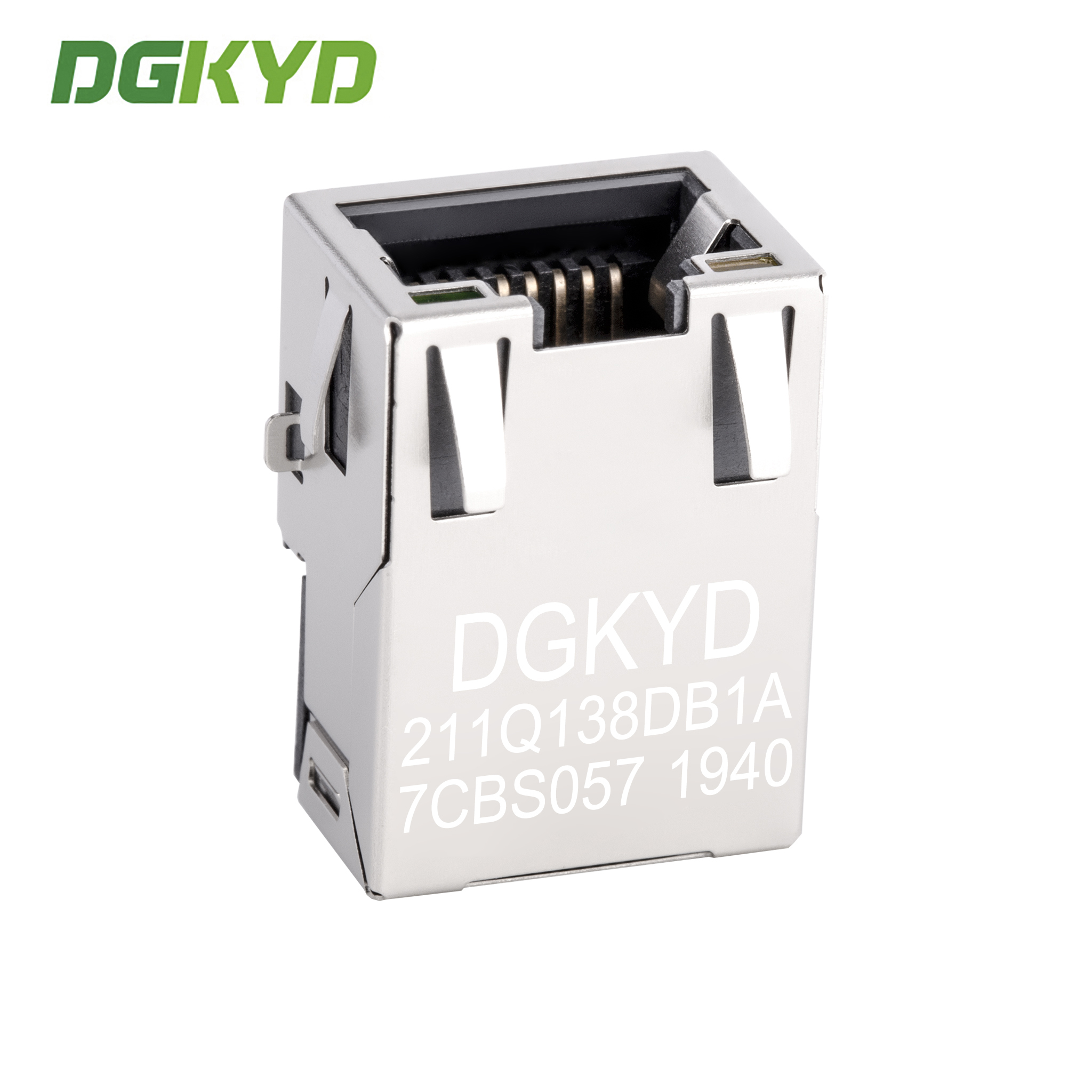

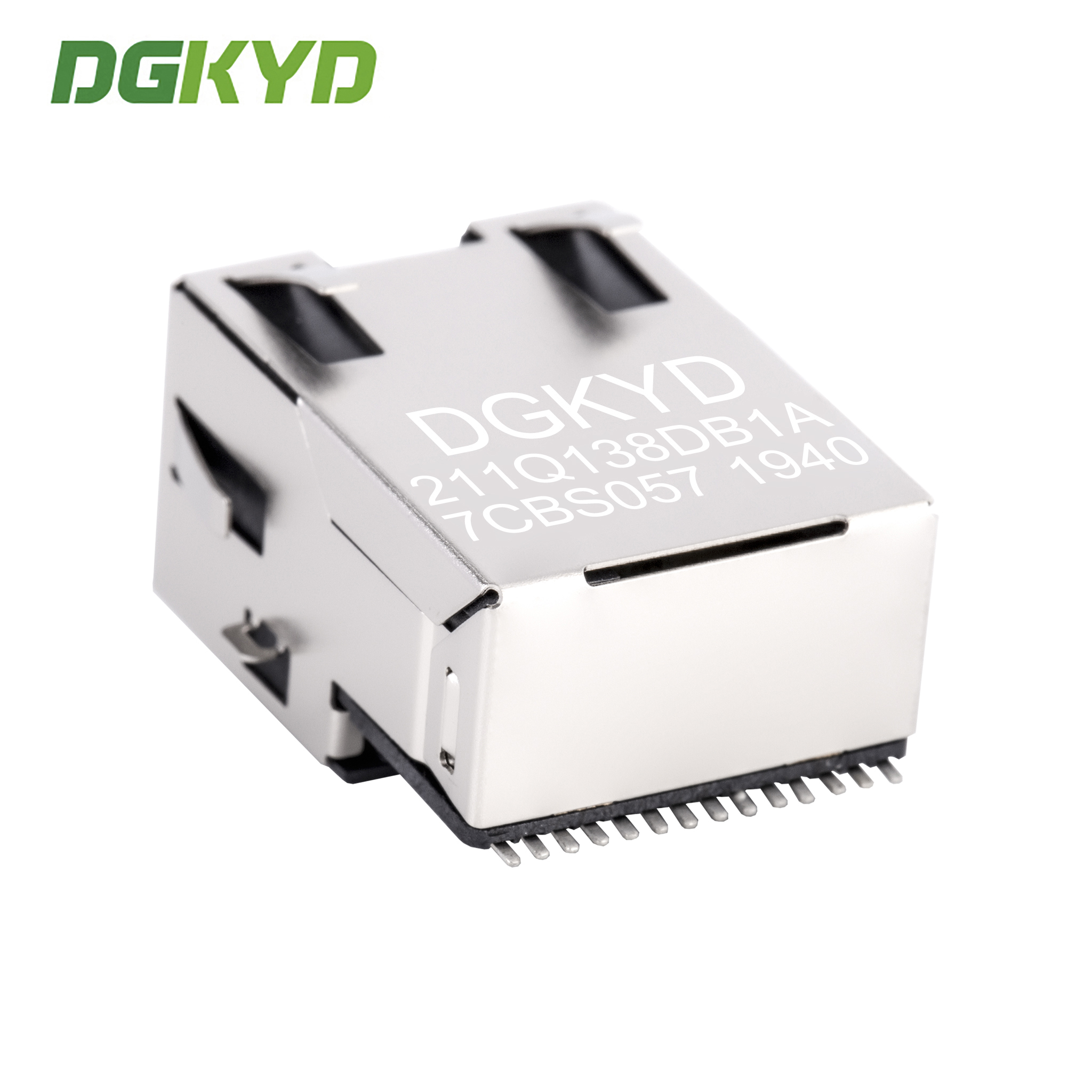

Product Images

Product Features & Specifications

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options: LED indicator lights (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, appearance dimensions, mechanical manufacturing, and environmental protection

Frequently Asked Questions

Are you trading company or manufacture?

We are manufacturer. Welcome to our factory.

What about your lead time?

For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Can you provide samples? Are they free?

Yes. Usually we can provide 2-3 samples of standard products free for testing.

Can I put my own logo on it?

Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
