RJ45 connector SMT connector sinking board 8.5 with light 8P8C patch type DGKYDCB851188AB1W6SB1075
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD311B093DA2A7S009 |
|
Detail Information |
|||
| Product Name: | Low Profile RJ45 | Feature: | Shielded RJ45 Network Port |
|---|---|---|---|
| Application: | MODEM | Clamp Direction: | TAB-UP |
| LED Option: | With LED | PCB Mount: | Right Angle SMD |
| Housing Material: | LCP Black | Working Temperature: | -40℃-85℃ |
| Storage Temperature: | -40℃-85℃ | ||
| Highlight: | 25.4mm replace rj45 connector,SMD rj45 female jack,RJ45 100M integrated transformer |
||
Product Description

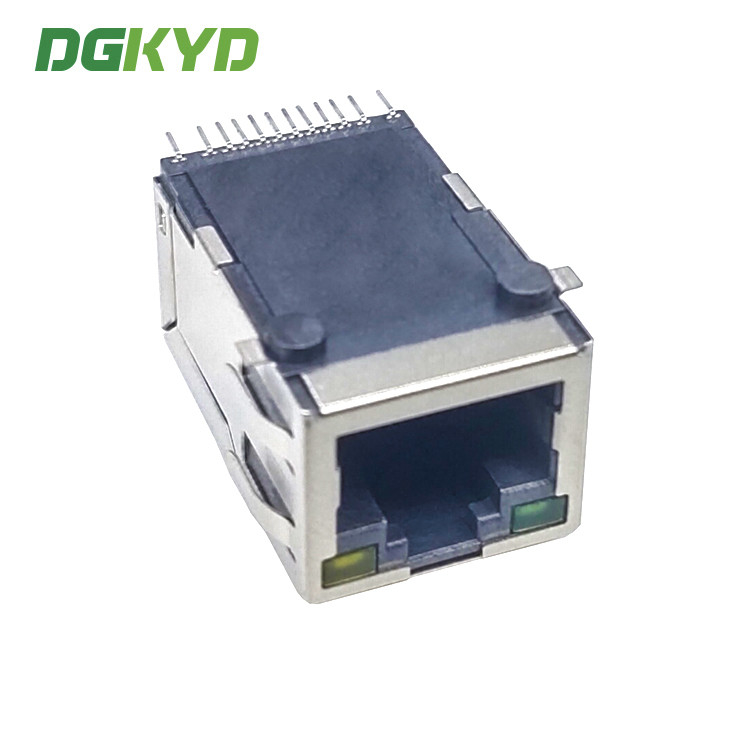

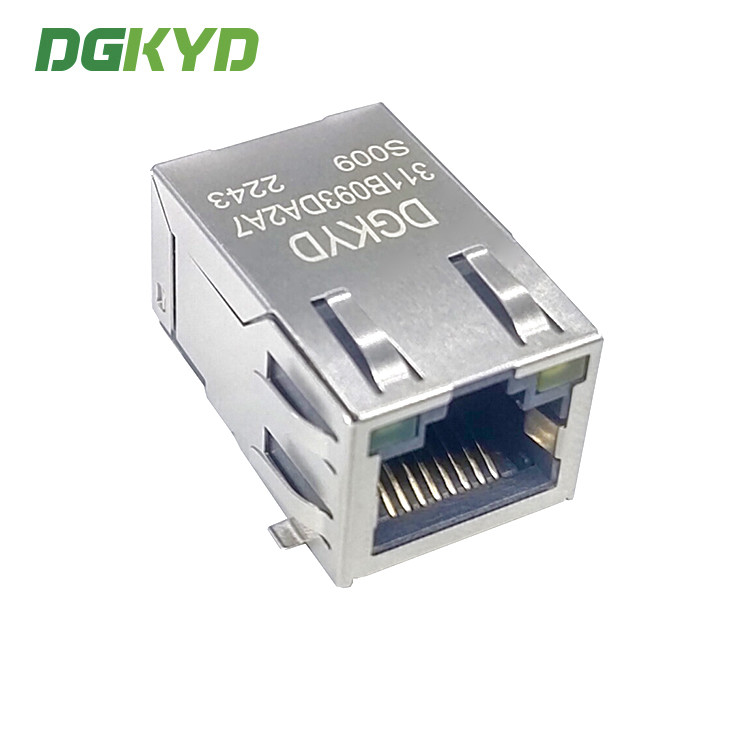

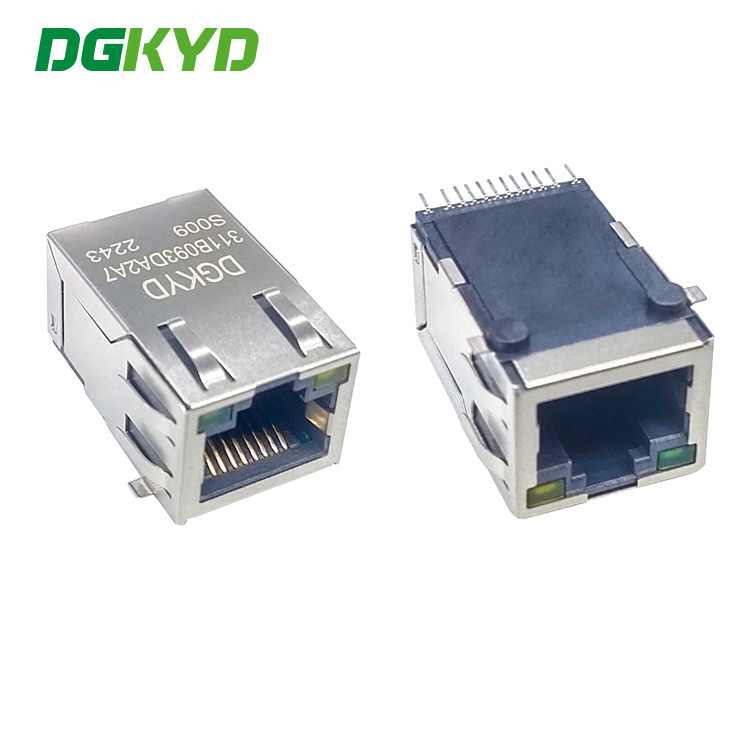

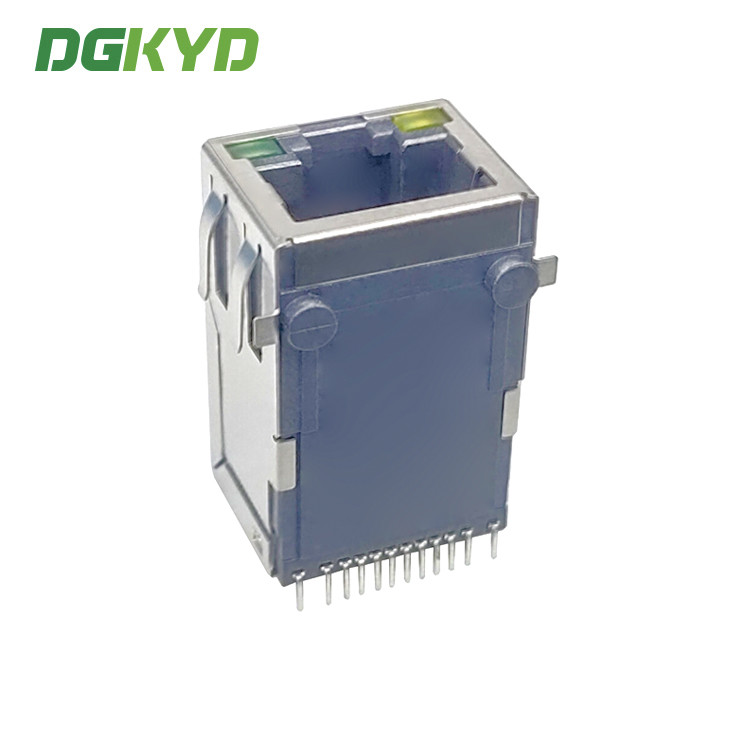

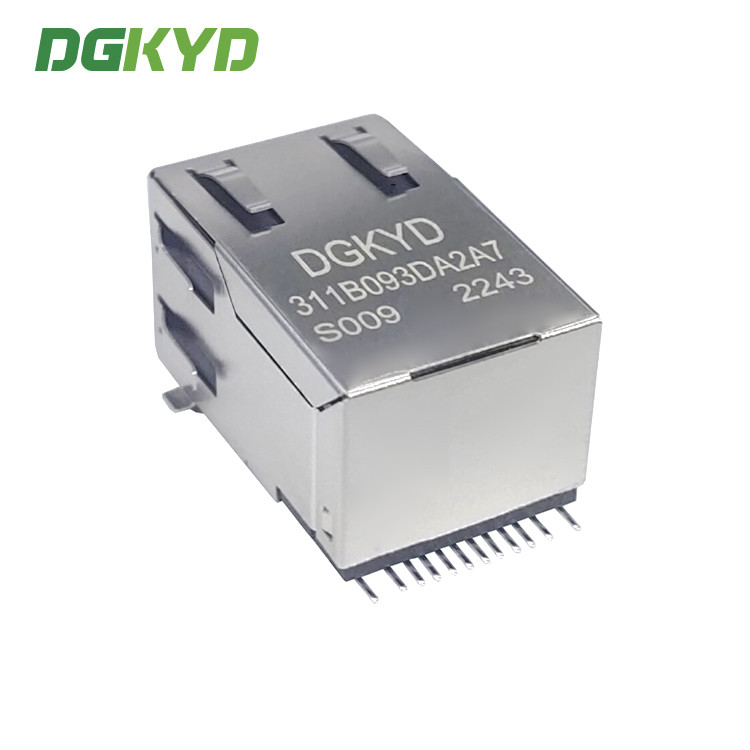

DGKYD311B093DA2A7S009 Network filter SMD 25.4mm thin RJ45 100M integrated transformer 8P8C
Paramters
| Part Number | DGKYD311B093DA2A7S009 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green / R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Metal shielded | Applies To | Printed Circuit Board |
| Performance Speed | 100M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single port | Number of Positions | 8 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6U | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawing
