RJ45 with dual USB 2.0 sockets, Gigabit network interface with shielded DGKYD711U2Q032AB2WD080

Contact Now

RJ45 with dual USB 2.0 sockets, Gigabit network interface with shielded DGKYD711U2Q032AB2WD080

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO 9001/ISO 14001	Model Number:	DGKYD711U2Q032AB2WD080

Detail Information
No.Port:	RJ45 Single Port	Product Name:	RJ45 With Transformer
Type:	RJ45 Female	Housing:	Phenolic, PBT Black (UL94V-0)
Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS	Shield RJ45:	Yes
Featrue:	Power Over Ethernet	Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)
Gold Plating On Contact Pins:	6U	Storage Temperature:	-40°C~+85°C
Operating Temperature:	-40°C~+85°C
Highlight:	RJ45 dual USB 2.0 adapter , Gigabit network USB hub , shielded RJ45 USB connector

Product Description

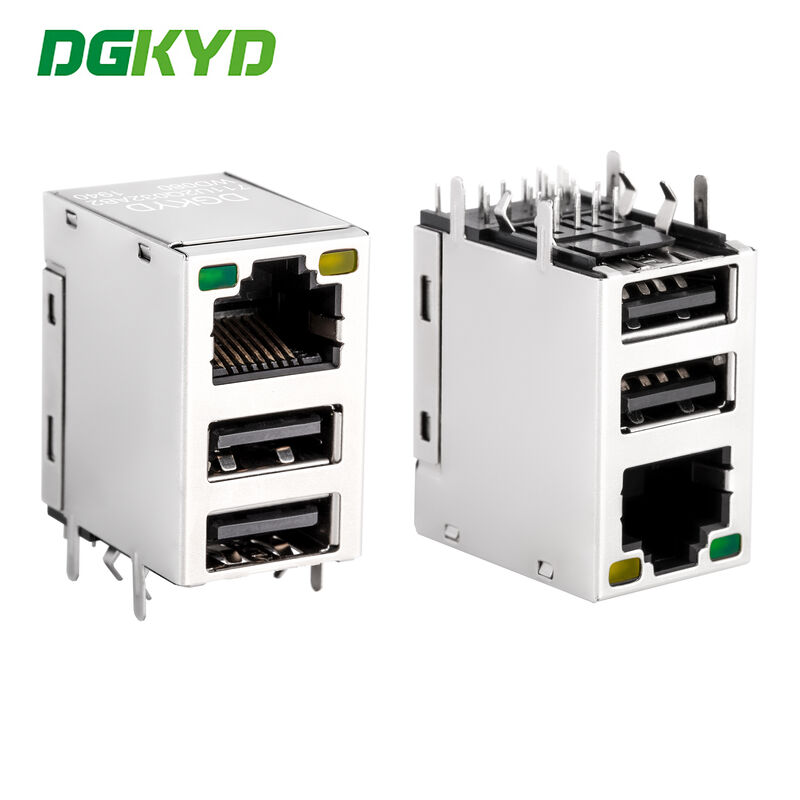

RJ45 with Dual USB 2.0 Sockets, Gigabit Network Interface with Shielded DGKYD711U2Q032AB2WD080

Product Overview

RJ45 connector with dual USB 2.0 sockets featuring Gigabit network interface with metal shielding. Part Number: DGKYD711U2Q032AB2WD080

Technical Specifications

Specification	Details
Part Number	DGKYD711U2Q032AB2WD080
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	10
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

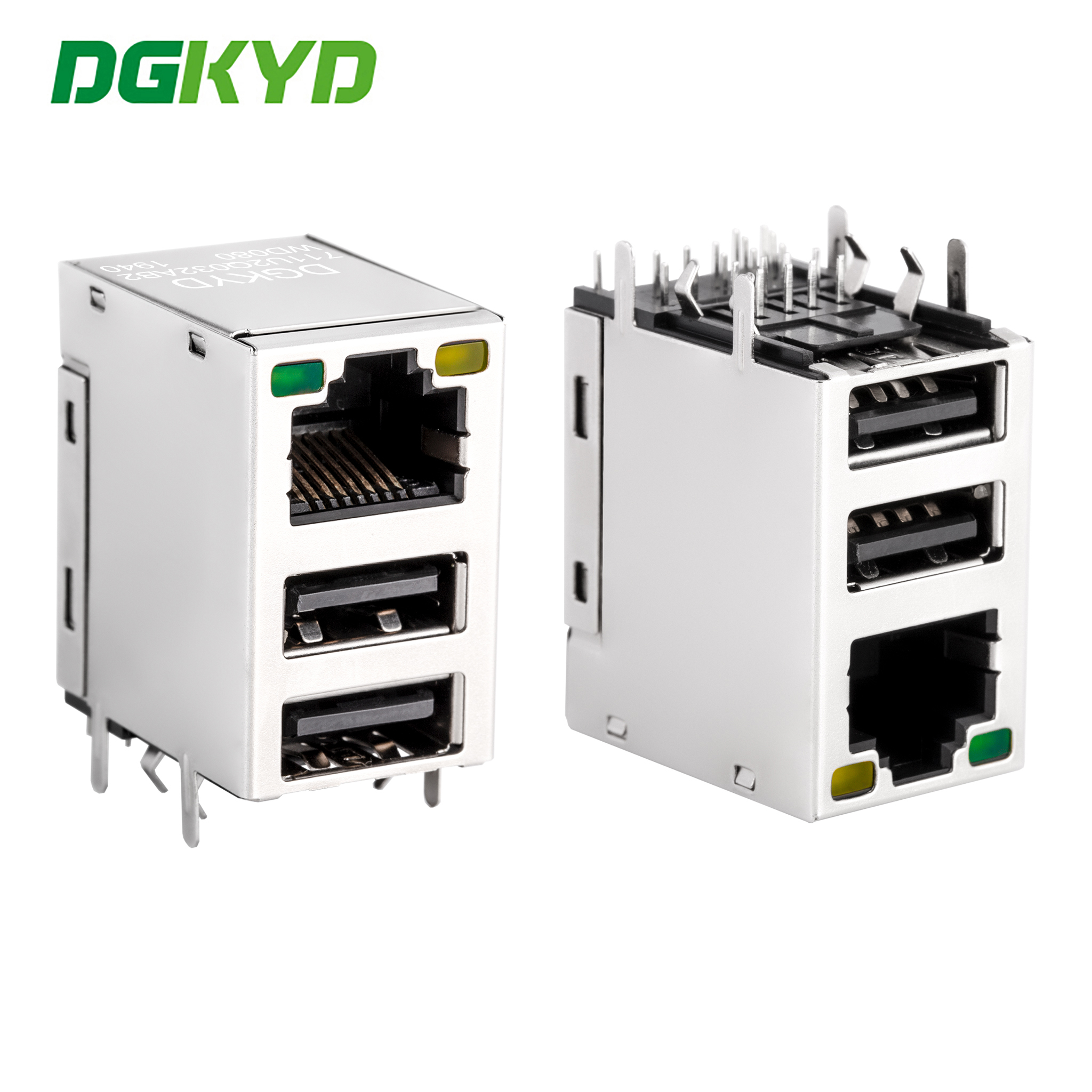

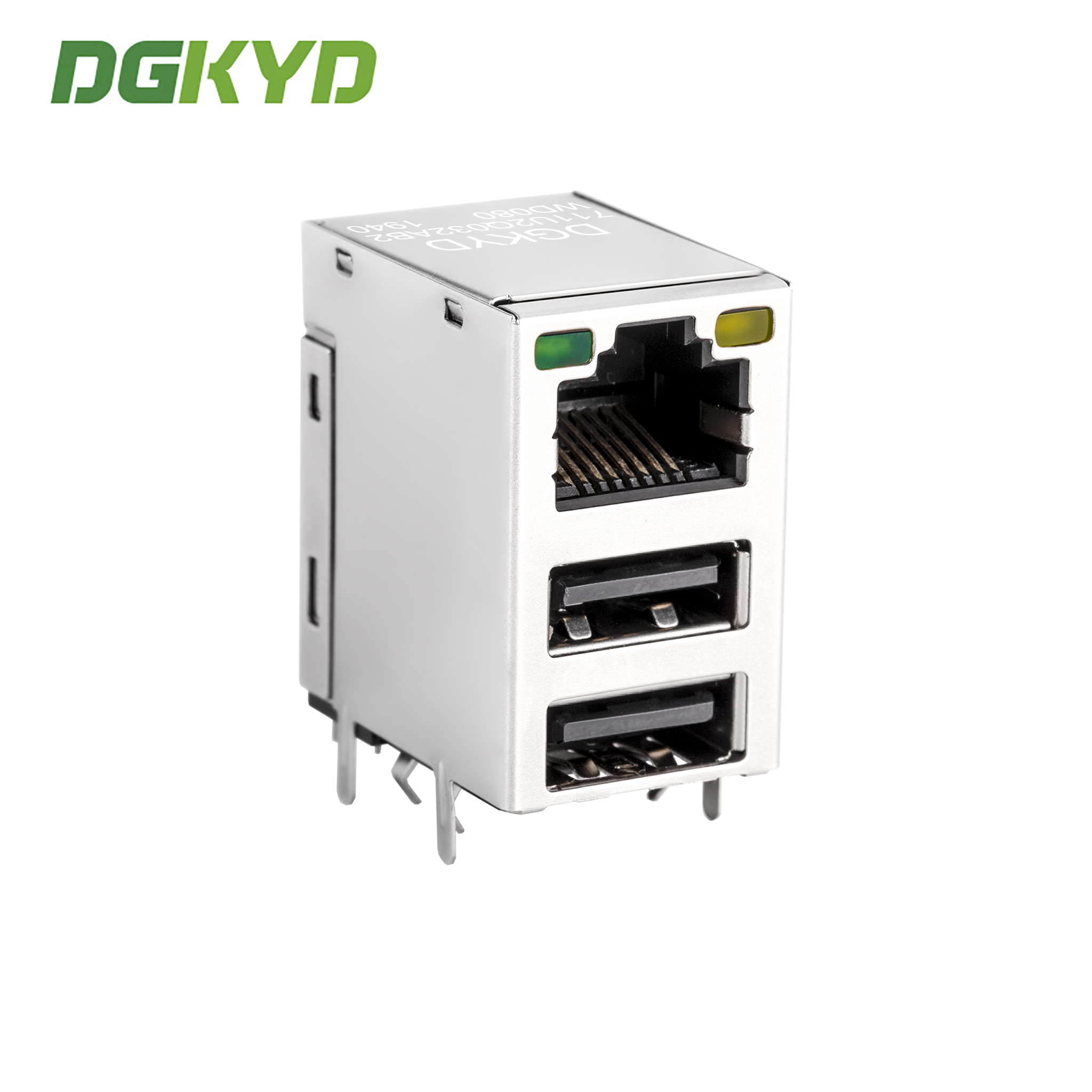

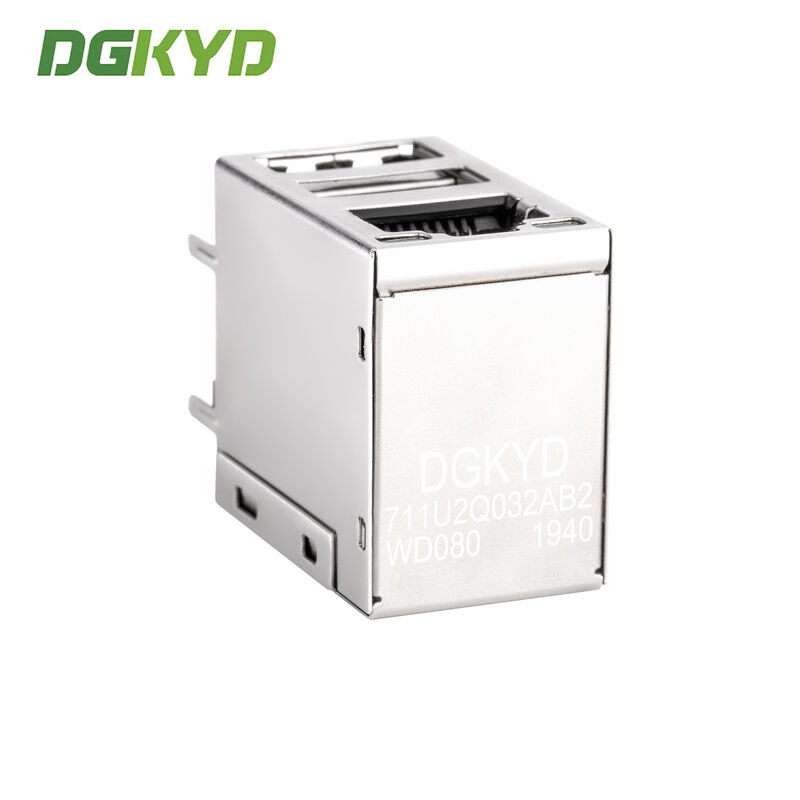

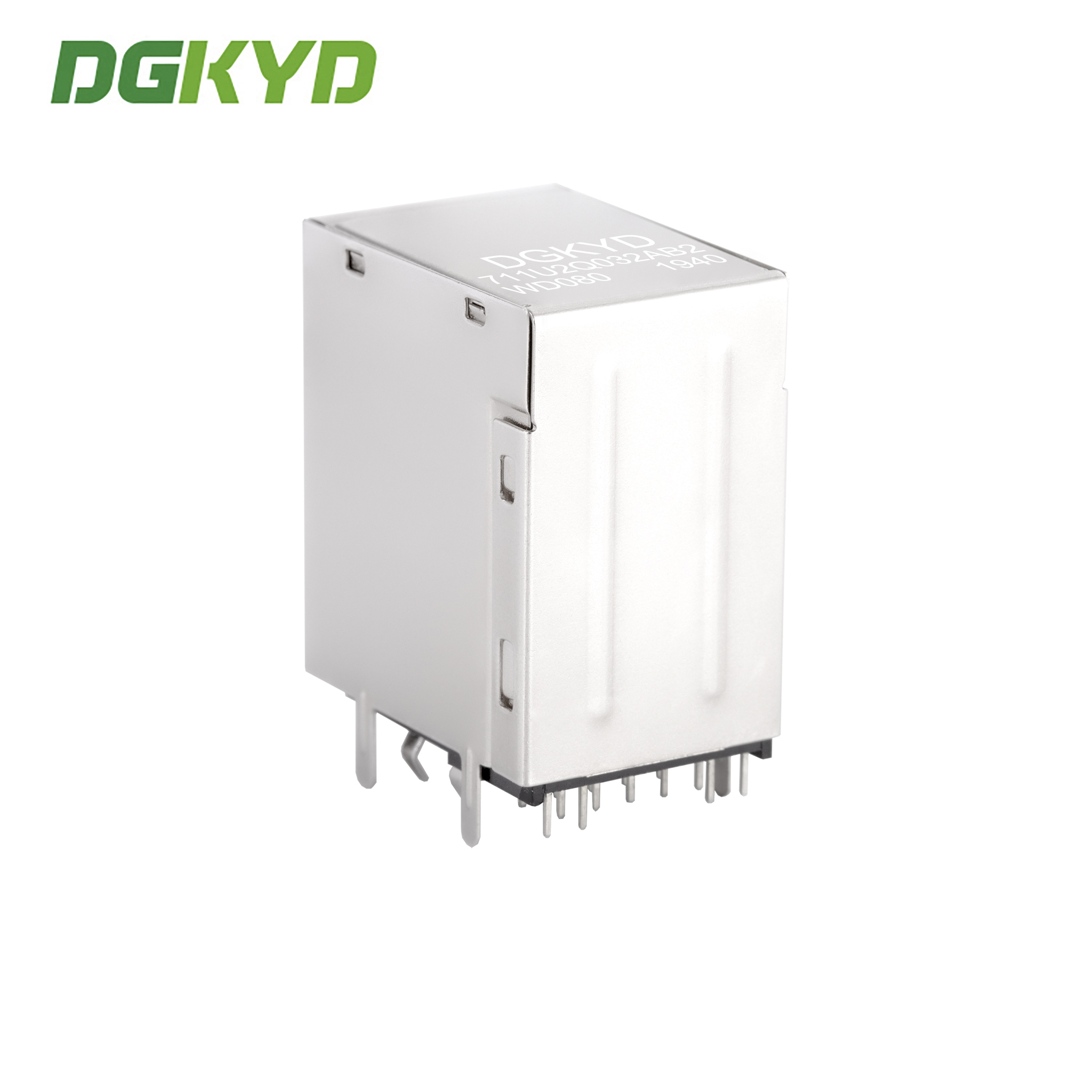

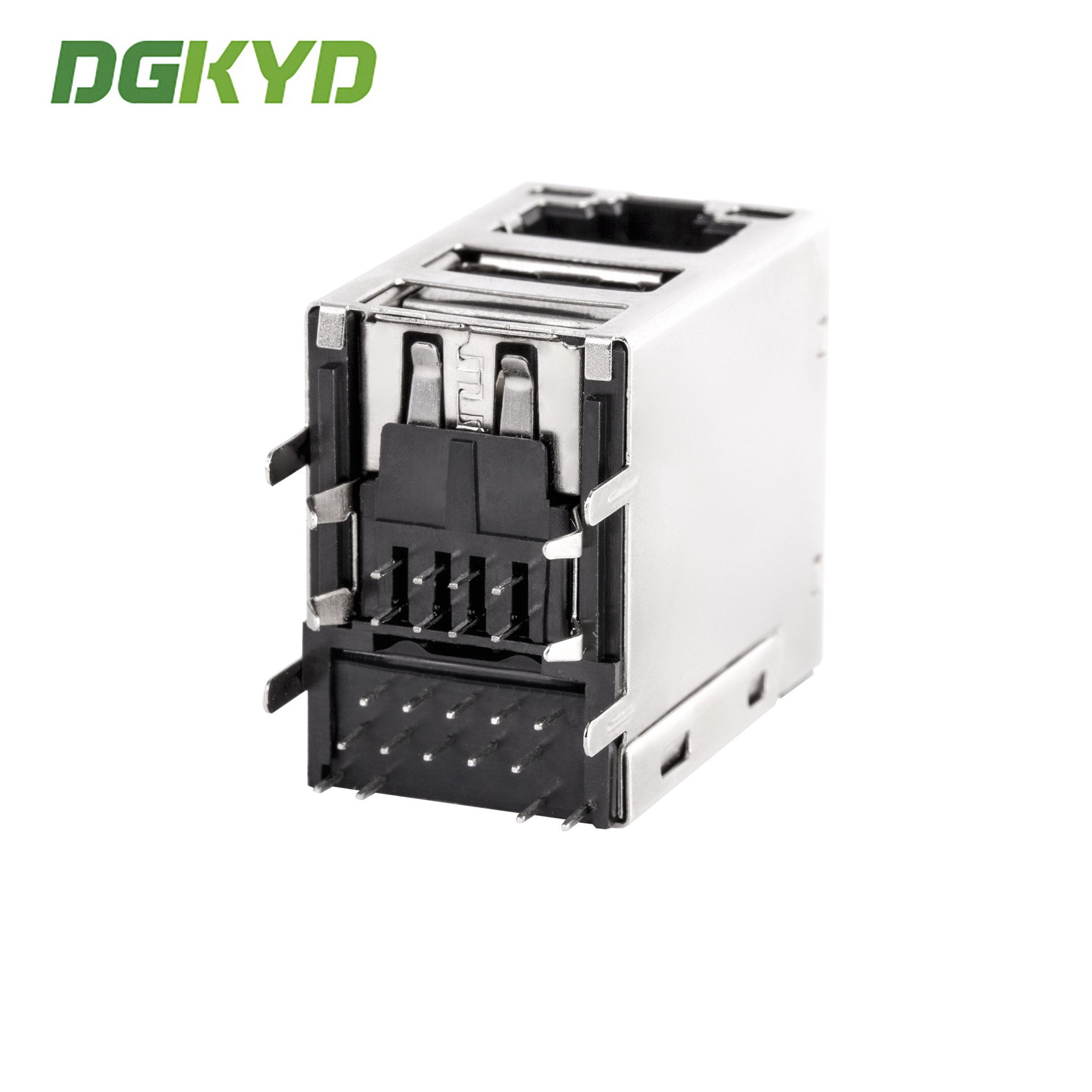

Product Images

Manufacturer Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
