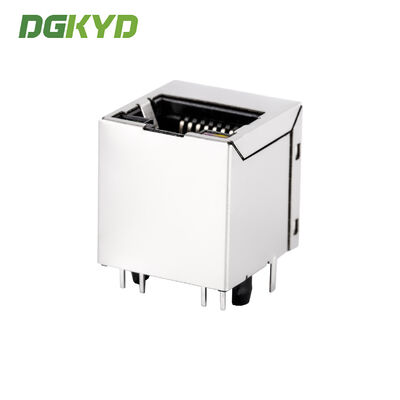

Vertical network interface RJ45 socket with light and filter socket DGKYD511B002AB1A8D

Contact Now

Vertical network interface RJ45 socket with light and filter socket DGKYD511B002AB1A8D

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD511B002AB1A8D

Detail Information
Product Type :	Connector-Modular	Connector Type :	Modular Jack
Latch Style:	Standard	Latch:	Up
Filter:	With Filter	Applies To :	Printed Circuit Board
Plating:	Glod Plating 6u/15u/30u/50u	Housing Material:	PBT Polyester
Gender:	Female
Highlight:	RJ45 socket with light , vertical network interface socket , RJ45 filter socket with transformer

Product Description

Vertical Network Interface RJ45 Socket with Light and Filter

Part Number: DGKYD511B002AB1A8D

Product Overview

180-Degree Vertical RJ45 Transformer designed for reliable network connectivity with integrated filtering and LED indicators.

Technical Specifications

Specification	Details
Part Number	DGKYD511B002AB1A8D
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

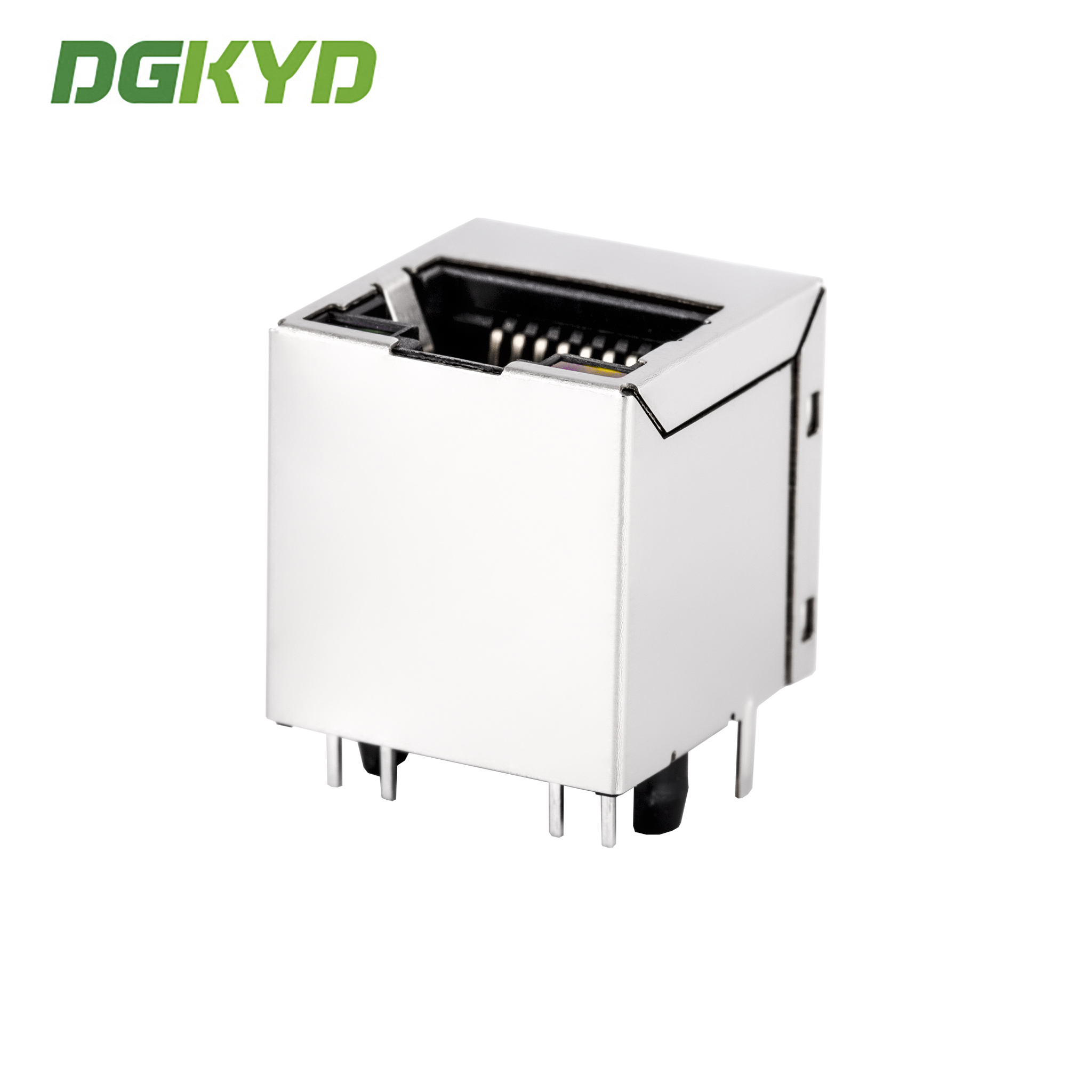

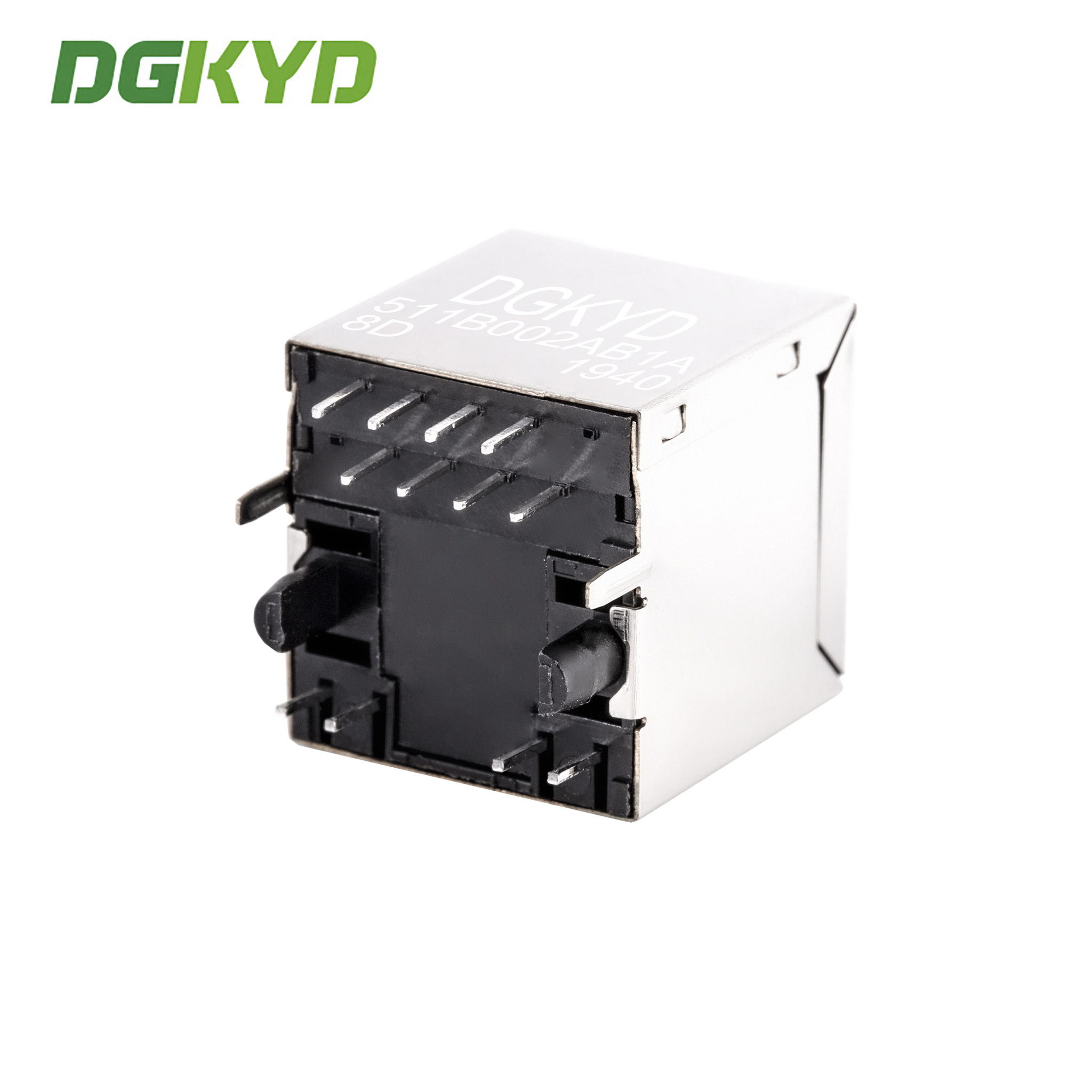

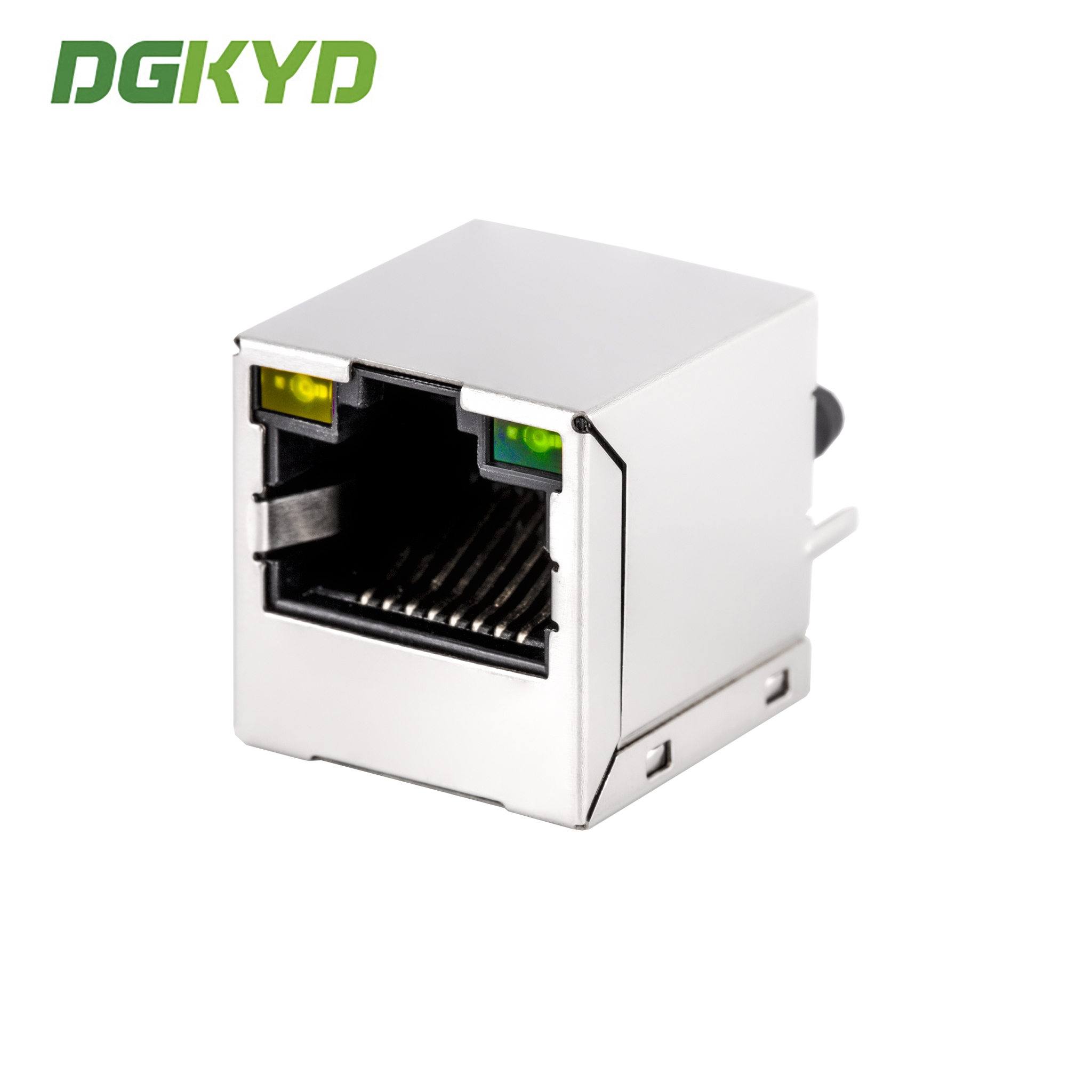

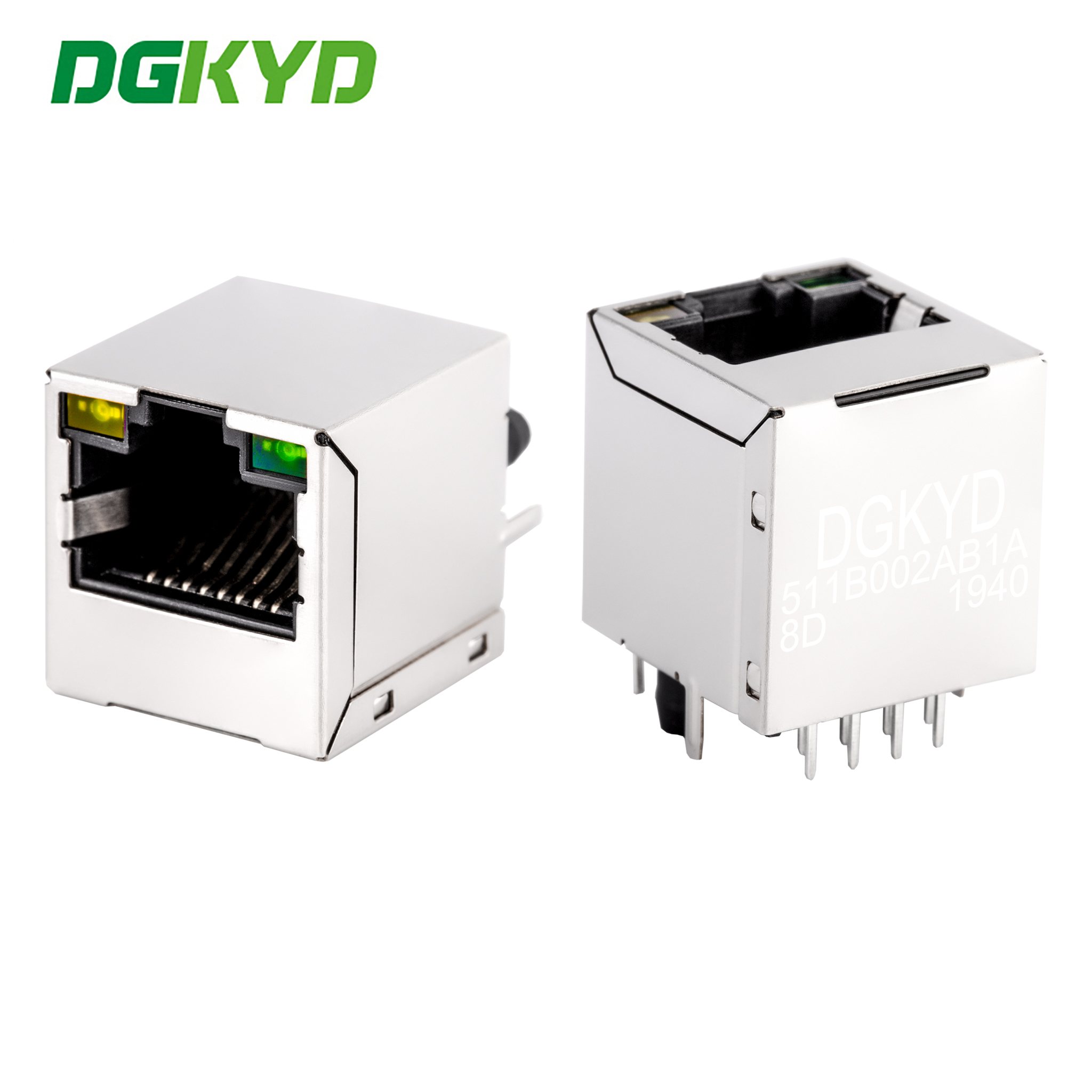

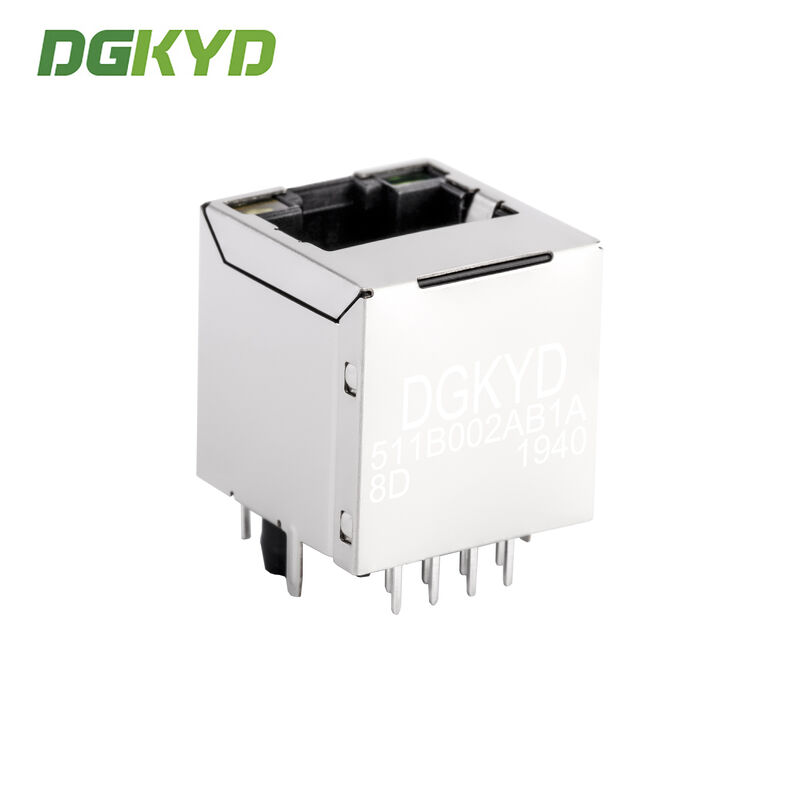

Product Images

Manufacturer Information

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: high frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering compatible with wave soldering up to 265℃
Complete RJ45 integrated circuit accessories series
Manufacturer direct supply
Standard delivery time: approximately two weeks
Customizable LED indicator colors (green, yellow, red, orange, blue, bi-color)
Optional EMI finger shielding
Customizable magnetic core coil ratios
Diverse magnetics circuit options
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Multiple plastic housing materials (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical manufacturing specifications, and environmental protection standards. Your satisfaction is our primary service objective.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What is your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time depends on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on the product?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
