Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Minimum Order Quantity :	1	Price :	$0.51-0.85

Place of Origin:	Guangdong, China	Brand Name:	DGKYD
Model Number:	KRJ-406CNL

Detail Information
Type:	RJ45	Gender:	Female

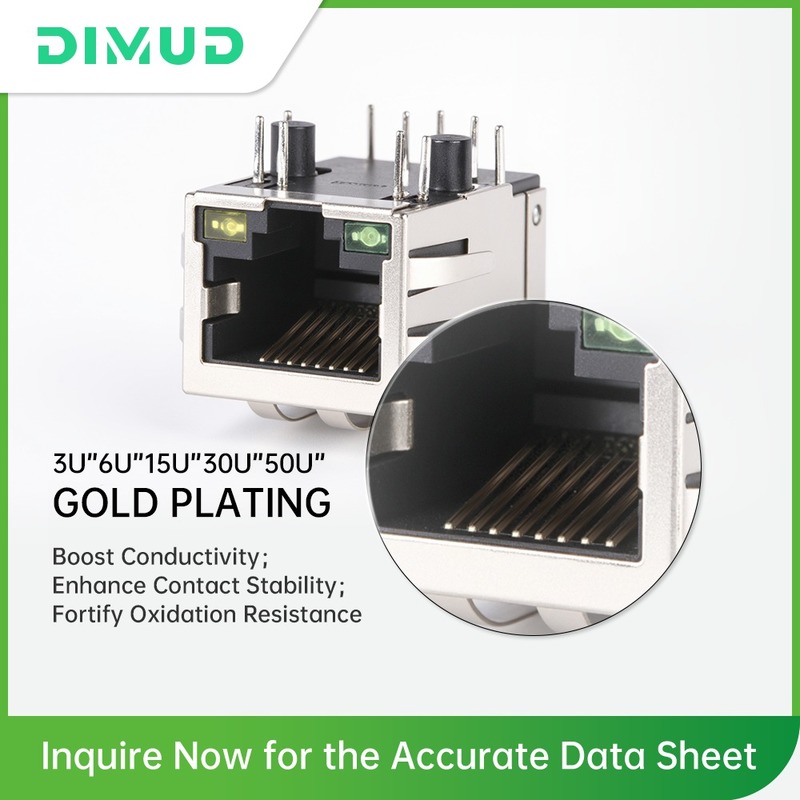

Housing Material:	PBT BLACK	Contact Plating:	GOLD 6u''
Shield Material:	Copper Alloy Preplated With Nickel	LED Option:	With LED
LED Color:	Green & Yellow	Number Of Contacts:	8
Transformer Option:	With Transformer	Performance Speed:	10/100 BASE-T
Port Configuration:	Single	Termination Method:	Through Hole-Press-Fit
Mounting Style:	Through Hole	Mounting Orientation:	Side Entry (Right Angle)
UL Flammability Rating:	UL 94V-0
Highlight:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Product Description

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0
