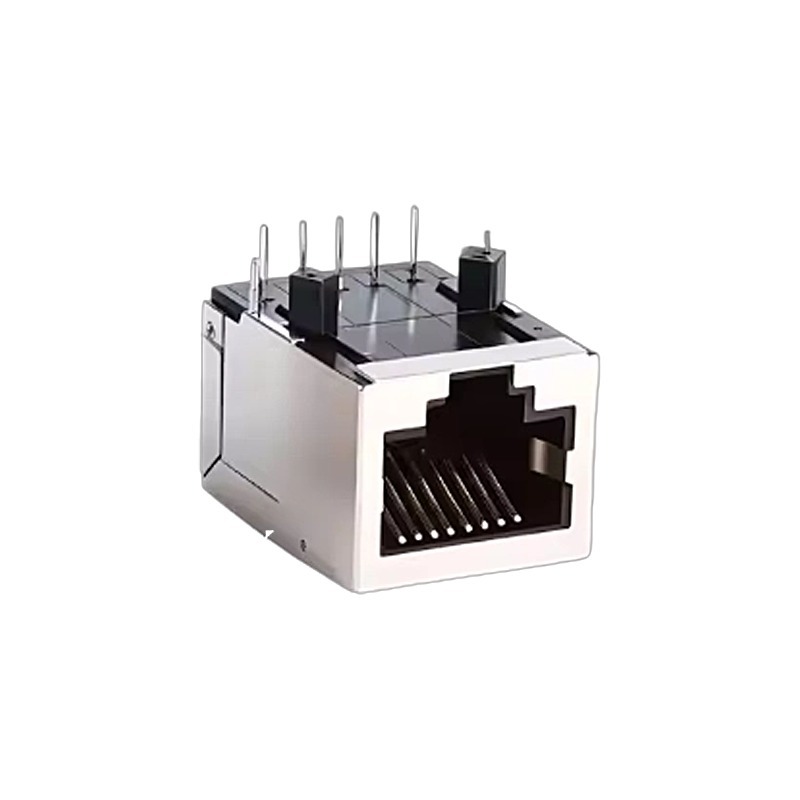

DGKYD RJ45 Connector 8P Single Port Shielded with Transformer

Minimum Order Quantity :	1	Price :	$0.45-0.70

Place of Origin:	Guangdong, China	Model Number:	DGKYD111B044GWA1D

Detail Information
Connector Type:	RJ45	Installation Type:	Through Hole
Contact Material:	Phosphor Bronze	Shielding:	Yes
Number Of Ports:	1	Contact Finish:	6U/15U30U
Orientation:	Side	Number Of Rows:	1
Pins:	8P	Housing Material:	PBT BLACK

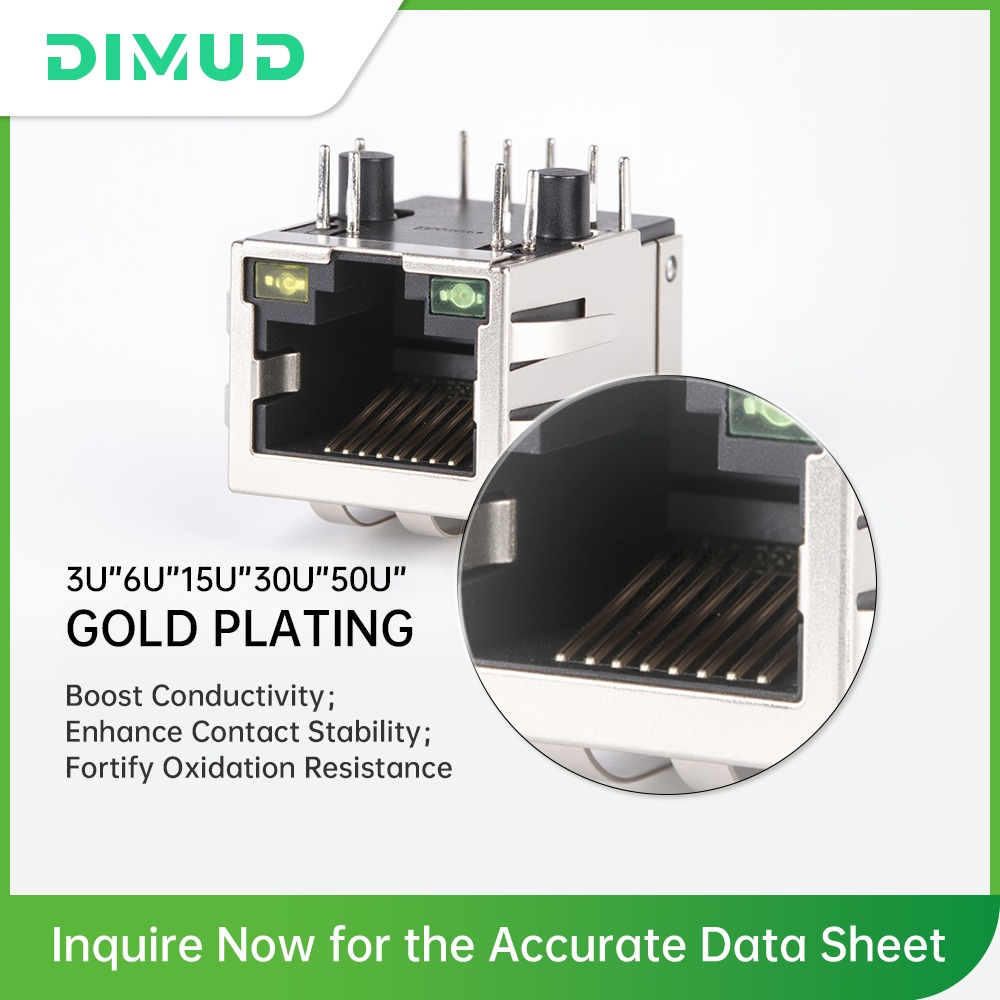

Contact Plating:	Gold 6u'' / 15u"/ 30u"/ 50u"	Metal Shield:	TIN PLATED PHOSPHOR BROZNE
LED Option:	Without LED	Latch Style:	Down
Number Of Contacts:	8
Highlight:	shielded RJ45 connector with transformer , single port RJ45 connector , 8P shielded Ethernet connector

Product Description

Premium 1x1 Single Port RJ45 Ethernet Connector Jack

PCB Mount Shielded Transformer with LED Indicator for reliable network connections. Designed for professional applications requiring stable Ethernet performance.

Product Specifications

Part Number	DGKYD111B044GWA1D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certifications	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard (Down)
Filter	With Filter
LED Option	Without LED
Shielded	Yes
Performance Speed	100 BASE-T
Port Configuration	Single (1x1)
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black, UL 94V-0 rated)
PCB Mounting	Through Hole (Side Entry/Right Angle)
