RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD114Q070DB2A1D3

Detail Information
Shield RJ45:	Yes	No.Port:	4 Port
Product Name:	RJ45 With Transformer	Type:	RJ45 Female
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Storage Temperature:	-40°C~+85°C	Number Of Stitches:	8P10C
Operating Temperature:	-40 ° C~+85 ° C	LED:	Green/Yellow
Highlight:	RJ45 network connector With Transformer , quad port RJ45 network connector , RJ45 quad port network connector

Product Description

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3

Product Specification Document

Part Number	DGKYD114Q070DB2A1D3	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	10
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

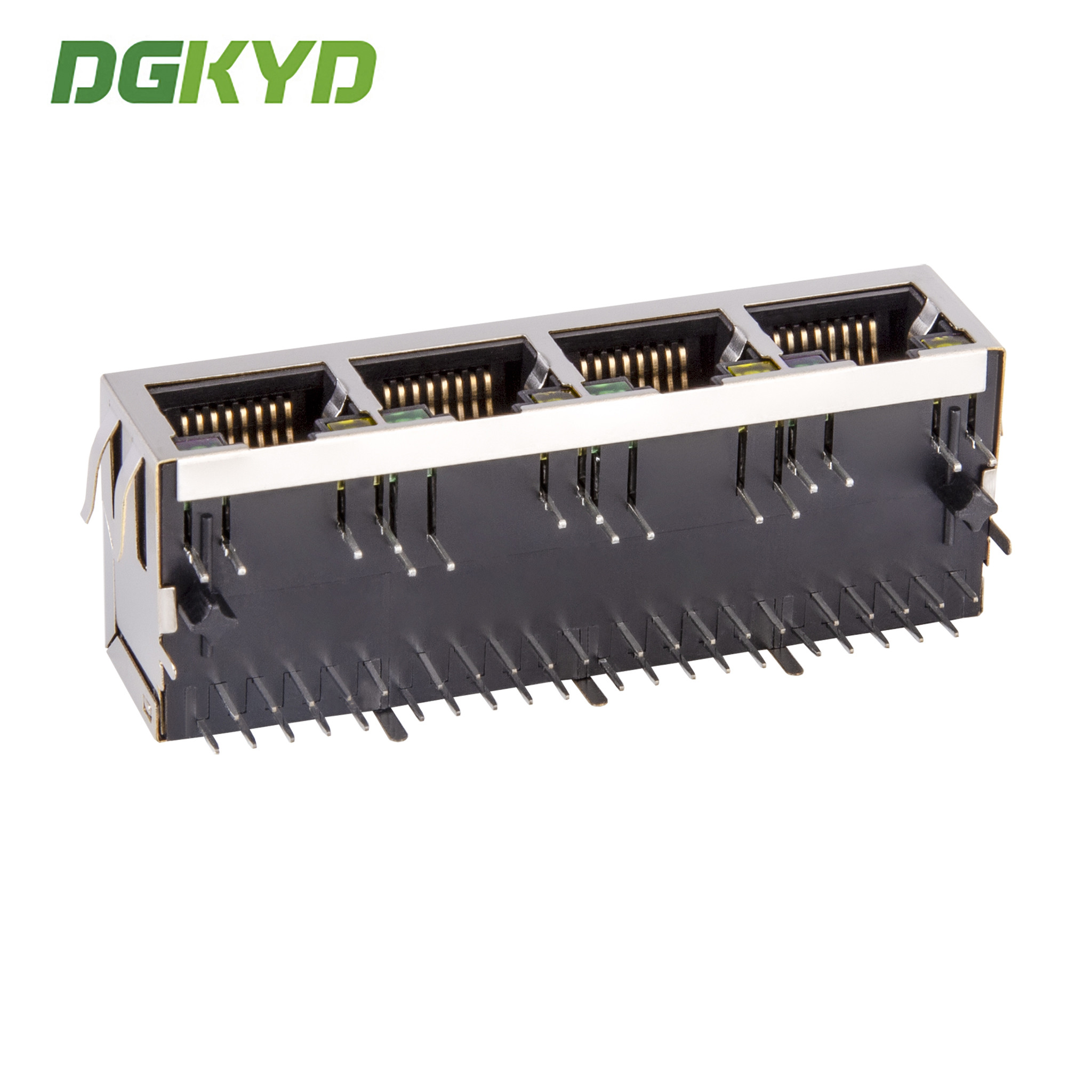

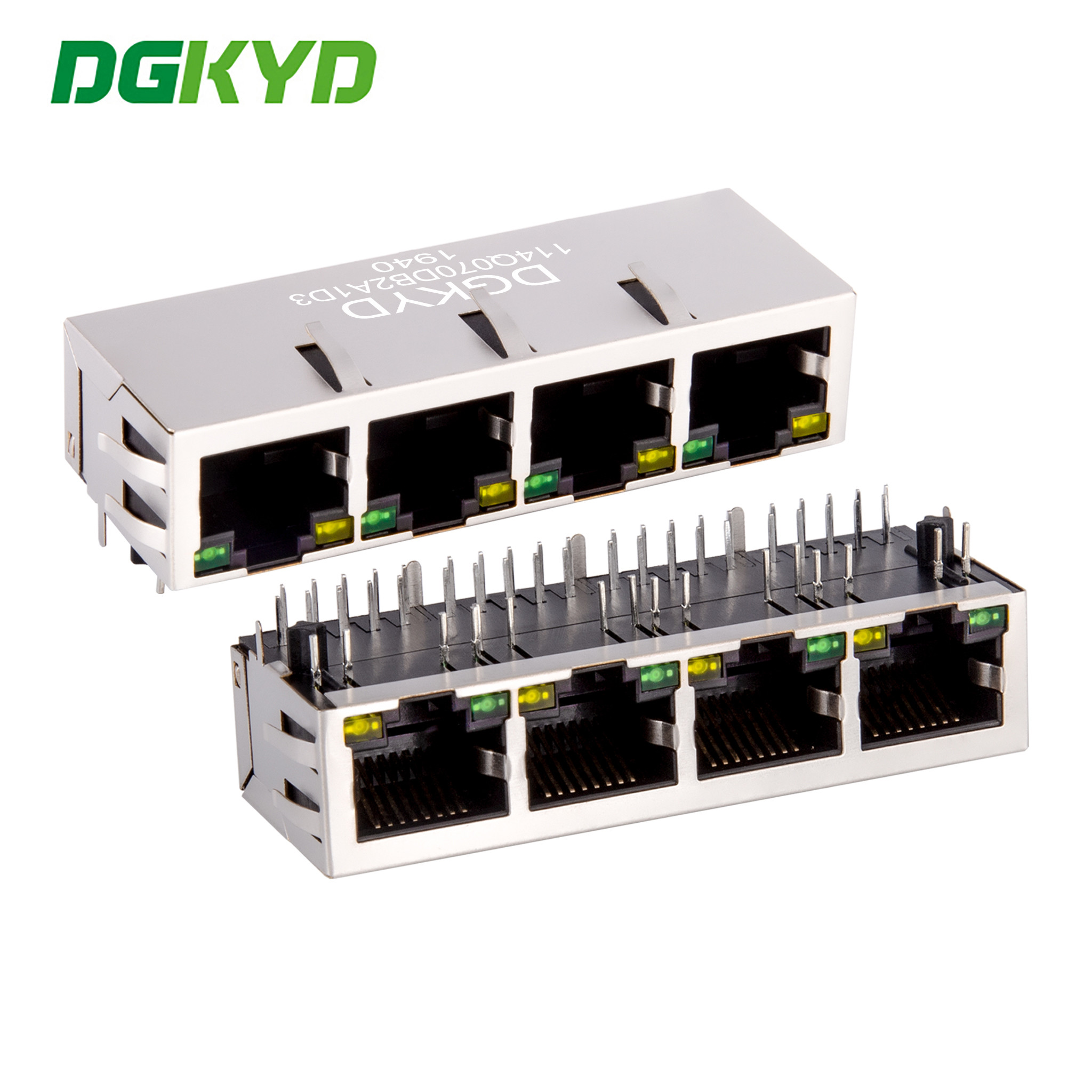

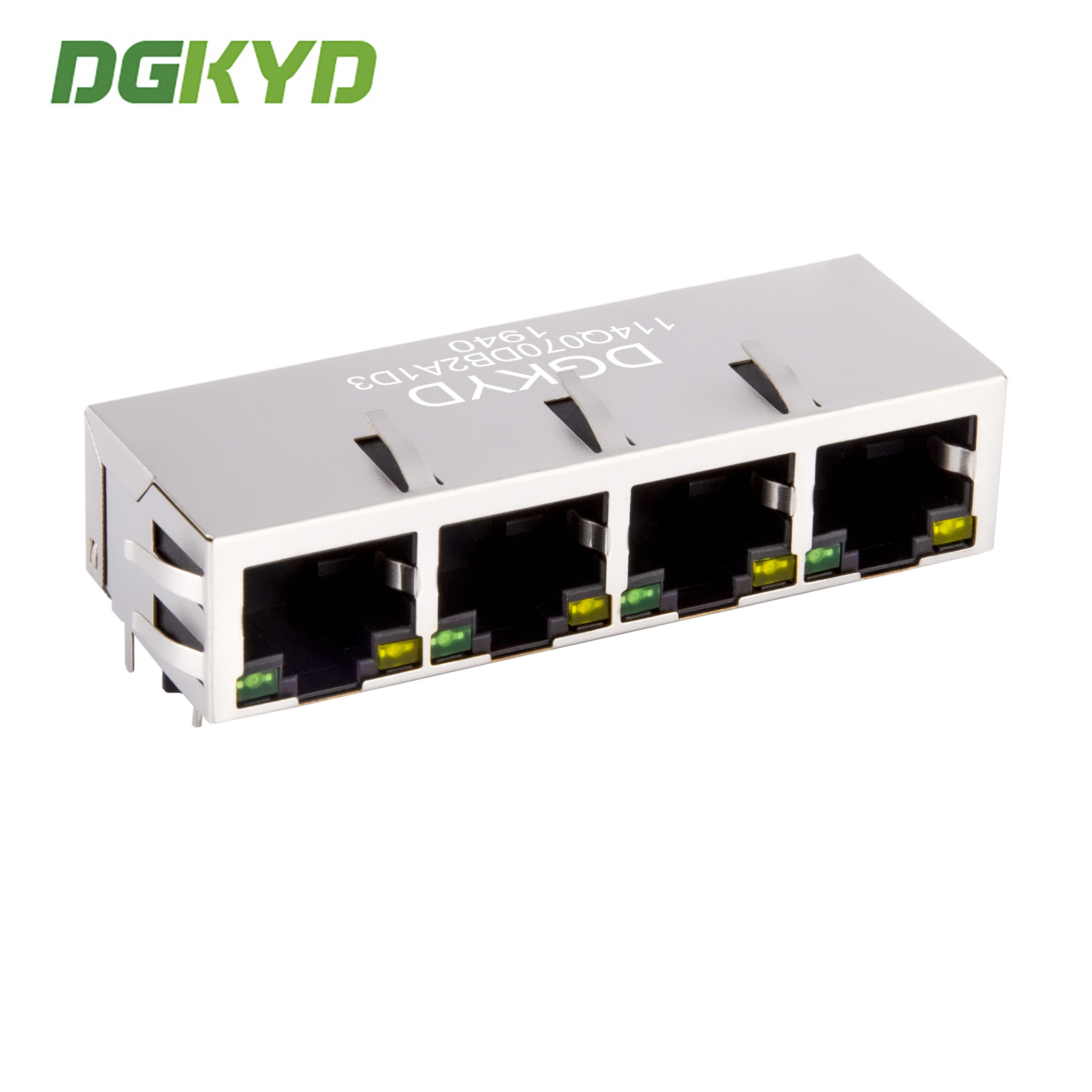

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 0

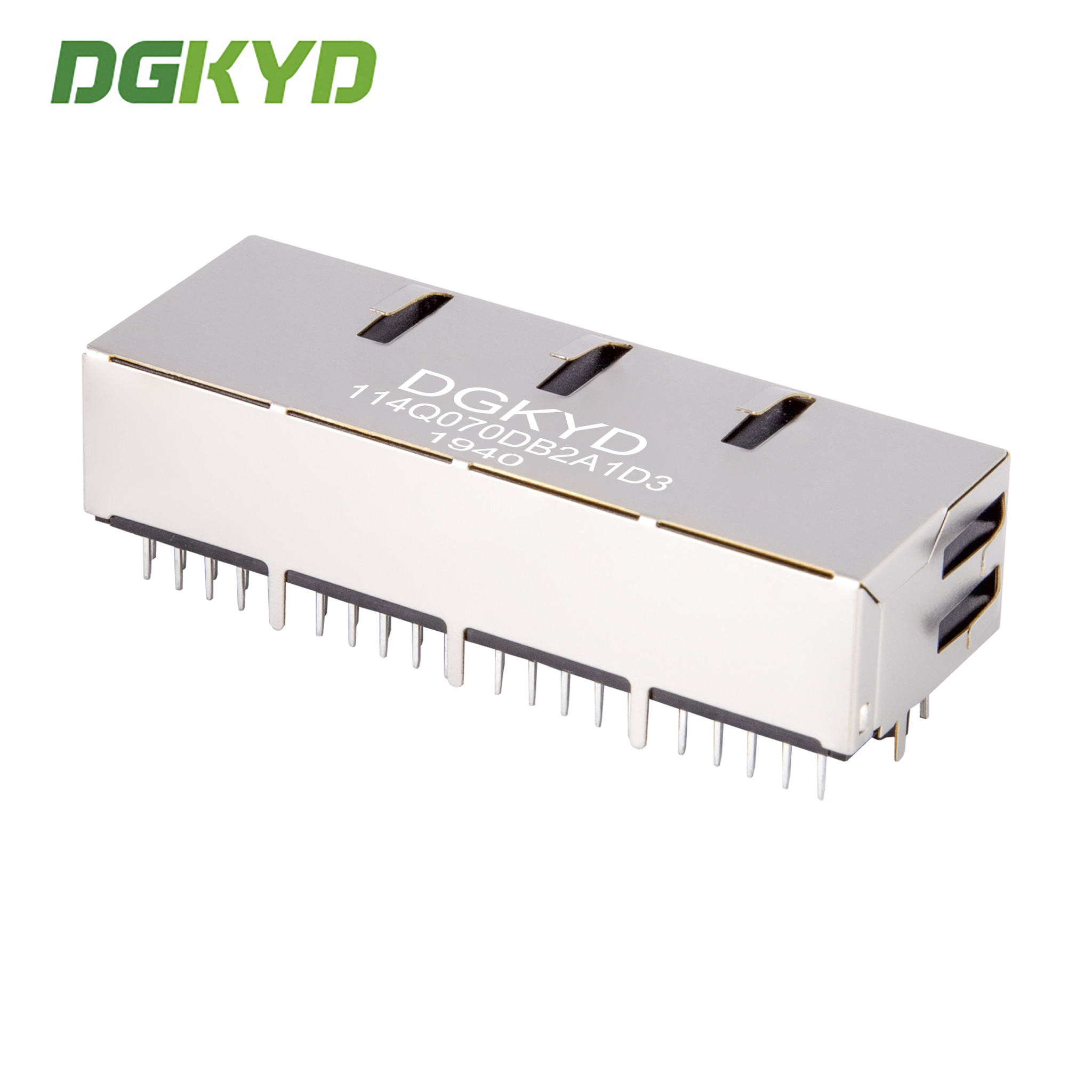

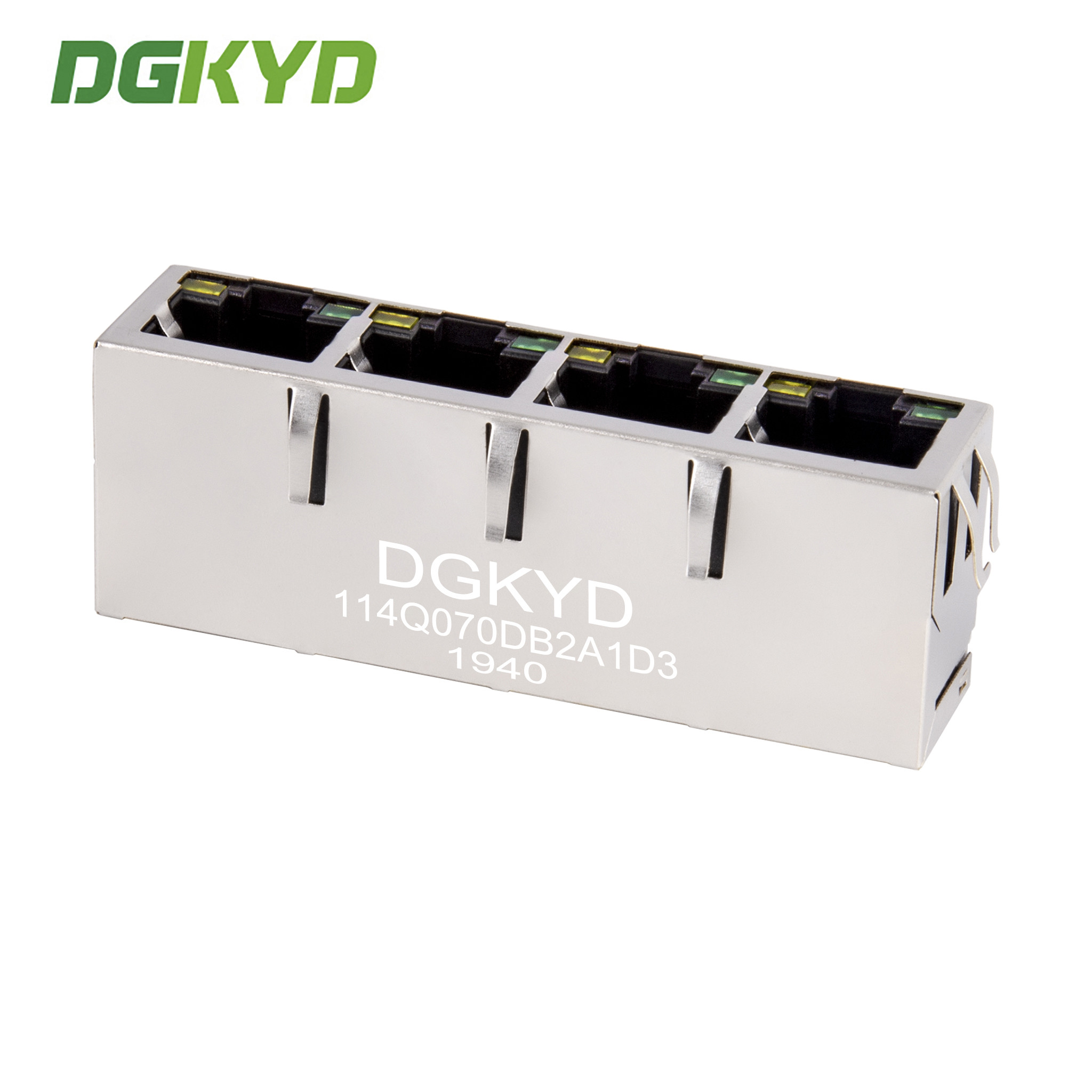

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 1

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
