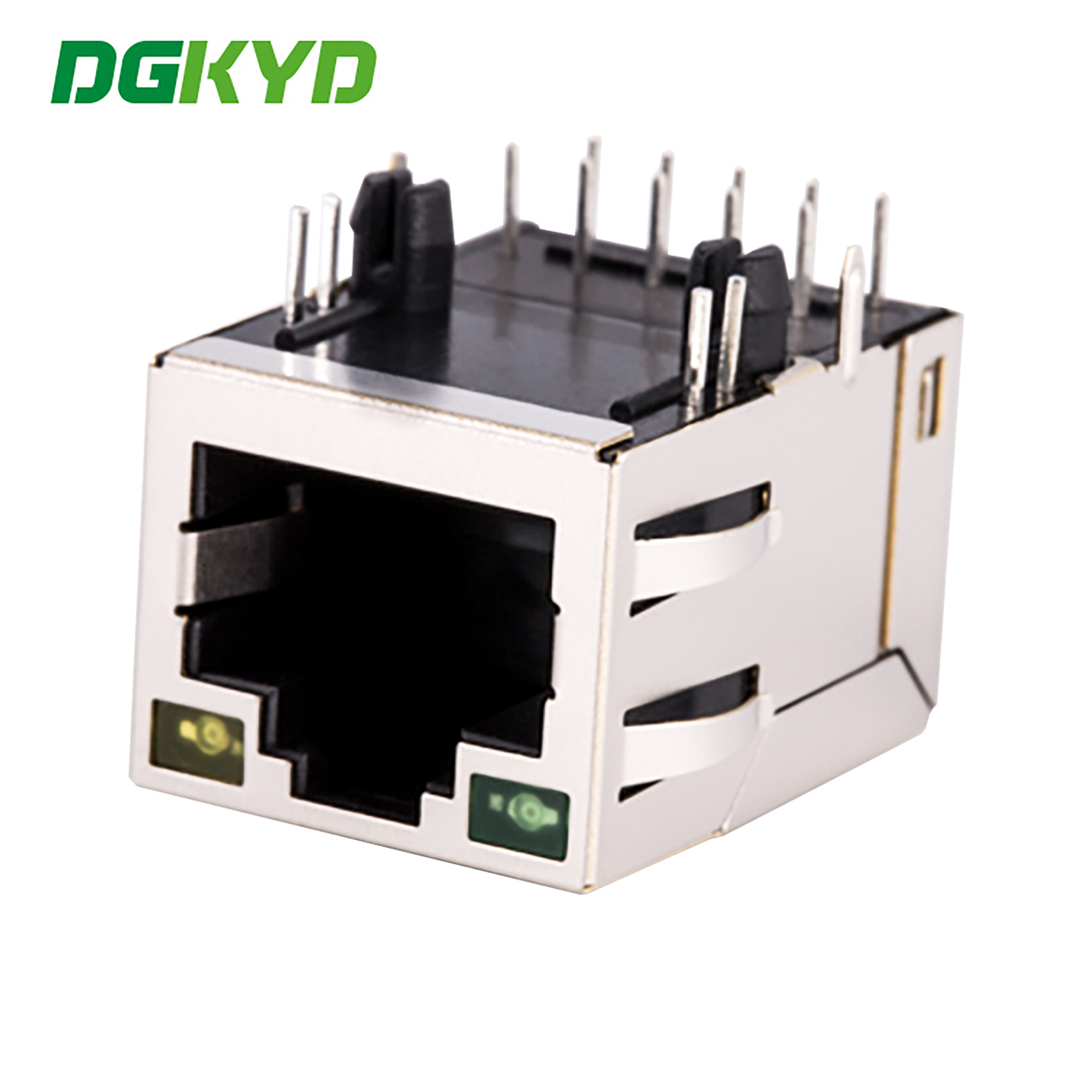

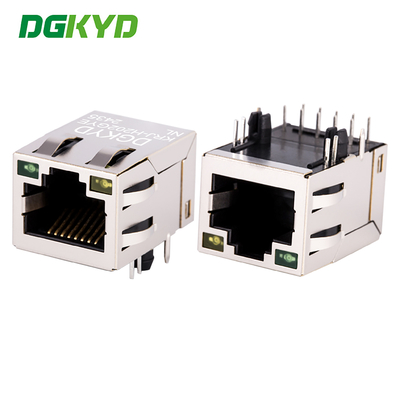

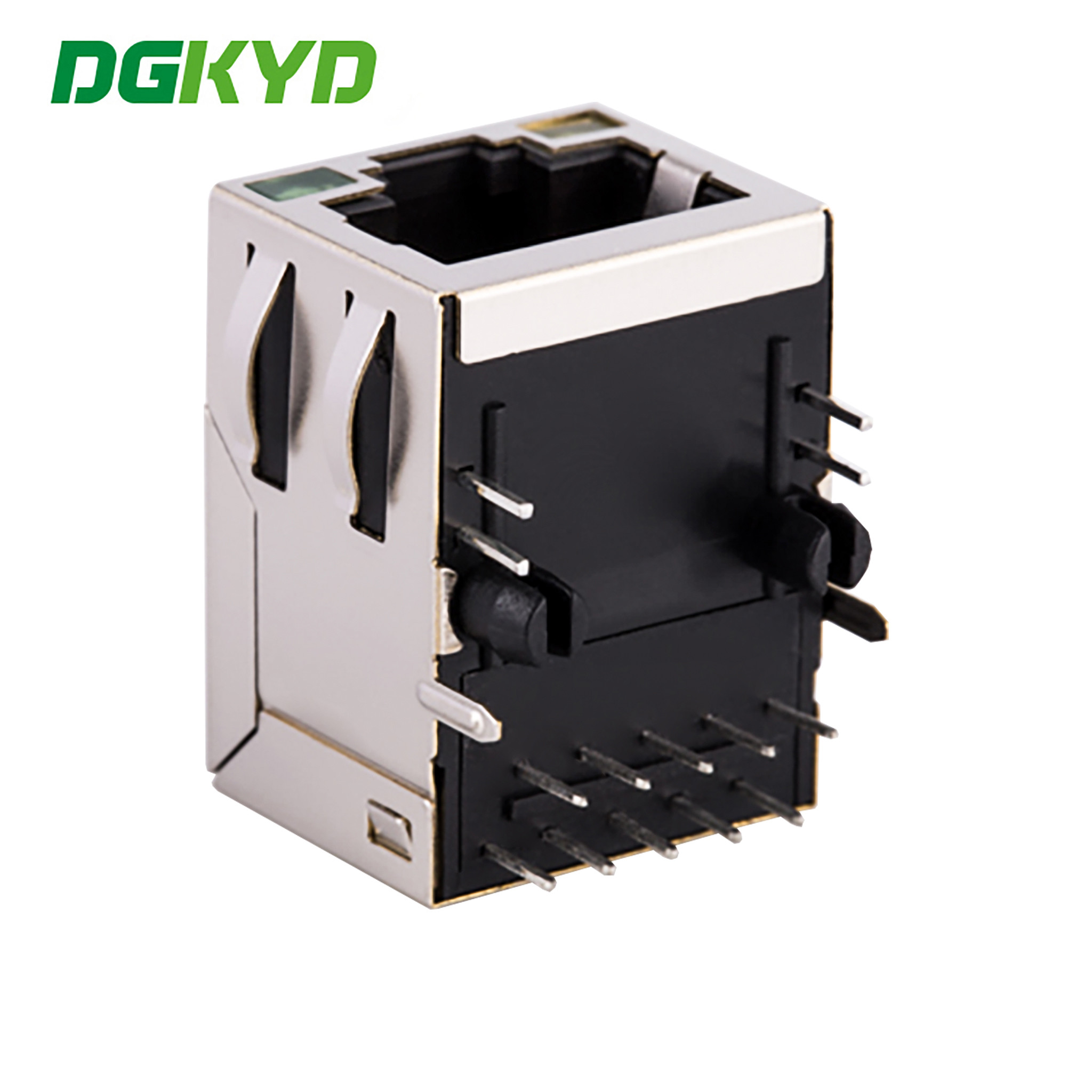

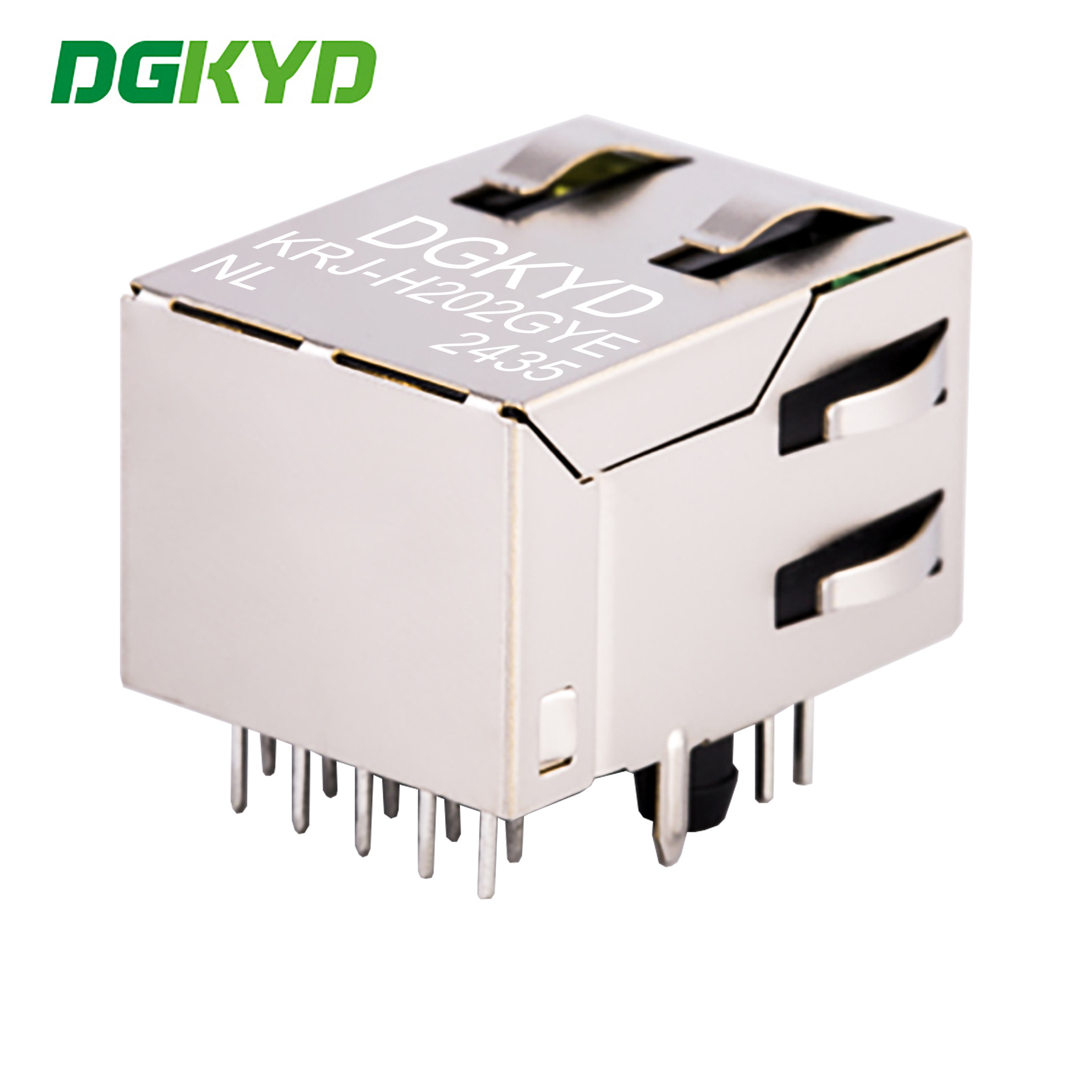

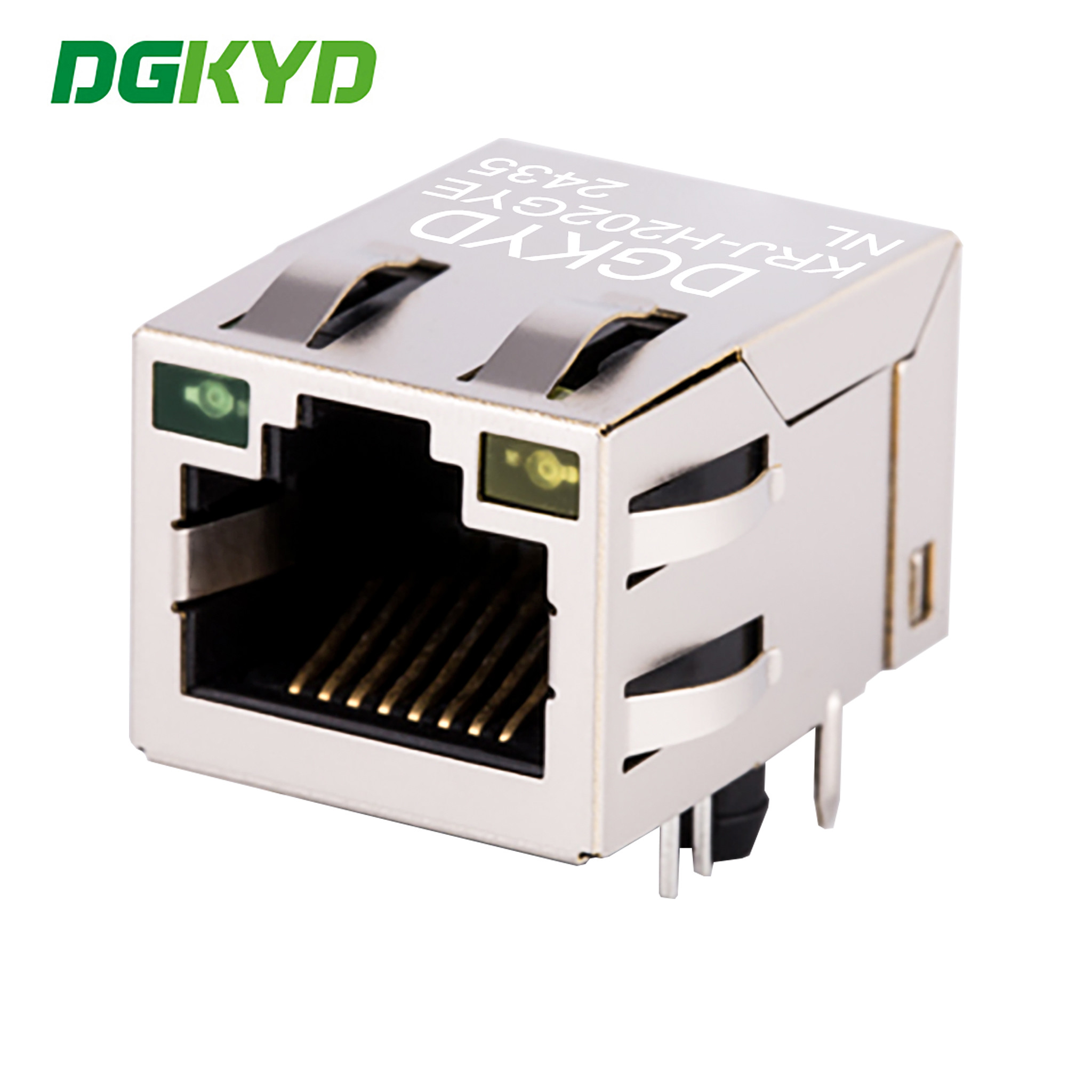

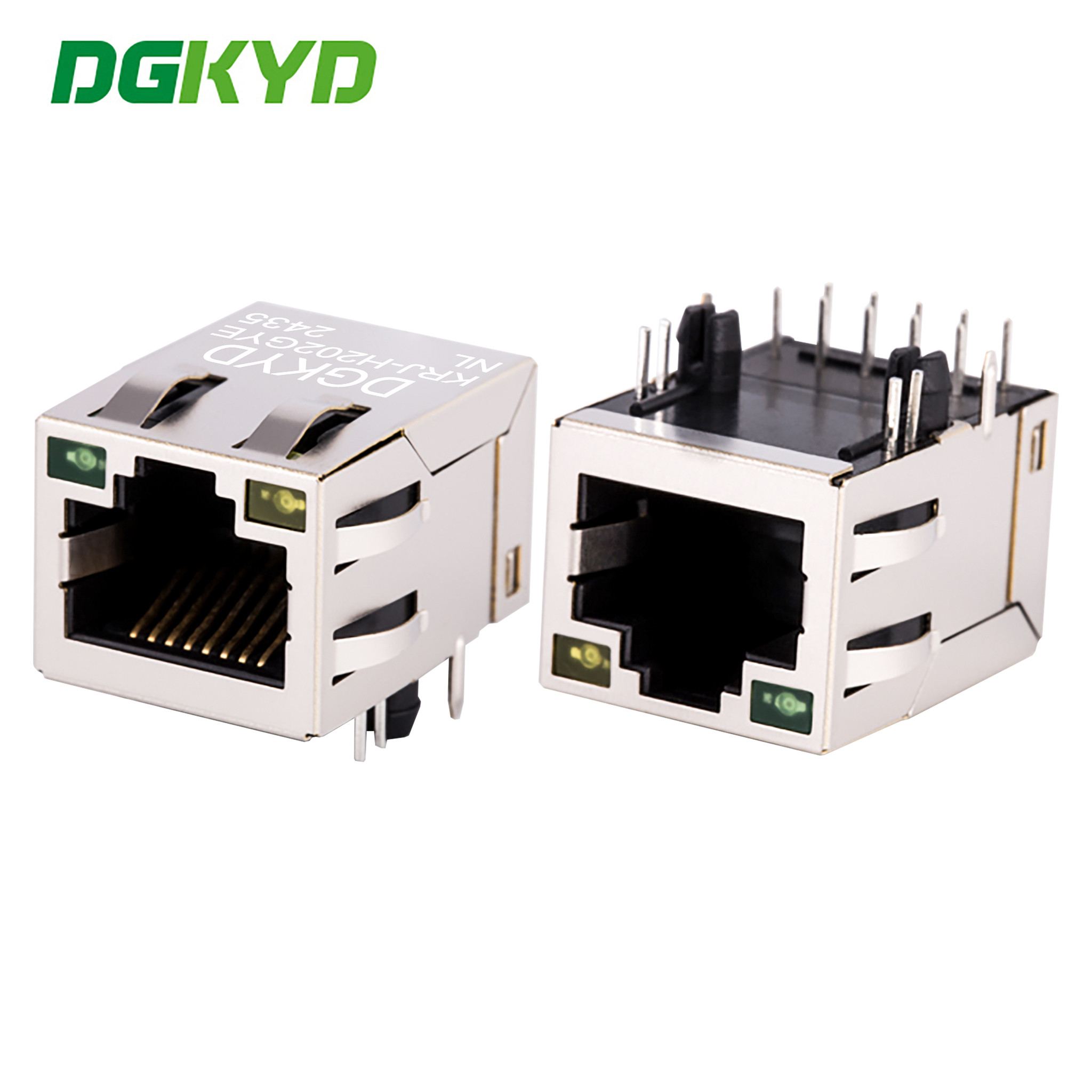

5Gbit / s RJ45 magnetics jack ethernet industrial connector 33MM GY / GY
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-H202GYENL |
|
Detail Information |
|||
| Product Name: | RJ45 With Transformer | Plastic Core: | Glass Fiber Filler PBT Black(UL94V-0),ROHS |
|---|---|---|---|
| Type: | RJ45 Female Jack | No.Port: | RJ45 Single Port |
| Shield RJ45: | Yes | Housing: | Phenolic, PBT Black (UL94V-0) |
| Operation Temperature: | -40°C~+85°C | Storage Temperature: | -40°C~+85°C |
| LED: | Green/Yellow | ||
| High Light: | KRJ-H202GYENL RJ45,Network Interface RJ45 with Transformer,Ethernet Integrated Gigabit Connector |
||
Product Description
Product Specification Document
KRJ-H202GYENL.pdf
Parameters
| Part Number | KRJ-H202GYENL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes L-Green/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Material specifications:
Applications:
Integrated RJ45 connector main used to :
• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical
transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
Electrical Specifications at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
