Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-H001WDNL

Detail Information
Feature:	High Performance	RJ45 Suitable:	For CAT5&6 Ethernet Cable Or UTP
Application:	Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices	Product Name:	RJ45connector
Speed:	Cat5	Type:	Single Port
Highlight:	poe rj45 connector , rj45 connector with magnetics , KRJ-H001WDNL

Product Description

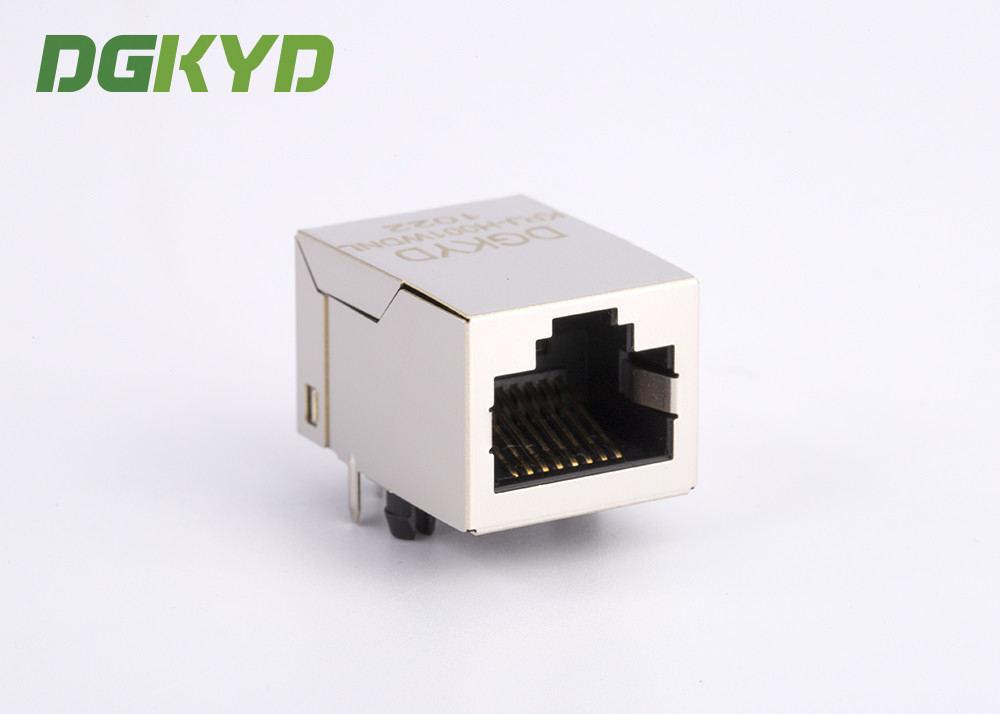

Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL

Part Number	KRJ-H001WDNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	With filter	LED Option	No LED
LED Color	N/A	Panel Stops	Without Panel Stops
Shielded	Metal shielded	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC
