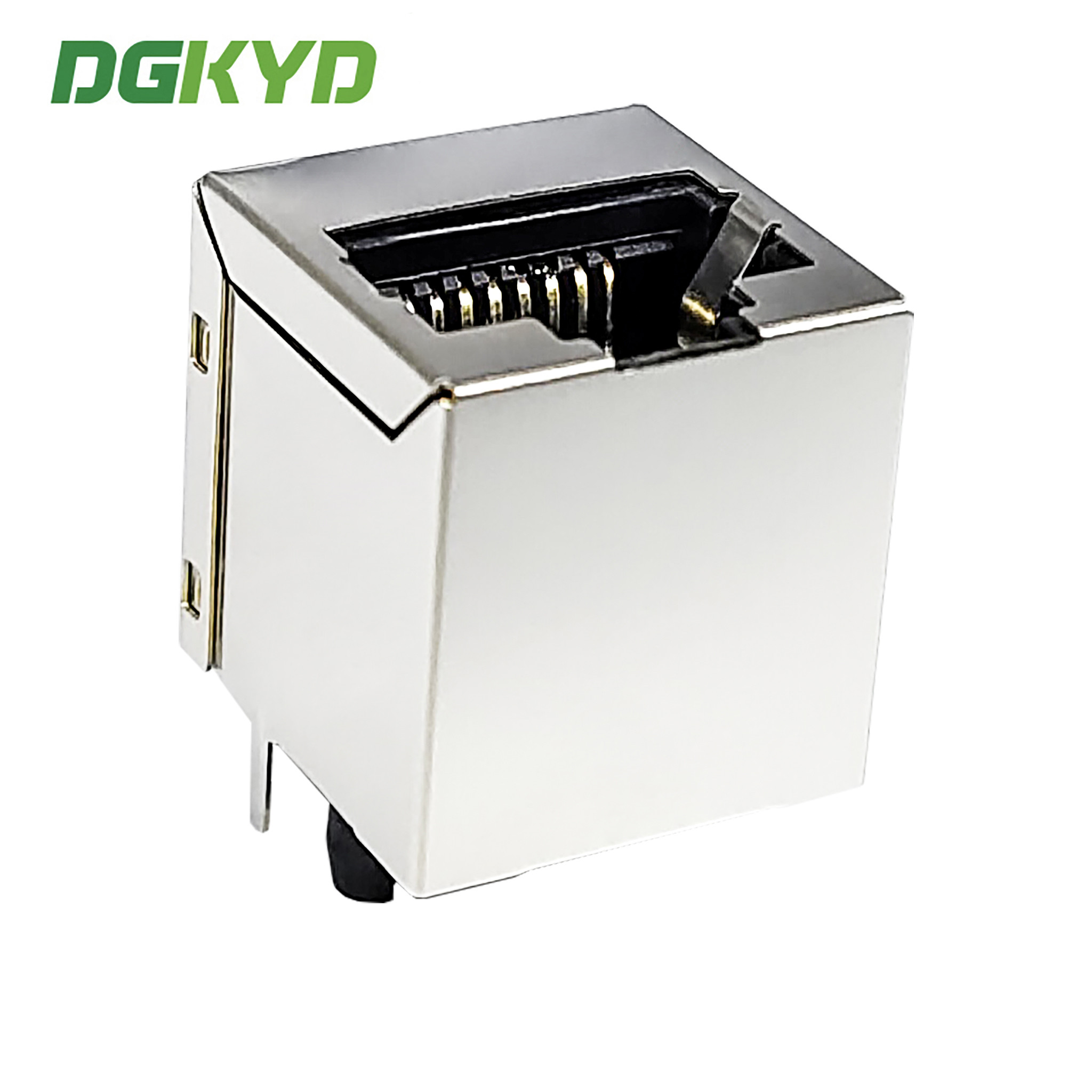

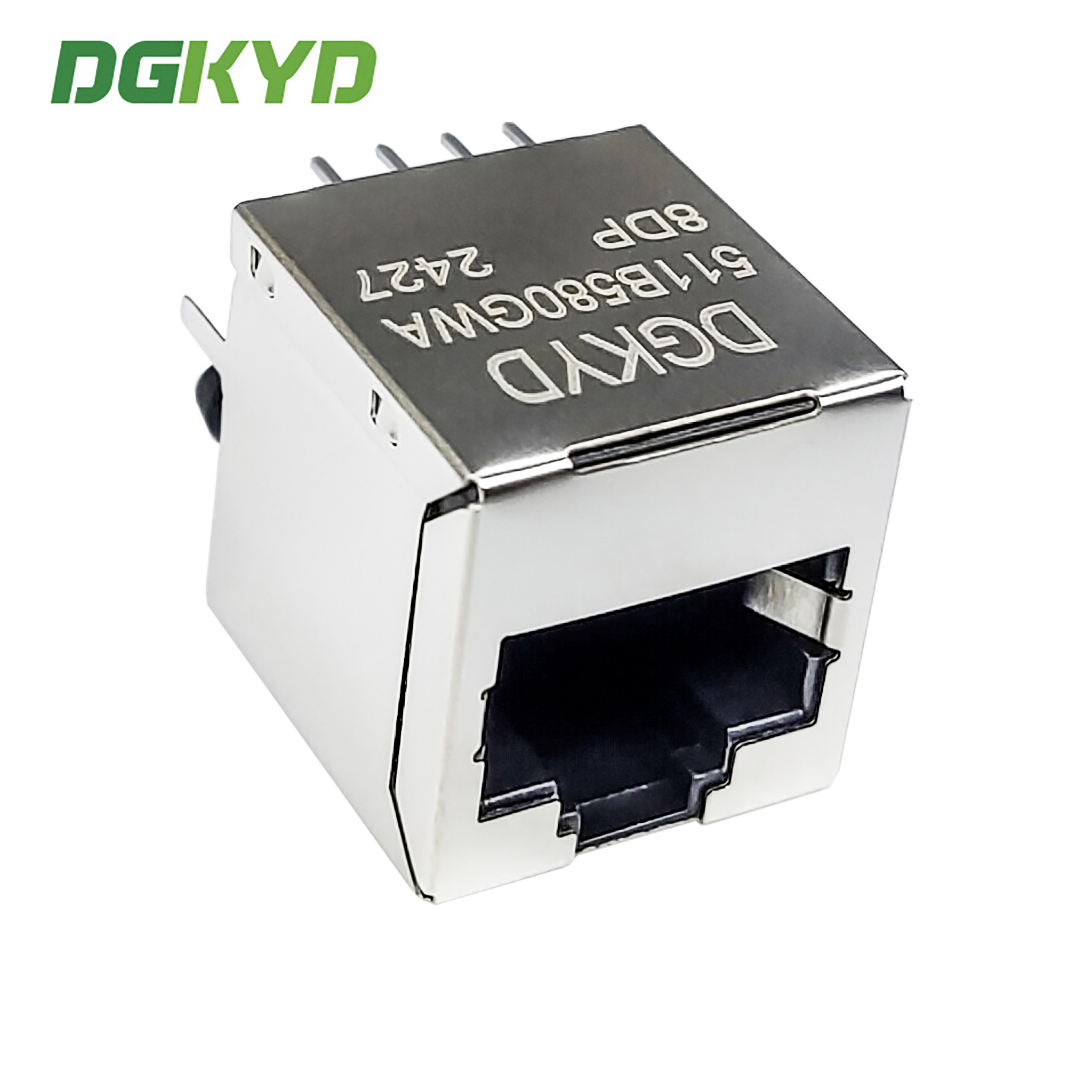

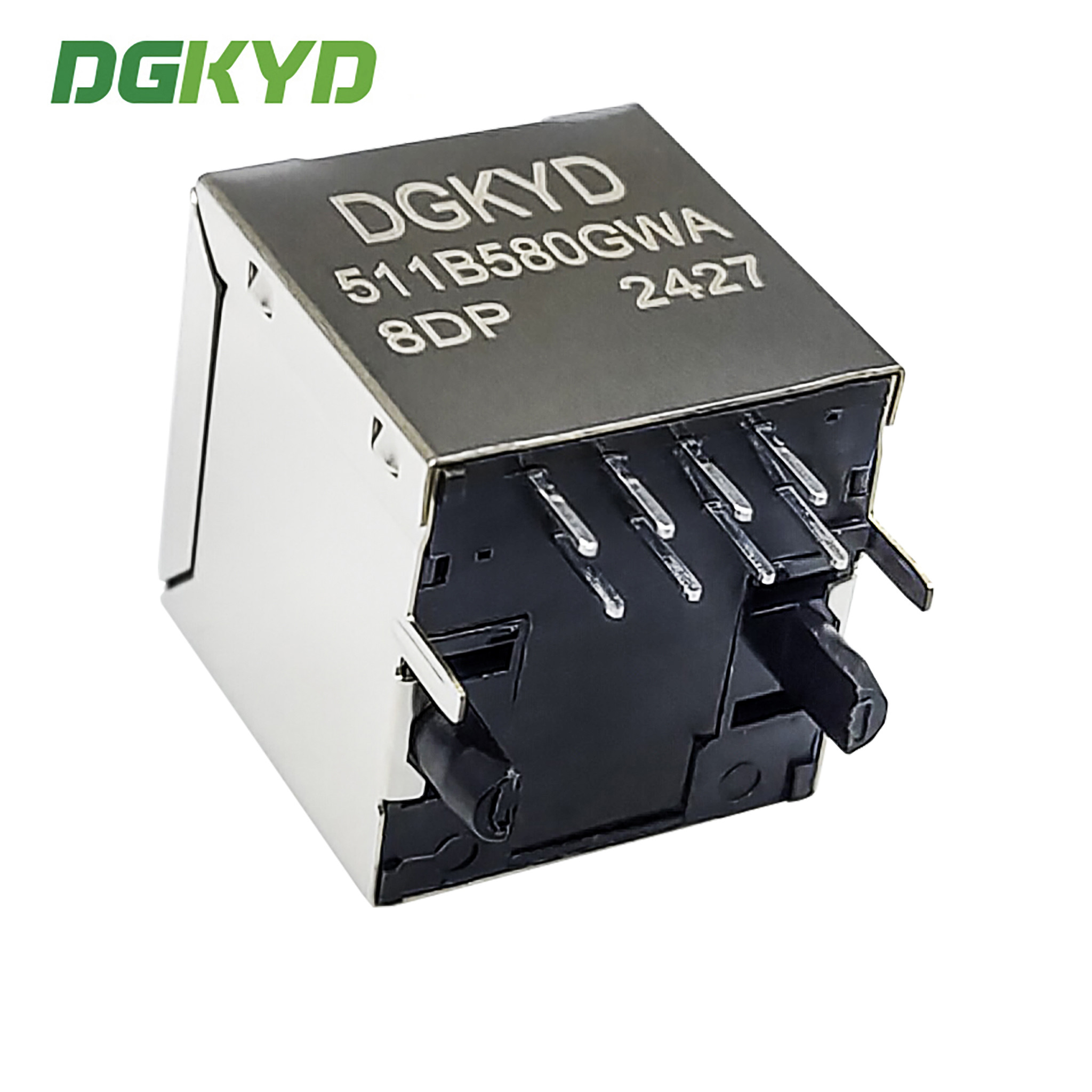

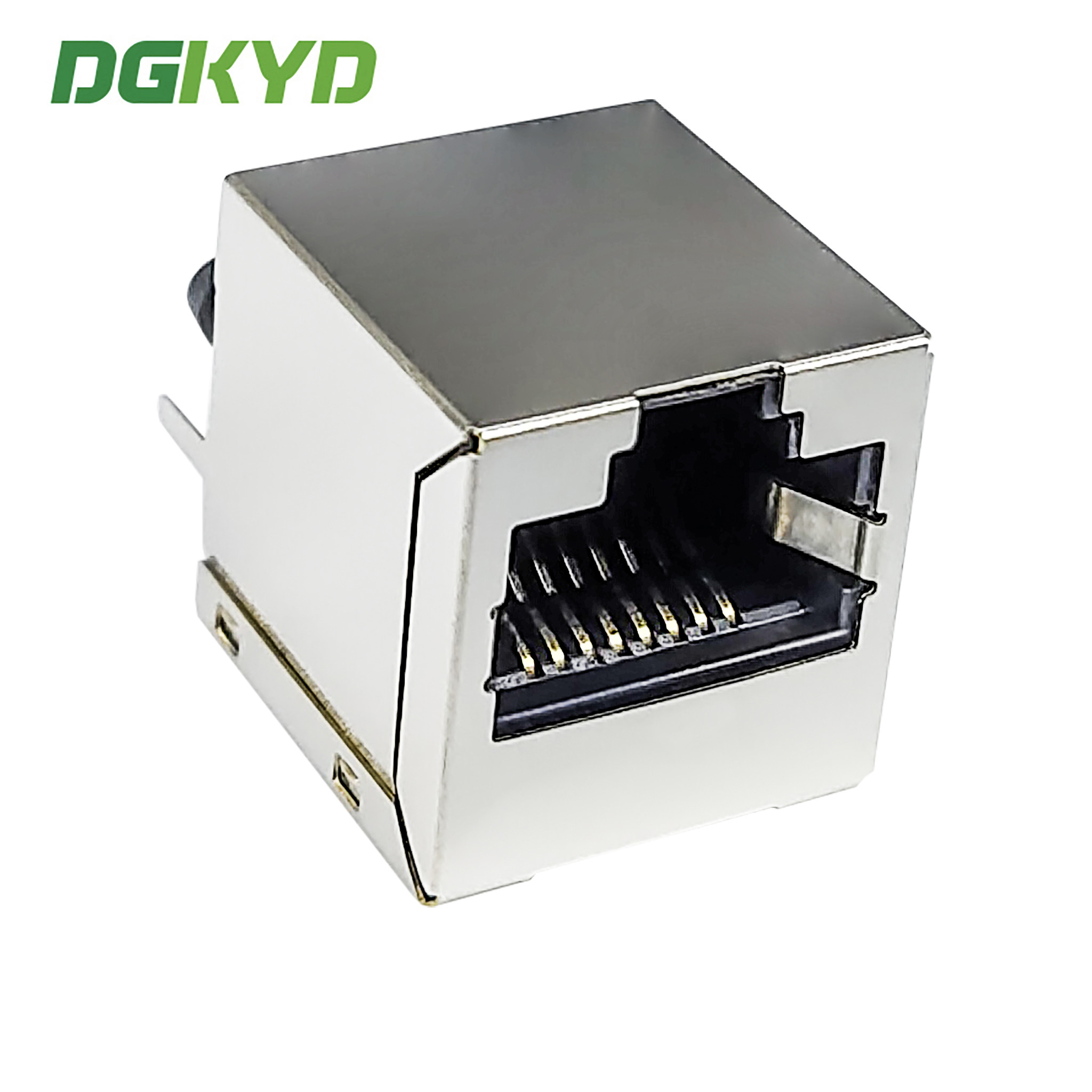

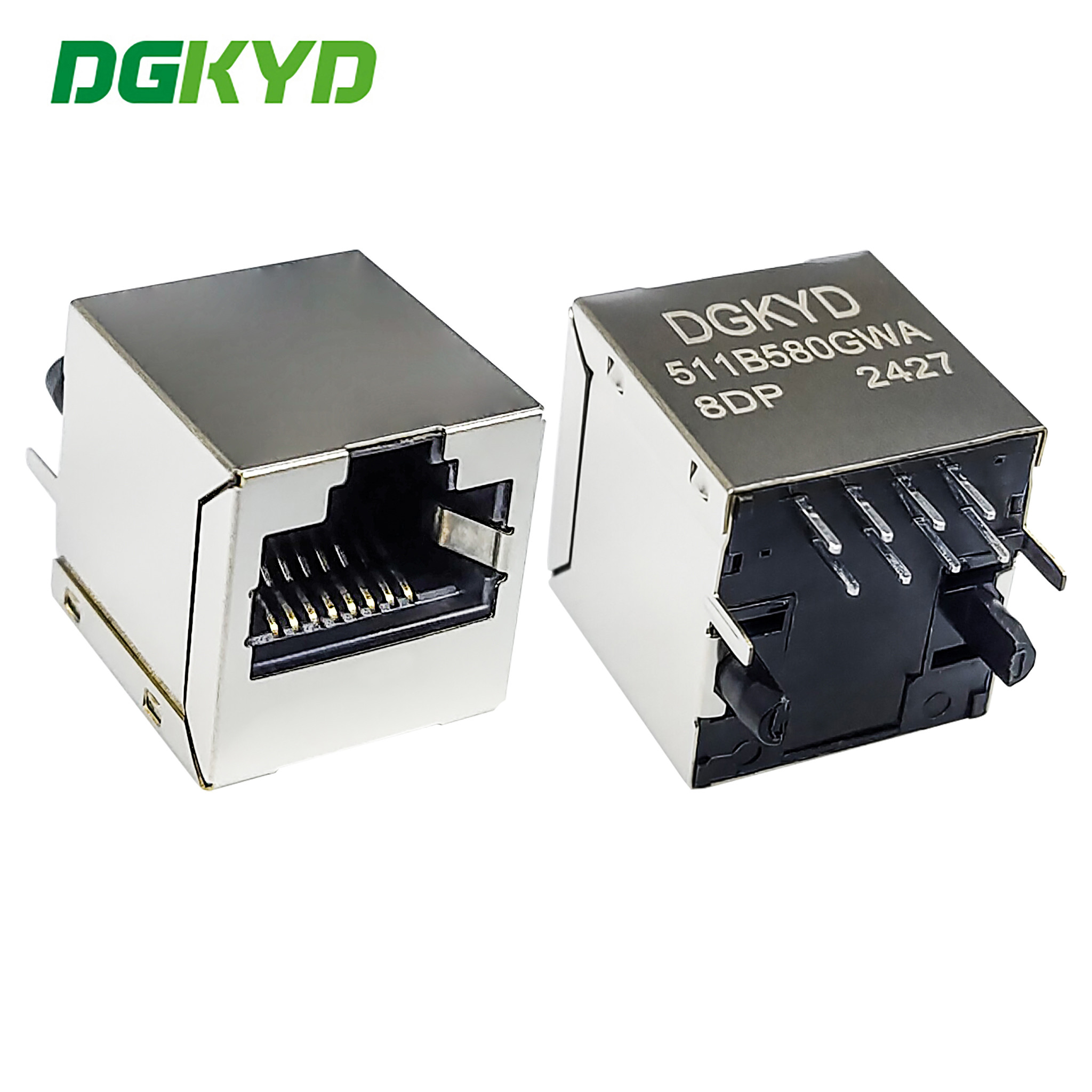

180 Degree Network Interface RJ45 Vertical Interface 100Mbps Ethernet Filter DGKYD511B580GWA8DP

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD511B580GWA8DP

Detail Information
LEDS/EMI Fingers:	Custom	Feature:	High Performance,magnetic
RJ45 Suitable:	For CAT5&6 Ethernet Cable Or UTP	Application:	Lan,bridge,PC,router,usb Hub Network Rj45
Gender:	Female RJ45	Product Name:	RJ45 Ethernet Jack
LED Color:	No	Shielded:	Yes
Performance Speed:	100M BASE-Tx
Highlight:	180 degree RJ45 Vertical Interface , DGKYD511B580GWA8DP , Ethernet filter RJ45 Vertical Interface

Product Description

180 degree network interface RJ45 vertical interface 100Mbps Ethernet filter DGKYD511B580GWA8DP

Product Specification Document
DGKYD511B580GWA8DP.pdf

Paramters

Part Number	DGKYD511B580GWA8DP	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With internal Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	100M BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Singer port	Number of Positions	8
Jack Configuration	1X 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6U Microinch	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Applications:

Integrated RJ45 connector main used to :

10/100 net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,

high quality,customer firstly ,100% test,0 defect, short lead time are our best advantages
