KRJ-1808NL Height 12mm Vertical entry female rj45 LAN jack Integrated Magnetics Compatible HY951180A

Contact Now

KRJ-1808NL Height 12mm Vertical entry female rj45 LAN jack Integrated Magnetics Compatible HY951180A

Name: KRJ-1808NL Height 12mm Vertical entry female rj45 LAN jack Integrated Magnetics Compatible HY951180A
Brand: DGKYD
SKU: KRJ-1808NL
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (165 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-1808NL

Detail Information
Product Name:	RJ45 Shielded Connector	Feature:	Metal Pcb MOUNTABLE Rj45 Jack
Applications:	Switch,transceiver,laptop,computer RJ45 Etc	LEDS/EMI Fingers:	Customized
Housing Material:	PBT Polyester	Filter:	With Filter
High Light:	rj45 8p8c connectors , rj45 lan port , female rj45 LAN jack

Product Description

Height 12mm Vertical entry female rj45 LAN jack Integrated Magnetics Compatible HY951180A

Part Number	KRJ-1808NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Connector Assembly
Latch Style	Standard	Latch	Top entry
Filter	With Filter	LED Option	With LED
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

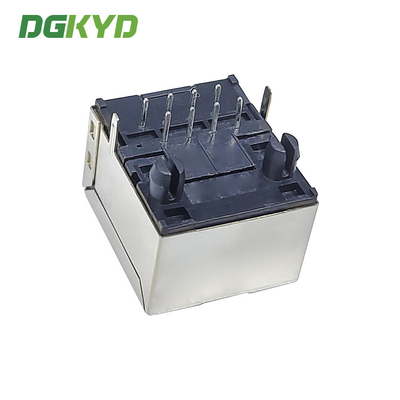

KRJ-1808NL Height 12mm Vertical entry female rj45 LAN jack Integrated Magnetics Compatible HY951180A 0

Internal magnetics are 100% electrically tested for HI-POT and functionality
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃

► Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
