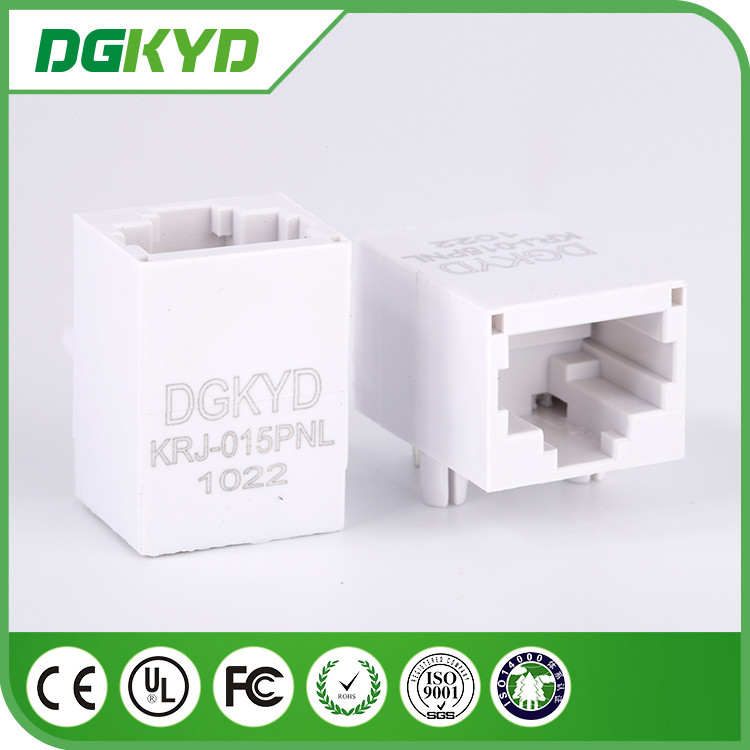

single port 10/100 BASE unshielded Ethernet RJ45 Connector with transformer , gray

Name: single port 10/100 BASE unshielded Ethernet RJ45 Connector with transformer , gray
Brand: DGKYD
SKU: KRJ-015PNL
Rating: 4.9 (128 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-015PNL

Detail Information
Product Name:	RJ45 With Transformer	Type:	RJ45 Female
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45:	Without	No.Port:	RJ45 Single Port
High Light:	rj45 jack connector , surface mount rj45 connector , RJ45 Connector with transformer gray

Product Description

Transformer Ethernet RJ45 Connector Shielded for 10/100BASE

10/100BASE 1x1 Tab Down Transformer RJ45 withnout LED and EMI Cylindrical pin) KRJ-015PNL(white plastic case)

Product Number:KRJ-015PNL
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Descriptions:

10/100Base-Tx RJ45 single port 1X1 without shield with Side Entry (Right Angle)
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:NO
Rohs compliant
Length:20.6mm
LEDS:NO
Usage:KRJ-015PNL

Mechanical Dimension:(UNIT:mm)

single port 10/100 BASE unshielded Ethernet RJ45 Connector with transformer , gray 0

. XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Material specifications:

Plastic core:Glass fiber filler PBT White(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT White(UL94V-0)

Electrical Specifications: at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
            30-60MHZ -14.0dBmin
            60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
         30-60MHZ -35.0dBmin
         60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA   DC

Applications:

• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
