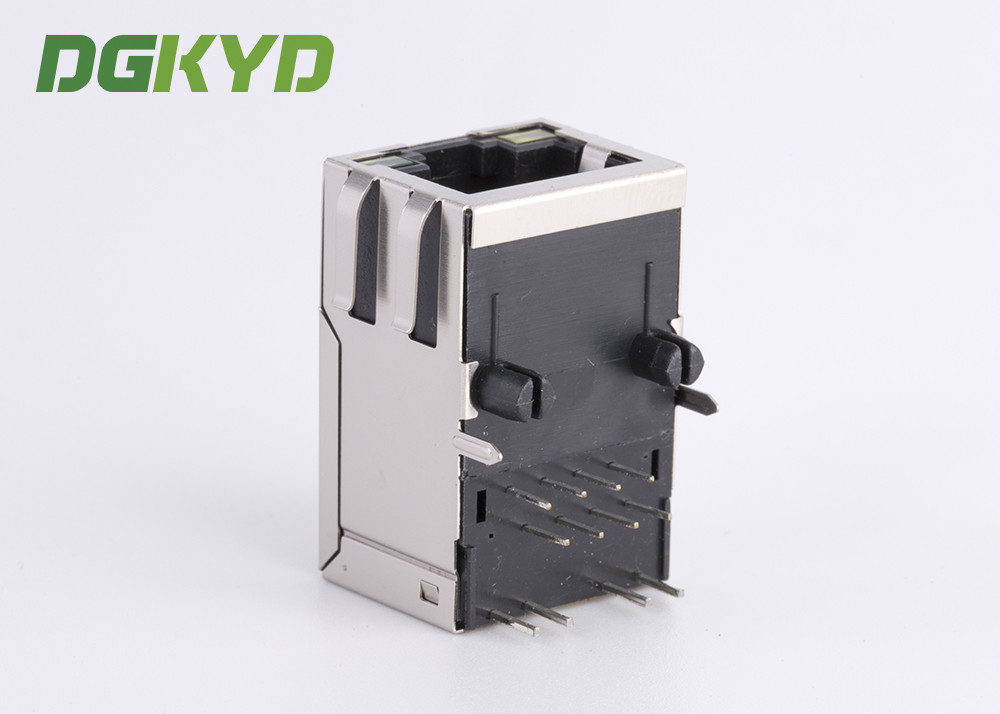

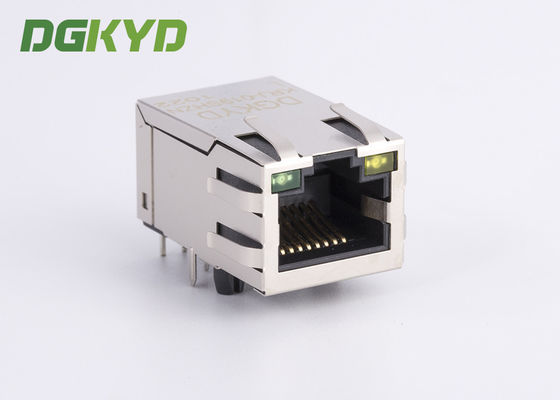

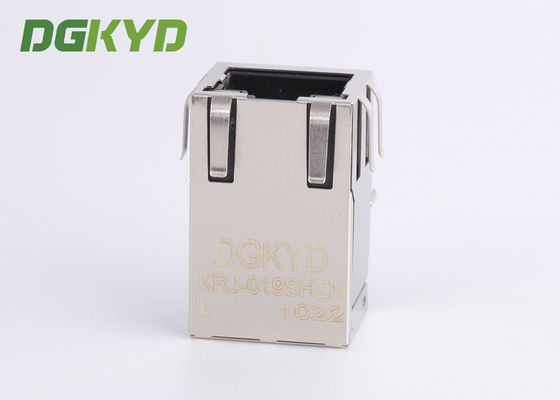

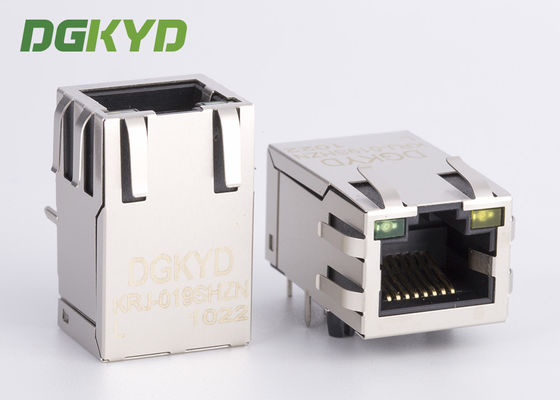

Telecom Connector With Integrated Magnetics RJ45 Modular Jack Single Port 25.4mm

Contact Now

Telecom Connector With Integrated Magnetics RJ45 Modular Jack Single Port 25.4mm

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-019SHZNL

Detail Information
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Type:	Rj45
Speed:	100Mb	Feature:	Shielded, Tab Up
Product Name:	RJ45 Modular Jack	OEM/ODM:	Yes
High Light:	rj45 connector shielded , network rj45 connectors , Telecom Connector With Integrated Magnetics

Product Description

JP011821UNL 8 Pin Telecom RJ45 Modular Jack Connectors Single Port 25.4mm

10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
Single port 1X1 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃

Telecom Connector With Integrated Magnetics RJ45 Modular Jack Single Port 25.4mm 0

Integrated RJ45 connector main used to :

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
