Tab Up 10/100 Base RJ45 Modular Jack With Network Filter Leds And EMI Fingers

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-141SHNL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc OEM/ODM: Yes
Type: Jack Product Name: RJ45 Modular Jack
High Light:

rj45 connector shielded

,

rj45 network jack

,

RJ45 Modular Jack With Network Filter

Product Description

PC Tab up 10/100Base RJ45 Modular Jacks Network Filter with Led and EMI Fingers

Part Number KRJ-141SHNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch UP
Filter With Filter LED Option G/YLED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0

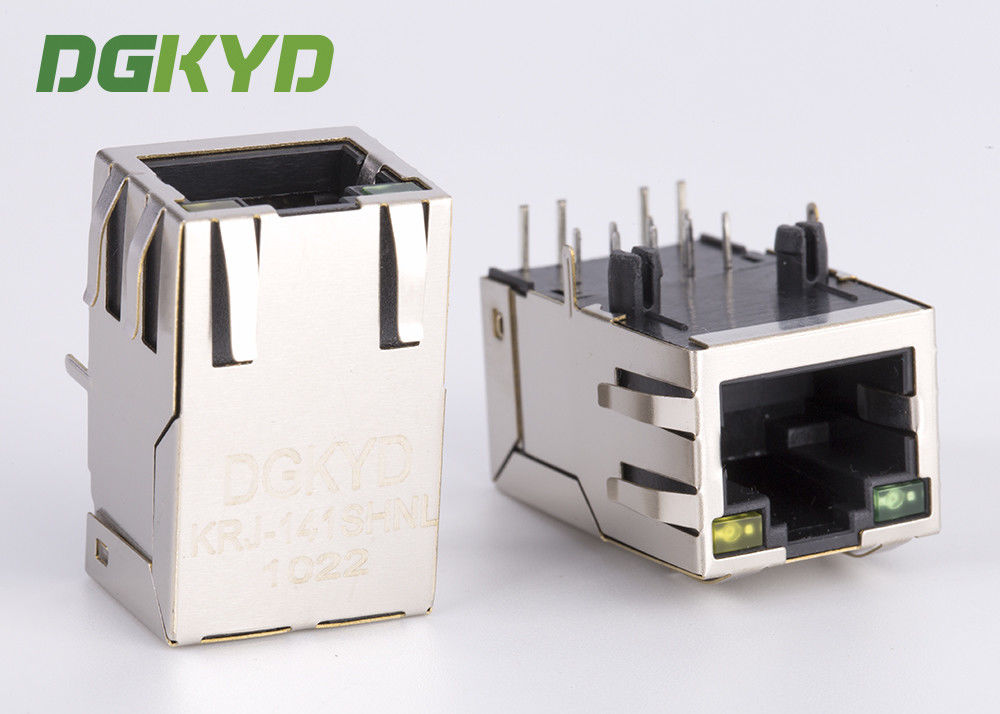

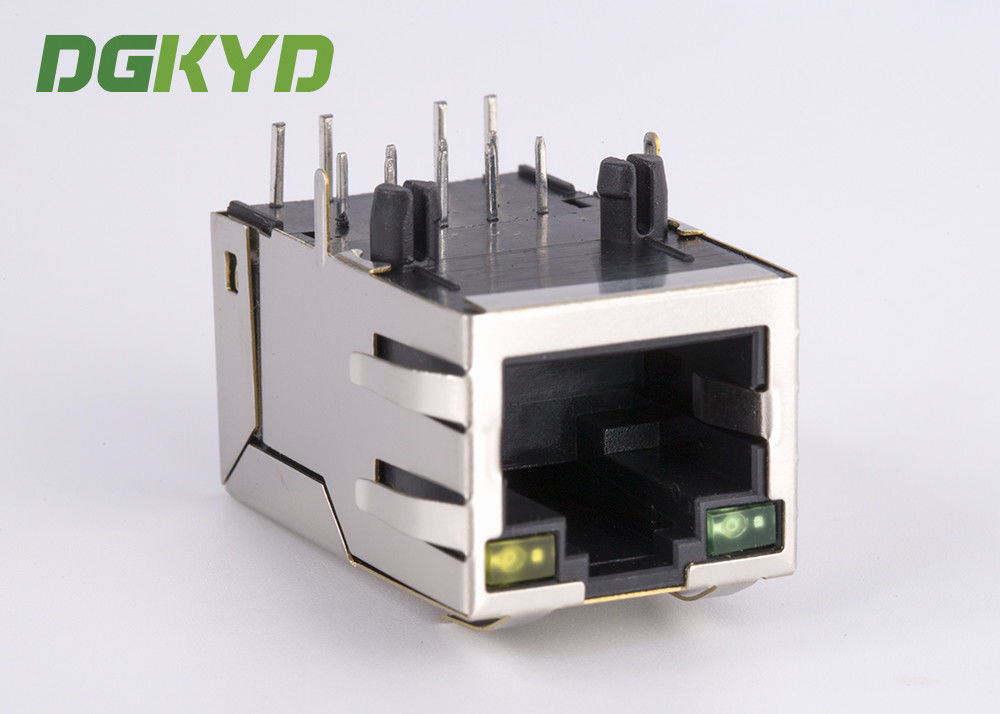

Tab Up 10/100 Base RJ45 Modular Jack With Network Filter Leds And EMI Fingers 0Tab Up 10/100 Base RJ45 Modular Jack With Network Filter Leds And EMI Fingers 1Tab Up 10/100 Base RJ45 Modular Jack With Network Filter Leds And EMI Fingers 2



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
