Shielded 10 / 100 Mb RJ45 Magnetics Connector Module Tab Up THT

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD211B035GWA4D

Detail Information

LED Color: NONE Plating: Glod Plating 6u/15u/30u/50u
Main Customer: JABIL/Panasonic/FOXCONN/Coampal/HUAWEI/ZTE Housing Material: PBT Polyester
Filter: With Filter Latch: Tab Up
Shield: Metal Shield PIN: 8 Pins
High Light:

gigabit ethernet rj45


rj45 connector with magnetics


Tab Up Shielded RJ45 Magnetics Connector

Product Description

Shielded 100mb megabit POE RJ45 Magnetics 10 pins , Through Hole


Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Finish Gold
Shield Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)



Connector Type 8 Pin Shield LED Female RJ45 Connector
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Termination Solder
Shield 0.20~0.25mm thickness brass with tin plated
Contact Material Copper Alloy
Contact Finish Thickness flash
Housing Material Thermoplastic



Operating Temperature -40 to 85°C Withstand Voltage AC1000V(50Hz)/min
Rated voltage: 125VAC Actuating Force 5~15N
Contact Resistance ≤0.03Ω Life 750 times
Insulation Resistance ≥1000MΩ

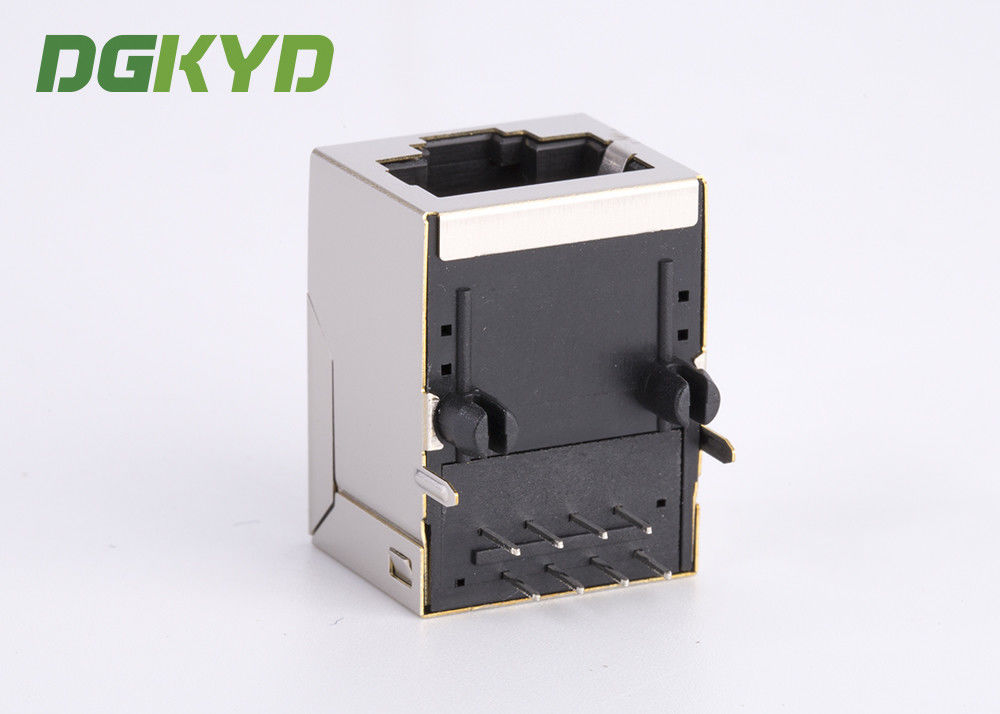

Shielded 10 / 100 Mb RJ45 Magnetics Connector Module Tab Up THT 0Shielded 10 / 100 Mb RJ45 Magnetics Connector Module Tab Up THT 1Shielded 10 / 100 Mb RJ45 Magnetics Connector Module Tab Up THT 2

Integrated RJ45 connector main used to :

  • 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
