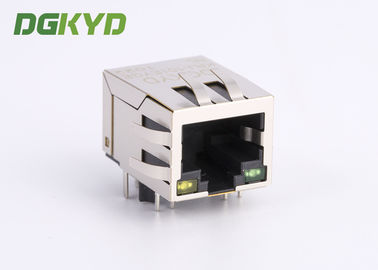

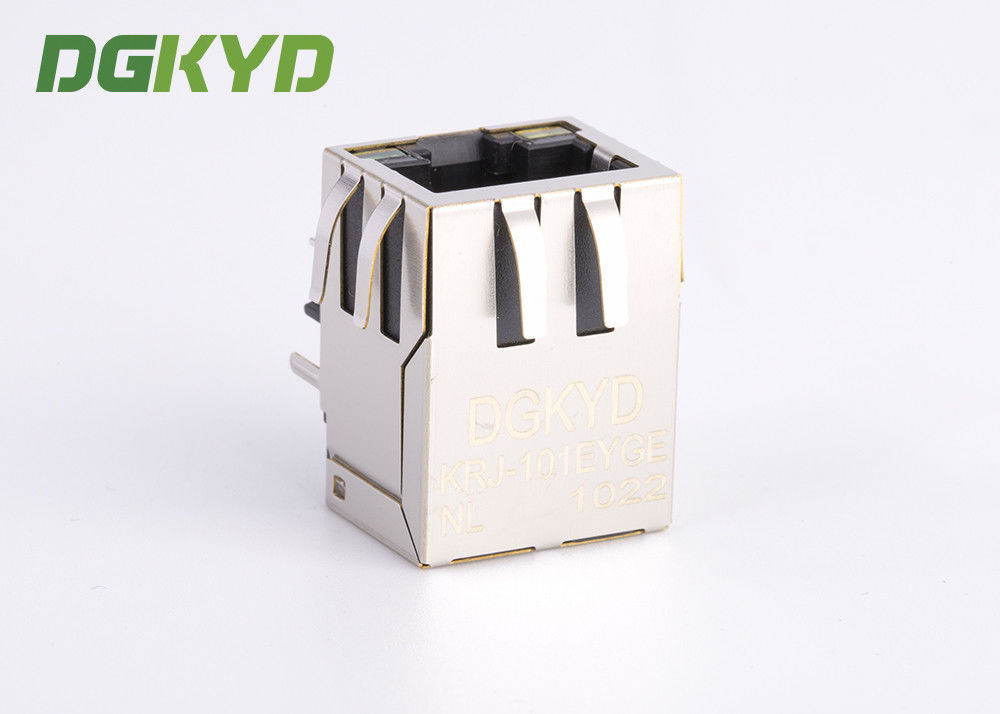

Integrated Magnetic Cat 5e RJ45 Ethernet Connector With Transformer RJ45 PCB Socket

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-101EYGENL

Detail Information

Product Name: Magnetic Jack, Modular Jack 8/8, RJ45 Performance Category: 5, 5e
Component Type: PCB Jack Magnetic: Yes
High Light:

gigabit ethernet rj45

,

poe rj45 connector

,

RJ45 Ethernet Connector With Transformer

Product Description

Integrated RJ45 Network Connector with Transformer RJ45 PCB Socket

Part Number KRJ-101EYGENL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Yellow & Green LED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0



Our LAN discrete magnetic transformers and integrated connector modules (ICMs) are designed and manufactured to comply with IEEE802.3 and ANSI X3.263 standards. Pulse Electronics Networking BU also offers a competitive range of RoHS compliant products for local area network devices.

  • Switches
  • Servers
  • PoE & PoE+
  • 10GBase-T
  • HDBaseT™ Technology

For example:

Integrated Magnetic Cat 5e RJ45 Ethernet Connector With Transformer RJ45 PCB Socket 0



► Our Service


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services

Integrated Magnetic Cat 5e RJ45 Ethernet Connector With Transformer RJ45 PCB Socket 1Integrated Magnetic Cat 5e RJ45 Ethernet Connector With Transformer RJ45 PCB Socket 2Integrated Magnetic Cat 5e RJ45 Ethernet Connector With Transformer RJ45 PCB Socket 3
