WIFI RJ45 Single Port Connector With Integrated Transformer For Internet Camera

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-328NL

Detail Information

Entry Location: Side Grounding Option: Panel Ground And PCB Ground
Profile: Standard Latch Orientation: Latch Up
High Light:

panel mount rj45 connector

,

surface mount rj45 connector

,

RJ45 Connector With Integrated Transformer

Product Description

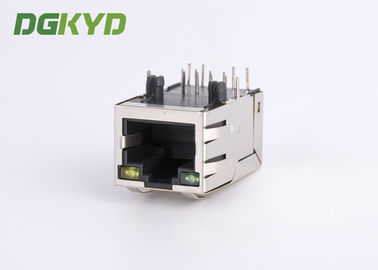

Wifi RJ45 Single Port Connector with integrated transformer for Internet Camera

WIFI RJ45 Single Port Connector With Integrated Transformer For Internet Camera 0WIFI RJ45 Single Port Connector With Integrated Transformer For Internet Camera 1WIFI RJ45 Single Port Connector With Integrated Transformer For Internet Camera 2

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:25.4mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
