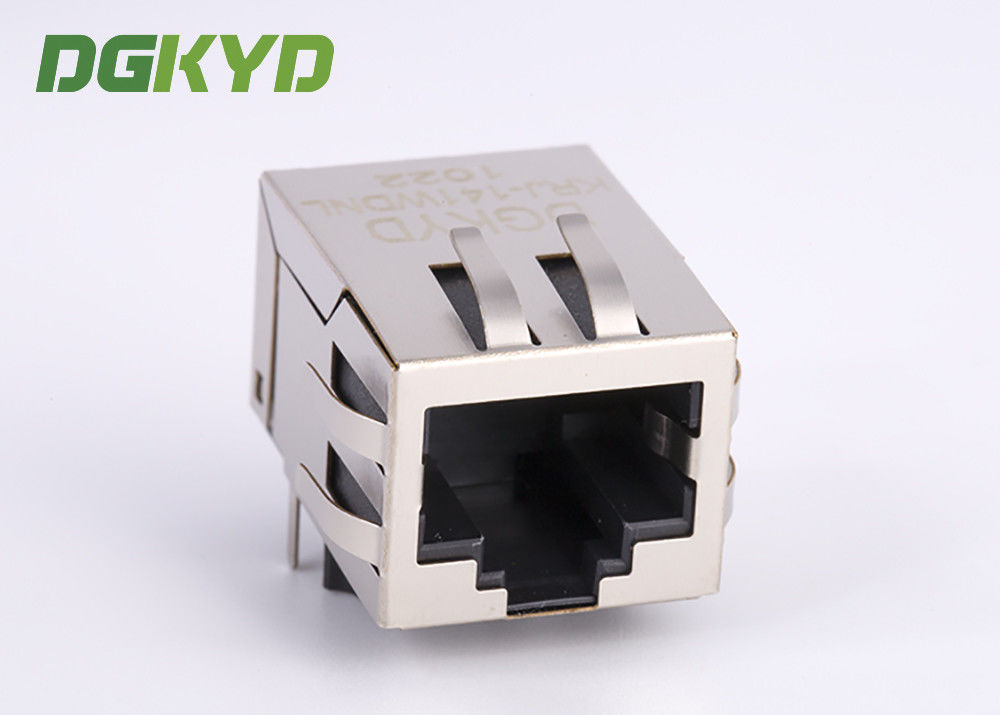

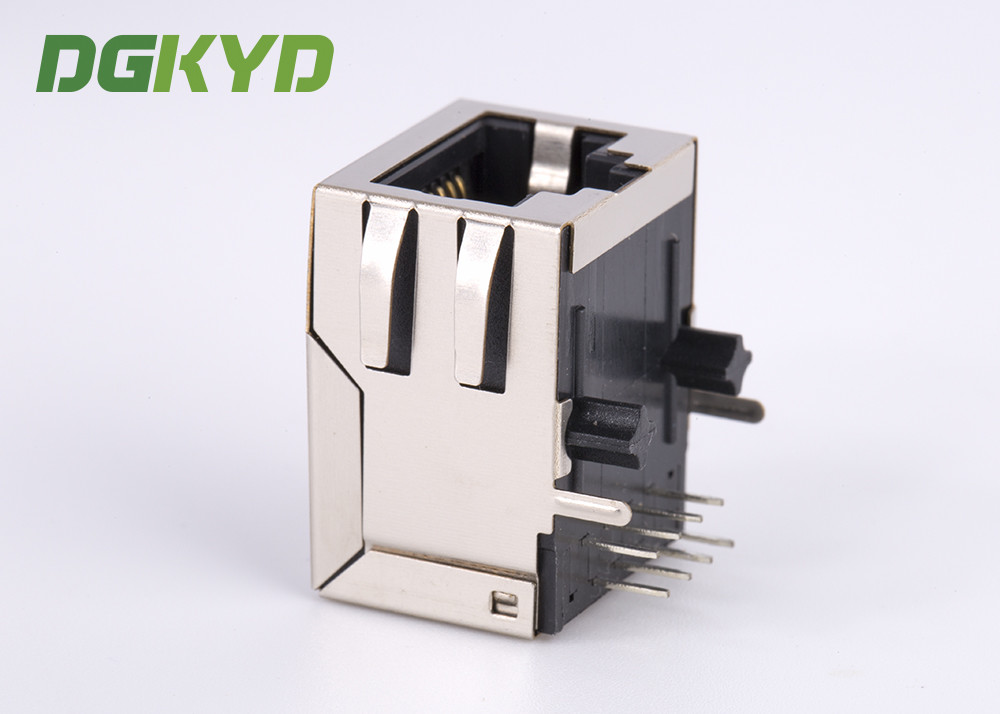

1000/BASE RJ45 Connector Single Port Network Interface POE Connector With Filter DGKYD111Q787AB2A1DP
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-141WDNL |
|
Detail Information |
|||
| Ports: | 1 | Positions / Loaded Contacts: | 8/8 |
|---|---|---|---|
| Surface Mount Compatible (SMC): | No | Termination Interface: Style: | Through Hole |
| Speed Performance: | Cat5 5e | PCB Mount: | Yes |
| Highlight: | panel mount rj45 connector,surface mount rj45 connector,RJ45 Single Port Connector With Transformer |
||
Product Description
DGKYD Electronics is developing the next generation of networking components to support the future expansion of the following markets and applications. DGKYD has full line of network products which include Discrete Ethernet Magnetics, Integrated Connector Modules, Connectors, RF Inductors, Common Mode Chip Chokes, and Telecom Magnetics and Filters.
| Part Number | KRJ-141WDNL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down |
| Filter | With Filter | LED Option | Without LED |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Housing Material | PBT Polyester | Housing Color | Black |
| Operation Temperature | -40℃ to +85℃ | UL Flammability Rating | UL 94V-0 |
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet settop box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
For example:
