Single Port 10/100 BASE-T Female Connector RJ45 With Integrated Magnetics, POE

Name: Single Port 10/100 BASE-T Female Connector RJ45 With Integrated Magnetics, POE
Brand: DGKYD
SKU: KRJ-300POENL
Rating: 5 (188 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-300POENL

Detail Information
Application::	Ethernet (PoE/PoE+)	Speed::	10/100BASE-T
Latch::	Tab-down	PCB Mount::	Right Angle Thru-Hole
High Light:	rj45 jack connector , panel mount rj45 connector , 10/100 BASE-T Female Connector RJ45

Product Description

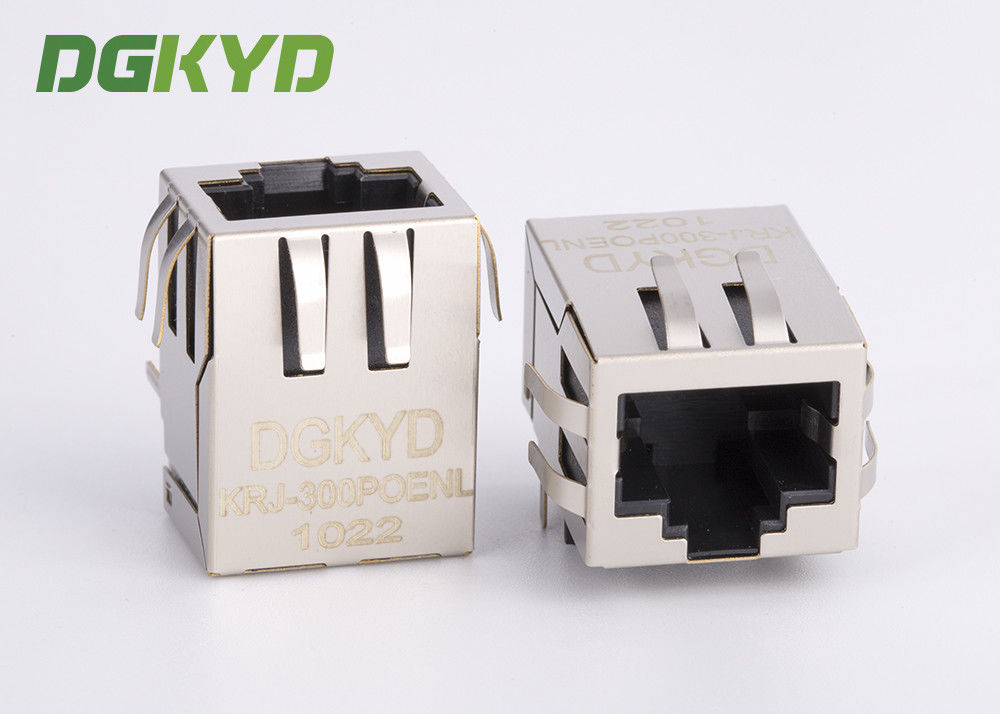

Single Port 10/100 BASE-T female Connector RJ45 with Integrated Magnetics, POE

Descriptions:

10/100Base-Tx RJ45 single port 1X1 with PoE
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Number of positions:10
Number of contacts loaded:8
Shielded:YES
Rohs compliant
Length:21.3mm

Single Port 10/100 BASE-T Female Connector RJ45 With Integrated Magnetics, POE 0
