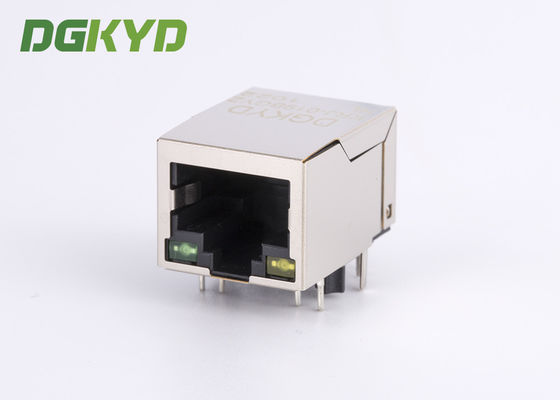

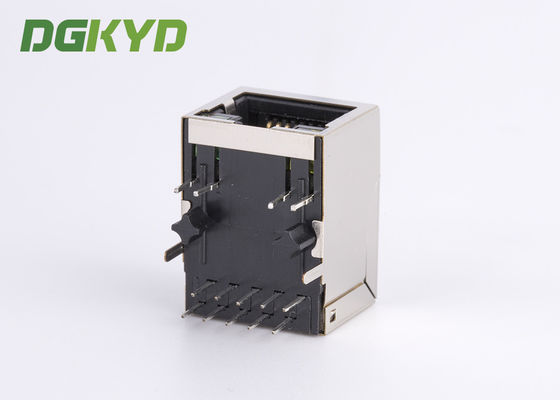

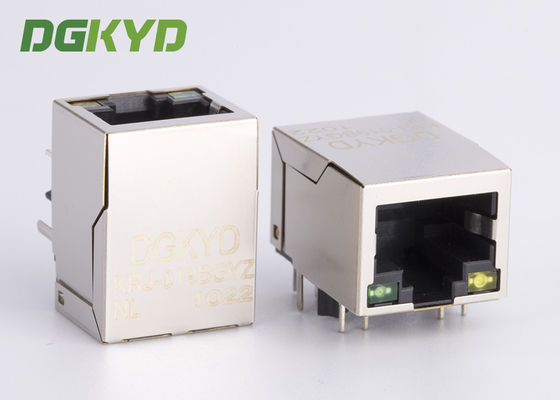

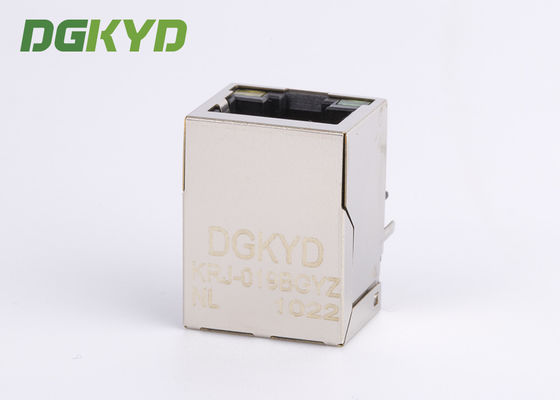

Custom 100base RJ45 Network Port With Internal Transformer For CCTV Camera RJ45 With Transformer

Product Details:
Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-019BGYZNL
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day

Detail Information

Product Name: RJ45 Single Port Jack Type: RJ45
Opening Direction: Tab Down Housing: PHenolic,PBT Black(UL94V-0),Cylindrical Pin
Length: 21.3mm
High Light:

rj45 jack connector

,

surface mount rj45 connector

,

RJ45 Network Port With Internal Transformer

Product Description

10/100base Transformers RJ45 Network Port Transmitter filter

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION G/Y
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK















































Custom 100base RJ45 Network Port With Internal Transformer For CCTV Camera RJ45 With Transformer 0Custom 100base RJ45 Network Port With Internal Transformer For CCTV Camera RJ45 With Transformer 1Custom 100base RJ45 Network Port With Internal Transformer For CCTV Camera RJ45 With Transformer 2



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet settop box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.

 For example:

Custom 100base RJ45 Network Port With Internal Transformer For CCTV Camera RJ45 With Transformer 3





Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
