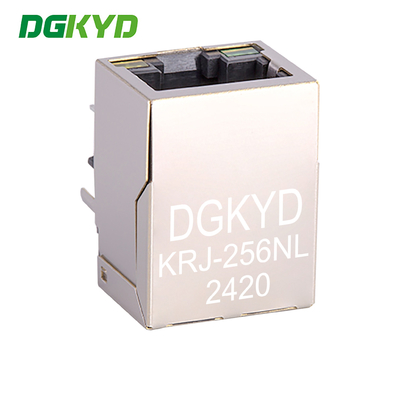

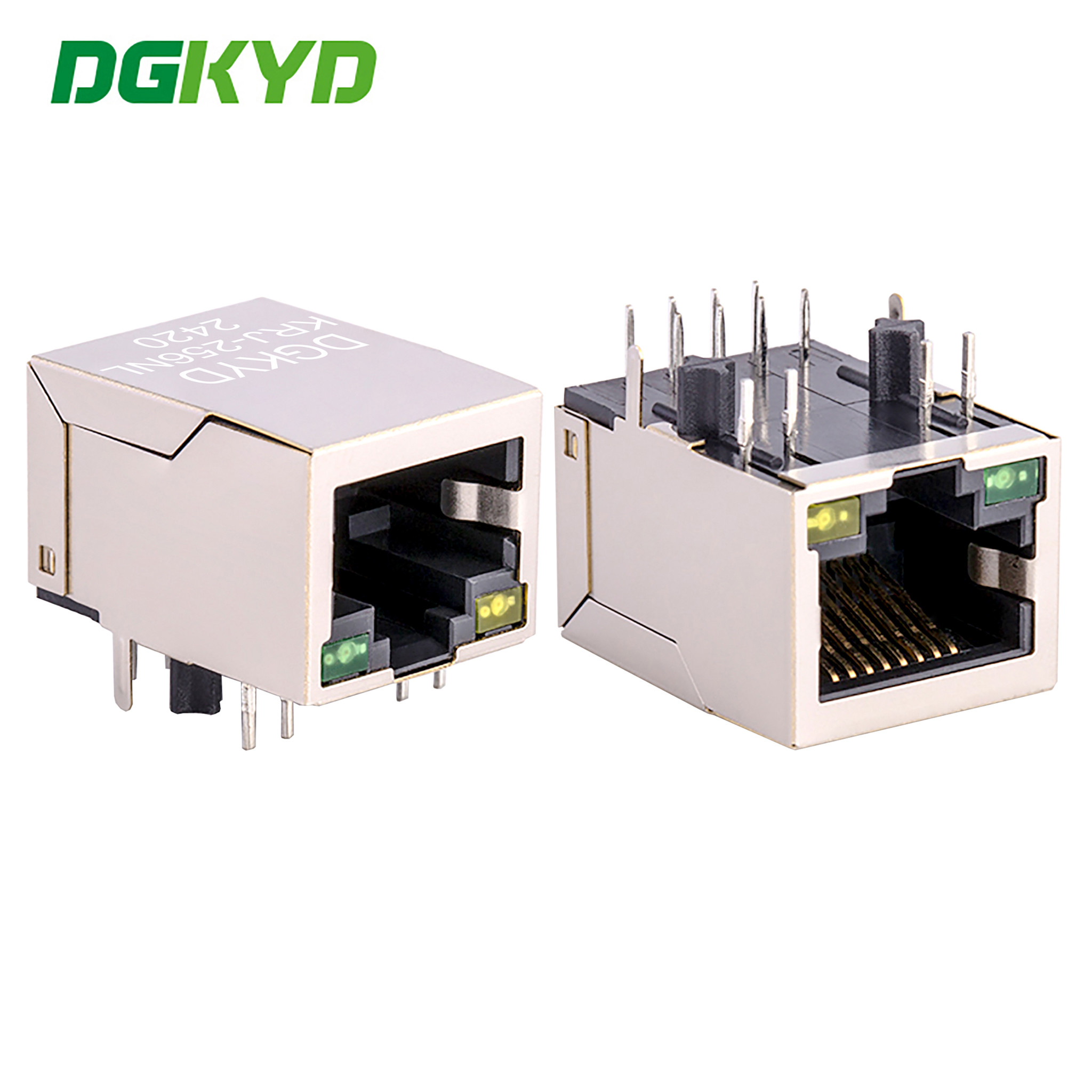

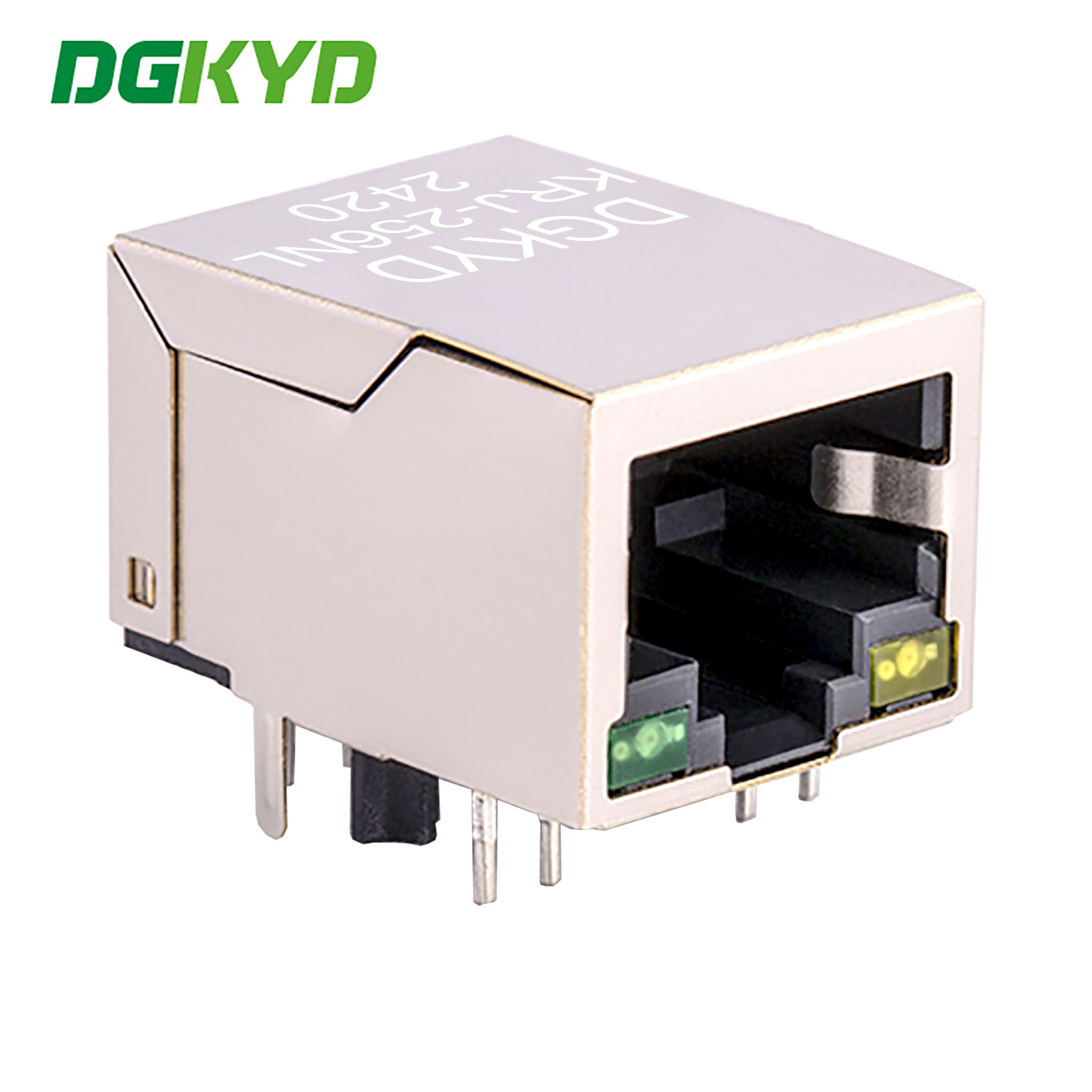

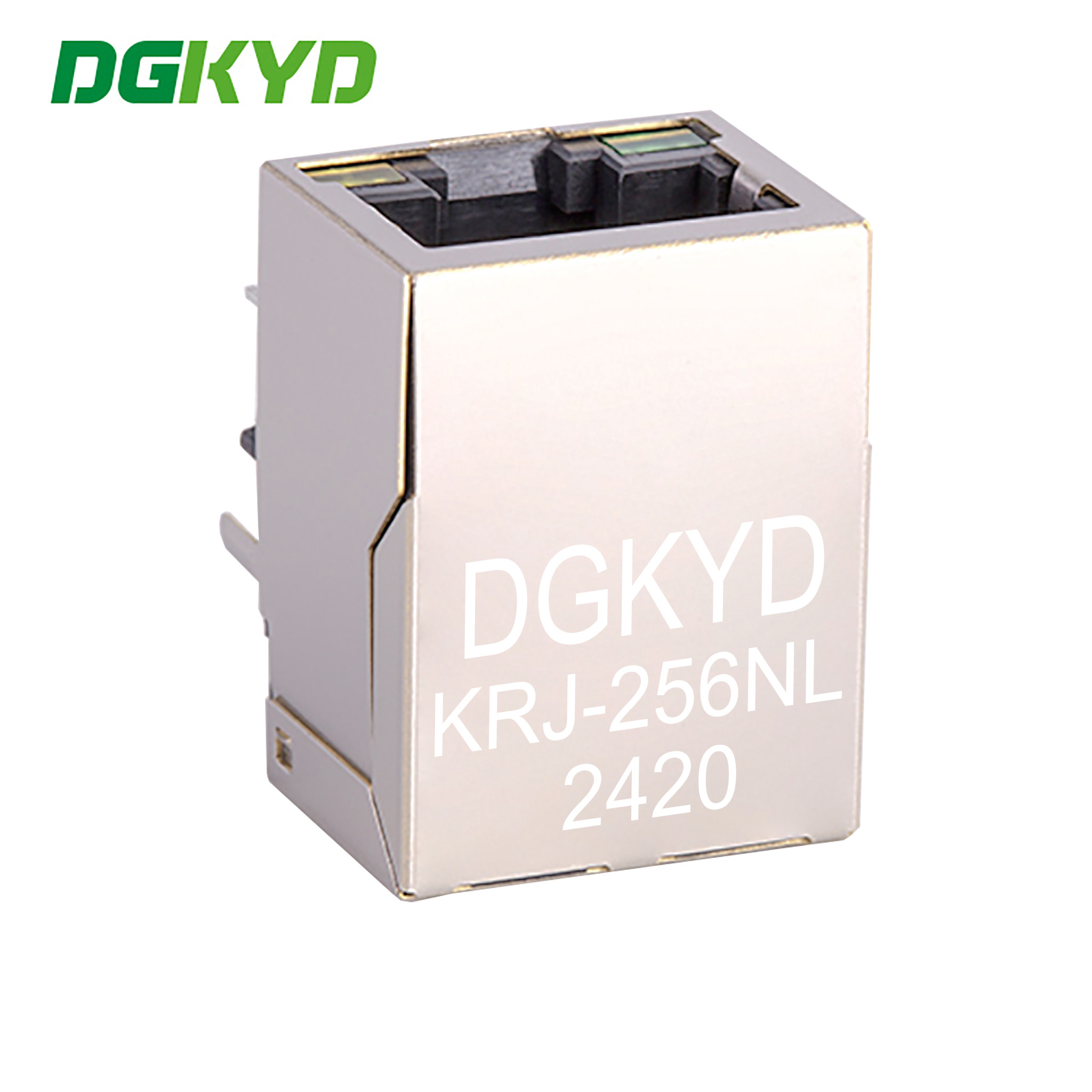

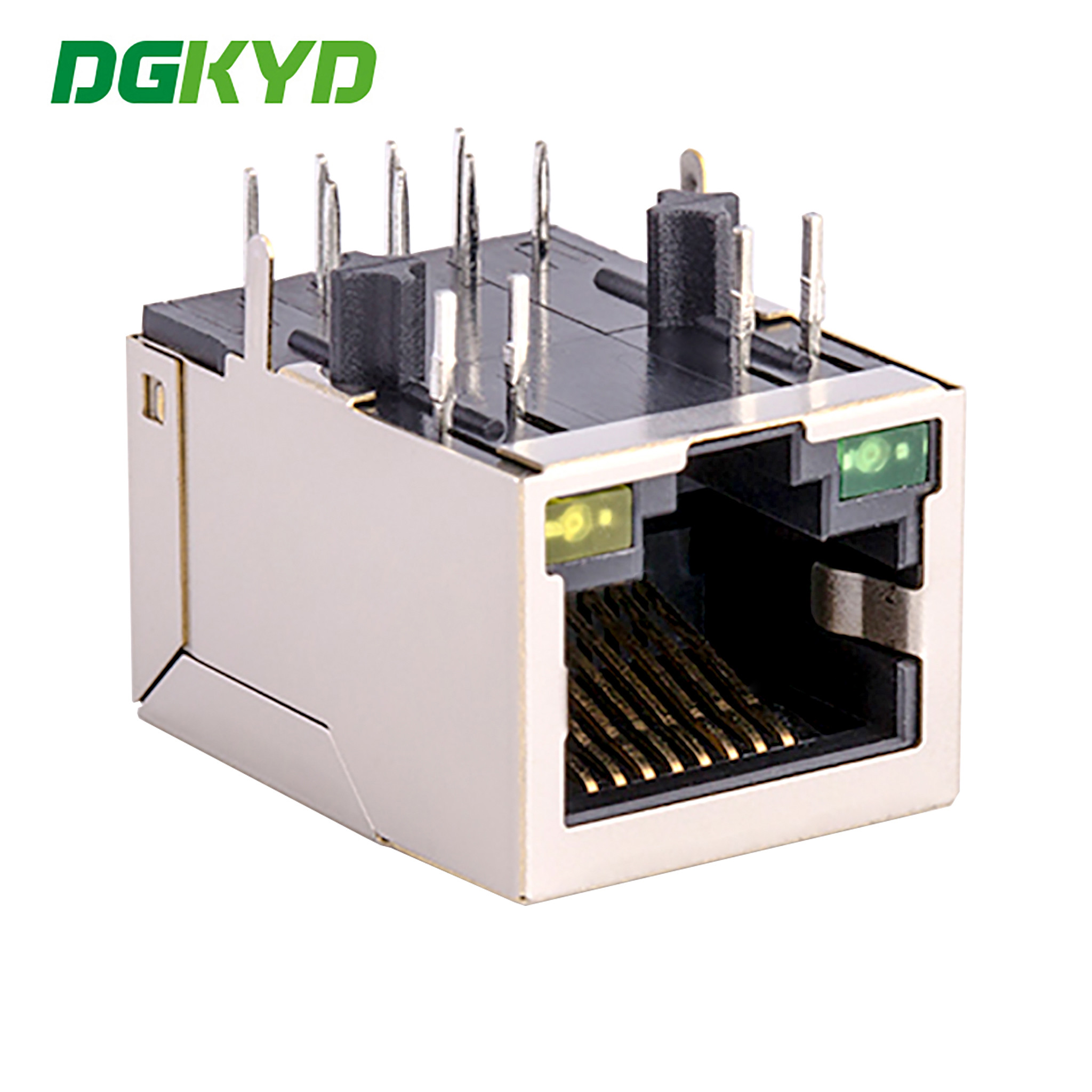

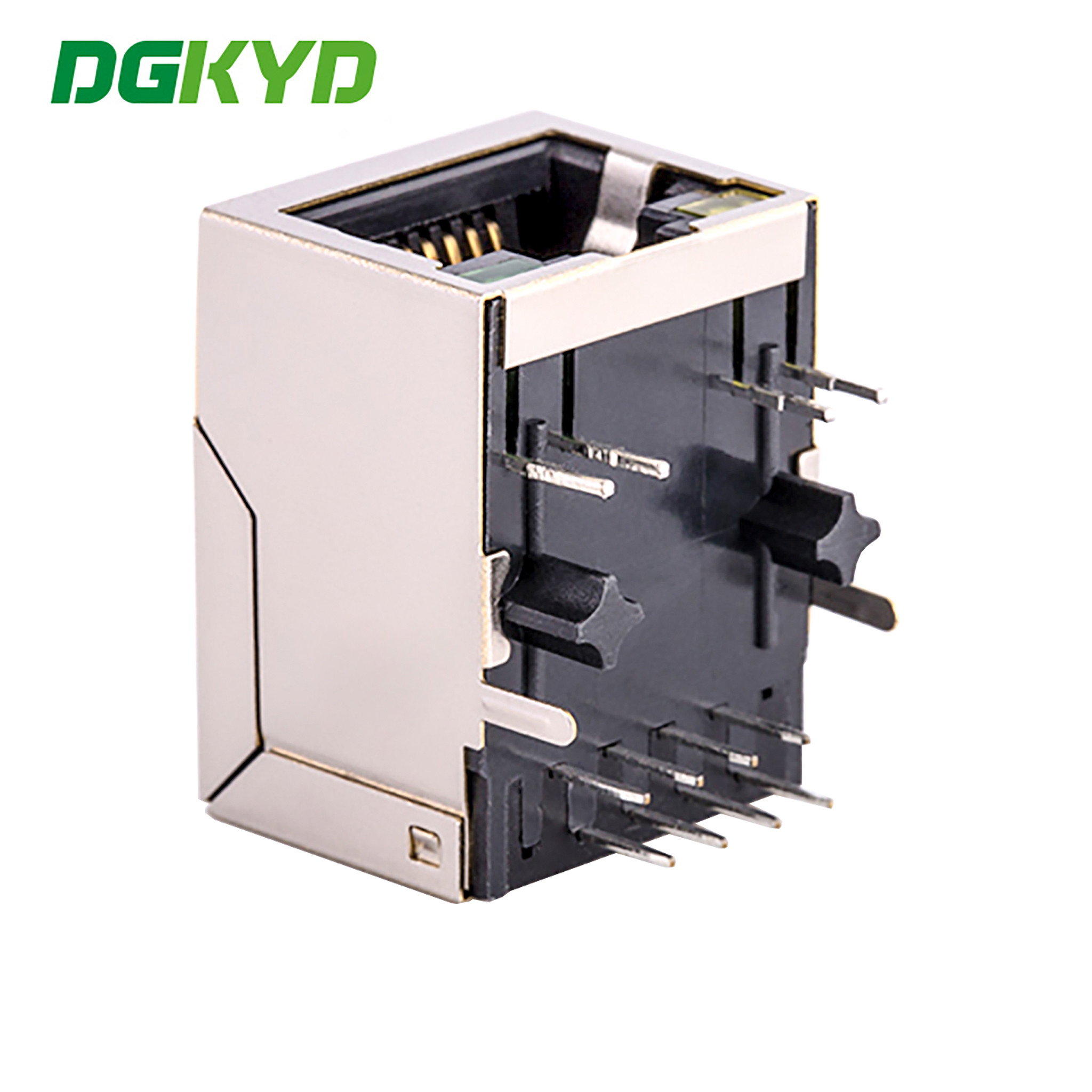

RJ45 Single Port Jack With 10/100BASE Transformer Integrated Ethernet Connector RJ45 With Transformer KRJ-256NL

Name: RJ45 Single Port Jack With 10/100BASE Transformer Integrated Ethernet Connector RJ45 With Transformer KRJ-256NL
Brand: DGKYD
SKU: KRJ-256NL
Rating: 4.6 (128 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-256NL

Detail Information
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Cat 5 / 5e
OEM/ODM:	Yes	Type:	RJ45 Jack
Product Name:	RJ45 Modular Jack	Mount:	PCB Mount
LED Color:	L-Green/R-Yellow	Performance Speed:	100M BASE-TX
Contact Mating Area Plating Material :	Gold 6u Microinch	Shielded:	Yes
Highlight:	RJ45 Single Port Jack With Transformer , 100BASE RJ45 With Transformer , Ethernet Connector RJ45 With Transformer

Product Description

RJ45 Single Port Jack With 10/100BASE Transformer Integrated Ethernet Connector RJ45 With Transformer KRJ-256NL

Product Specification Document
KRJ-256NL.pdf

Paramters

Part Number	KRJ-256NL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With internal Filter	LED Option	With LED
LED Color	L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	100M BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Singer port	Number of Positions	8
Jack Configuration	1X 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u Microinch	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

1X1 90 degree 10/100Base-Tx RJ45 single port with shielded
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8

Material specifications:

Plastic core:Glass fiber filler PBT White(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT White(UL94V-0)

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
