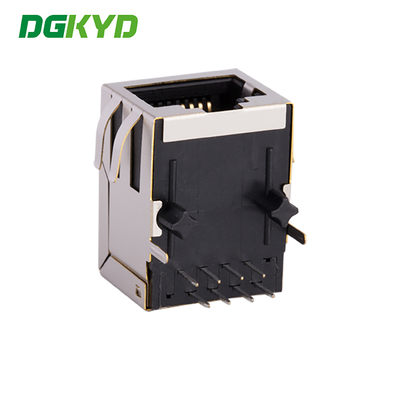

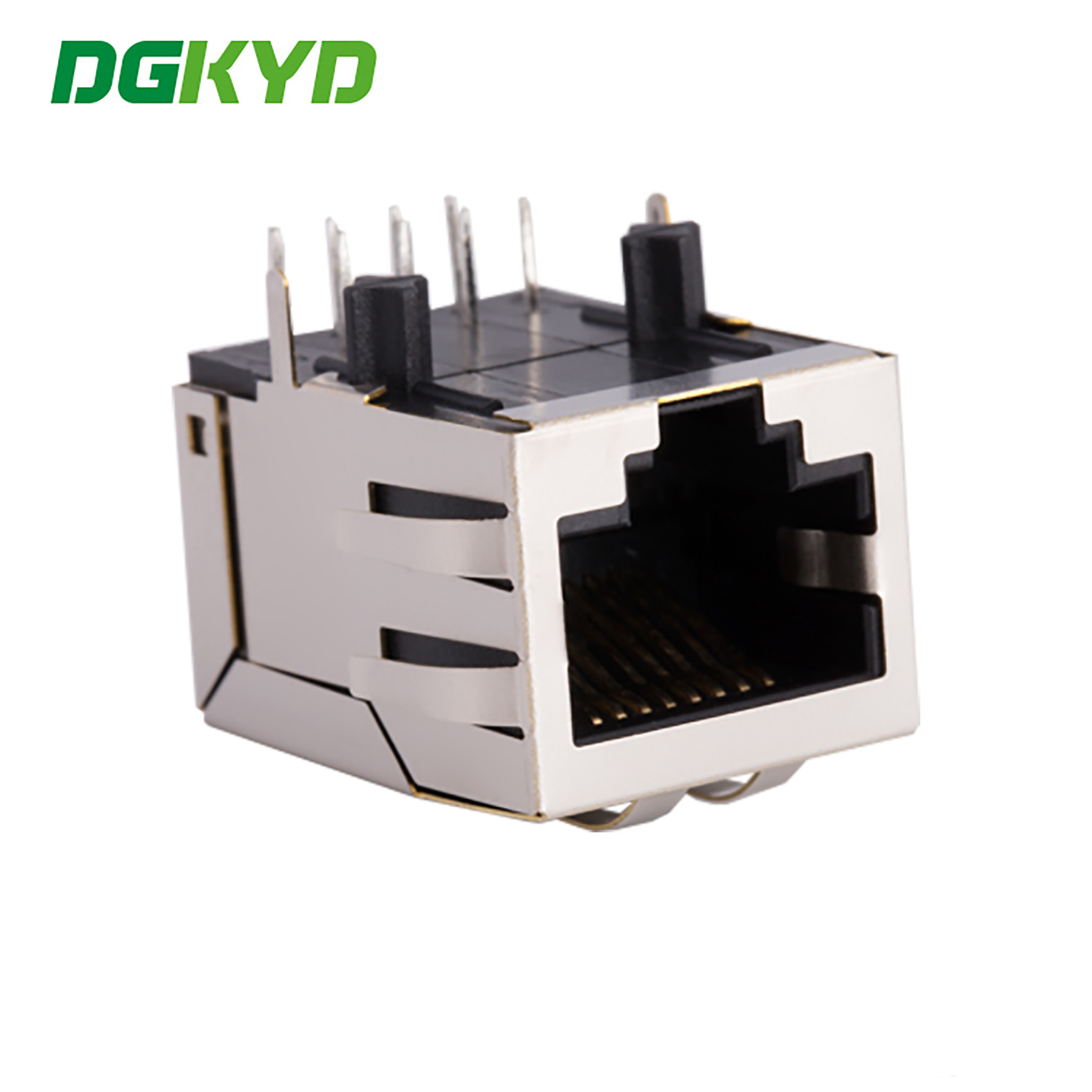

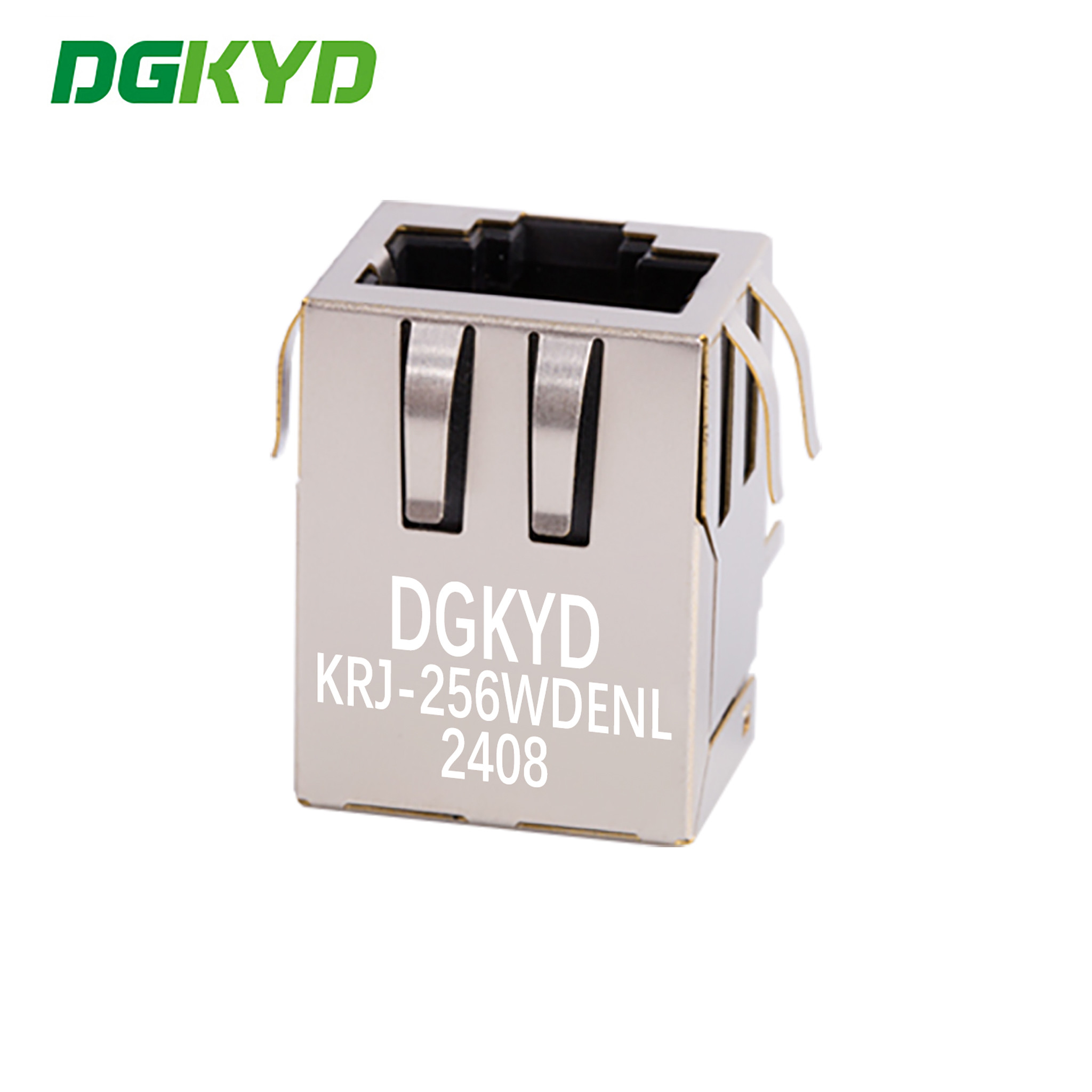

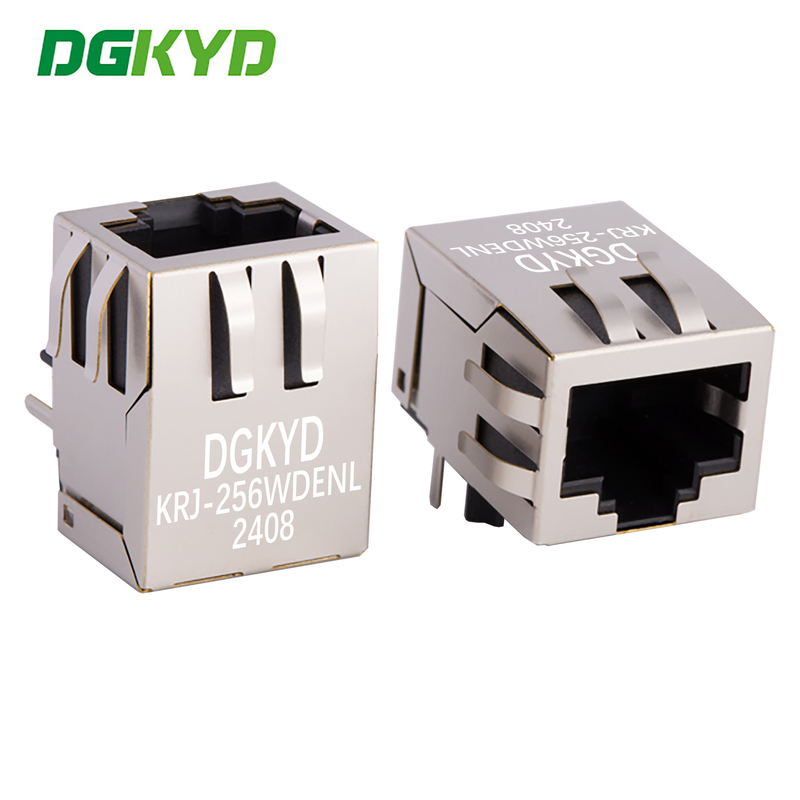

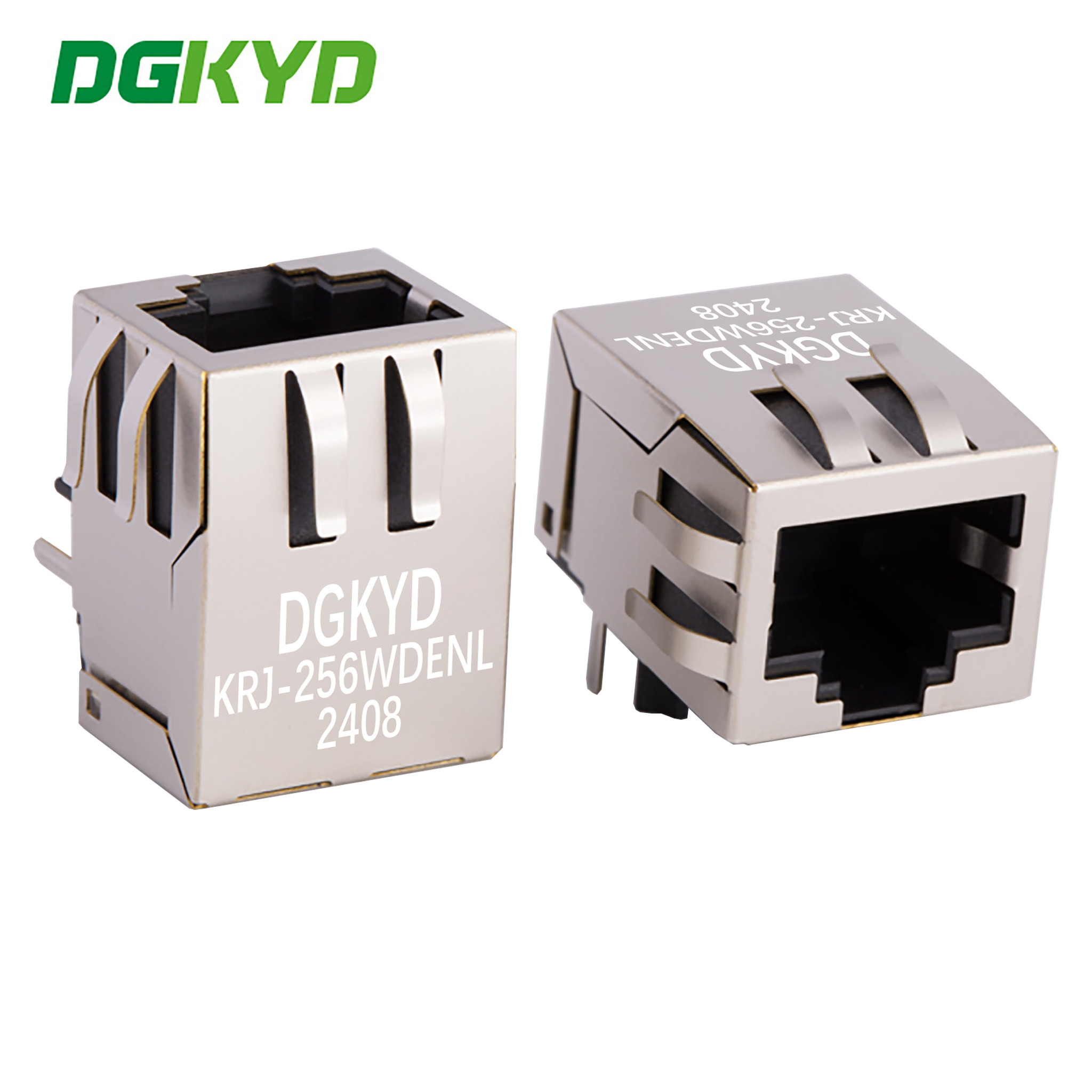

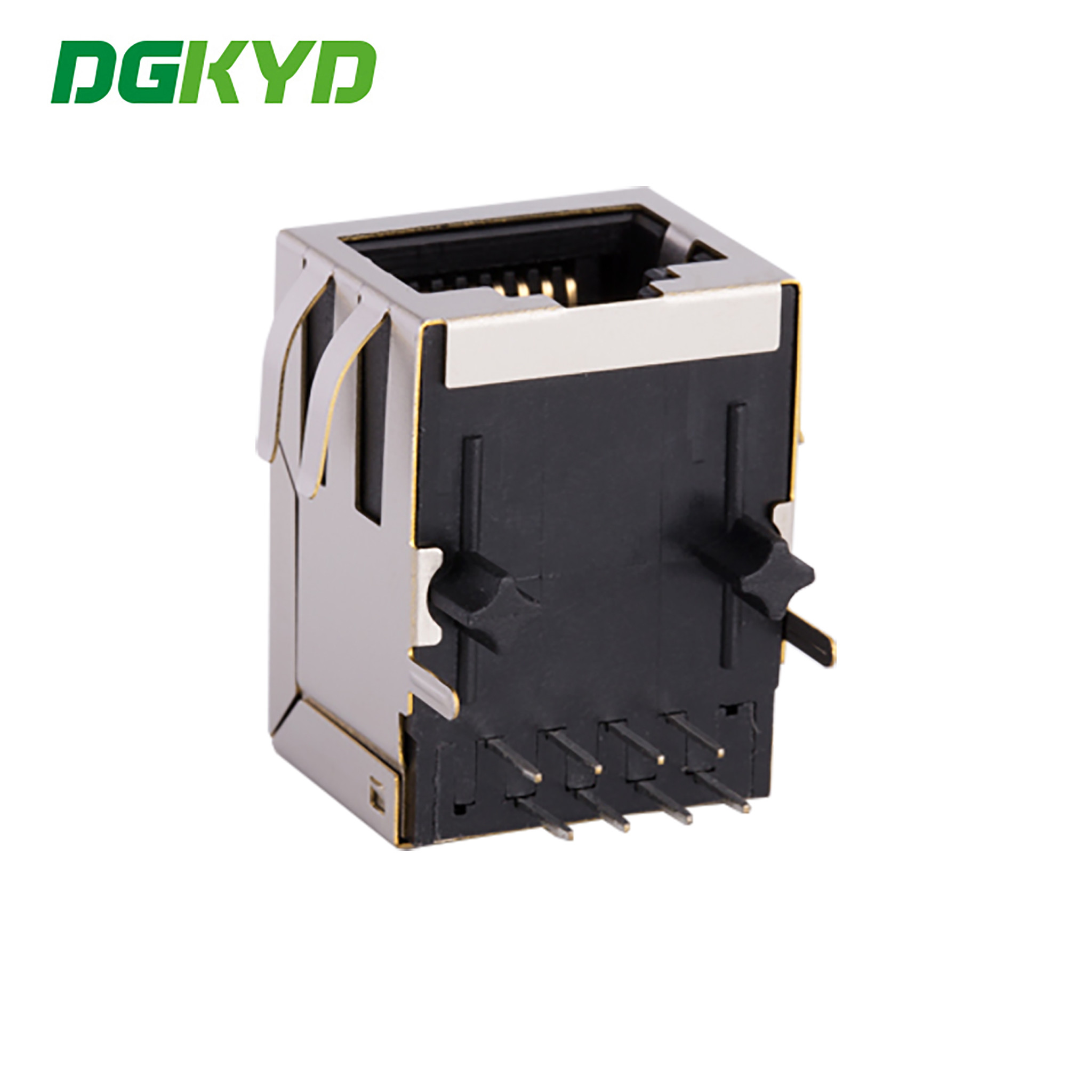

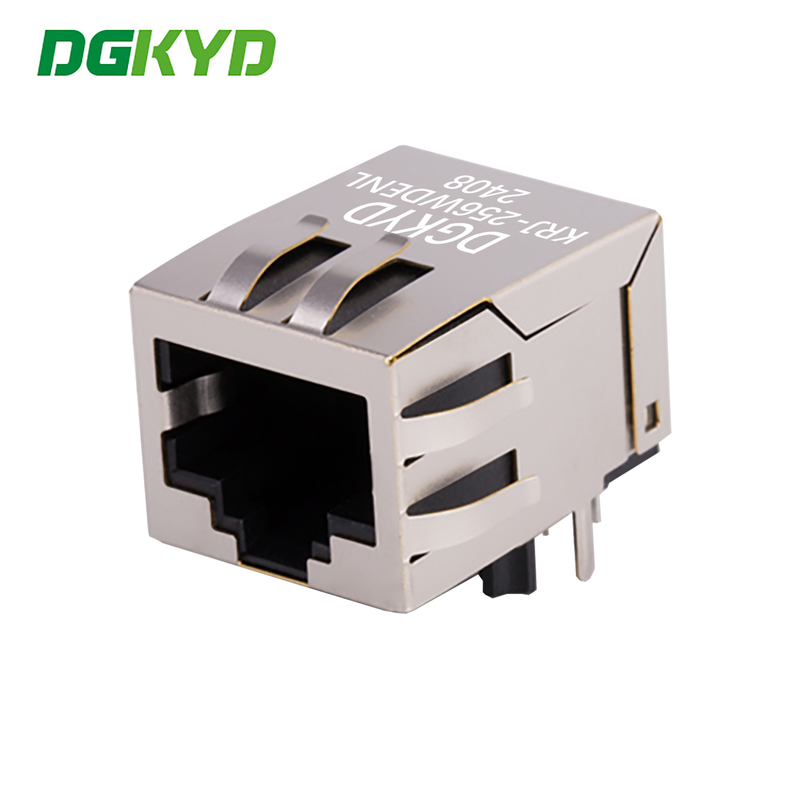

KRJ-256WDENL RJ45 Ethernet Plug Connector Single Port RJ45 100Mbps Integrated Filter Without Light Strip Shielding

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-256WDENL

Detail Information
Application::	Ethernet	Speed::	10/100/1000BASE-T
PCB Mount::	Right Angle Thru-Hole	Latch::	Tab Down
Highlight:	RJ45 Ethernet Plug Connector , RJ45 Single Port Connector 100Mbps , RJ45 100Mbps Integrated Filter

Product Description

KRJ-256WDENL RJ45 Ethernet plug connector single port RJ45 100Mbps integrated filter without light strip shielding

Product Specification Document

KRJ-256WDENL.pdf

Parameters

Part Number	KRJ-256WDENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-down
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/ BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

The connector integrates the high performance of magnetics into industry standard connector designs. A complete line of Integrated RJ-45 connectors for Gigabit Ethernet. The result is an extremely robust, IEEE802.3 compliant solution. The complete FastJack Gigabit series is UL60950, EN60950 and RoHS compliant.

Options include:

Single, Double or Quad sockets
Choice of with or without LEDs
Tab Up, Tab Down, Low Profile, Long Body, and Vertical packages
Standard (0 to 70°C) or Extended (-40 to +85°C) Temperature Ranges
