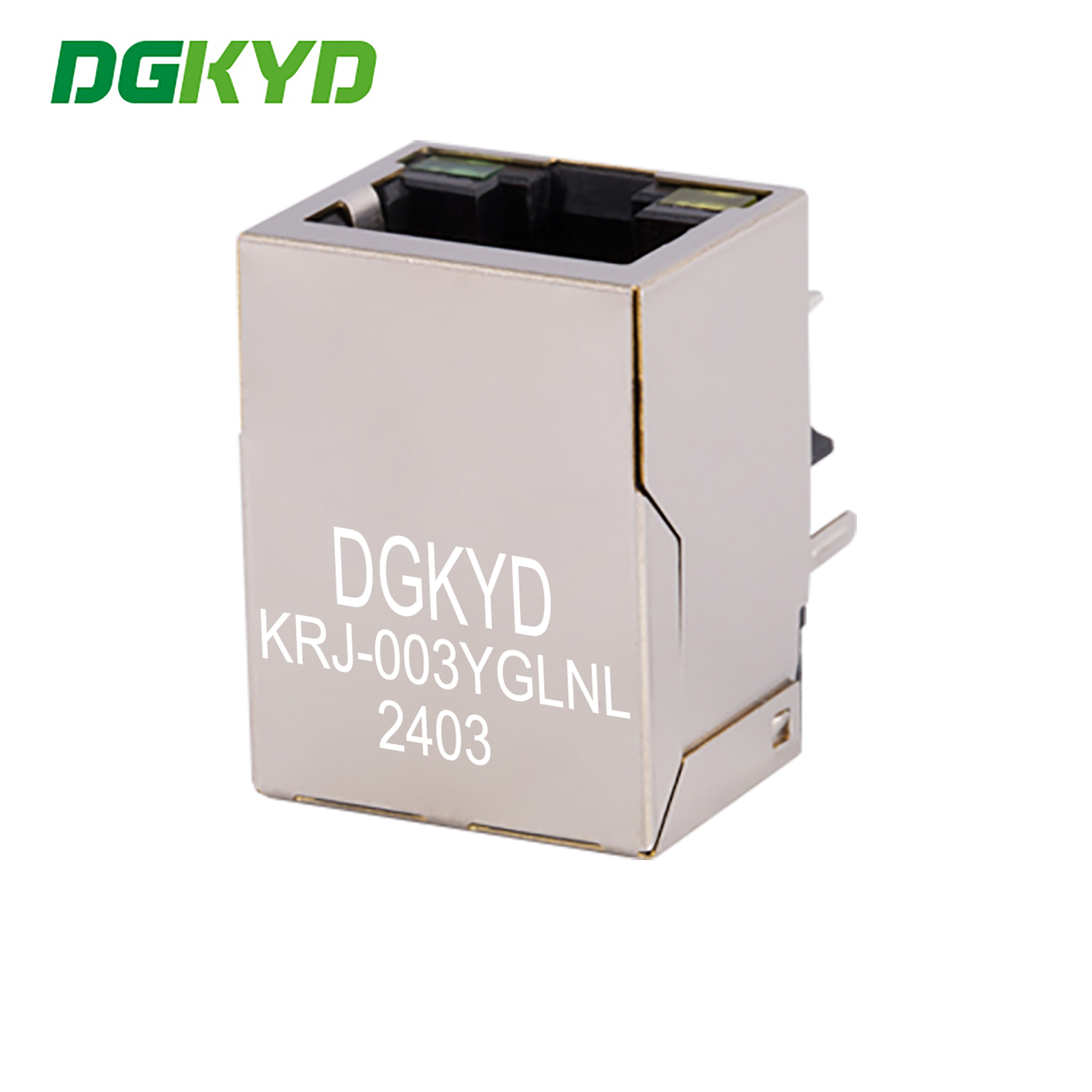

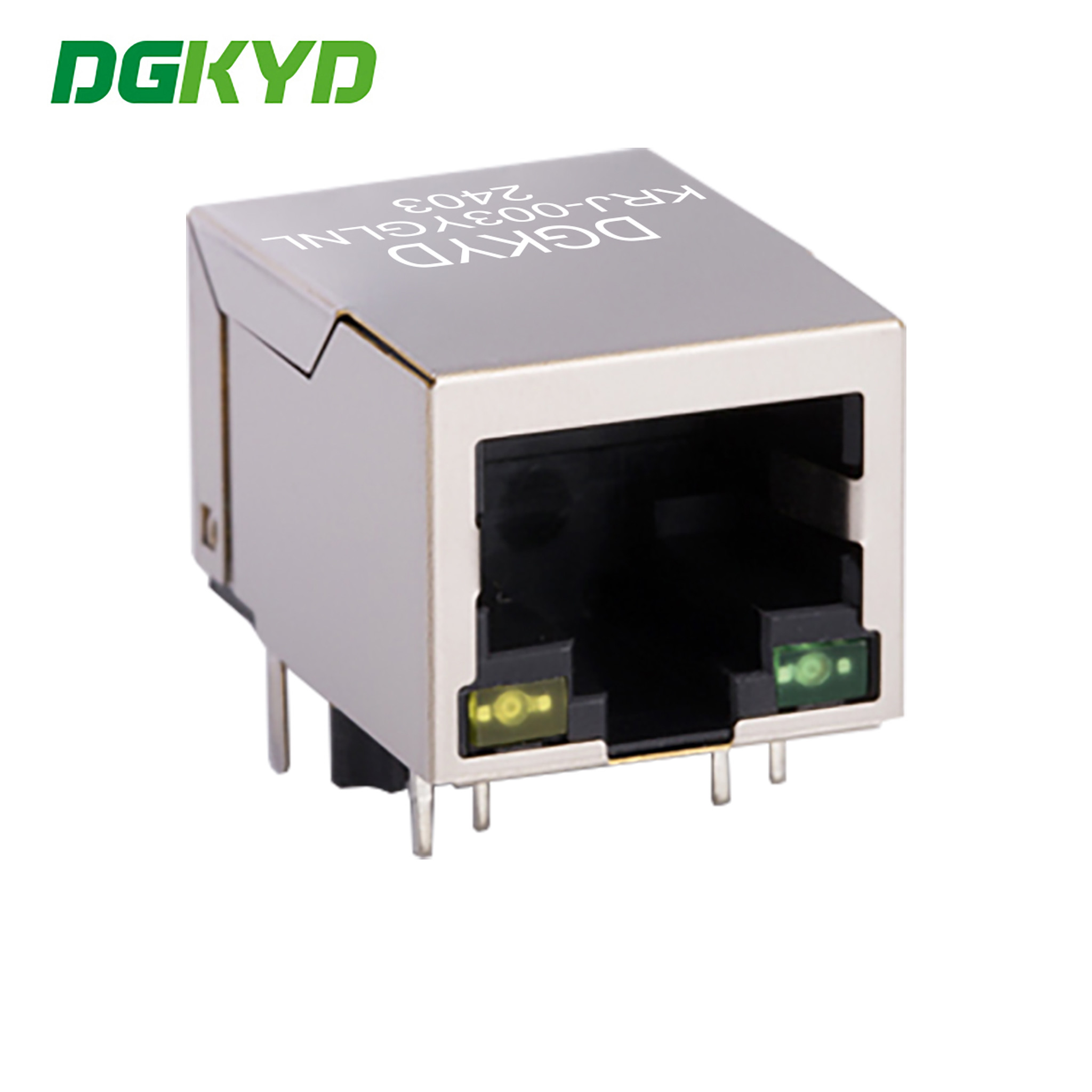

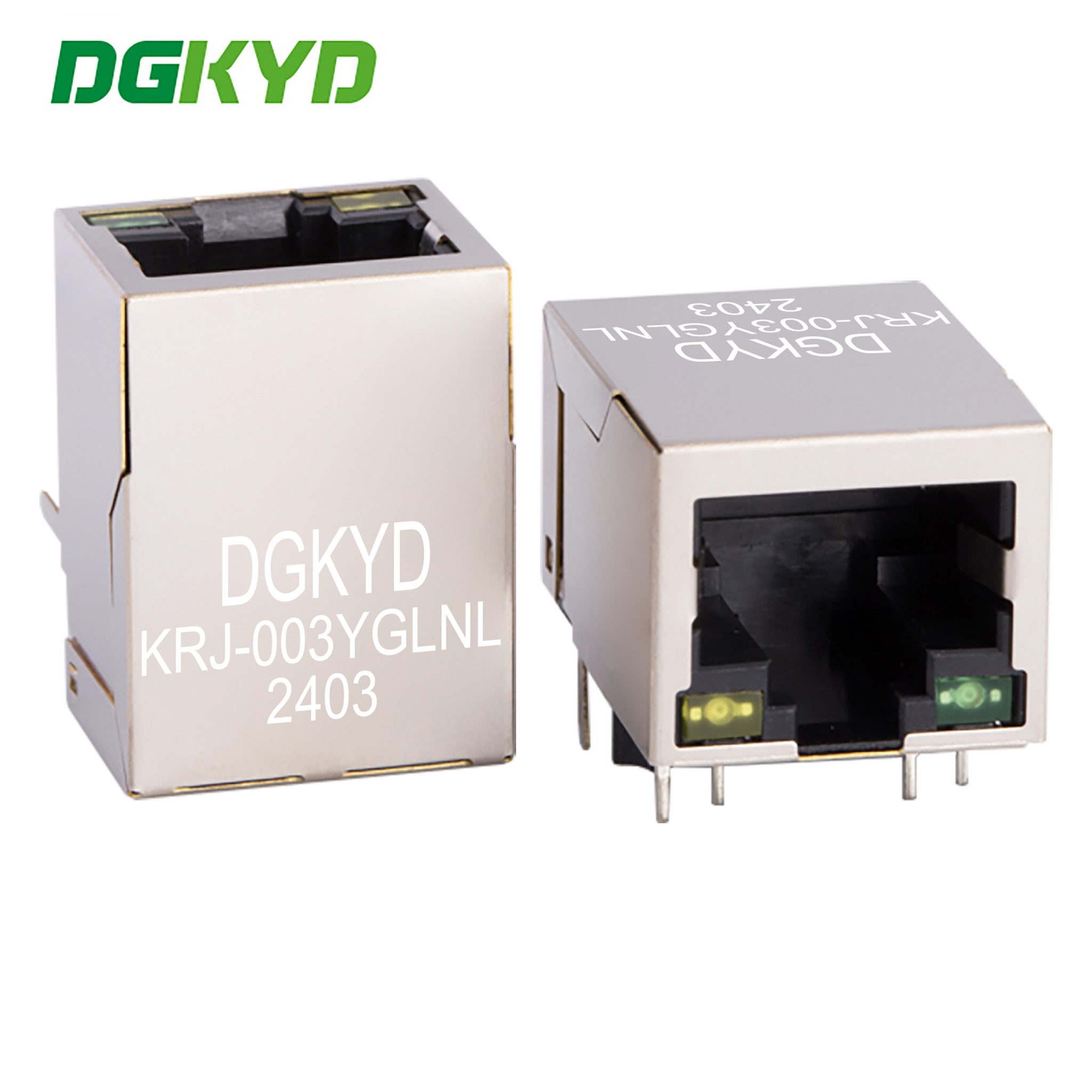

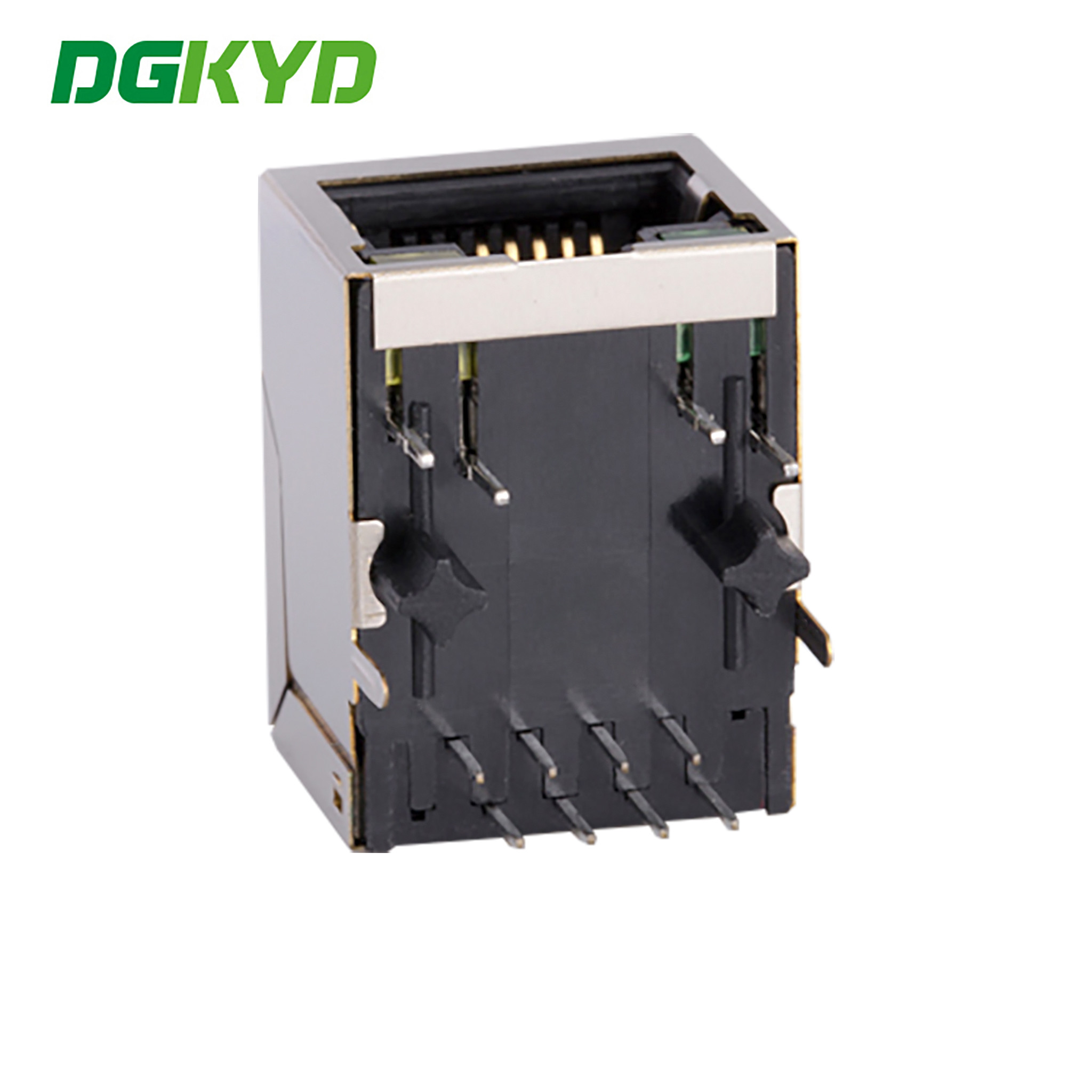

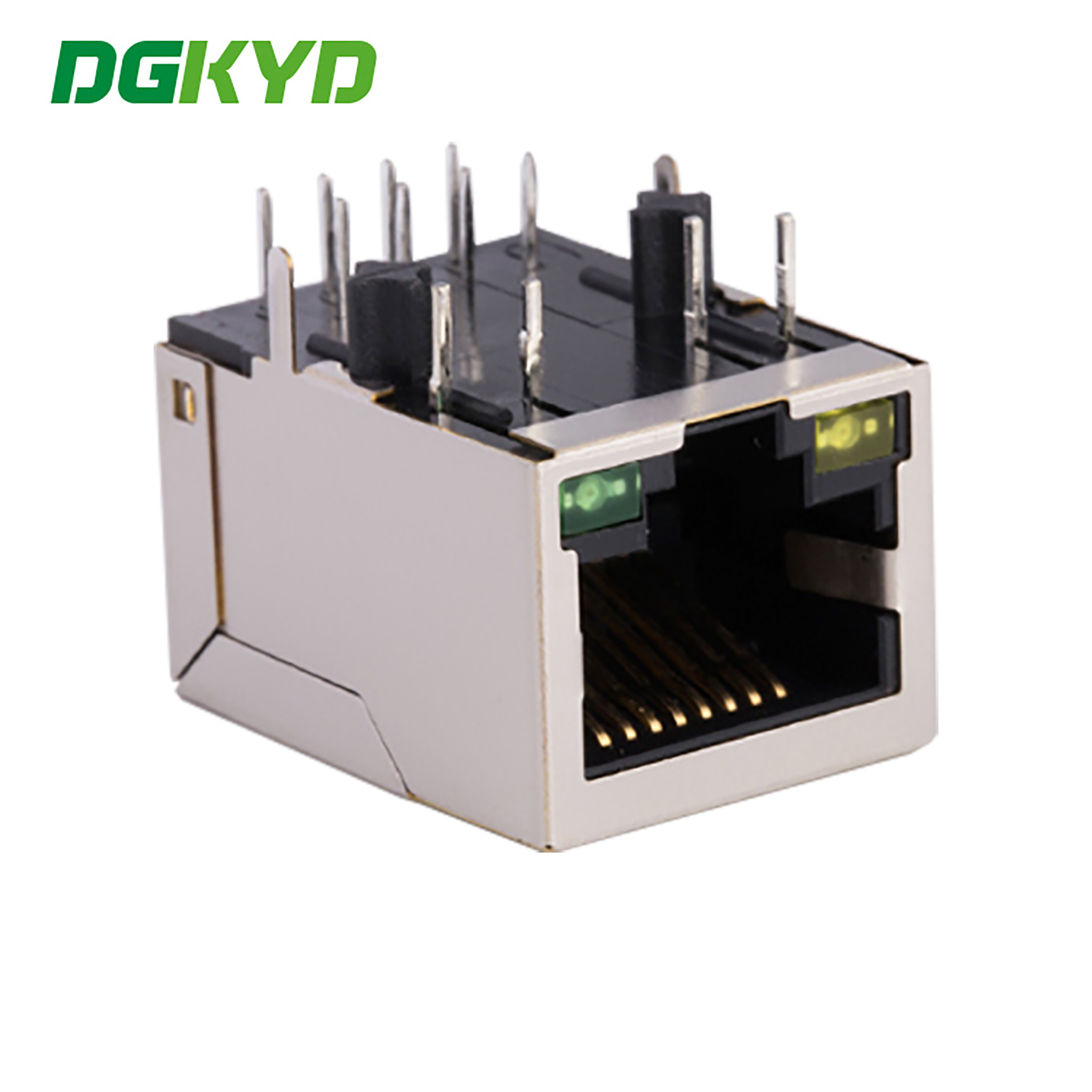

KRJ-003YGLNL 100M Integrated Filter CAT5E Ethernet RJ45 Waterproof Connector Module Shielded

Name: KRJ-003YGLNL 100M Integrated Filter CAT5E Ethernet RJ45 Waterproof Connector Module Shielded
Brand: DGKYD
SKU: KRJ-003YGLNL
Rating: 4.6 (135 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-003YGLNL

Detail Information
Gold Plating:	6u	Shield:	Metal Shield
LED:	Yellow/Green	Performance:	CAT5E
Housing Material:	PBT Black	PCB Mount Angle:	SIDE ENTRY
Mount Stlye:	Though Hole	Latch:	TAB-DOWN
Gender:	Female	Number Of Contacts:	8
High Light:	RJ45 Waterproof Connector Module , Waterproof Shielded RJ45 Connector , CAT5E Ethernet RJ45 Connector Module

Product Description

KRJ-003YGLNL 100M integrated filter CAT5E Ethernet RJ45 waterproof connector module, shielded RJ45 connector,

Product Specification Document
KRJ-003YGLNL.pdf

Parameters

Part Number	KRJ-003YGLNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Down
Filter	With Filter	LED Option	With LED
LED Color	Yes L-Yellow/R-Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant(GP)
Length:21.3mm(0.85inch)
LEDS:YES
EMI fingers:YES
LEFT LED:Green,RIGHT LED:Yellow
Usage:J0011D21BNL/HY911105H/KRJ-003NL

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated
