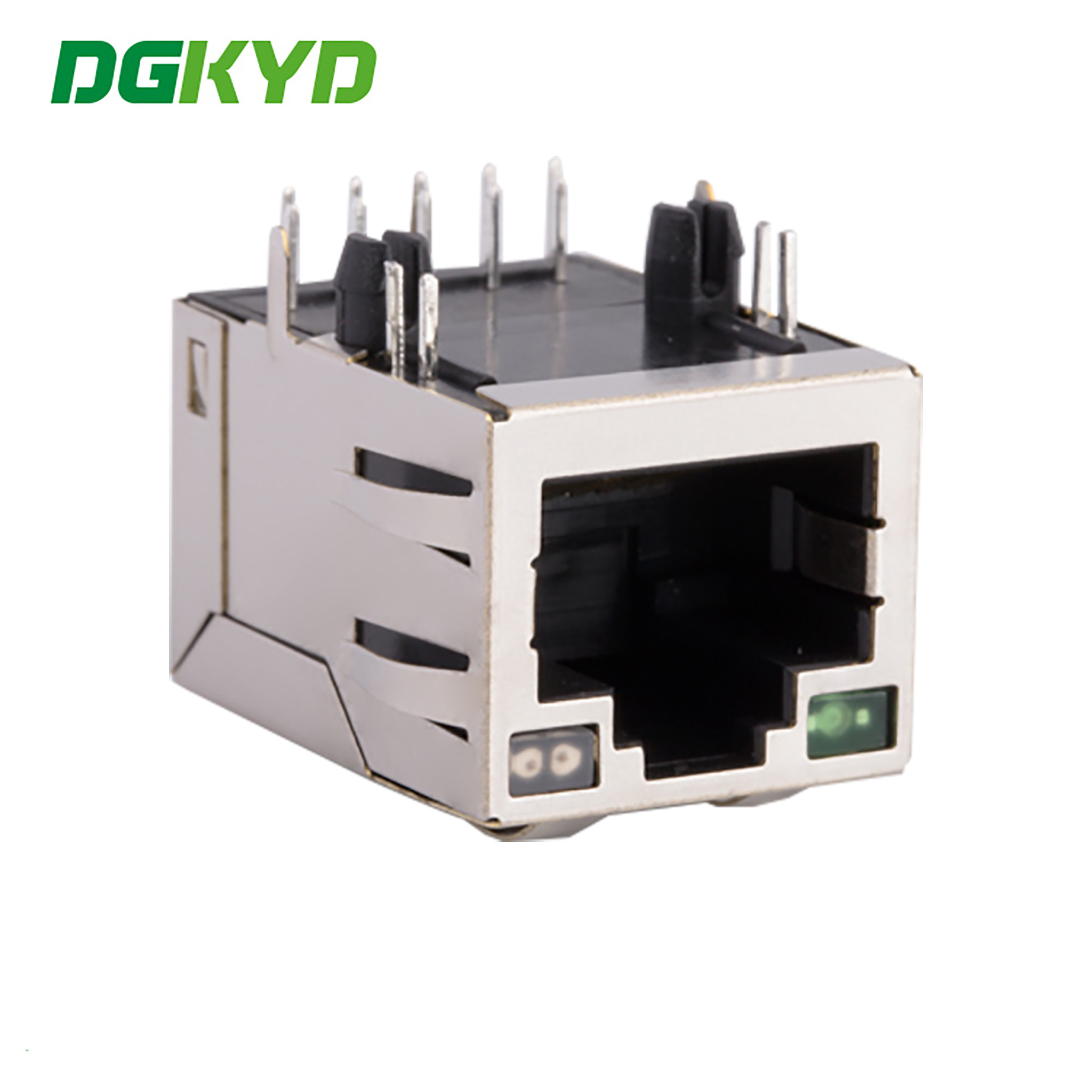

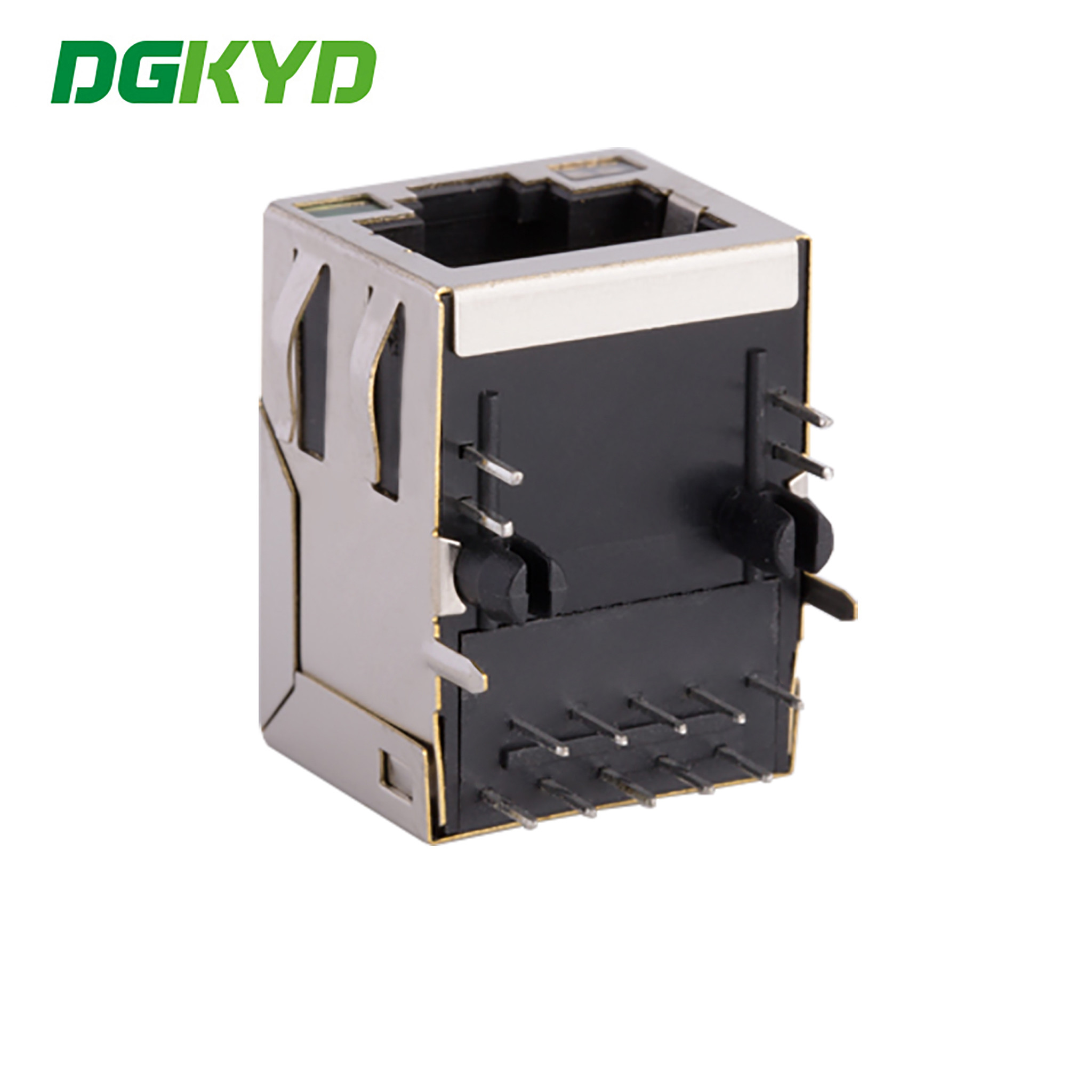

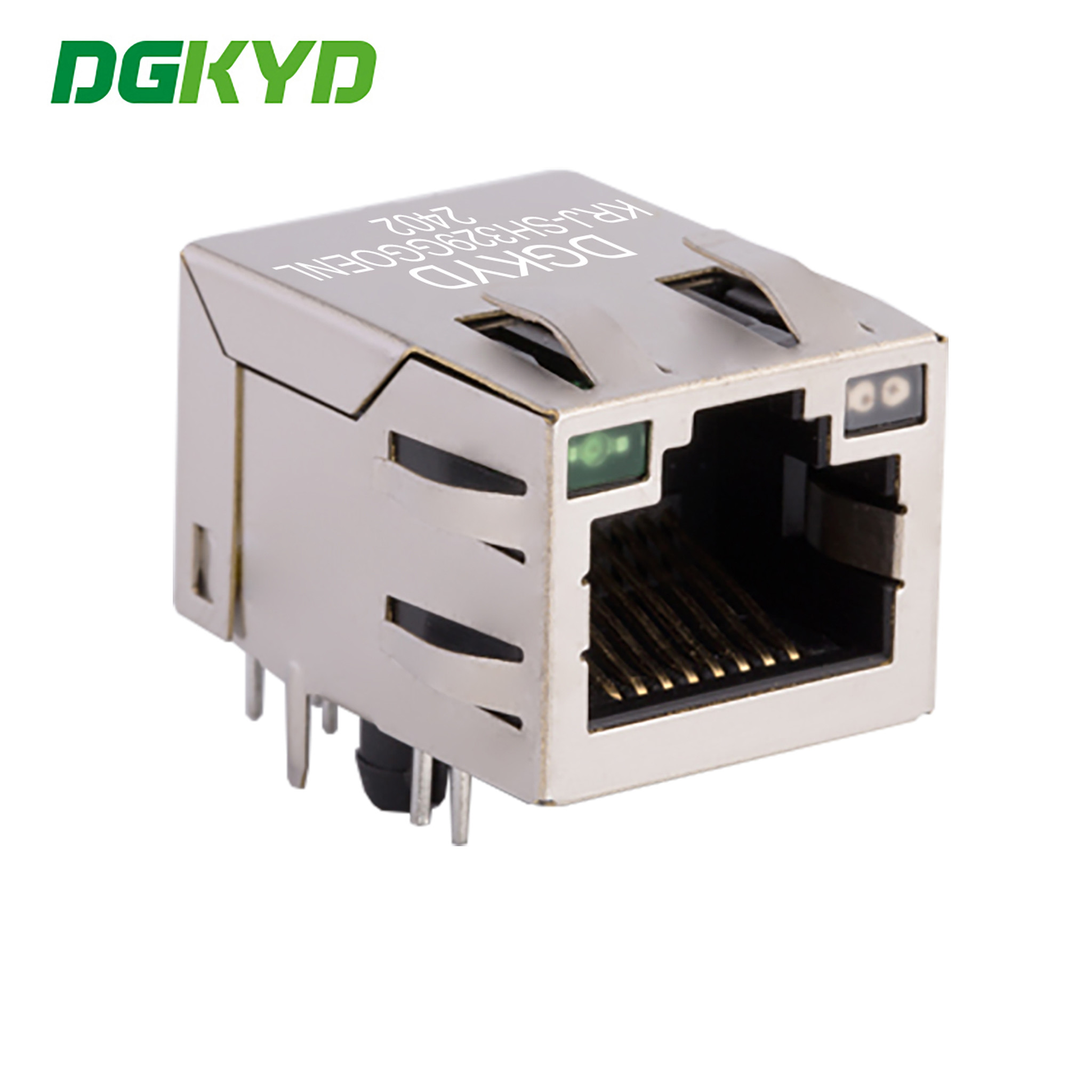

Side Entry KRJ-098GNL Shielded Rj45 Connector With Light Strip
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-SH329GGOENL |
|
Detail Information |
|||
| LEDS/EMI Fingers: | For Optional | Feature: | High Performance With Magnetics |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Application: | PCB |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Jack |
| Contact Plating: | Glod Plating 6u/15u/30u/50u | Filter: | With Filter |
| LEDN/A Color: | Green/Orange-Green | Operation Temperature: | -40°C~+85°C |
| High Light: | RJ45 Ethernet Socket Female Head,10Pin RJ45 Ethernet Jack,RJ45 Ethernet Jack With LED |
||
Product Description
Product Specification Document
|
Part Number
|
KRJ-SH329GGOENL |
Brand
|
DGKYD/OEM/ODM
|
|
Place of Origin
|
Guangdong of China
|
Certification
|
CE /UL/FCC/Reach/RoHS
|
|
Product Type
|
Connector-Modular
|
Connector Style
|
Jack
|
|
Jack Type
|
RJ45
|
Connector Type
|
Modular Jack
|
|
Latch Style
|
Standard
|
Latch
|
tab-up
|
|
Filter
|
With Filter
|
LED Option
|
With LED
|
|
LED Color
|
Green/Orange-Green |
Panel Stops
|
Without Panel Stops
|
|
Shielded
|
Yes
|
Applies To
|
Printed Circuit Board
|
|
Performance Speed
|
10/100/1000 BASE-T
|
Grounding Options
|
Panel Ground and PCB Ground
|
|
Port Configuration
|
Single
|
Number of Positions
|
10
|
|
Jack Configuration
|
1 x 1
|
Terminals per Port
|
8
|
|
Shield Material
|
Copper Alloy preplated with Nickel
|
PCB Mounting Orientation
|
Side Entry (Right Angle)
|
|
Contact Mating Area Plating Material
|
Gold 6u/15u/30u/50u
|
Contact Base Material
|
Phosphor Bronze
|
|
Solder Tail Contact Plating Material
|
Tin-Lead over Nickel
|
PCB Mounting Style
|
Through Hole
|
|
Termination Method to PC Board
|
Through Hole-Press-Fit
|
Board Lock
|
With/Without Board Lock
|
|
Housing Material
|
PA66 Polyester
|
Housing Color
|
Black
|
|
Housing Material Temperature
|
Standard
|
UL Flammability Rating
|
UL 94V-0
|
Applications:
Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,
fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,
computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
