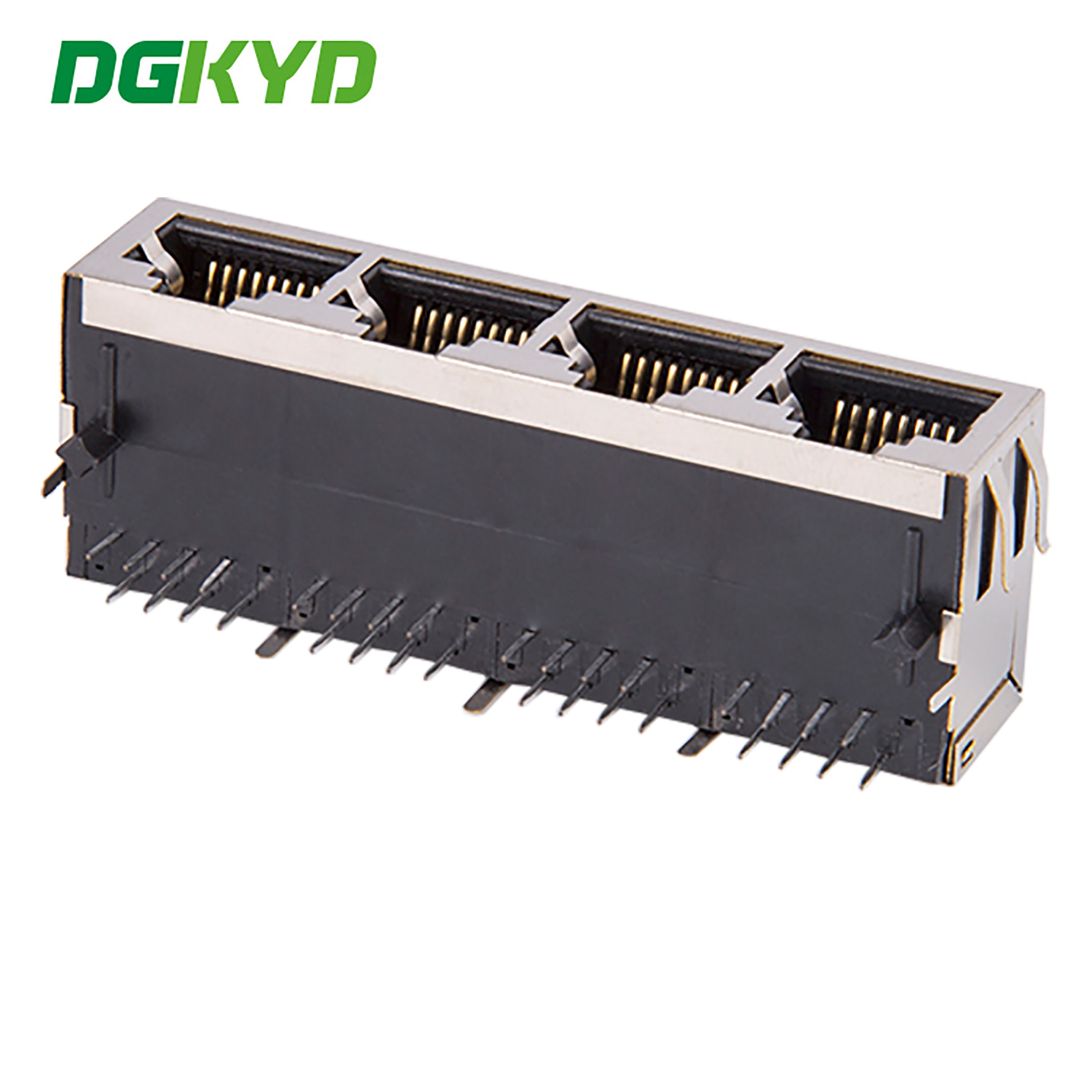

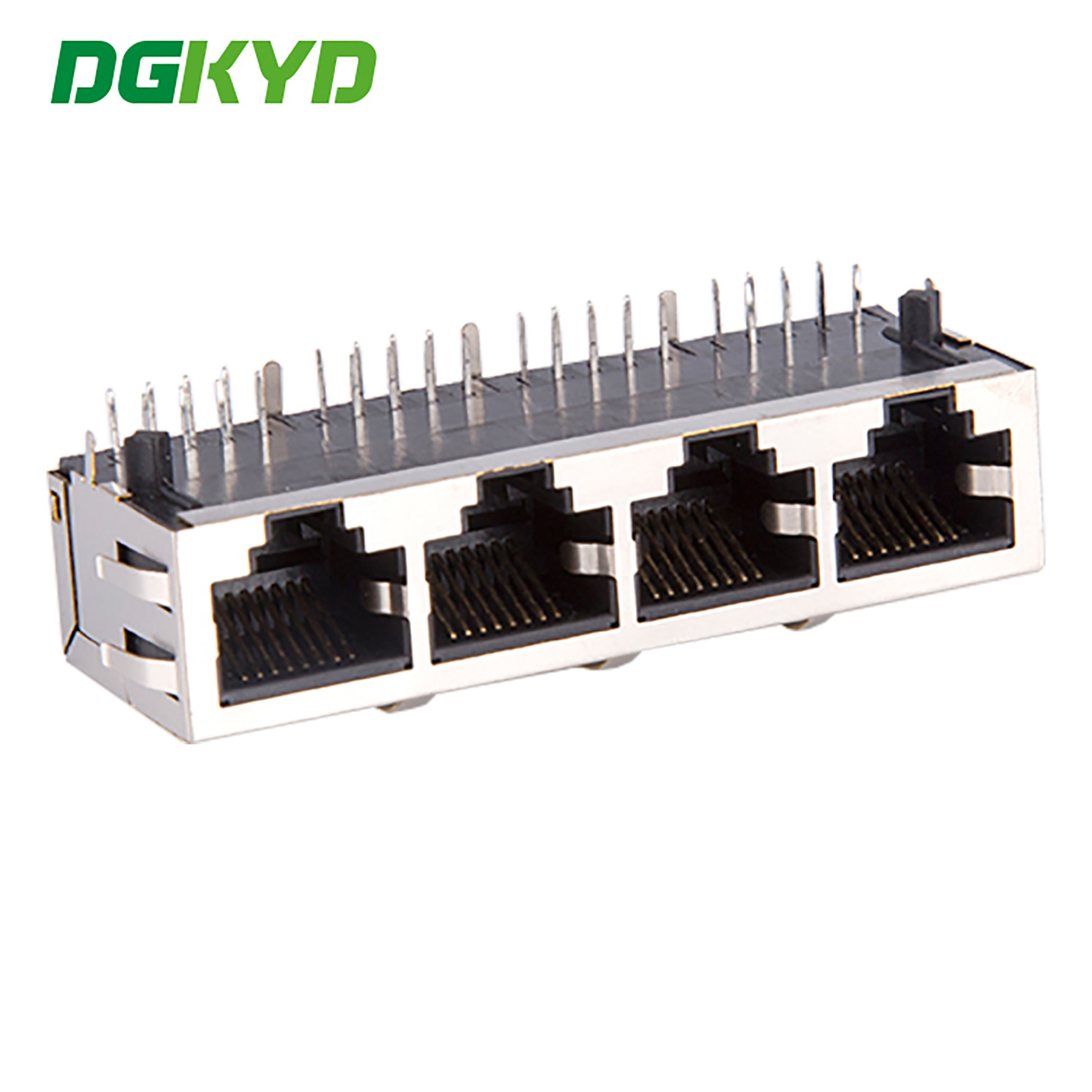

Side Entry KRJ-098GNL Shielded Rj45 Connector With Light Strip
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-405BNL |
|
Detail Information |
|||
| Product Name: | 4-Port RJ45 Jack | Shieded: | YES |
|---|---|---|---|
| Number Of Contacts Loaded: | 8 | Application: | Set-top Box,internet Camera,net Bridge |
| PCB Mount Angle: | SIDE ENTRY | Mount Stlye: | Though Hole |
| Contact Mating Area Plating: | GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional | Latch: | TAB-DOWN |
| Speed: | Cat5 | Housing Material: | PBT Black |
| Gender: | Female | ||
| High Light: | KRJ-405BNL RJ45 Connectors,100Mbps RJ45 Socket Ethernet Jack,Cat5 RJ45 Socket Ethernet Jack |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-405BNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Down |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | 1X4 Ports | Number of Positions | 8 |
| Jack Configuration | 1X4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages
