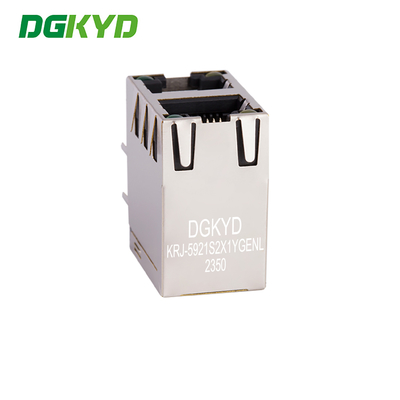

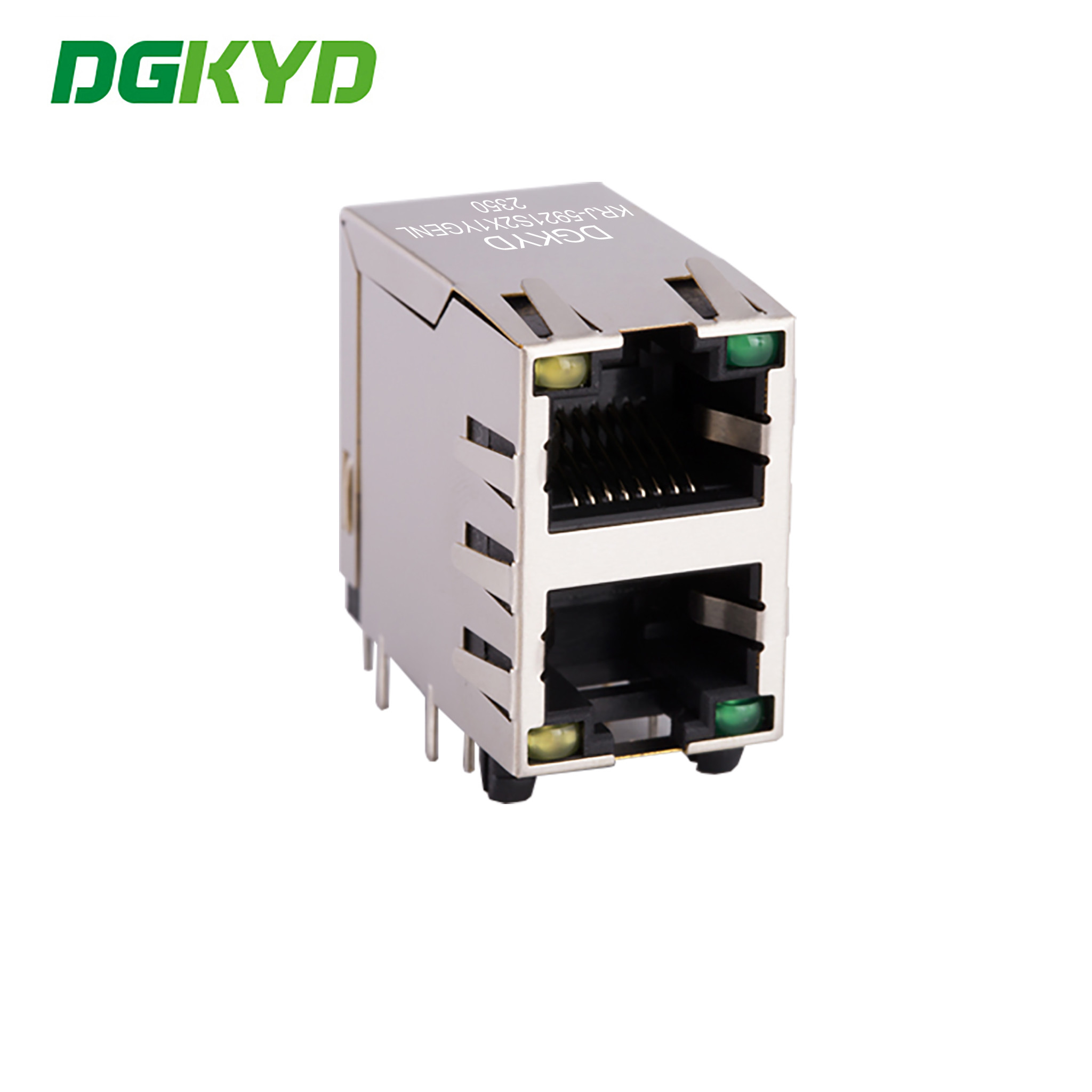

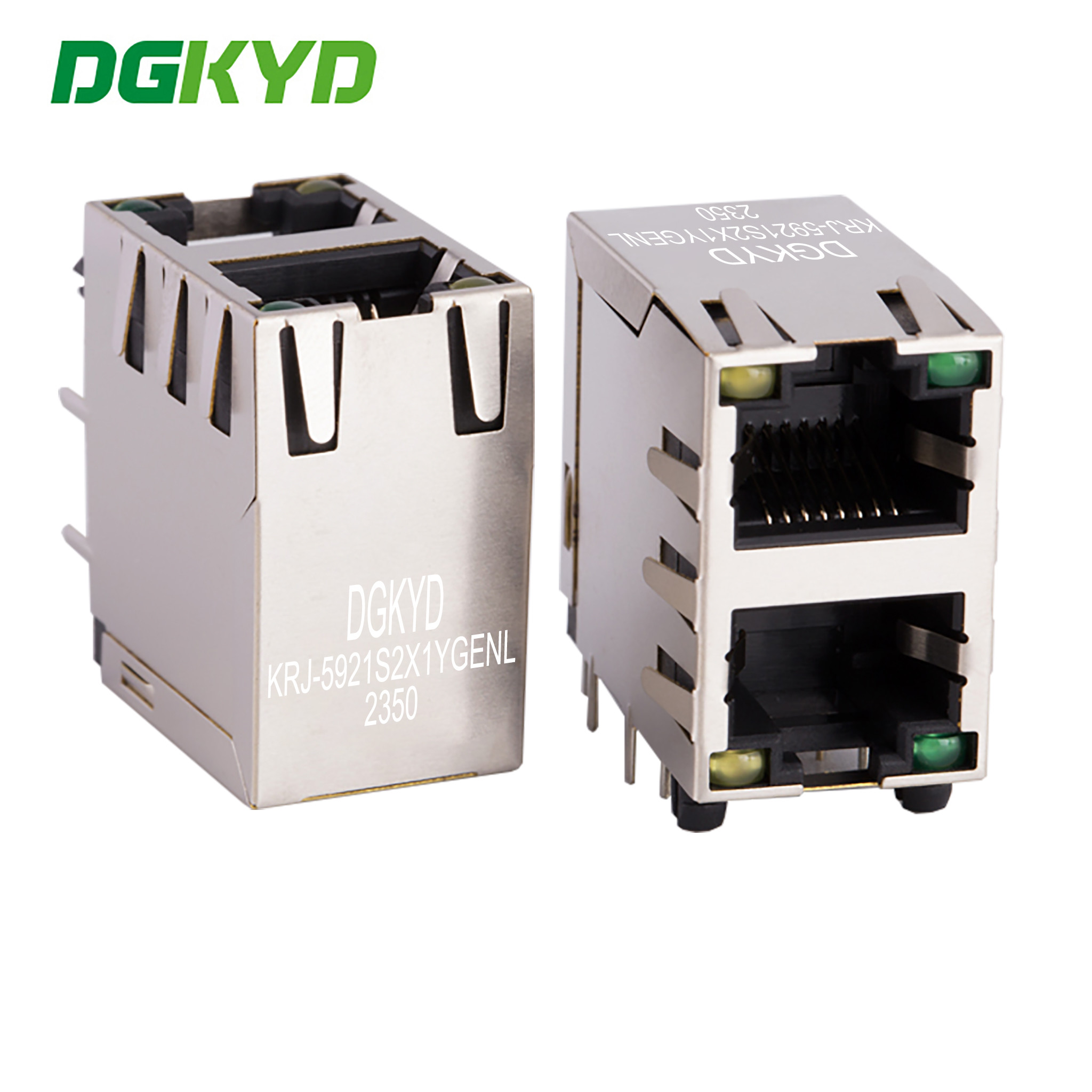

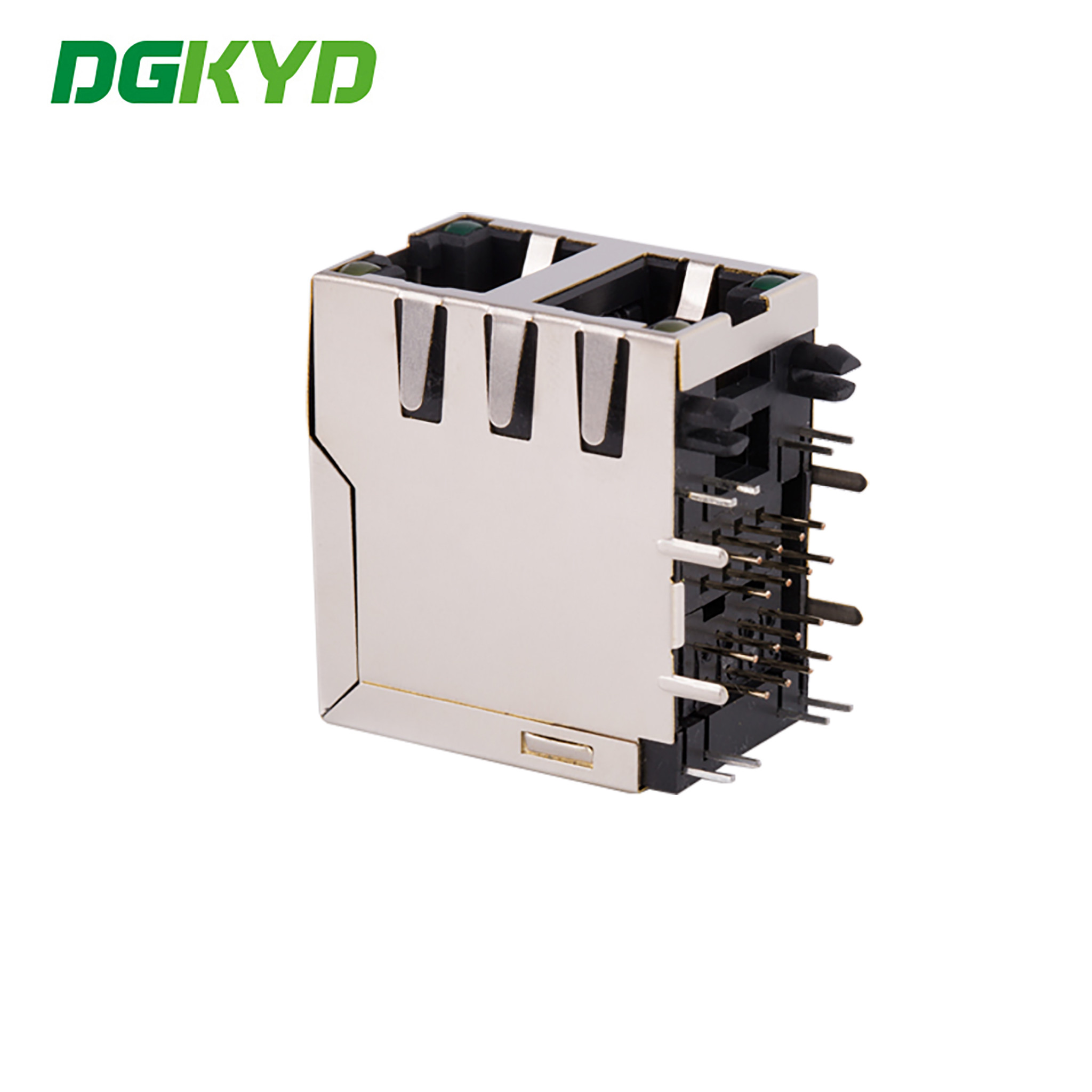

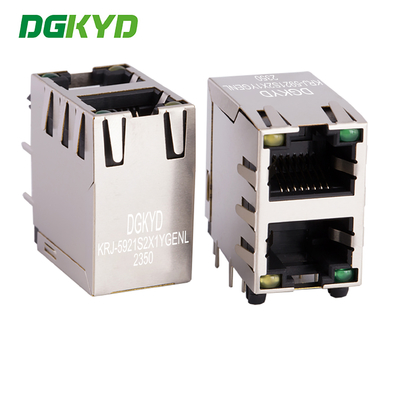

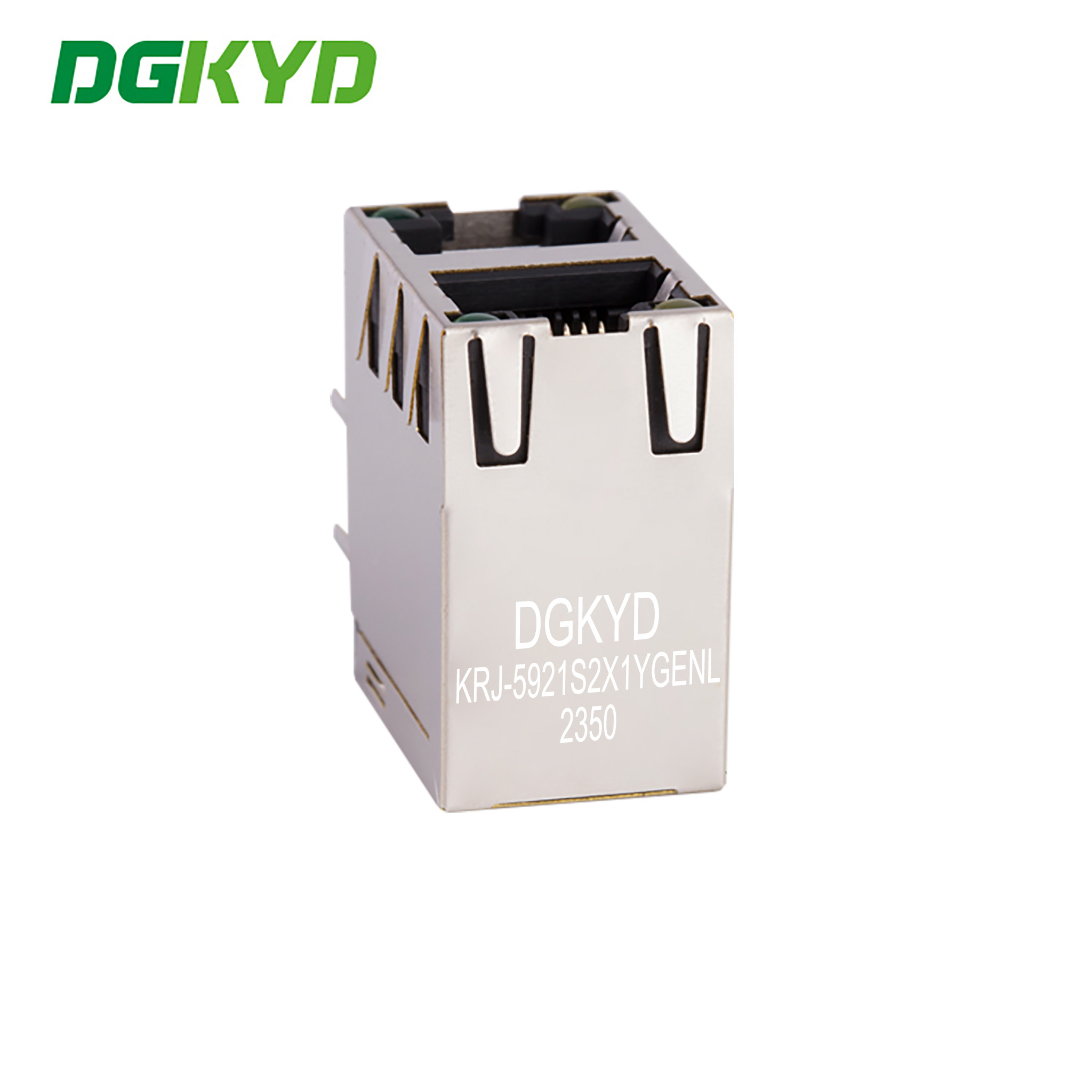

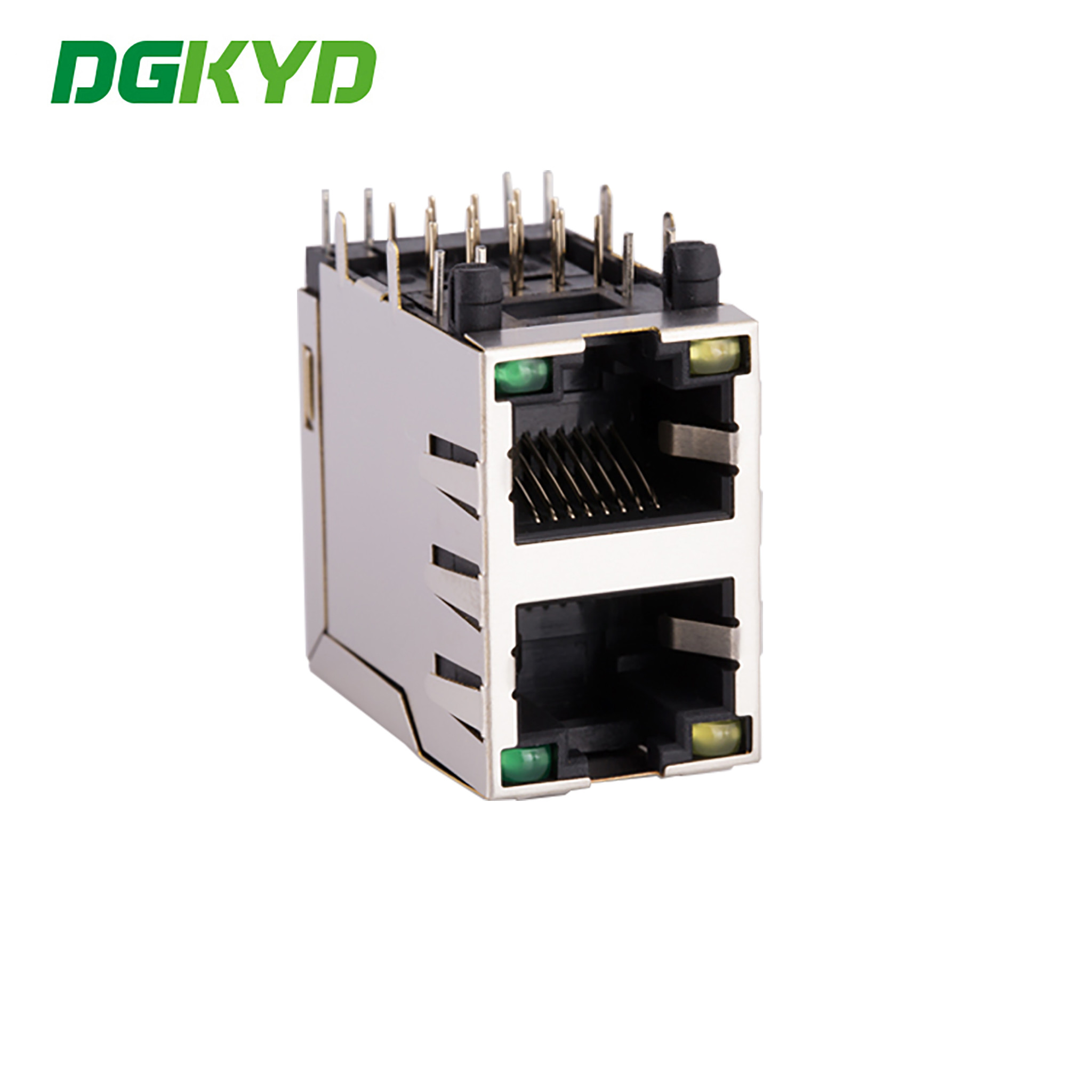

KRJ-5921S2X1YGENL 2x1 Dual Port RJ45 Connector With Light And Spring Clip Without Filter

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S2X1YGENL

Detail Information
Product Name:	RJ45 Ethernet Jack	Gender:	Female
Application:	Lan,bridge,PC,router,usb Hub Network Rj45	LEDS/EMI Fingers:	Custom
Feature:	High Performance	RJ45 Suitable:	For CAT5&6 Ethernet Cable Or UTP
Contact Mating Area Plating:	GOLD FLASH PLATING	PCB Mount Angle:	RIGHT ANGLE
LED Option:	Yellow/Green
Highlight:	2x1 Dual Port Rj45 Connector , Dual Port Rj45 Connector With Light , Rj45 Dual Connector Without Filter

Product Description

KRJ-5921S2X1YGENL 2x1 dual port RJ45 connector with light and spring clip without filter RJ45 interface RJ45 socket

Product Specification Document

KRJ-5921S2X1YGENL.pdf

Part Number	KRJ-5921S2X1YGENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	down/UP
Filter	Without internal filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	shielded	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	2 port	Number of Positions	8
Jack Configuration	2 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

10/100/1000 Base-Tx RJ45 2 port 2X1 Side Entry (Right Angle)
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS: Y/G LED

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
