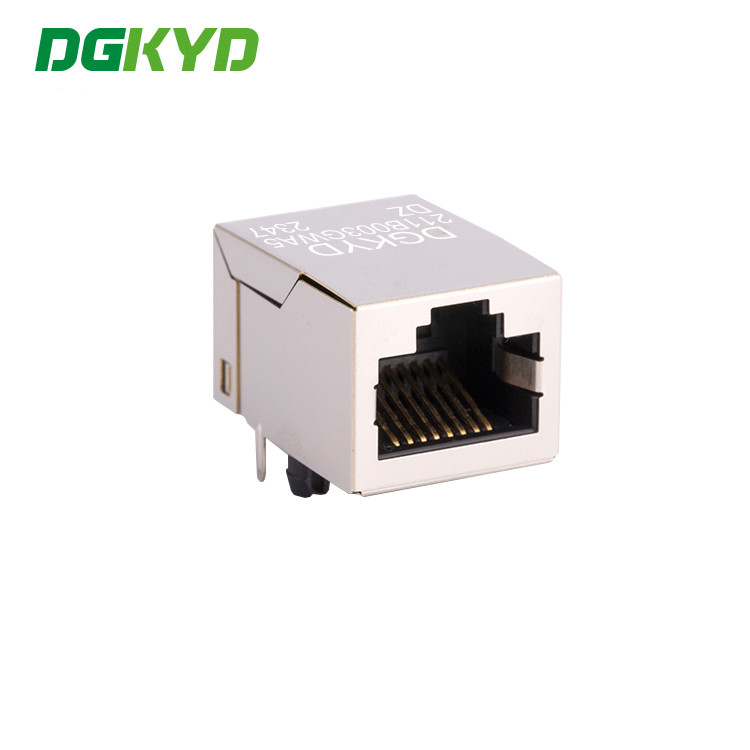

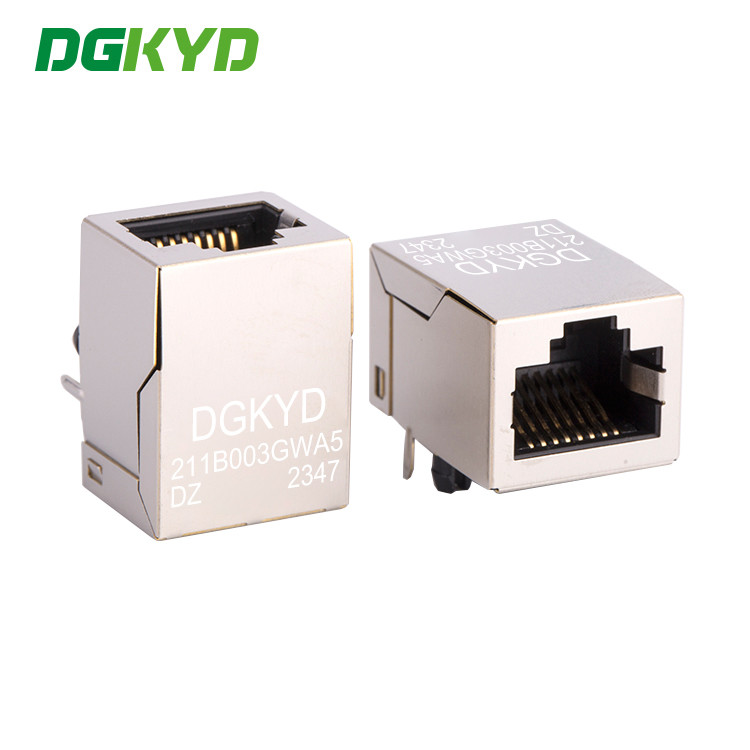

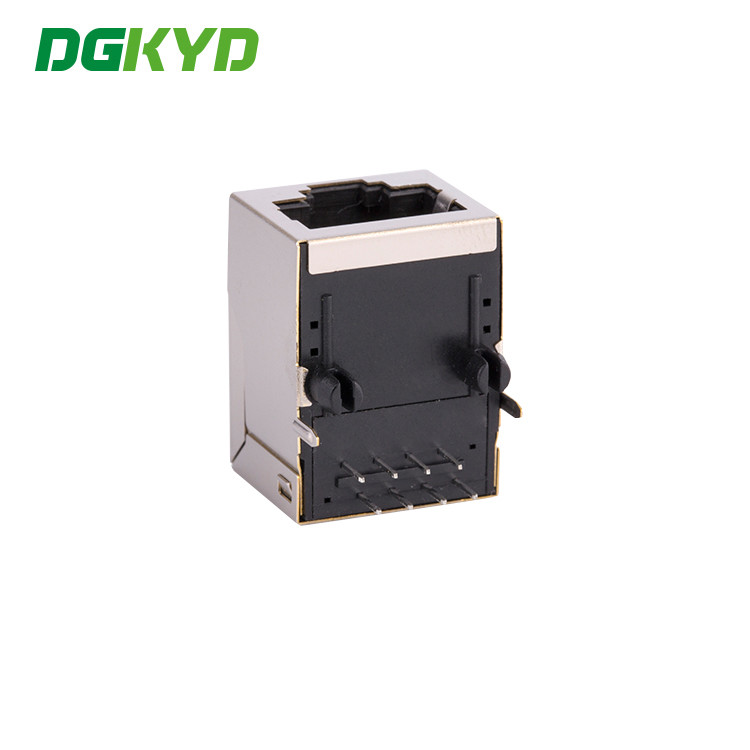

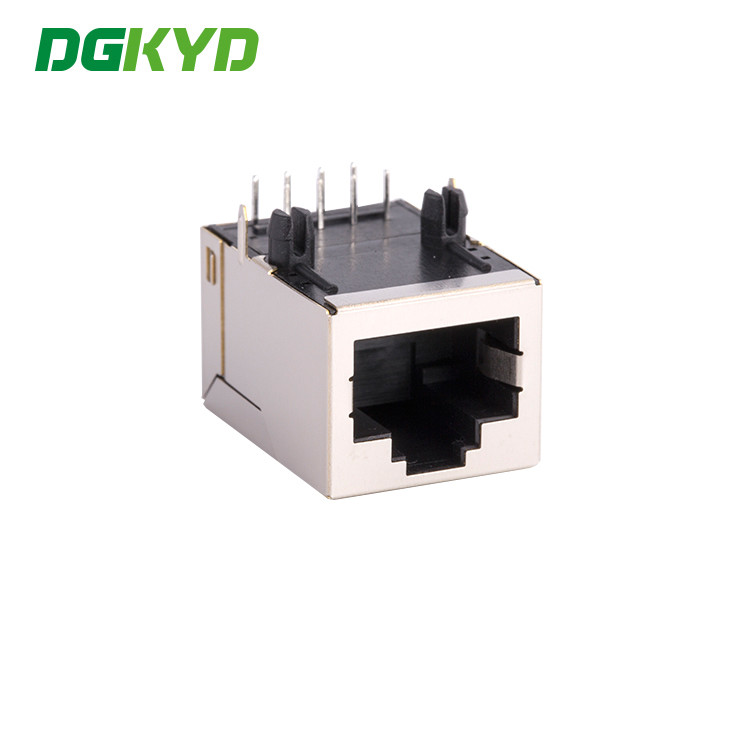

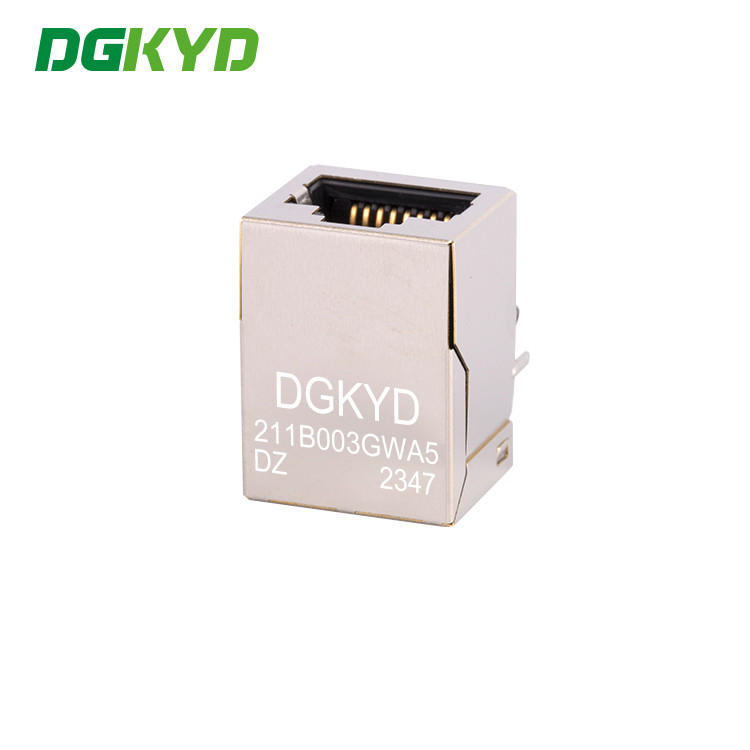

Side Entry KRJ-098GNL Shielded Rj45 Connector With Light Strip
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD211B003GWA5DZ |
|
Detail Information |
|||
| Housing Material: | PBT Polyester | Shielded: | Metal Shielded |
|---|---|---|---|
| LED: | No | Plating: | Glod Plating 6u/15u/30u/50u |
| Latch: | Tab Up | Filter: | With Filter |
| High Light: | Single Cell Rj45 Connection,Rj45 Connection With Filter Socket,100M Rj45 Ethernet Connector |
||
Product Description
Product Specification Document
► Product Datasheet
|
Part Number
|
DGKYD211B003GWA5DZ |
Brand
|
DGKYD/OEM/ODM
|
|
Product Type
|
Connector-Modular
|
Connector Style
|
Jack
|
|
Jack Type
|
RJ45
|
Connector Type
|
Modular Jack
|
|
Latch Style
|
Standard
|
Latch
|
up |
|
Filter
|
With Filter
|
LED Option
|
Without LED
|
|
LED Color
|
Yellow & Green
|
Panel Stops
|
With Panel Stops
|
|
Shielded
|
Yes
|
Applies To
|
Printed Circuit Board
|
|
Performance Speed
|
10/100 BASE-T
|
Grounding Options
|
Panel Ground and PCB Ground
|
|
Port Configuration
|
Single
|
Number of Positions
|
8 |
|
Jack Configuration
|
1 x 1
|
Terminals per Port
|
8
|
|
Shield Material
|
Copper Alloy preplated with Nickel
|
PCB Mounting Orientation
|
Side Entry (Right Angle)
|
|
Contact Mating Area Plating Material
|
Gold 6u/15u/30u/50u
|
Contact Base Material
|
Phosphor Bronze
|
|
Solder Tail Contact Plating Material
|
Tin-Lead over Nickel
|
PCB Mounting Style
|
Through Hole
|
|
Termination Method to PC Board
|
Through Hole-Press-Fit
|
Board Lock
|
With/Without Board Lock
|
|
Housing Material
|
PBT Polyester
|
Housing Color
|
Black
|
|
Housing Material Temperature
|
Standard
|
UL Flammability Rating
|
UL 94V-0
|
► FAQ
1.When can we get the reply?
Any inquiries will be replied within 12 hours.
We will try our best to support you.
2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy samples to test first.
3.Can customize,modify and develop products according to the design drawing?
Yes,we provide OEM service and can customize products according to the drawing.
4.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000, 3C, CE and FCC.
5.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity,
We will check the time for you.
6.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.
7.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times
8.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc.
