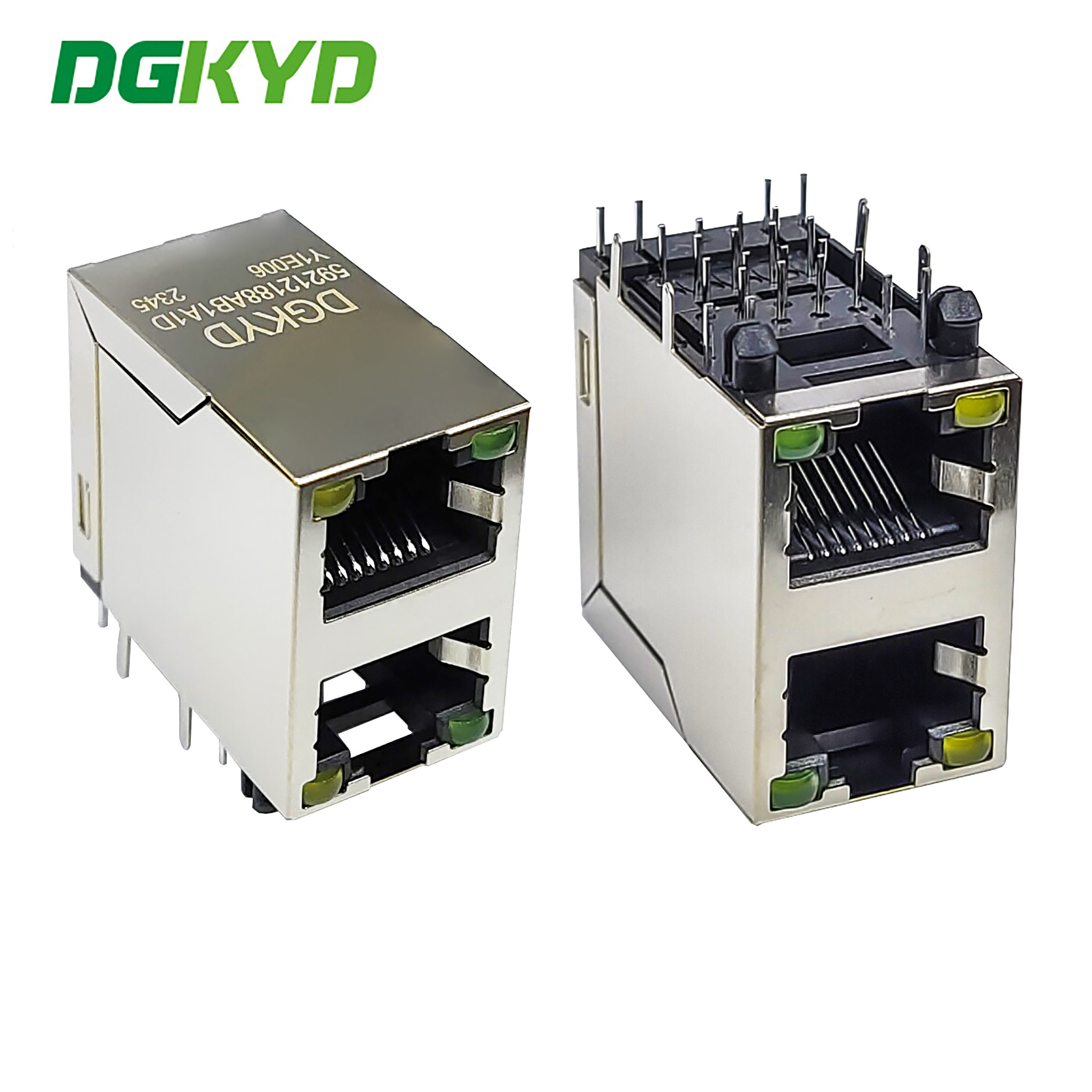

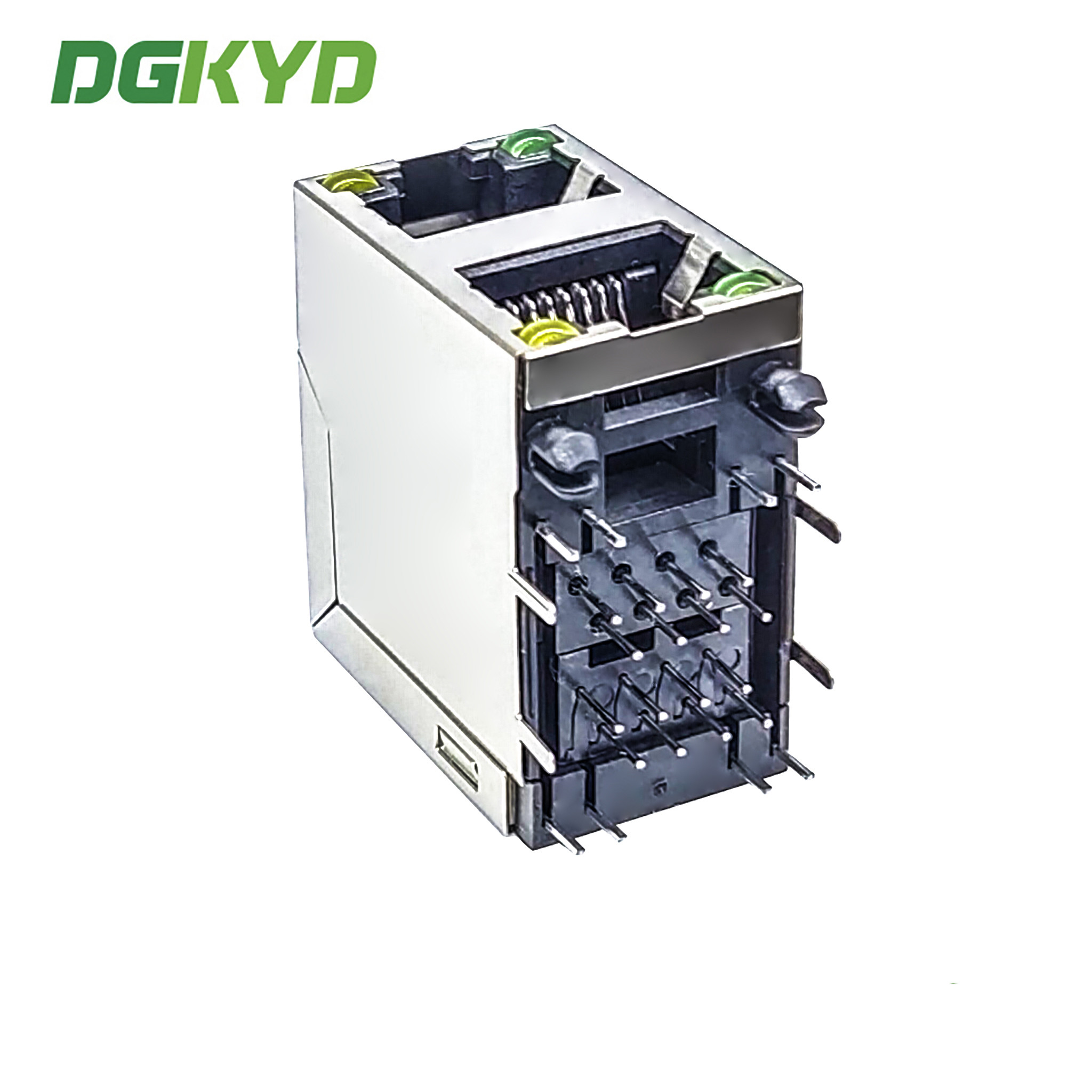

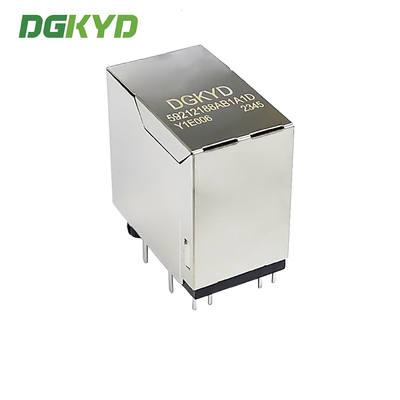

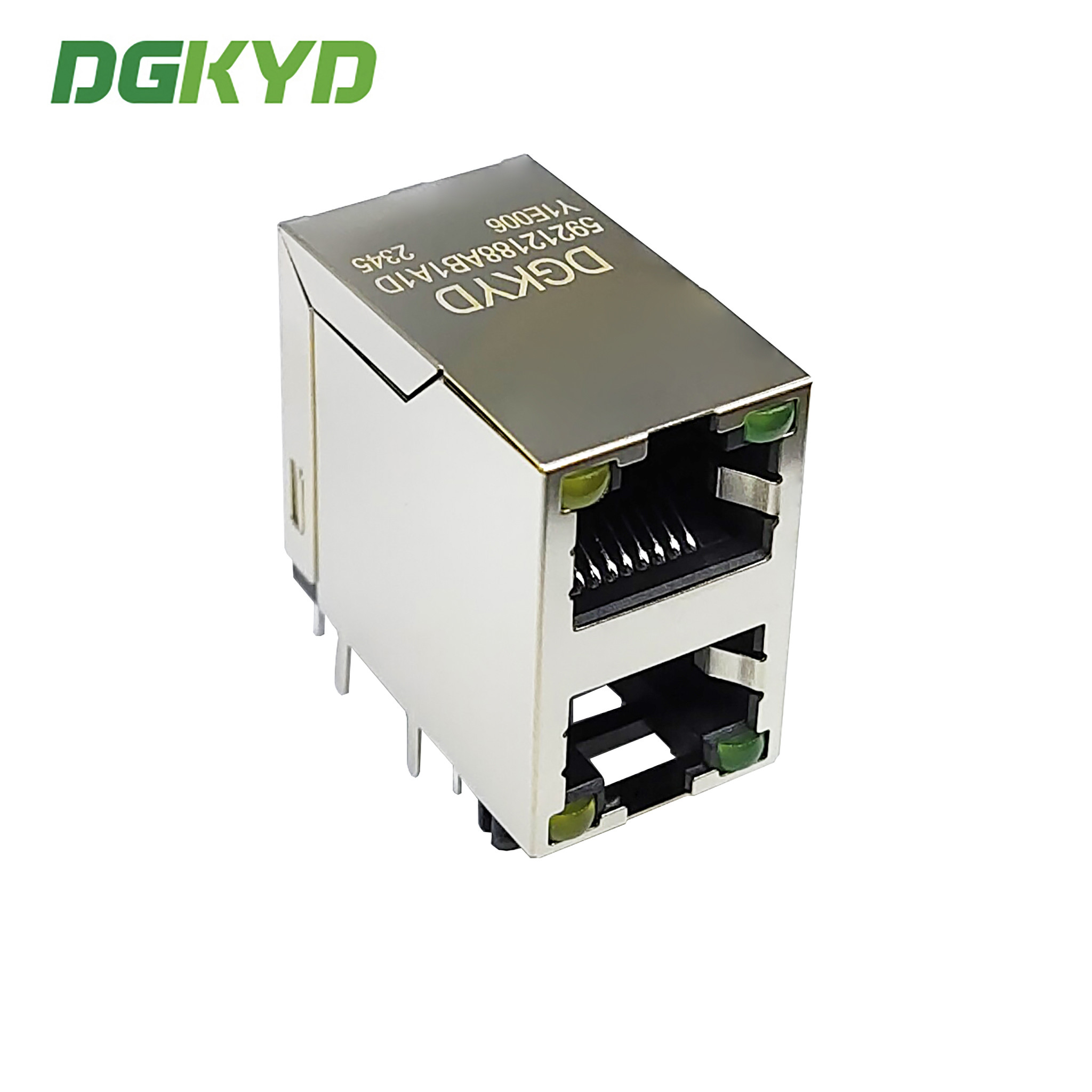

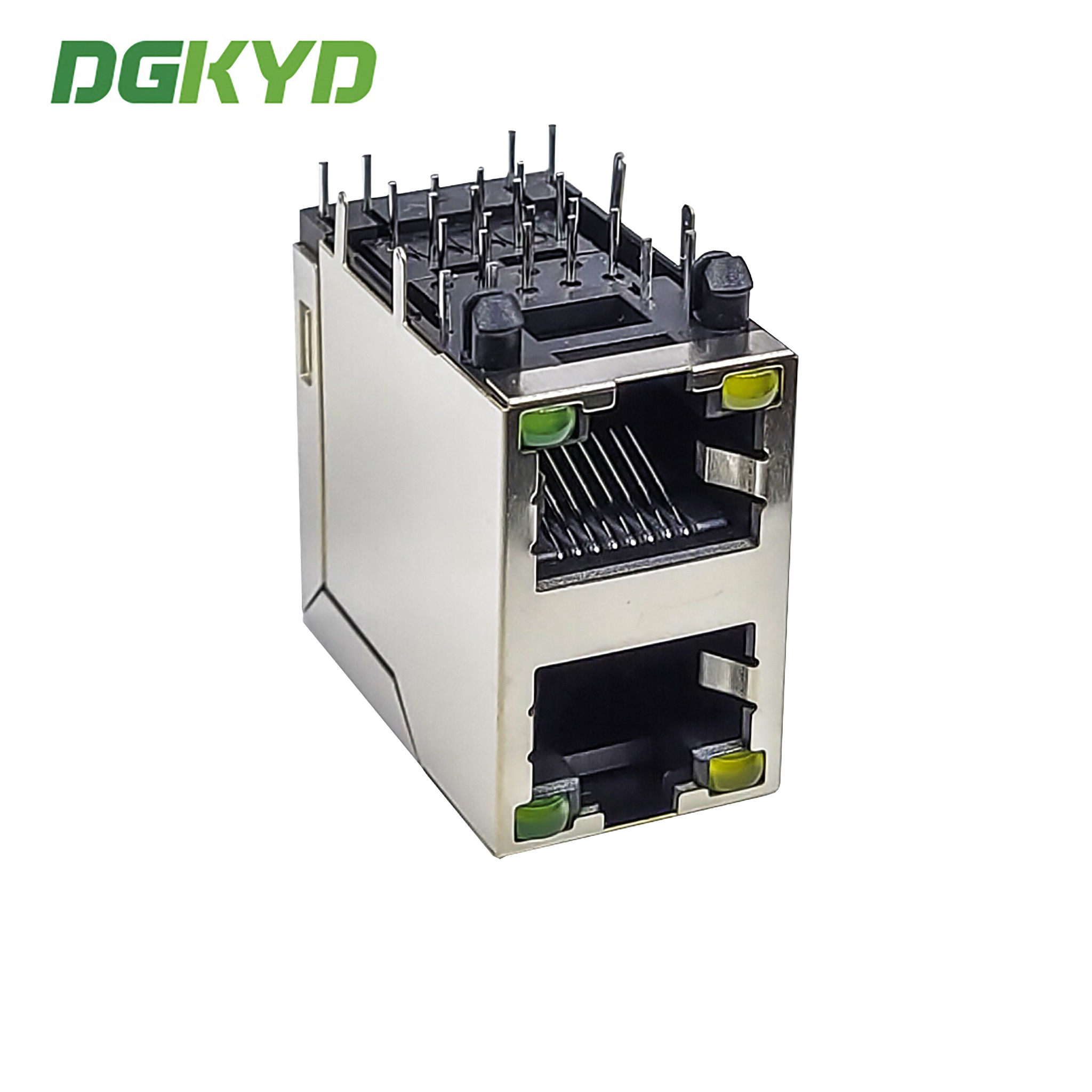

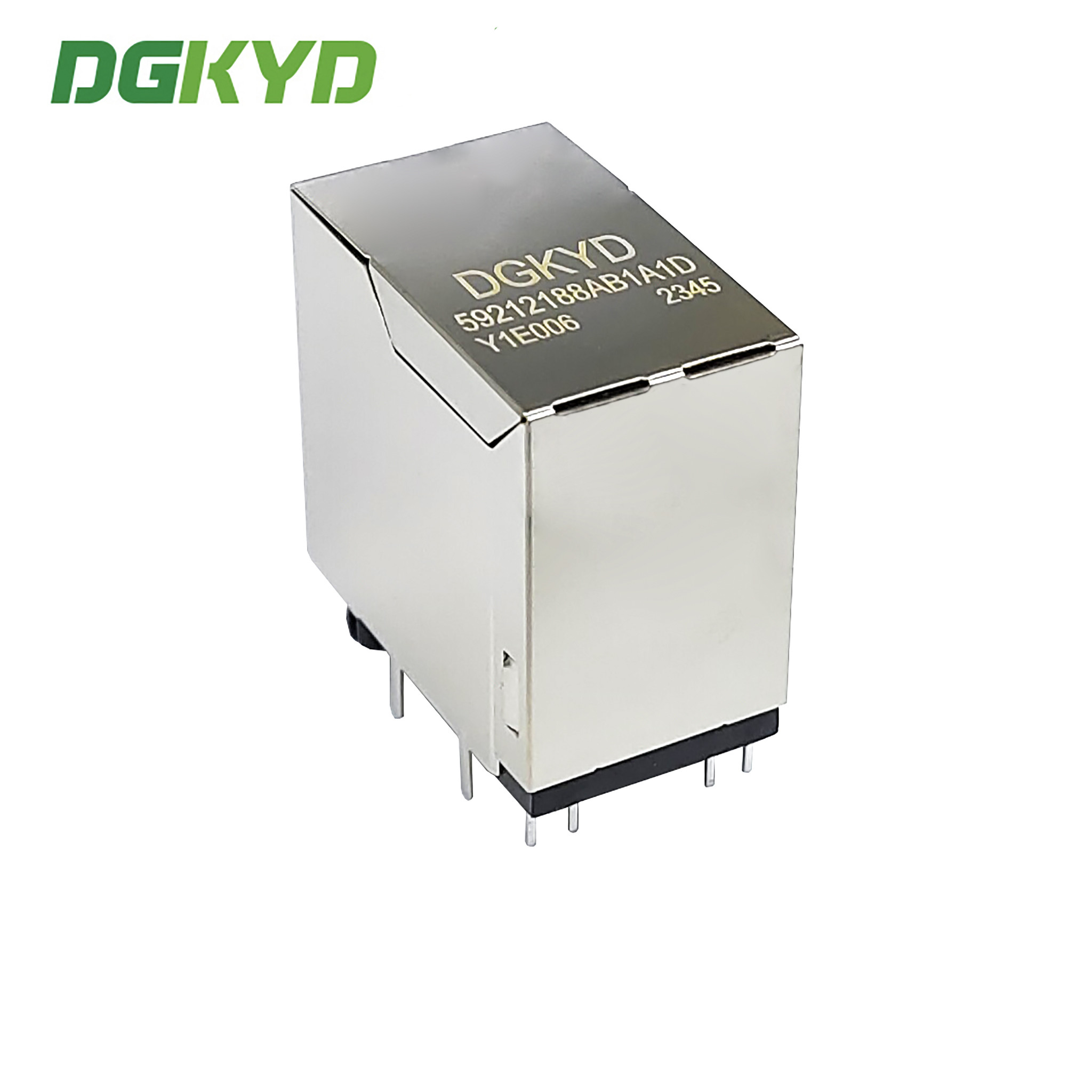

DGKYD59212188AB1A1DY1E006 90 Degree Side Plug 2X1 RJ45 Multiple Port Connectors With LED

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD59212188AB1A1DY1E006

Detail Information

Product Name: RJ45 Multiple Port Connectors Application: Set-top Box,internet Camera,net Bridge
RJ45 PCB Terminal: Phosphor Bronze ,Tail-Tin Over Nickl Connector Style: Jack
Housing Material: PBT Black Transformer: Without Transformer
High Light:

90 Degree Rj45 Connector With LED

,

2X1 90 Degree Rj45 Connector

Product Description

DGKYD59212188AB1A1DY1E006 90 Degree Side Plug 2X1 RJ45 Multiple Port Connectors With LED

DGKYD59212188AB1A1DY1E006.pdf



Advantage



  1. 100% Guarantee Qualtiy
  2. Manufactured Under Strict Controls.
  3. 100% Tested (Not Just Batch Tested)
  4. Quality Guarantee:9 Years
  5. Competitive Price And Service



Paramters



Part Number DGKYD59212188AB1A1DY1E006 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option With LED
LED Color L-Yellow / R-Green Panel Stops Without Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  2X1 Ports Number of Positions  8
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Our Service



World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
