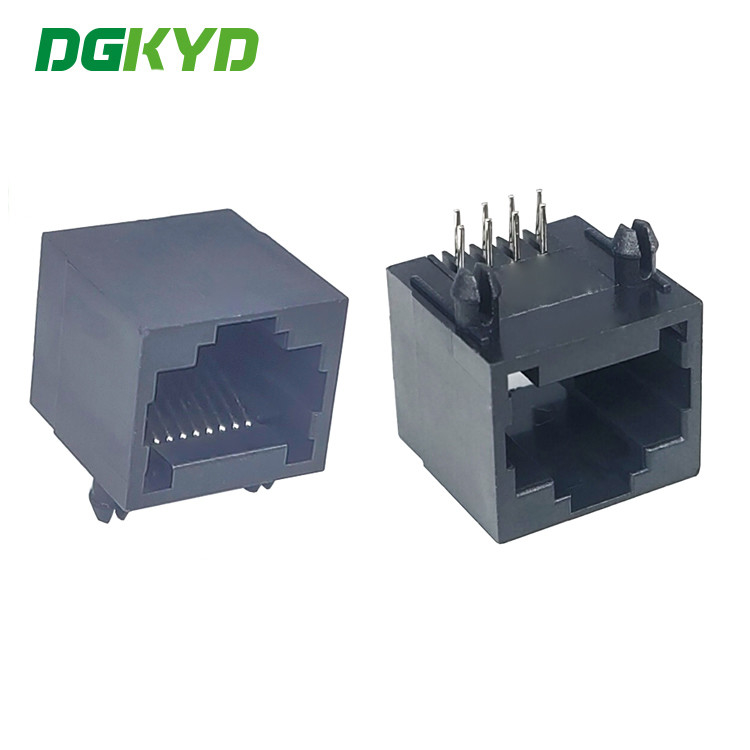

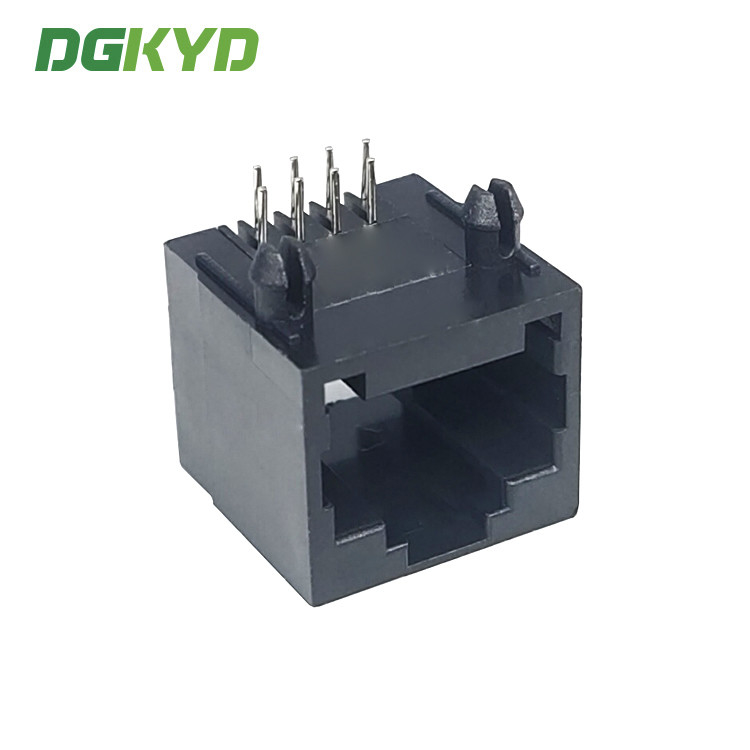

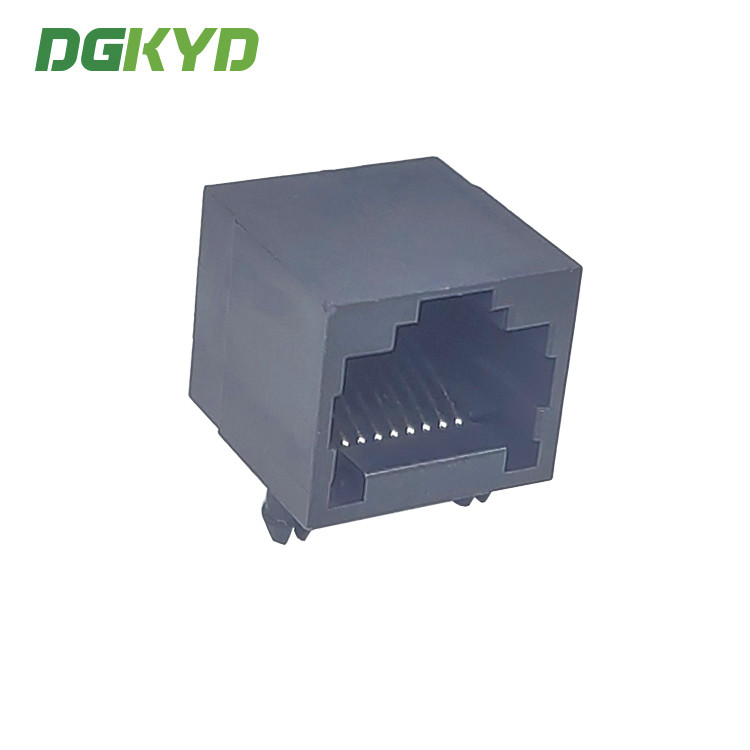

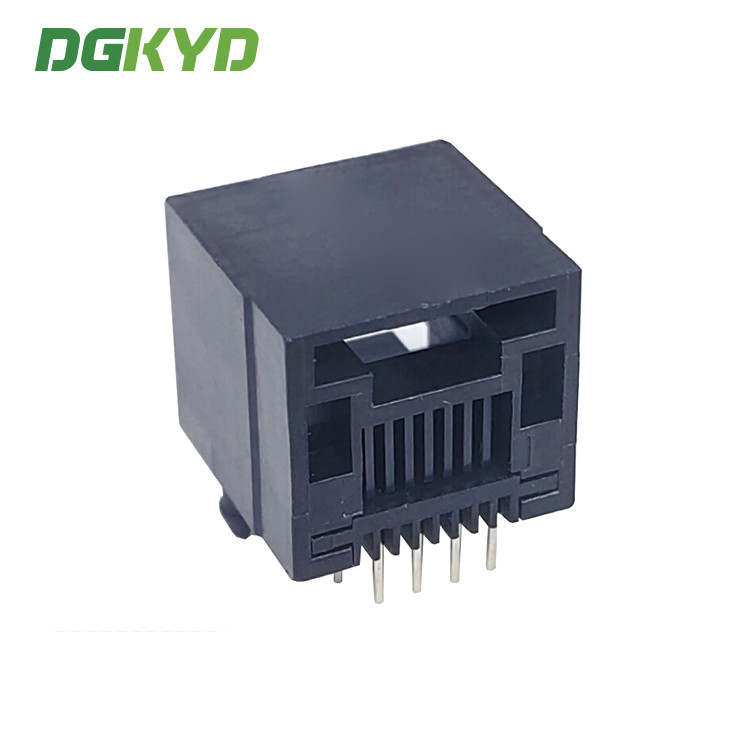

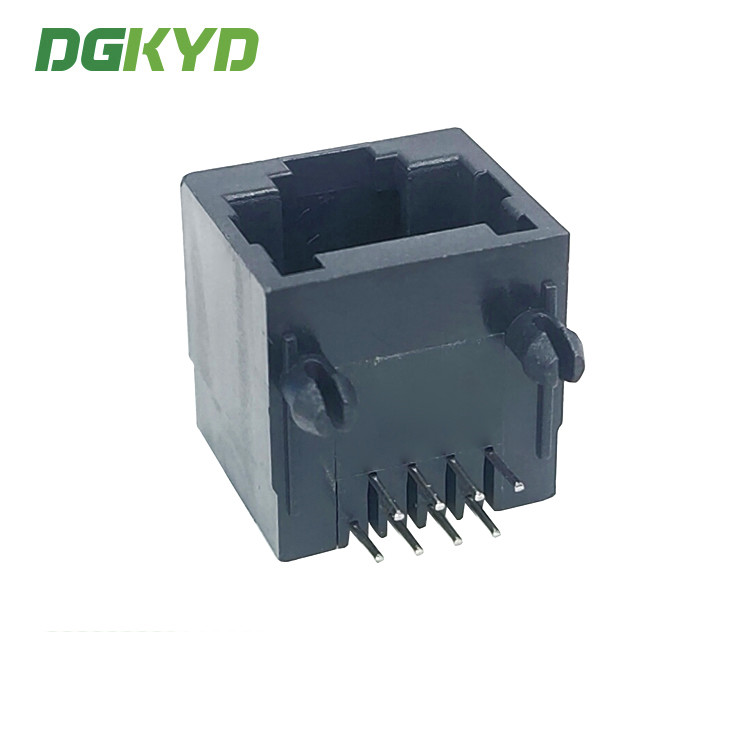

RJ45 Connector 1X1 10P8C With Shielded Communication Interface DGKYD5621118GWA2D1Y3
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD56311188IWA1DY1030 |
|
Detail Information |
|||
| LEDS/EMI Fingers: | For Optional | Interface Typemethod: | RJ45(Crystal Head) |
|---|---|---|---|
| Housing Material: | PA46 Black | Gold Plating On Contact Pins: | G/Fu |
| Gender: | Female | Product Name: | RJ45 Lan Jack |
| RJ45 Connector Tab Direction: | Tap UP | Storage Temperature: | - 40 ℃ ~ 85 ℃ |
| Number Of Positions/Contacts: | 8P8c (RJ45, Ethernet) | Material: | PA46 |
| High Light: | RJ45 Network Connector,Lightless RJ45 Port Connector,DGKYD56311188IWA1DY1030 |
||
Product Description
| Part Number |
DGKYD56311188IWA1DY1030 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Up |
| Filter | Without internal filter | LED Option | Without LED |
| LED Color | No | Panel Stops | Without Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | Grounding Options | Panel Ground and PCB Ground | |
| Port Configuration | single port | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PA46 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
► Product Drawing
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
