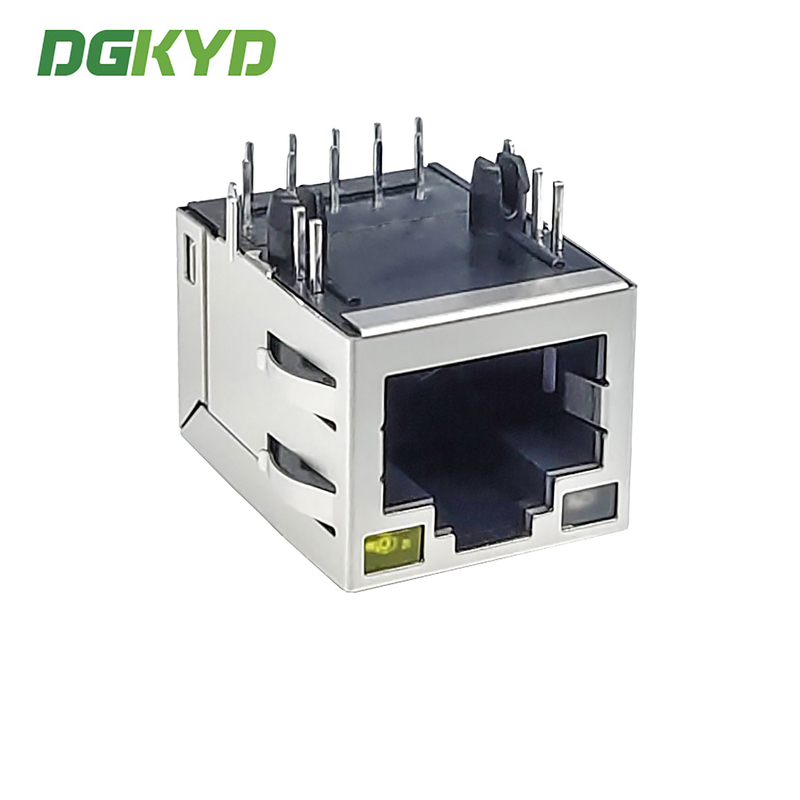

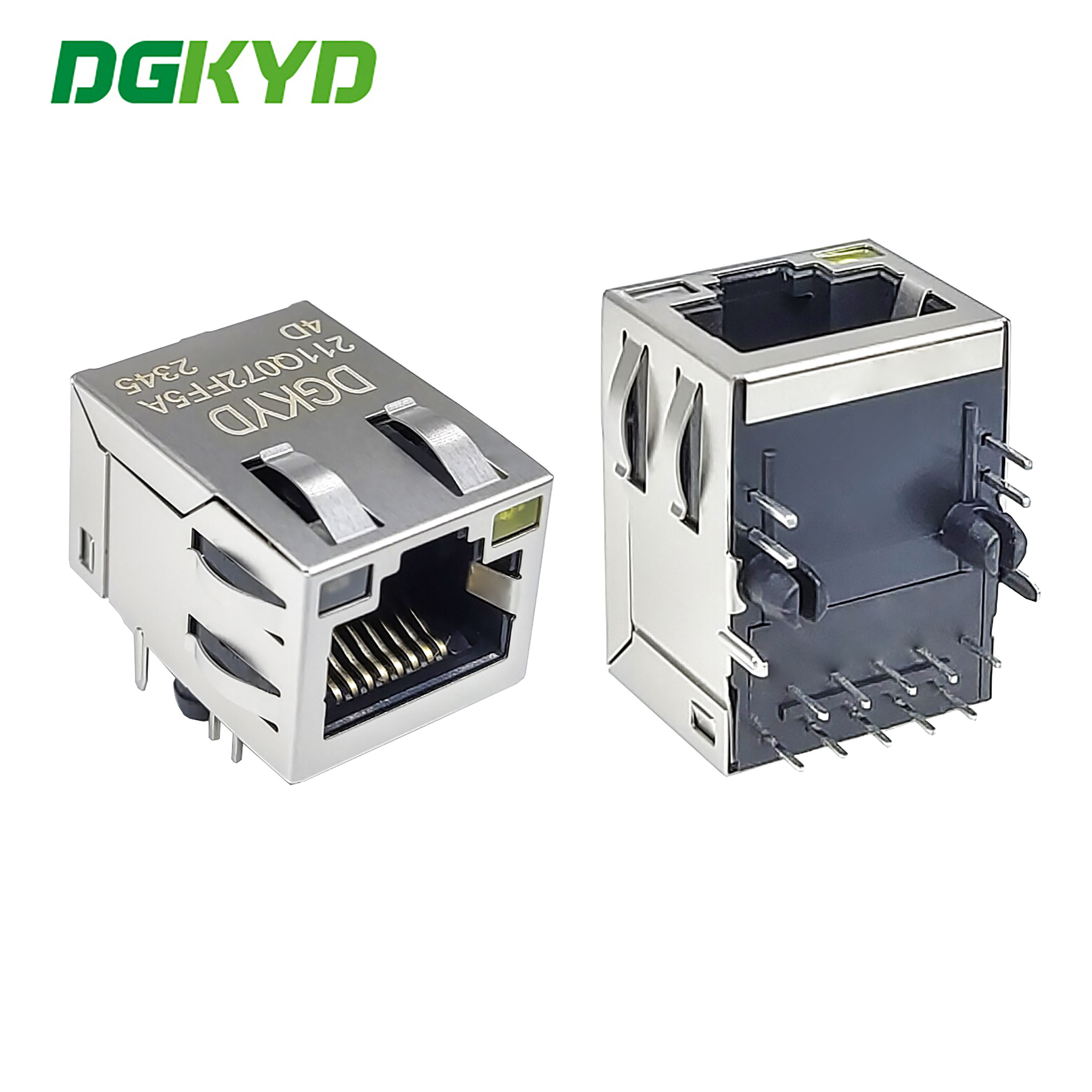

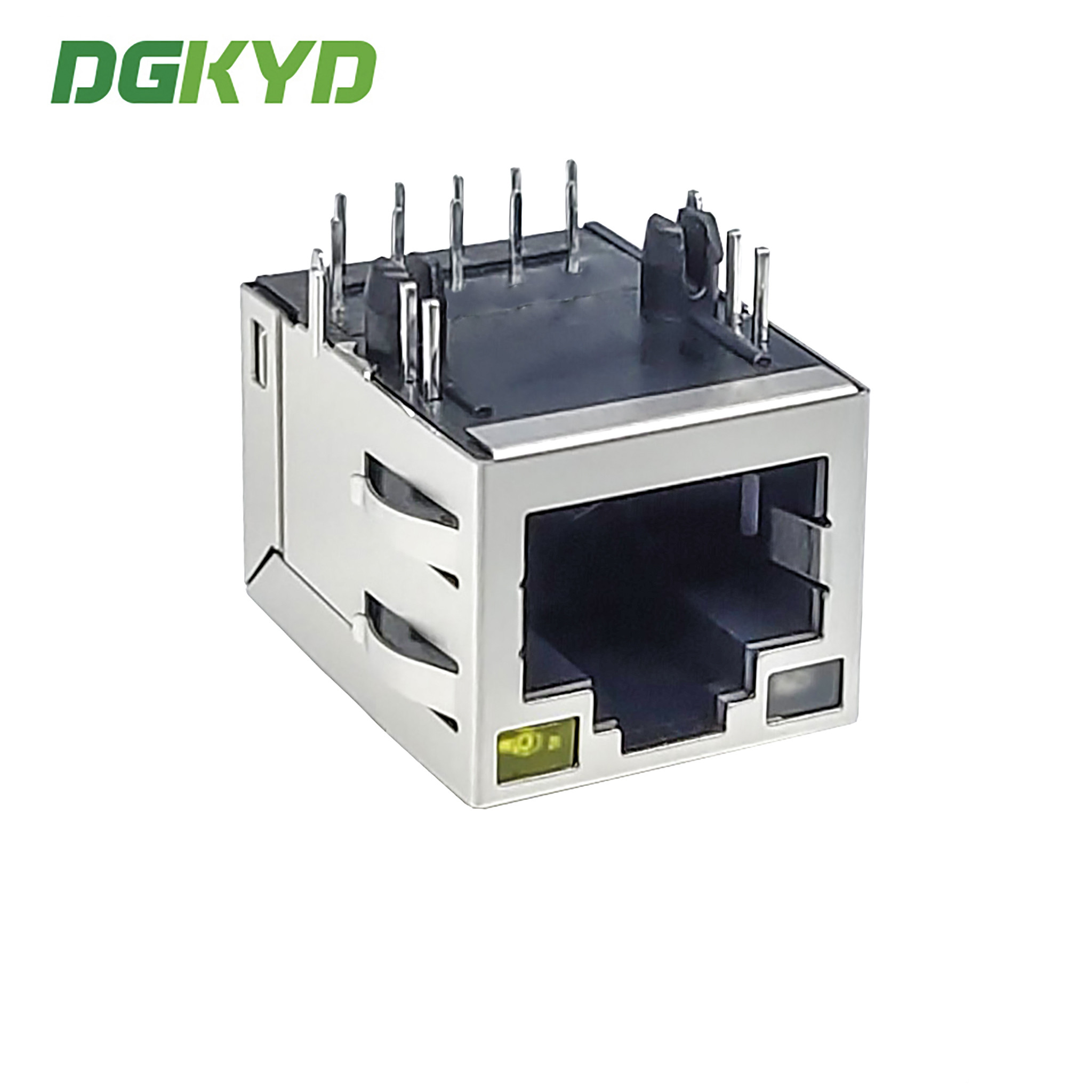

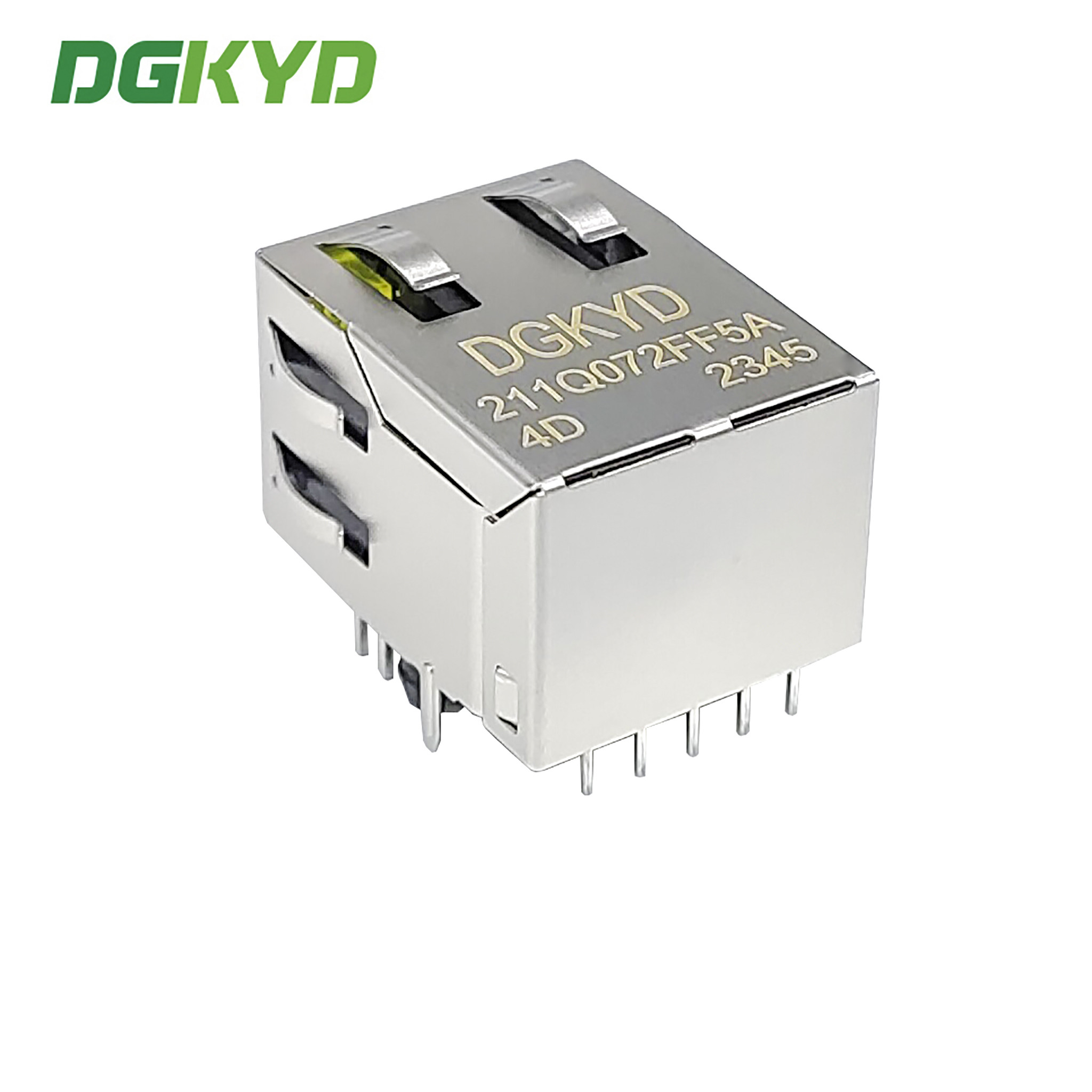

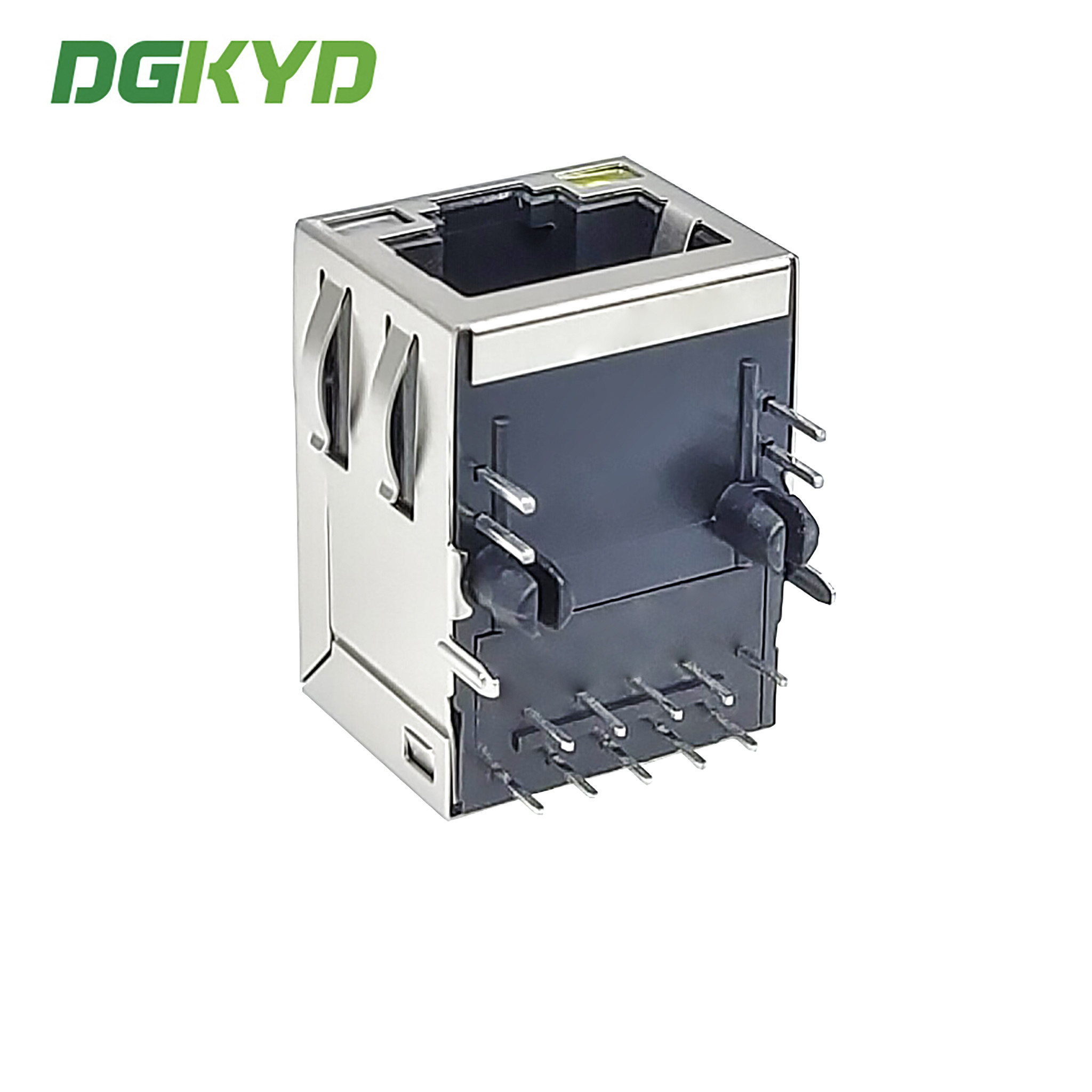

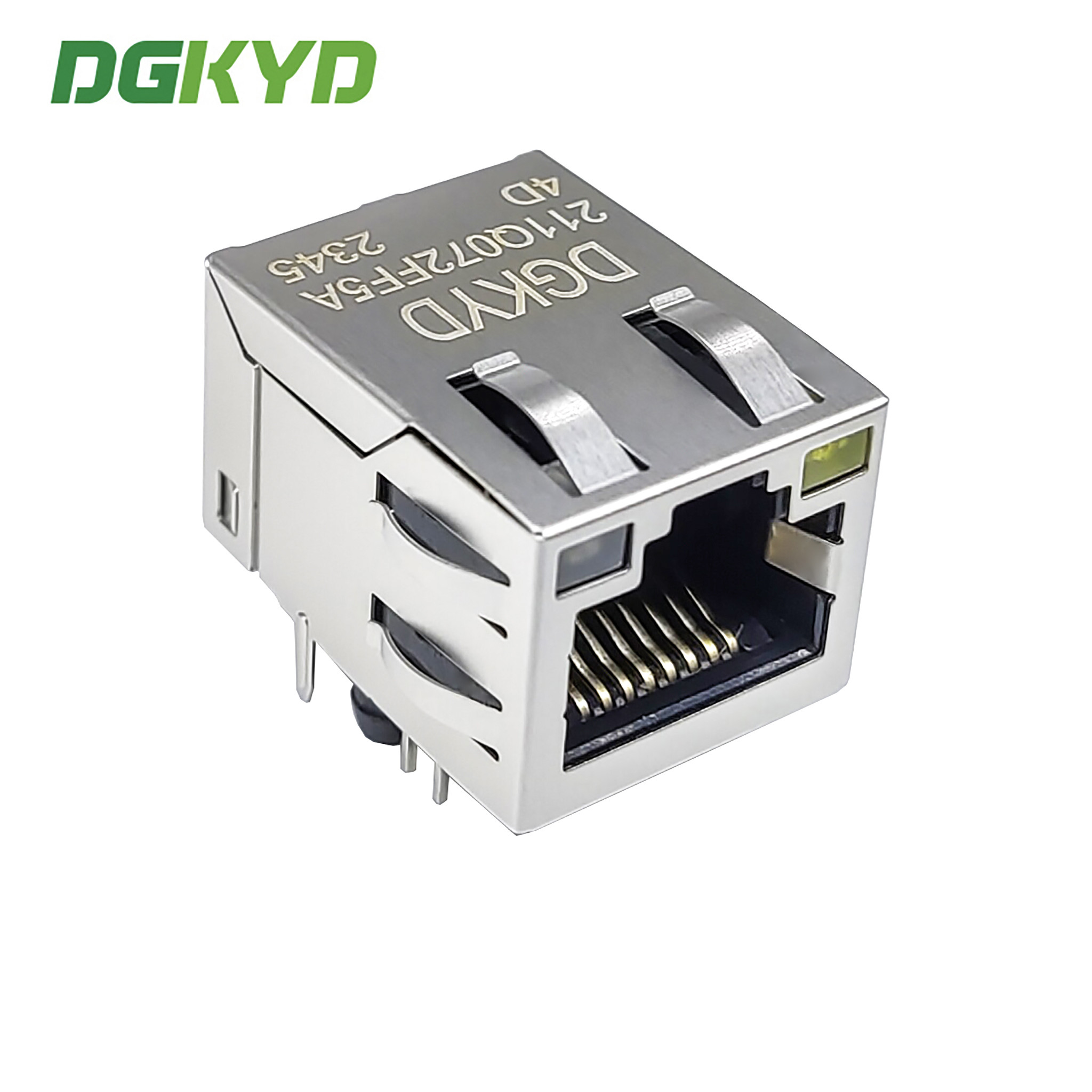

Horizontal RJ45 Interface Gigabit Ethernet Connector Dual Color Light Network Interface DGKYD211Q072FF5A4D

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD211Q072FF5A4D

Detail Information
Component Type:	PCB Jack	Magnetic:	Yes
Performance Category:	Maternal Socket	Product Name:	RJ45 Connector
PCB Mount Style:	DIP	Shield:	Phosphor Copper Nickel Plating
Plastic Housing Material:	Black PBT	Number Of Pins:	10
Operating Temperature:	- 40 ℃ ~ 85 ℃	Gold Plating On Contact Pins:	6U
Encapsulation Method:	Single In-line Package
Highlight:	Magnetic Lan Connector Rj45 , DIP Lan Connector Rj45

Product Description

Horizontal RJ45 interface Gigabit Ethernet connector dual color light network interface DGKYD211Q072FF5A4D

Product Specification Document

DGKYD211Q072FF5A4D.pdf

Part Number	DGKYD211Q072FF5A4D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	Without Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

Q: What is the maximum working temperature of the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack?
A: The maximum working temperature of this connector is -40℃ to 85℃.

Q: Does this connector come with a registered jack and internal magnetics?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector comes with a registered jack and internal magnetics.

Q: What is the interface type of this connector?
A: This connector is equipped with an RJ45 interface type.

Q: What is the working frequency of this connector?
A: This connector is designed with high-frequency characteristics to provide filtering and anti-interference properties.

Q: Can this connector be used with routers, switches, and other networking equipment?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is ideal for use in a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment.

Our Advantage:

DGKYD designs and manufactures a wide range of IEEE 802.3 compliant LAN product including Discrete Ethernet Transformers, a complete line of integrated RJ45 FastJacks, Common Mode Filters, Token Ring Magnetics, and Fibre Channel Transformers.
