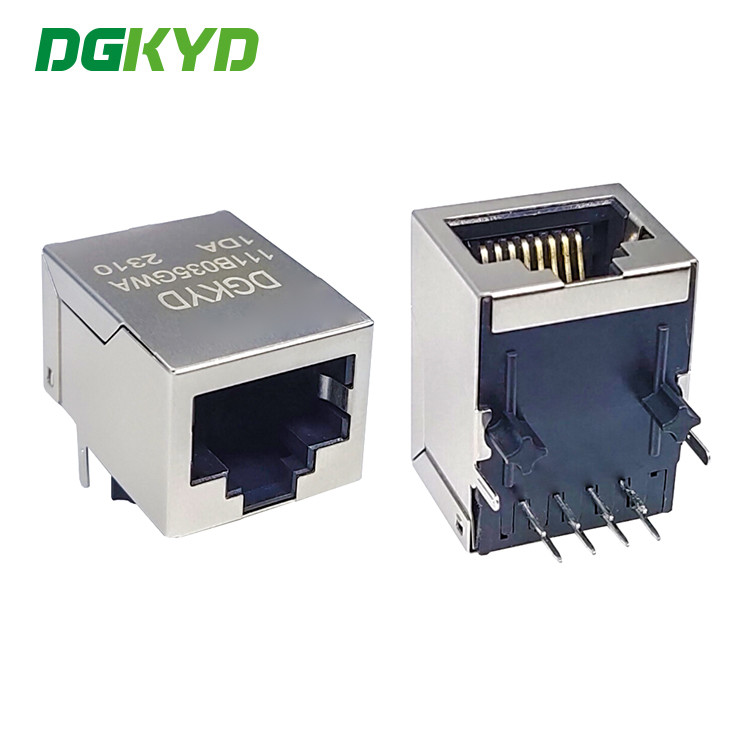

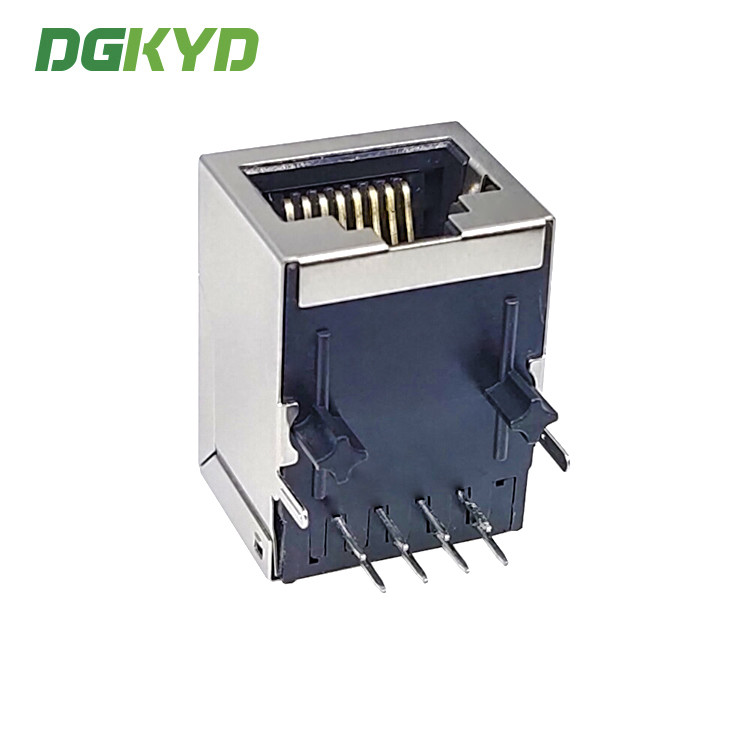

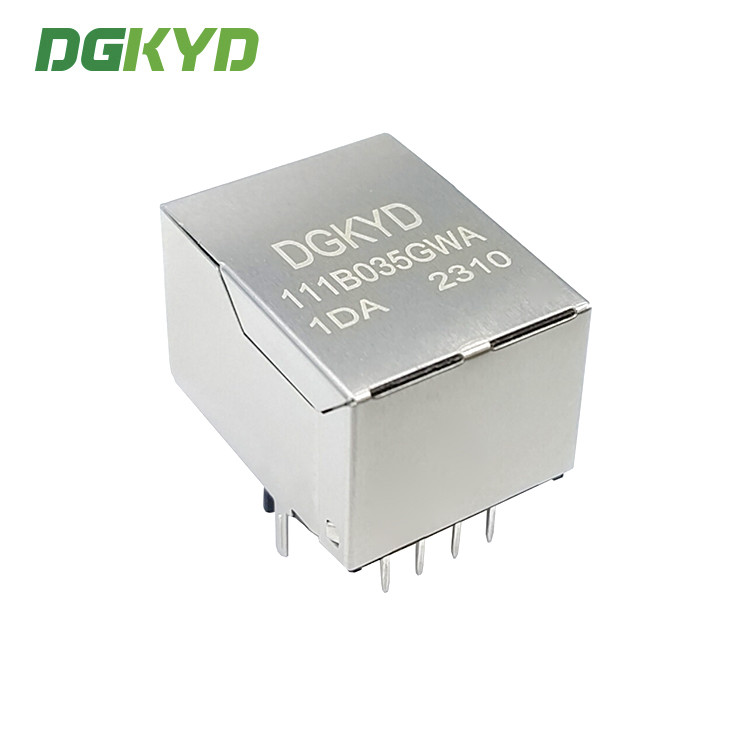

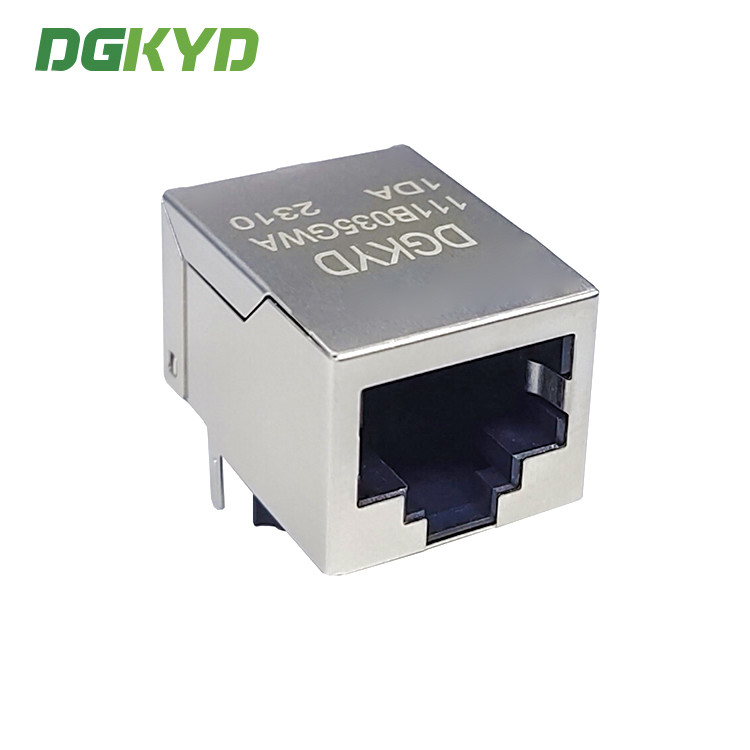

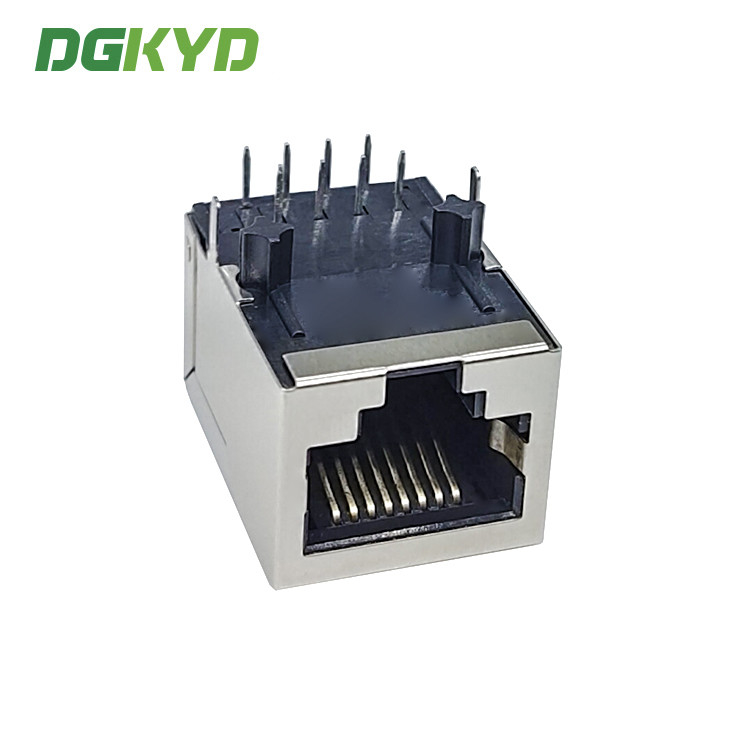

DGKYD56221118IWA1DY4 Single Cell RJ45 10P8C Light Free All Plastic Mesh Socket 6U
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD111B035GWA1D |
|
Detail Information |
|||
| Product Name: | RJ45 Without Transformer | Type: | RJ45 Female |
|---|---|---|---|
| Housing: | Phenolic, PBT Black (UL94V-0) | Plastic Core: | Glass Fiber Filler PBT Black(UL94V-0),ROHS |
| Shield RJ45: | Yes | No.Port: | RJ45 Single Port |
| Operating Temperature: | - 40℃～85℃ | Number Of Pins: | 8 |
| Shield: | Phosphor Copper Nickel Plating | Gold Plating On Contact Pins: | 6U |
| High Light: | 8P8C Socket Without Filter,RJ45 Network Socket Without Filter,DGKYD111B035GWA1D |
||
Product Description
Parameters
| Part Number | DGKYD111B035GWA1D | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-down |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly,100% test, 0 defect, short lead time are our best advantages
Customer Satisfaction:
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms:
There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect
Return Policy:
If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.
Feedback:
Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
