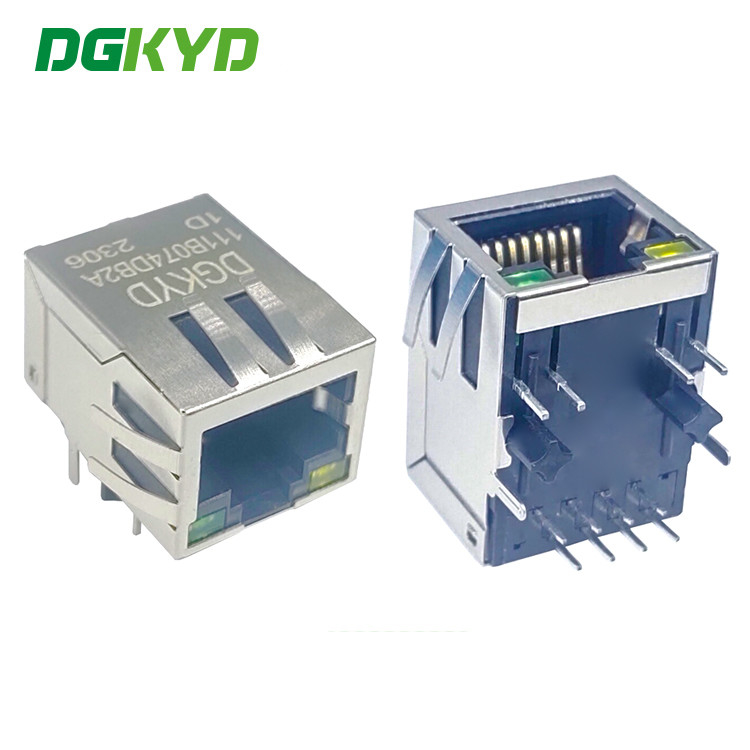

DGKYD111B074DB2A1D RJ45 100M Network Connector 8PIN Without Lamp With Shield

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B074DB2A1D

Detail Information

Application: PCB Gender: Female
Housing Material: PBT BLACK Contact Mating Area Plating: GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch: DOWN LED Option: With LED
Number Of Ports: 1 Port Number Of Contacts: 8PIN
PCB Mount Angle: SIDE ENTRY
High Light:

RJ45 Network Connector 8PIN

,

DGKYD111B074DB2A1D

,

RJ45 Network Connector PBT BLACK

Product Description

DGKYD111B074DB2A1D RJ45 100M network connector 8PIN without lamp with shield

Part Number
DGKYD111B074DB2A1D
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
DOWN
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
Without Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000/10G BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

DGKYD111B074DB2A1D RJ45 100M Network Connector 8PIN Without Lamp With Shield 0DGKYD111B074DB2A1D RJ45 100M Network Connector 8PIN Without Lamp With Shield 1DGKYD111B074DB2A1D RJ45 100M Network Connector 8PIN Without Lamp With Shield 2

Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages



Payment Terms:

There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect



Return Policy:

If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.



Feedback:

Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
