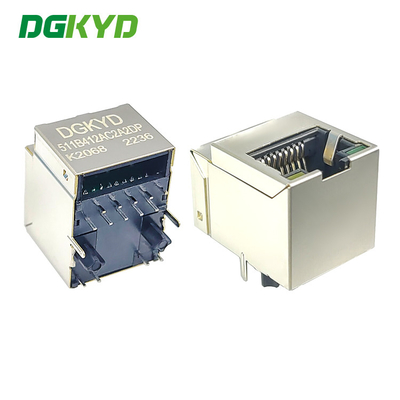

DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD511B412AC2A2DPK2068

Detail Information

Connection Type: Pcb Mounting HOUSING: PA66
Connector Type : Modular Jack LED Color: Yes.L-Green/R-Yellow
Filter: With Filter Contact Mating Area Plating Material : Gold 6u/15u/30u/50u
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Size: 15.95*21.55*16.5mm
Latch: TAB-UP
High Light:

RJ45 180 Degree Direct Plug

,

10p10c RJ45 With Light

,

DGKYD511B412AC2A2DPK2068

Product Description

DGKYD511B412AC2A2DPK2068 RJ45 180 degree direct plug network interface 10p10c RJ45 with light

Parameters

Part Number

DGKYD511B412AC2A2DPK2068

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 100 base-t Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

10

Jack Configuration 1X1 Terminals per Port 10
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light 0DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light 1DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light 2

FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
