RJ45 bottom socket 0-degree series black 8P8C without filter DGKYD01188IWW1DB1057
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 1080 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-803NL |
|
Detail Information |
|||
| Part Number: | DIP Ethernet RJ45 Connector | HOUSING: | PBT |
|---|---|---|---|
| Connector Type : | Modular Jack | LED Color: | Green/Yellow |
| Filter: | With Filter | Gender: | Female |
| Contact Plating: | 6u Glod Plating | Contact Base Material : | Phosphor Bronze |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Application: | PCB |
| Latch: | TAB-Down | ||
| Highlight: | 8P8C RJ45 With Transformer,Cat5 RJ45 With Transformer,KRJ-803NL |
||
Product Description

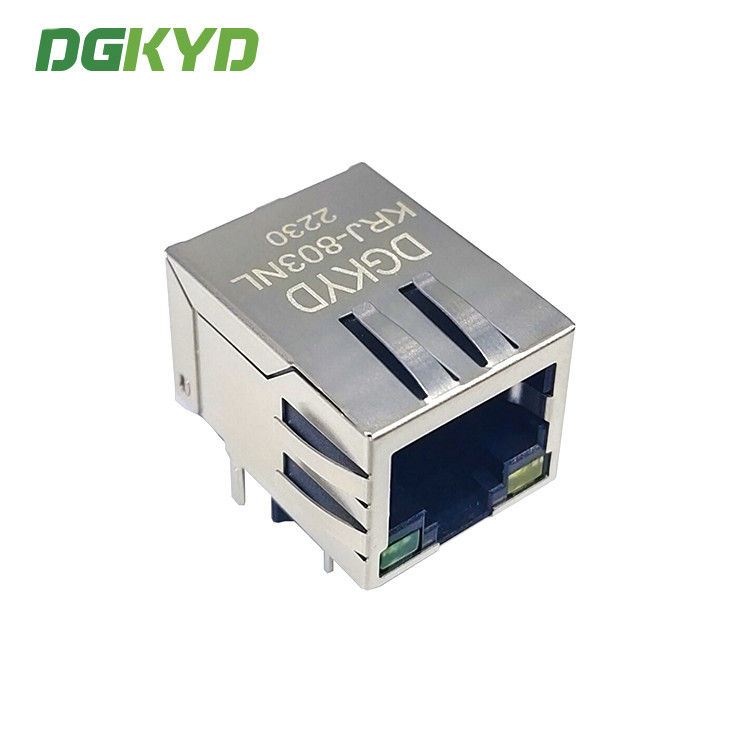

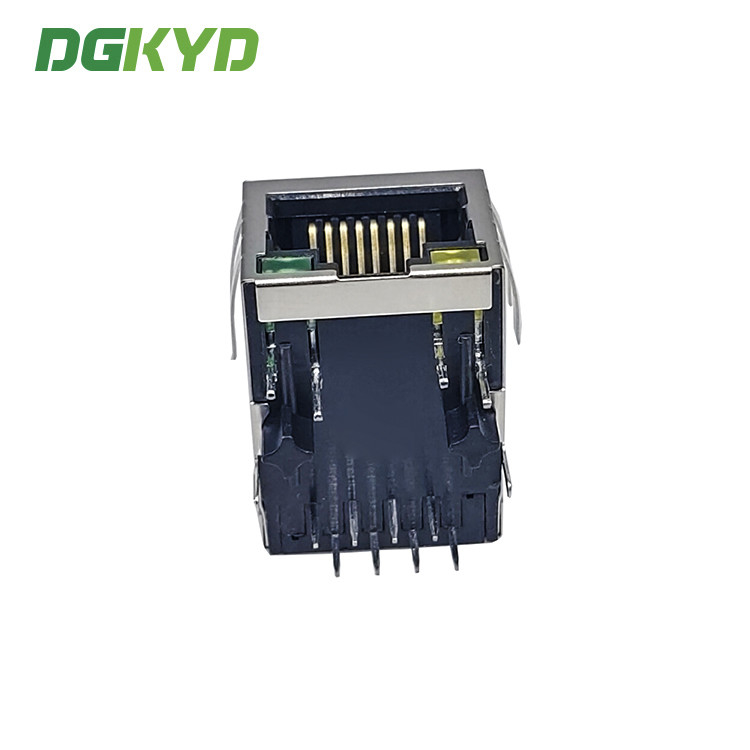

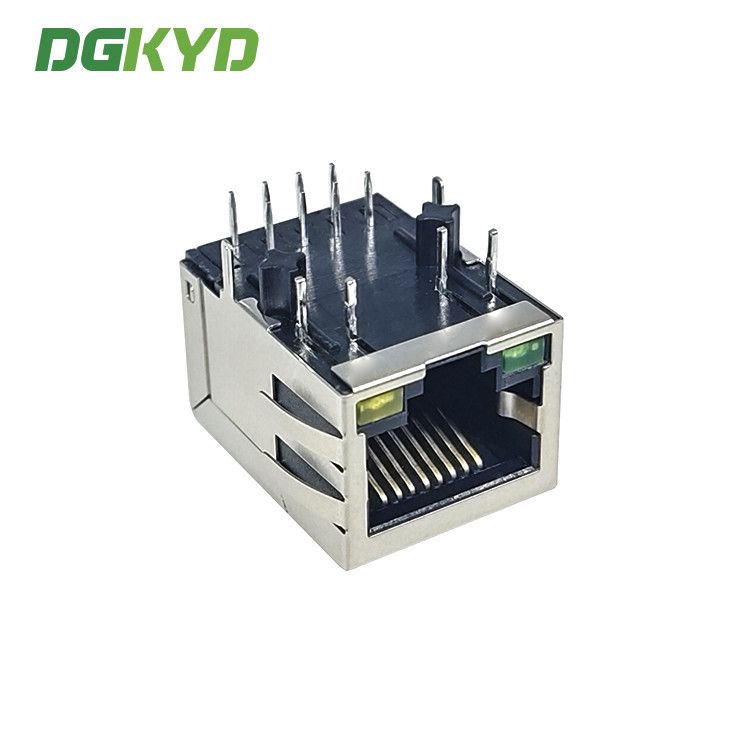

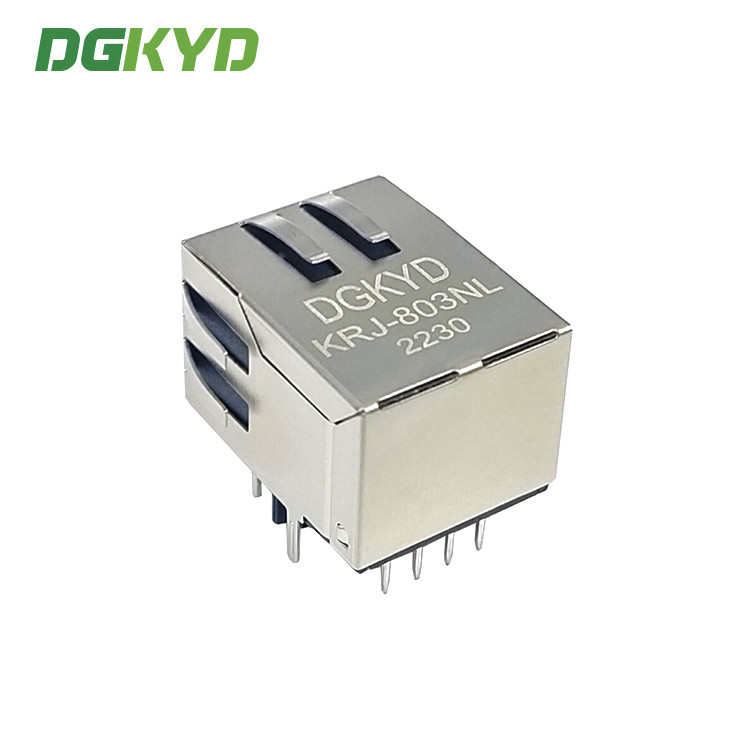

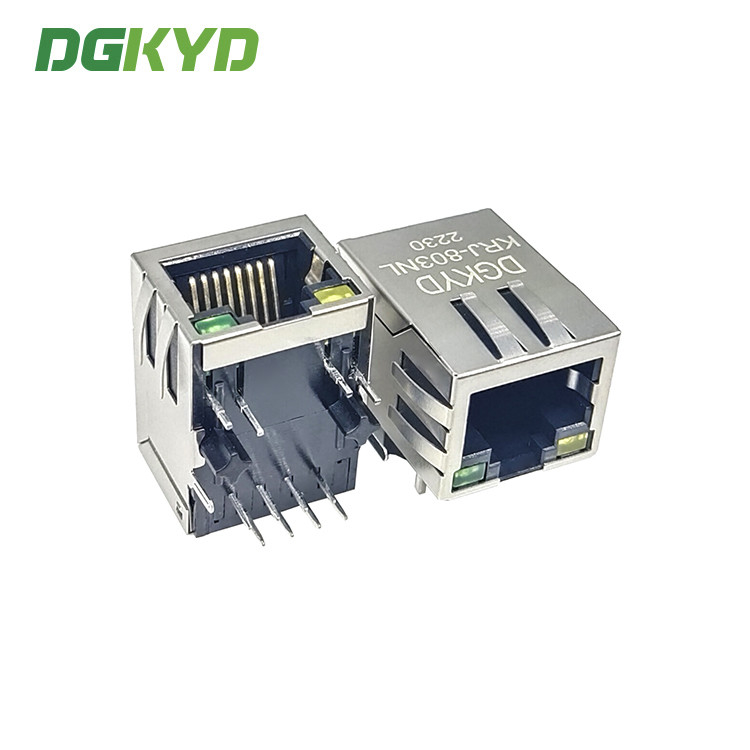

KRJ-803NL China supplier 8P8C with transformer cat5 RJ45 female connector
Parameters
| Part Number |
KRJ-803NL |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-down |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions |
8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | WithWithout Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
FAQ:
1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
