KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-56S1X1YGNL

Detail Information
Type:	RJ45	Product Name:	RJ45 Modular Jack
Gender:	Rj45 Receptacle	Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc
Feature:	Cat5	OEM/ODM:	Yes
Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional	PCB Mount Angle:	SIDE ENTRY
Operating Temperature:	- 40 ℃ ~ 85 ℃
Highlight:	Metal Shielded Rj45 Connector , Cat5 Rj45 Female Connector , KRJ-56S1X1YGNL Connector

Product Description

China supplier KRJ-56S1X1YGNL metal shielded cat5 rj45 female connector

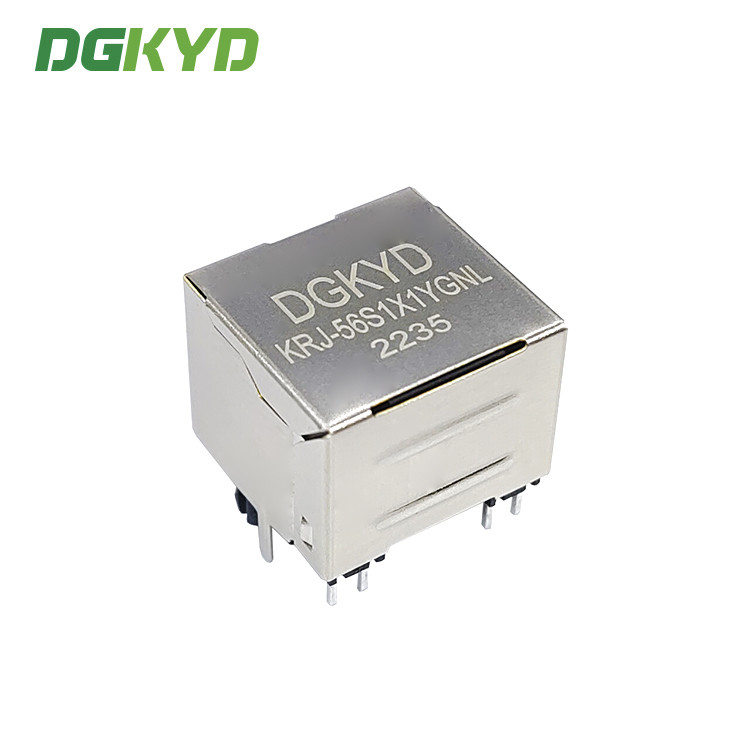

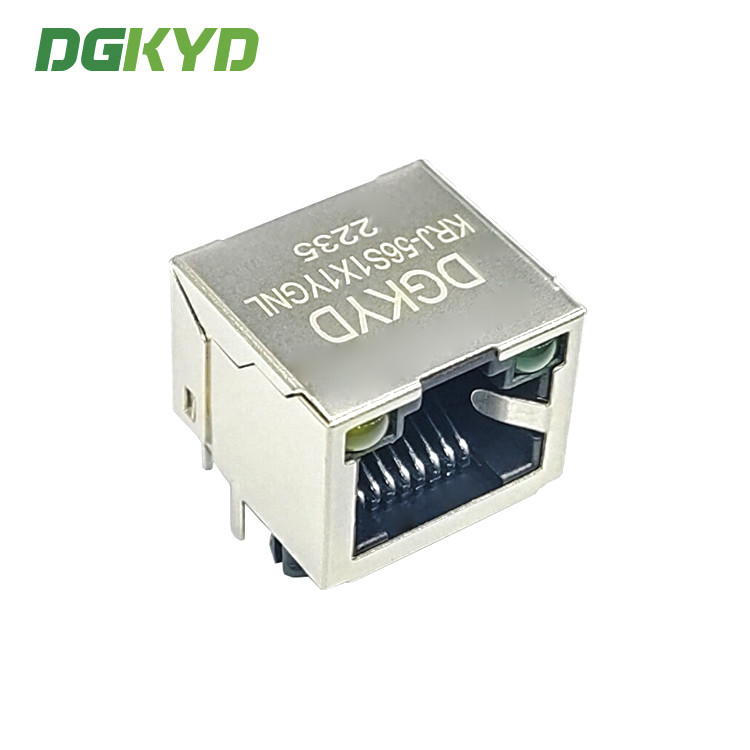

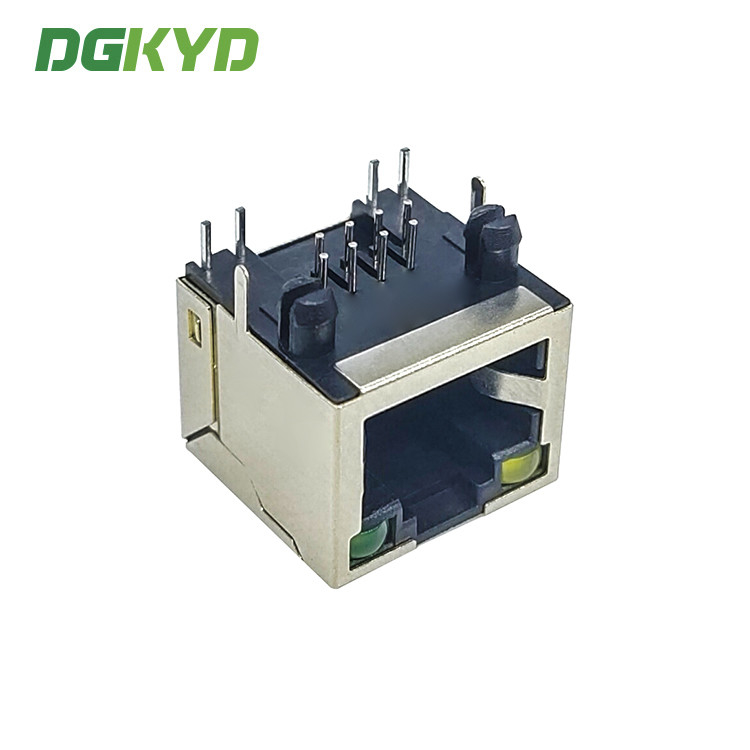

KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector 0

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH ORIENTATION	LATCH up
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD G/FU'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

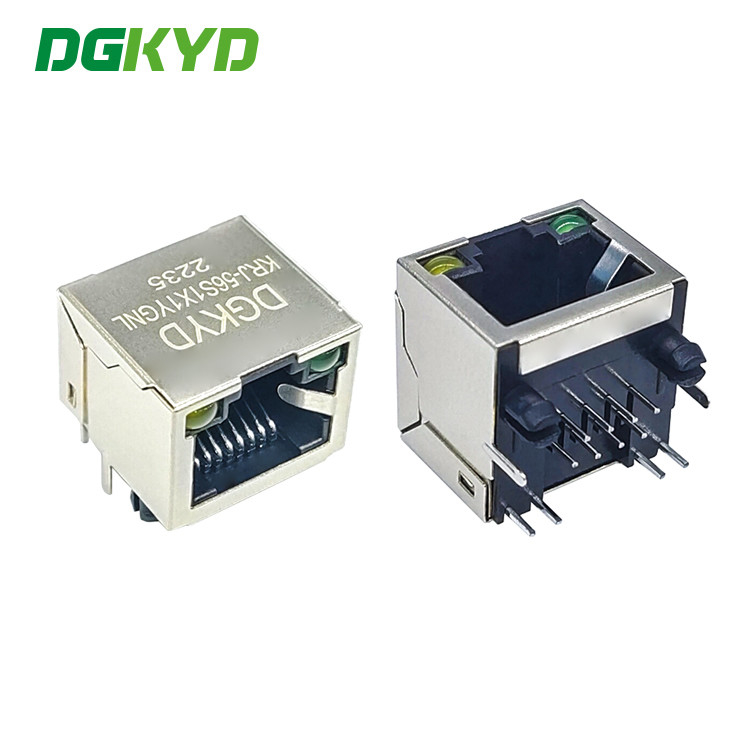

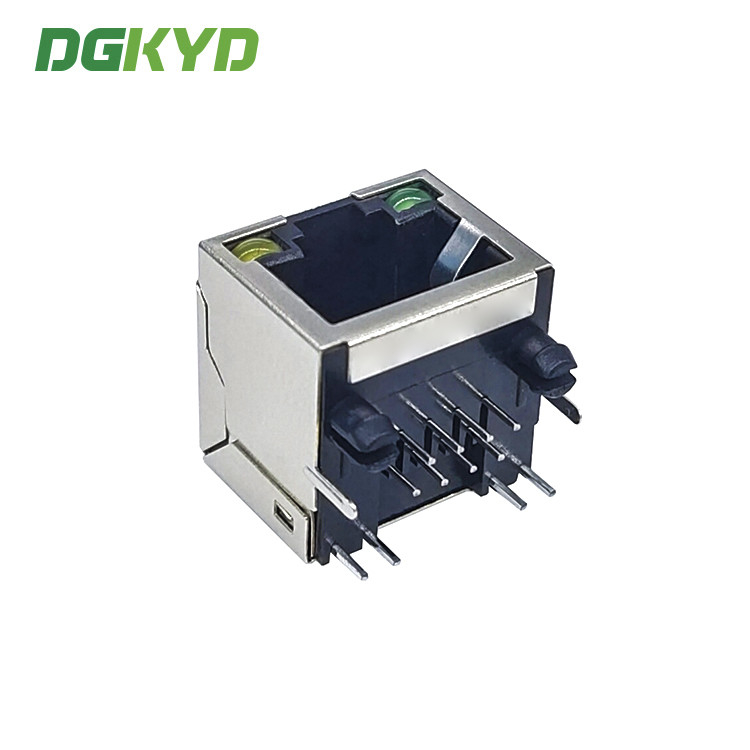

KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector 1

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
