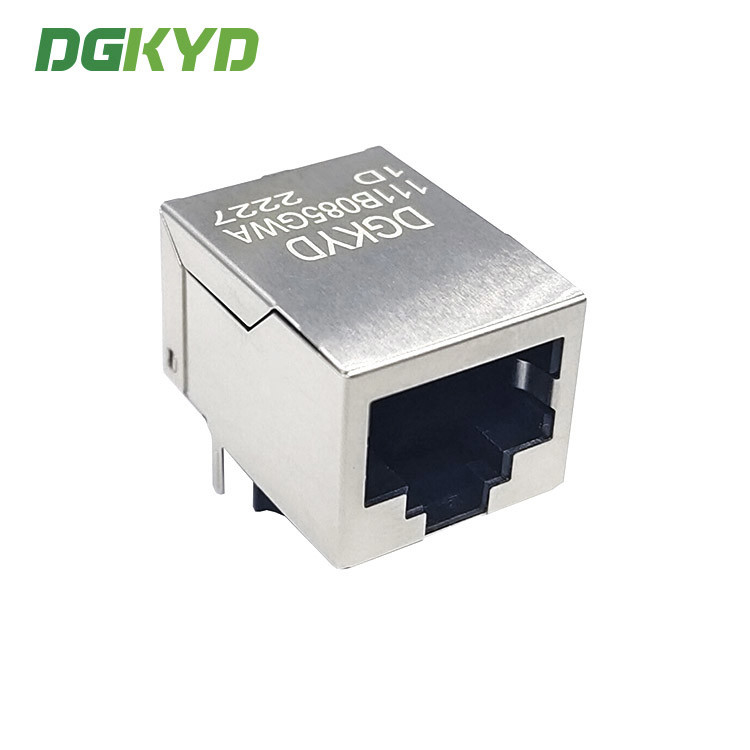

DGKYD111B085GWA1D Fast Ethernet Filter 8P8C Modular Network Interface RJ45 Without LED Without Shield DGKYD

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B085GWA1D

Detail Information

Part Number: DIP Ethernet RJ45 Connector HOUSING: PBT
Connector Type : Modular Jack LED Color: No
Filter: With Filter Gender: Female
Contact Plating: 6u Glod Plating Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Application: PCB
Latch: TAB-Down
High Light:

Modular RJ45 With Transformer

,

Network Interface RJ45 With Transformer

,

DGKYD111B085GWA1D

Product Description

DGKYD111B085GWA1D Fast Ethernet filter 8P8C modular network interface RJ45 without LED without shield DGKYD

Parameters

Part Number

DGKYD111B085GWA1D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

DGKYD111B085GWA1D Fast Ethernet Filter 8P8C Modular Network Interface RJ45 Without LED Without Shield DGKYD 0DGKYD111B085GWA1D Fast Ethernet Filter 8P8C Modular Network Interface RJ45 Without LED Without Shield DGKYD 1DGKYD111B085GWA1D Fast Ethernet Filter 8P8C Modular Network Interface RJ45 Without LED Without Shield DGKYD 2



FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
