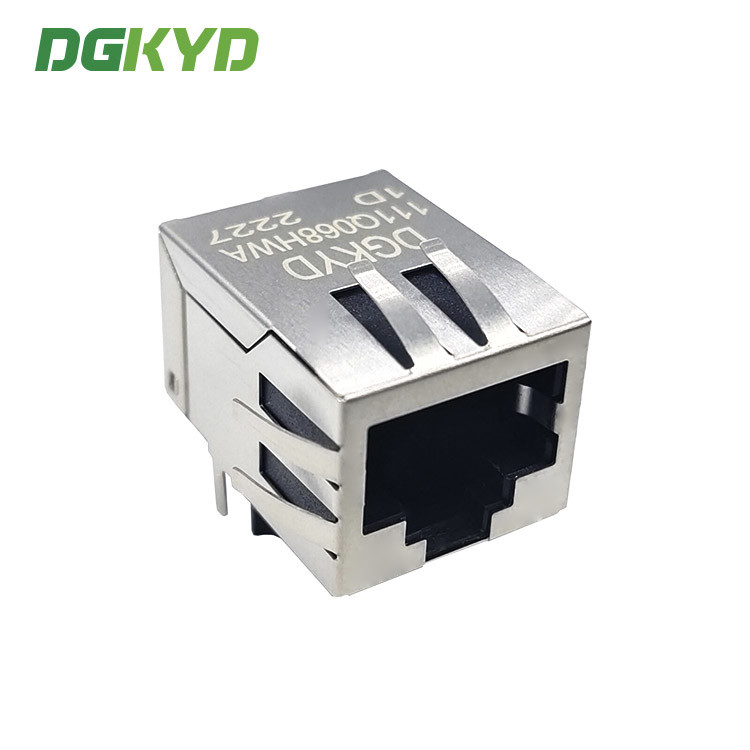

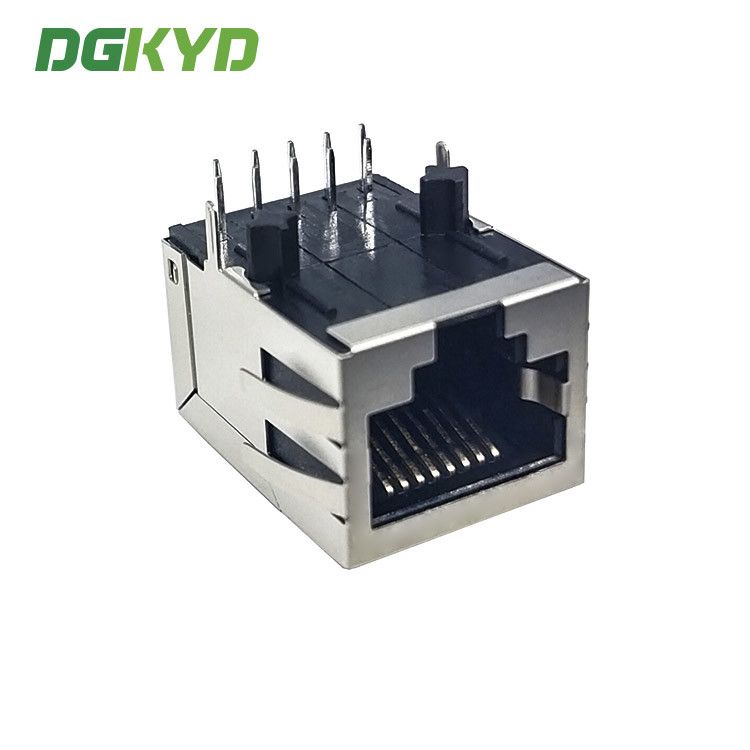

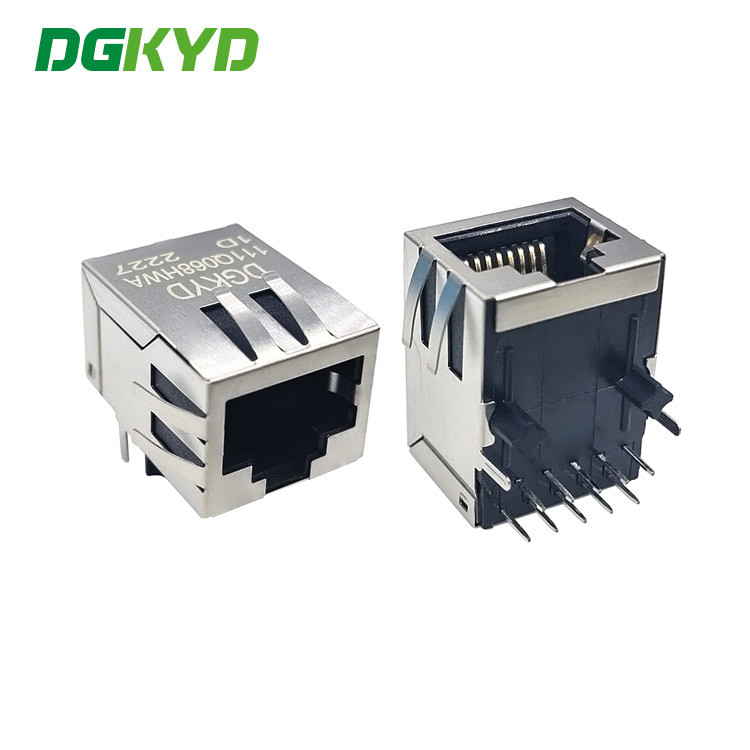

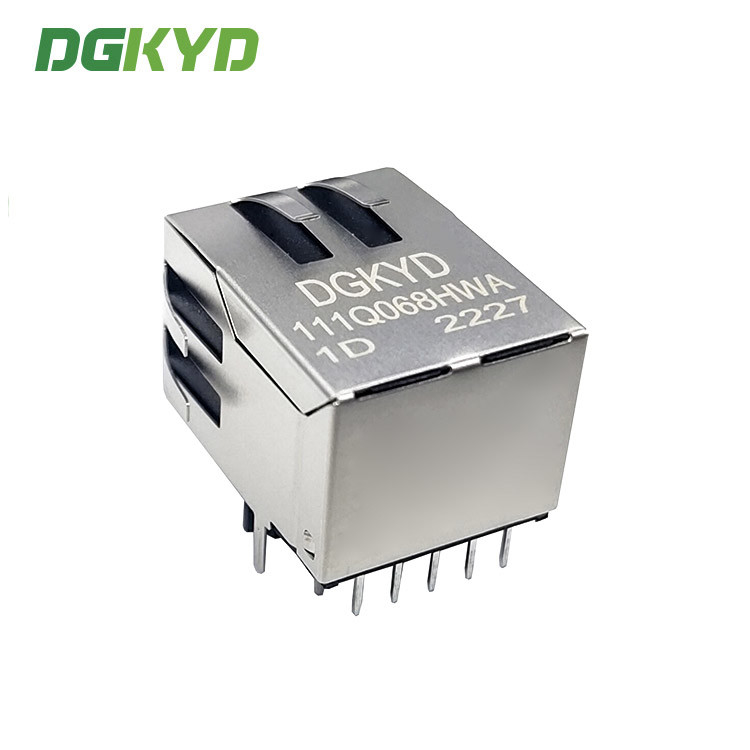

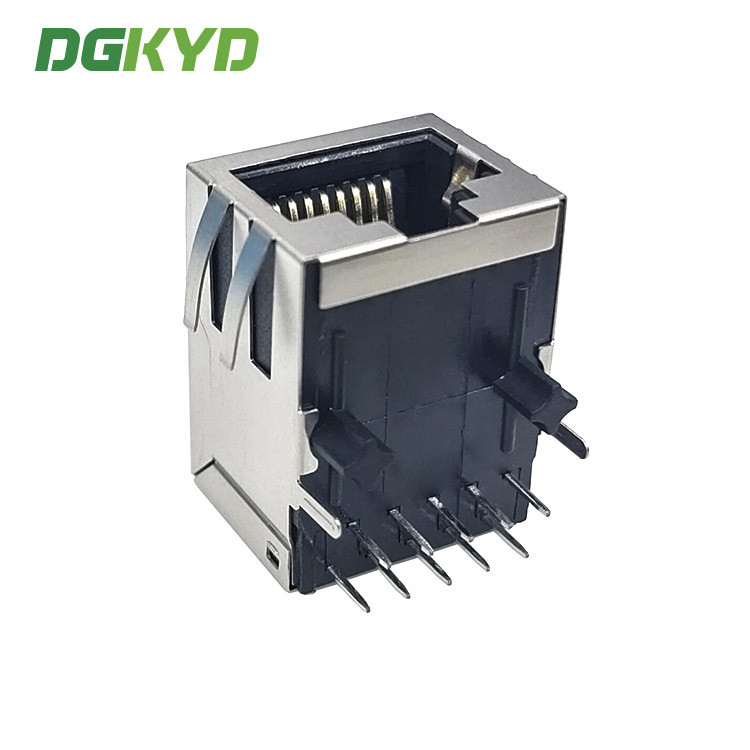

DGKYD111Q068HWA1D Gigabit Lightless Single Port Pcb Connector In-Line Network Socket Modular Jack RJ45

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 360 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111Q068HWA1D

Detail Information

Connection Type: Pcb Mounting HOUSING: PBT
Connector Type : Modular Jack LED Color: No
Filter: With Filter Contact Mating Area Plating Material : 6U
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Contacts: 10PIN
Latch: TAB-down
High Light:

Pcb Mounting RJ45 With Transformer

,

Single Port Modular Jack RJ45

,

DGKYD111Q068HWA1D

Product Description

DGKYD111Q068HWA1D Gigabit lightless single port pcb connector in-line network socket modular jack RJ45



Parameters

Part Number

DGKYD111Q068HWA1D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T Suitable for welding type Reflowsolding(Alternative).
Port Configuration   single Ports Number of Positions 

10

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

DGKYD111Q068HWA1D Gigabit Lightless Single Port Pcb Connector In-Line Network Socket Modular Jack RJ45 0DGKYD111Q068HWA1D Gigabit Lightless Single Port Pcb Connector In-Line Network Socket Modular Jack RJ45 1DGKYD111Q068HWA1D Gigabit Lightless Single Port Pcb Connector In-Line Network Socket Modular Jack RJ45 2
