DGKYD56221118IWA1DY4 Single Cell RJ45 10P8C Light Free All Plastic Mesh Socket 6U
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 720 Tray in Carton | Delivery Time : | 15 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD311Q106AB2A4DN |
|
Detail Information |
|||
| Product Type: | RJ45 1000m Connector | Encapsulation Method: | Single In-line Package |
|---|---|---|---|
| PCB Mount Style: | DIP | Material: | PBT |
| Shield: | Brass | Number Of Pins: | 10 |
| Dimension (mm): | 16.2* 25.3*13.45 | Gold Plating On Contact Pins: | 6U |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | LED: | Green-Yellow |
| RJ45 Connector Tab Direction: | Tap UP | ||
| High Light: | DGKYD311Q106AB2A4DN,single port rj45 lan transformer,modular Jack rj45 lan transformer |
||
Product Description

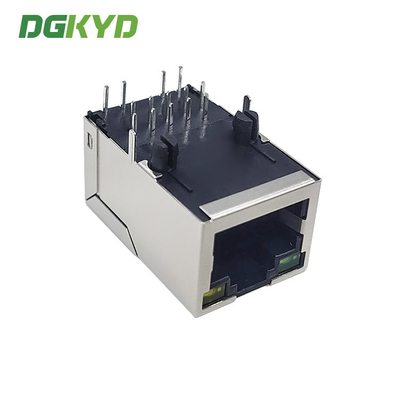

DGKYD311Q106AB2A4DN RJ45 Network Interface TAB UP Modular Jack Single Port PCB Interface Illuminated Shield
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
• Through Continuous Improvements In Quality, Delivery And Service
• Delivery Time:2-3 Weeks After Orders
• Provide New Design For Customer Requirements
Parameters
| Part Number |
DGKYD311Q106AB2A4DN |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes.Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Why Choose Us
DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 0 ℃ - 70 ℃,
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
Drawings
