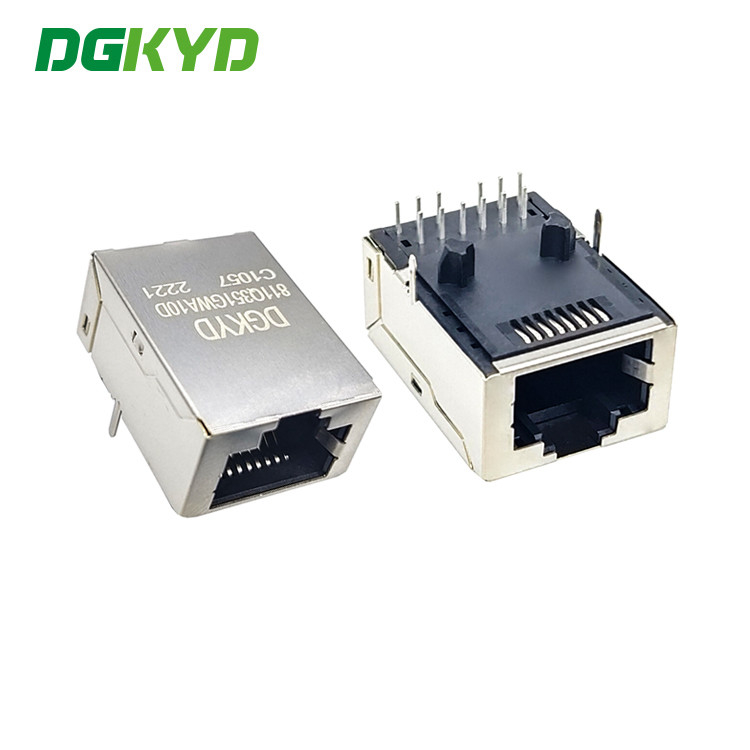

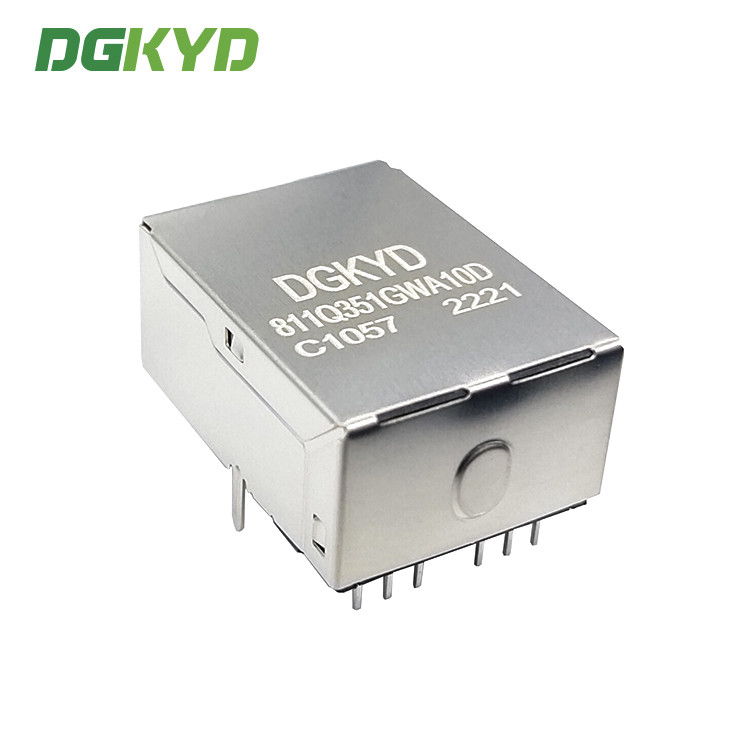

DGKYD811Q351GWA10DC1057 10G Rj45 Network Connector 8P8C Female Connector With Shrapnel Rj45 Modular Block Socket

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD811Q351GWA10DC1057

Detail Information

Product Type: RJ45 10G Connector Encapsulation Method: Single In-line Package
PCB Mount Style: DIP Insulator Material: RJ45 Crystal Head
Contact Material: LCP Number Of Pins: 12
Number Of Cores: 8 Dimension (mm): 17.78* 24.13*11.3mm
Gold Plating On Contact Pins: 50U Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

DGKYD811Q351GWA10DC1057

,

Female RJ45 With Transformer

,

Network RJ45 With Transformer

Product Description

DGKYD811Q351GWA10DC1057 10G rj45 network connector 8P8C female connector with shrapnel rj45 modular block socket



Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



 Parameters

Part Number

DGKYD811Q351GWA10DC1057

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions  12
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

DGKYD811Q351GWA10DC1057 10G Rj45 Network Connector 8P8C Female Connector With Shrapnel Rj45 Modular Block Socket 0DGKYD811Q351GWA10DC1057 10G Rj45 Network Connector 8P8C Female Connector With Shrapnel Rj45 Modular Block Socket 1DGKYD811Q351GWA10DC1057 10G Rj45 Network Connector 8P8C Female Connector With Shrapnel Rj45 Modular Block Socket 2

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
